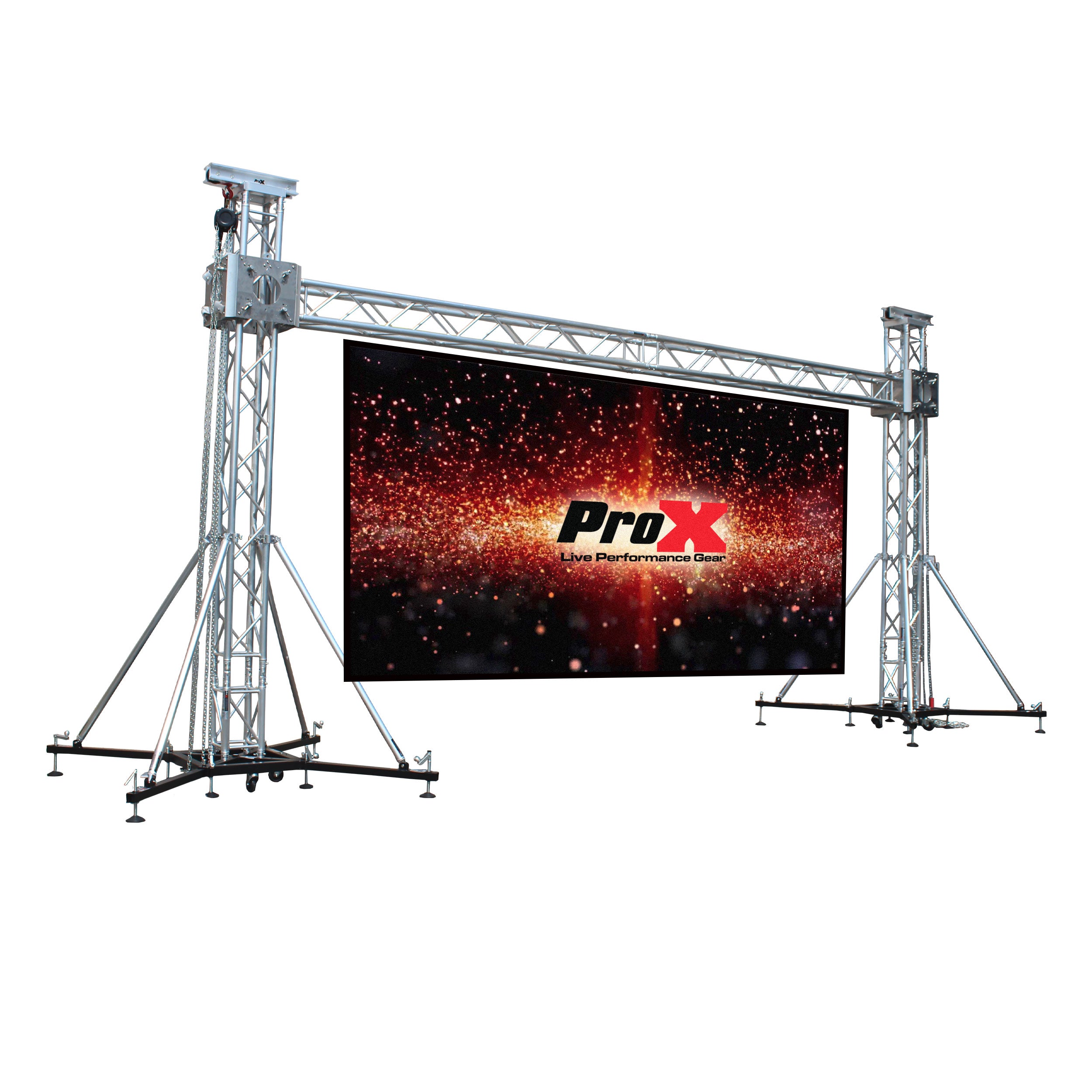

The ProX XTP-GS2023 LED Panel Support System package is 20'W x 23'H and constructed with our heavy-duty Aluminum XT truss combined with our modular ground support towers as well as the GSBPACK3 Lift System. (LED WALL NOT INCLUDED)
This Indoor / outdoor Truss Ground Support System is designed to fly LED Screen Display Panel Video Wall
The ProX XT-SQ Series Truss is one of the most trusted staging support systems in the industry and is built to the highest standards of safety and performance. It's a rugged and durable trussing solution perfect for live outdoor productions, nightclubs, and permanent installations. ProX XT Series Truss compares favorably to the other major trussing manufacturers. We manufacture with EN-AWT6 6082 Aluminum for safety and strength. Our XT series F34 square truss utilizes a standard conical connector system, which easily mates with other brands of the truss of the same size and connector type, and is available in a variety of lengths to suit your designs -- while our outstanding quality control and manufacturing techniques assure excellent fitment at every connection. ProX offers a wide variety of corners, base plates, connectors and accessories that add stability while expanding on limitless design configurations.
XT-SQ SERIES DIMENSIONS:
- Height: 11.42in / 290mm
- Width: 11.42in / 290mm
- Weight: 21lb per 3.28 ft / 9,5kg per meter
- Main Tube: 2in / 50mm
- Wall Thickness: .08in / 2mm
- Braces: .75in / 20mm
- Tolerance Free Standard Conical connector
- Main tube wall thickness of .08in
Includes:
2 XTP-GSBPACK3
6 XT-SQ984 9.84ft (3.00m) Square Truss Segment With Connecting Hardware
1 XT-MCH1TX2-30FT Sets of 2 1T Manual Chain Stage Hoist with 30ft Chain
----------------------------------------------------------------------------------------------------------------
Always know your load weight for your equipment: VERY IMPORTANT - CLICK HERE for Truss Loading Chart.
WARNING: All ProX products are made with the highest safety standards with TUV certified welding. For the safety of your people, event, and equipment, it is crucial to have a professional rigger install and verify the truss loading chart before use. Improper installation may result in damage or injury. The ballast and the guy wire assembly must be installed per the engineering drawings to meet certification requirements. ProX is not responsible for damages caused by misuse or improper installation. Don't compromise on safety, hire a professional rigger.
- Manufactured in our Own Factory!
- Material: EN-AWT6 6082 Aluminum
- TUV Certified Aluminium Welding
ProX Truss products utilize industry-standard dimensions to be compatible to connect to/with many other manufacturers F34 trussing products.
TUV Is a 3rd Party Certification Body and a Nationally Recognized Testing Laboratory (NRTL). TUV provides inspections, testing, certification & training, with the ultimate objectives of reliability, safety & high quality.
