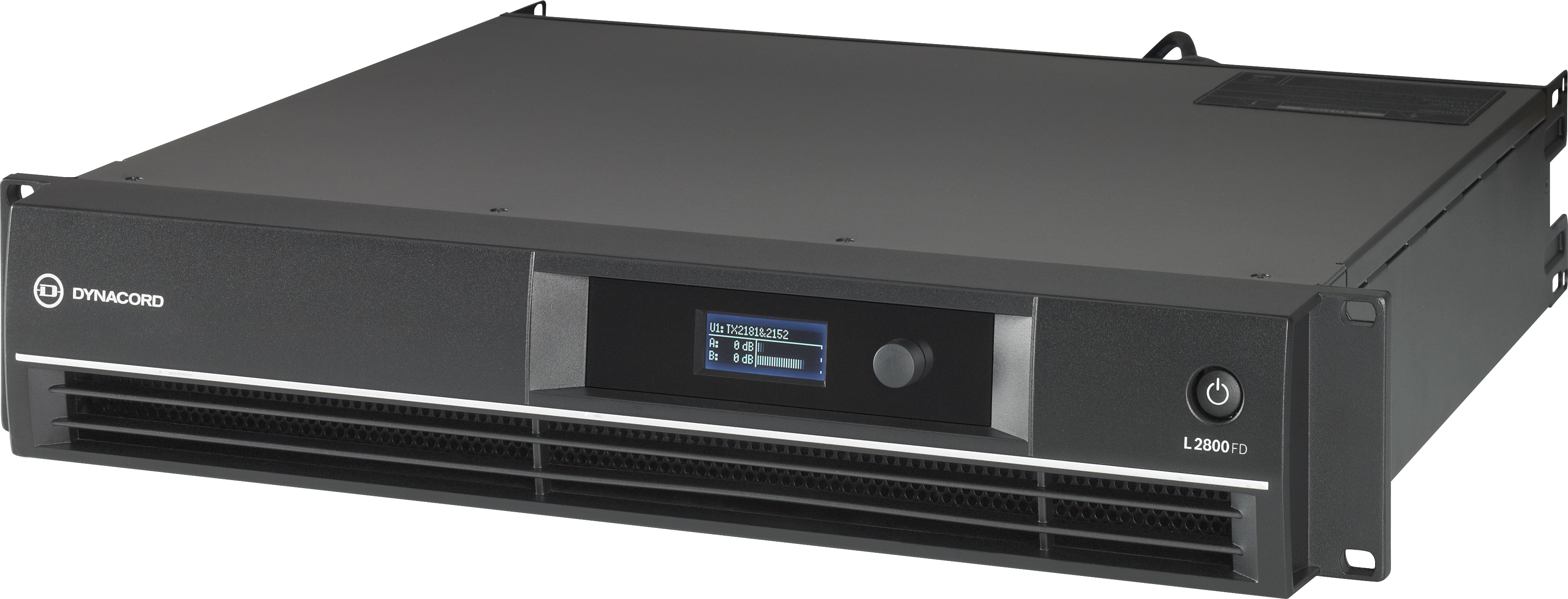

Name: Dynacord L2800FD-US – DSP 2 x 1400 w power amplifier for live performance applications
Brand: Dynacord
SKU: L2800FD-US
Price: 1679.00 USD
Availability: InStock

Dynacord L2800FD-US – DSP 2 x 1400 w power amplifier for live performance applications

$1,679.00

$1,679.00 $2,095.00

Dynacord

L2800FD-US – DSP 2 x 1400 w power amplifier for live performance applications

Overview

DSP 2 x 1400 w power amplifier for live performance applications

Highlights

✓Professional DSP amplifier for live and mobile application
✓Fully integrated professional speaker processing with FIR drive technology
✓Market-leading acoustic performance and rock solid reliability
✓Intuitive, simplified set-up, control and operation in SONICUE sound system software with firmware 2.0

Specifications

Load Impedance	2 Ω 2.7 Ω 4 Ω 8 Ω
Maximum Output Power, Single Channel	2300 W 2000 W 1400 W 700 W
Maximum Output Power, Dual Channel	2200 W 1800 W 1300 W 650 W
Maximum Output Power, Bridged	- - 4400 W 2600 W
Specifications Maximum RMS Voltage Swing THD = 1%, 1 kHz	78.8 V
Voltage Gain Ref.1 kHz	32.0 dB
THD at 900 W/4 Ω MBW = 80 kHz, 1kHz	< 0.05%
IMD-SMPTE, 60 Hz, 7 kHz	< 0.1%
DIM30, 3.15 kHz, 15 kHz	< 0.05%
Maximum Input Level	+21 dBu
Crosstalk ref. 1 kHz, at 100W/4 Ω	< -80 dB
Frequency Response, ref. 1 kHz	10 Hz to 21 kHz (±1 dB)
Input Impedance, Active Balanced	20 k Ω
Signal to Noise Ratio Amplifier, A-weighted, ref to Max. Output Power@ 8 Ω	>107 dB
Output Noise, A-weighted	< -68 dBu
Output Stage Topology	Class H
Power Requirements	240 V, 230 V, 120 V or 100 V; 50 Hz to 60 Hz(factory configured)
Power Consumption ⅛ Maximum Output Power @ 4 Ω	700 W
