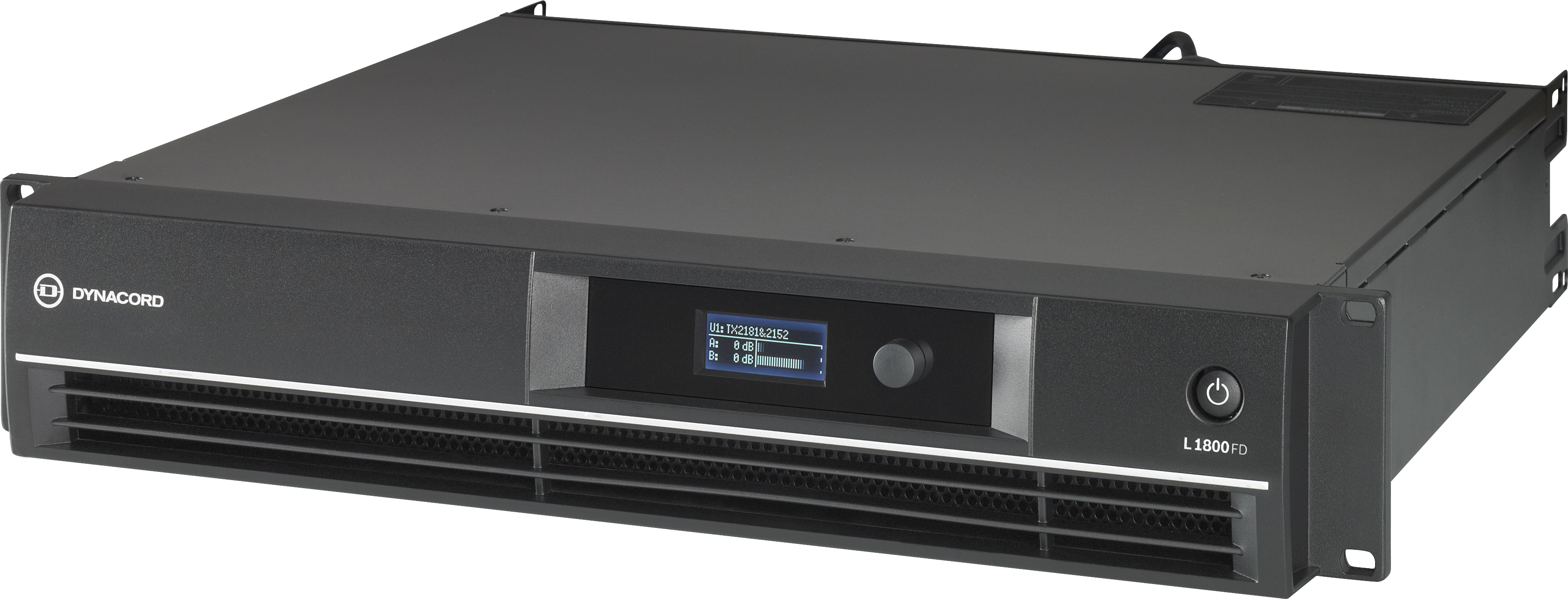

Dynacord L1800FD-US

Dynacord L1800FD-US – DSP 2 x 950 w power amplifier for live performance applications

$1,319.00 $1,656.00
Skip to product information
Dynacord L1800FD-US
  • Dynacord L1800FD-US
  • Dynacord L1800FD-US
Dynacord L1800FD-US – DSP 2 x 950 w power amplifier for live performance applications

Dynacord L1800FD-US – DSP 2 x 950 w power amplifier for live performance applications

$1,319.00 $1,656.00

Dynacord

L1800FD-US – DSP 2 x 950 w power amplifier for live performance applications

Overview

DSP 2 x 950 w power amplifier for live performance applications

Highlights

  • ✓Professional DSP amplifier for live and mobile application
  • ✓Fully integrated professional speaker processing with FIR drive technology
  • ✓Market-leading acoustic performance and rock solid reliability
  • ✓Intuitive, simplified set-up, control and operation in SONICUE sound system software with firmware 2.0

Specifications

Load Impedance 2 Ω 2.6 Ω 4 Ω 8 Ω
Maximum Output Power, Single Channel 1600 W 1300 W 950 W 480 W
Maximum Output Power, Dual Channel 1400 W 1200 W 850 W 450 W
Maximum Output Power, Bridged — — 2800 W 1700 W
Specifications Maximum RMS Voltage Swing THD = 1%, 1 kHz 65.1 V
Voltage Gain Ref.1 kHz 32.0 dB
THD at 600 W/4 &Omega; MBW = 80 kHz, 1 kHz < 0.05%
IMD-SMPTE, 60 Hz, 7 kHz < 0.1%
DIM30, 3.15 kHz, 15 kHz < 0.05%
Maximum Input Level +21 dBu
Crosstalk ref. 1 kHz, at 100 W/4 &Omega; < -80 dB
Frequency Response, ref. 1 kHz 10 Hz to 21 kHz (&plusmn;1 dB)
Input Impedance, Active Balanced 20 k &Omega;
Signal to Noise Ratio Amplifier, A-weighted, ref to Max. Output Power @ 8 &Omega; >105 dB
Output Noise, A-weighted < -68 dBu
Output Stage Topology Class AB
Power Requirements 240 V, 230 V, 120 V or 100 V; 50 Hz to 60 Hz (factory configured)
Power Consumption 1/8 Maximum Output Power @ 4 &Omega; 700 W

Product identifiers

SKU L1800FD-US
