Specifications

Light Source:

• 448 x 0.5-Watt RGB SMD LEDs + 112 x 5-Watt Cool White SMD LEDs
• 76.6° Beam Angle (Full On) (See Full Photometric Reports in Downloads Section)
• 92° Field Angle (Full On) (See Full Photometric Reports in Downloads Section)
• RGB LEDs: Red: 620-630nm; Green: 515-530nm; Blue: 460-470nm;
• White LEDs CCT: Typical 7400K (Min 6900 - Max 8000), 472nm
• CRI: 86
• 50,000 Hour Average LED Life

Features:

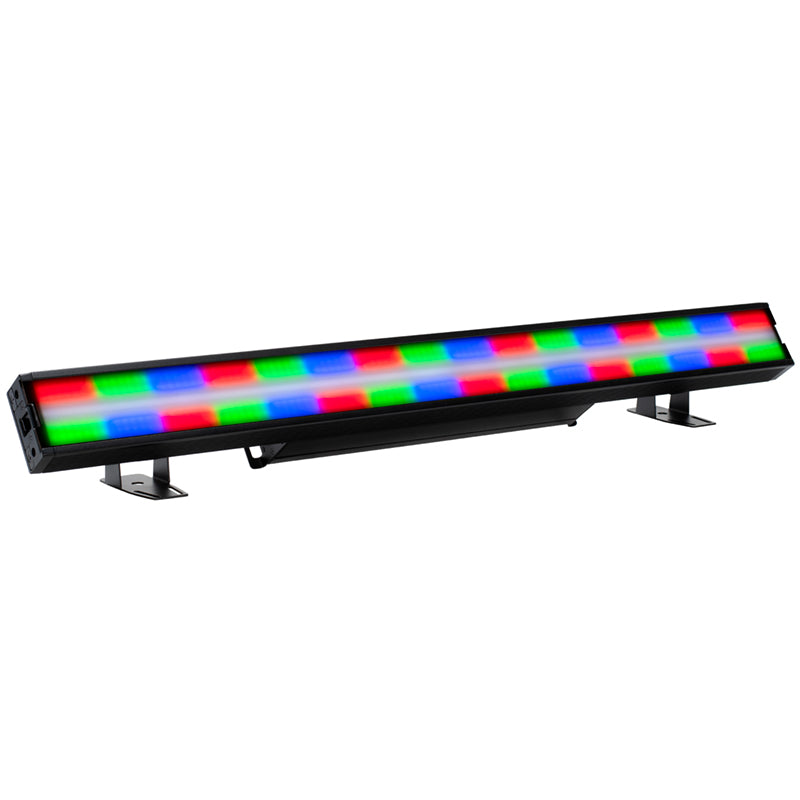

• 32 x RGB LED Zones (112, 127 and 129CH Modes)
• 16 x Cool White LED Zones (64, 78, 80, 112, 127 and 129CH Modes)
• 67 Built-In Color Temperature Presets (2300K-8900K)
• 25 Built-in RGB LED Program Macros
• 9 Built-in Cool White LED Program Macros

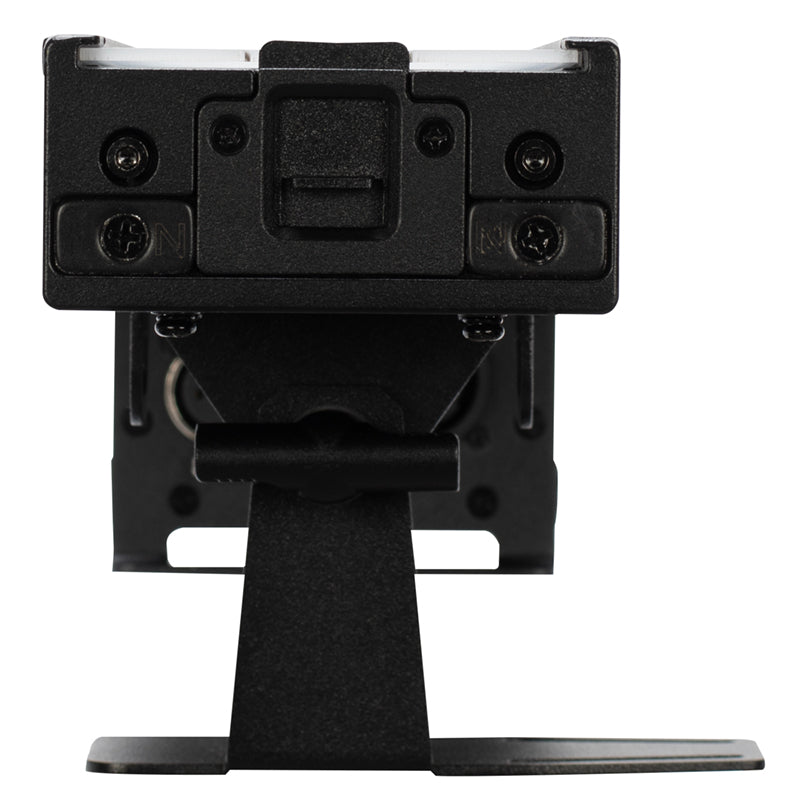

• 180 degree mounting bracket system
• Aria X2 Wireless Management System Built-in

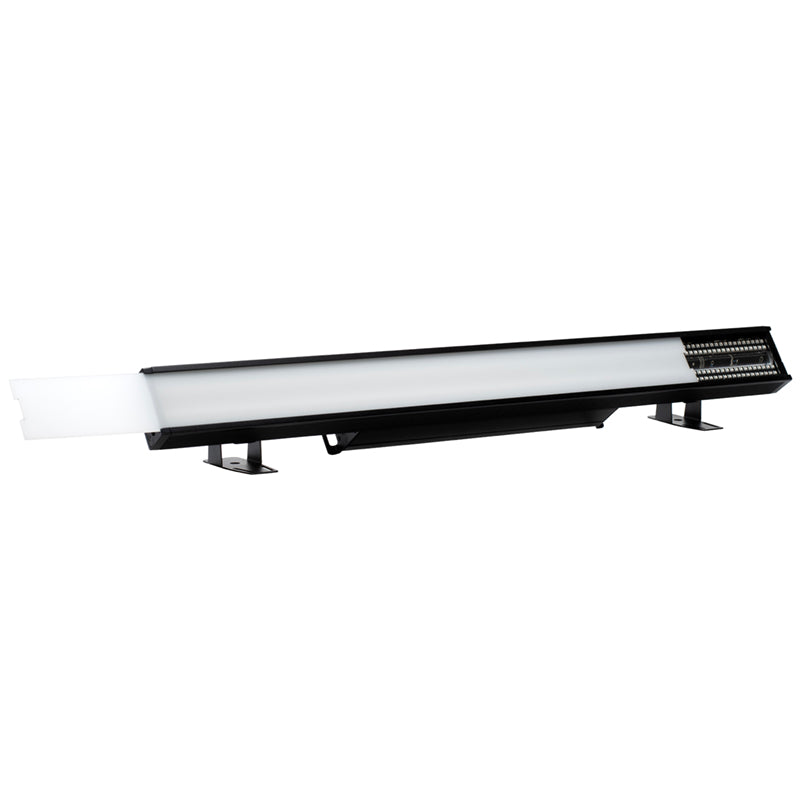

• Frost Lens Assembly
• Includes Alignment Bracket to attached units together side by side

Control:

• Control Protocols: DMX, Aria X2 and RDM
• 17 DMX Channel Modes: 6, 9, 13, 16, 18, 20, 32, 34, 38, 43, 45, 64, 78, 80, 112, 127 and 129
• Dim Modes: 6 Presets (Standard, Stage, TV, Architectural, Theatre Stage 2)
• Dim Curves: 4 Presets (Linear, Square Law, Inv Square Law and S Curve)
• 0-100% Smooth Dimming
• Strobe: Ramp Up / Down, Lighting and Random
• Max Strobe Rate 25Hz; Min Strobe Rate: 0.35Hz
• Refresh Rate: 900Hz - 25kHz
• With Wired Digital Communication Network

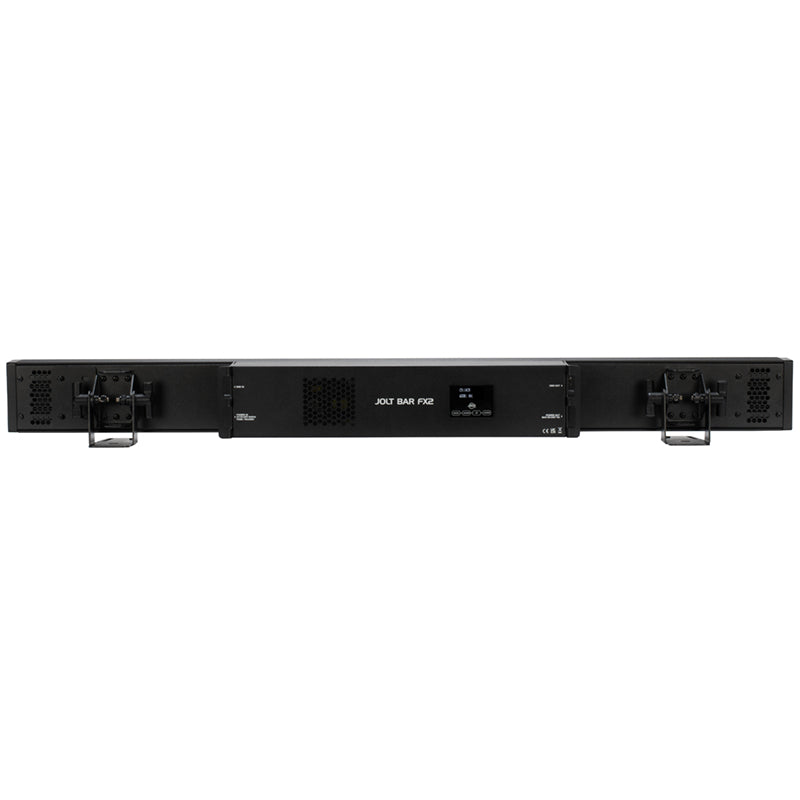

• Display: OLED Menu (with 4 touch buttons)

Connections:

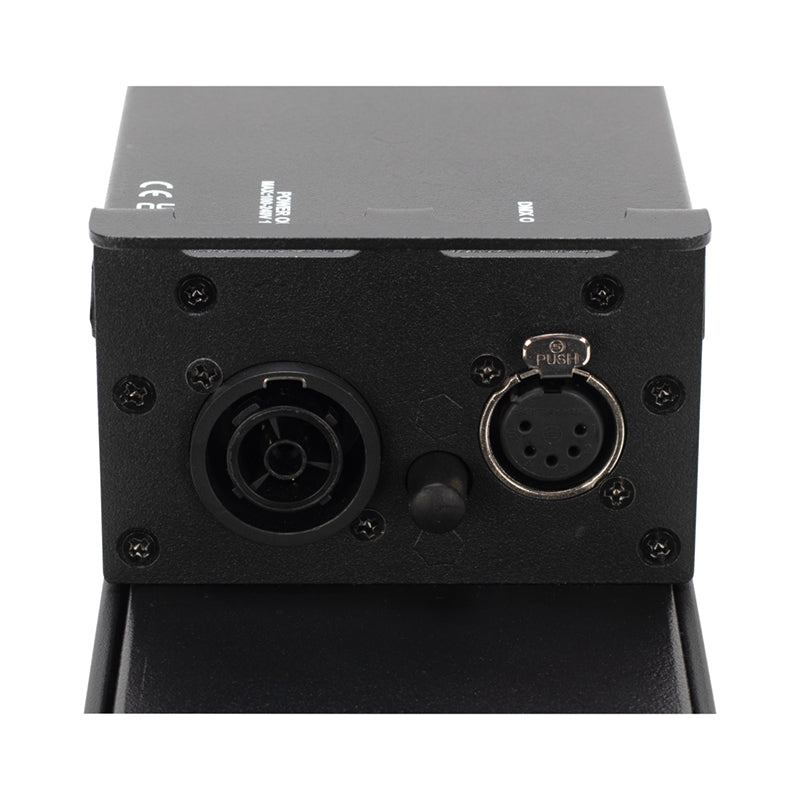

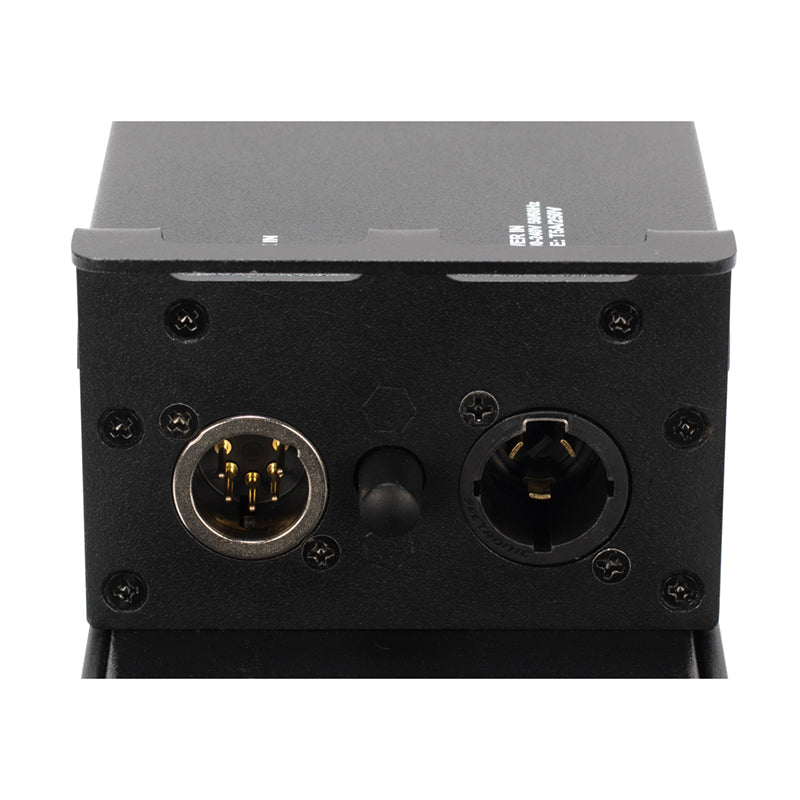

• Data: IP65-rated locking 5-pin DMX In/Out
• Power: IP65 Locking Power In/Out

Electrical:

• 100-240V 50Hz/60Hz (Auto Sensing)
• Max Power Consumption: 214W @120V, 208W @230V
• Max Power Link: 5pcs @110V/120V, 11pcs @220V/240V
• Fuse Protected: T5A/250V Glass Fuse (5*20MM)

Dimensions / Weight:

• Length: 39.4" (1000mm)
• Width: 4.07” (103.5mm)
• Height: 3.98” (101mm)
• Weight: 13 lbs. ( 5.9 kg)

What’s Included:

• 1 x IP65 Locking Power Cable
• 1 x Frost Filter
• 2x 107mm Omega Receiver Brackets

(Omega Clamps sold separately)

Optional Accessories:

• 107mm Omega Bracket (Sku: Z-8050000053)

*2 Omega Brackets required per unit.

• JBFXBLKF (Sku: JBF049 - Black Filter for Jolt Bar FX2 and Jolt Bar FXIP)
• JBFX1X60LF (Sku: JBF036 - 1X60° Linear Effect Filter for Jolt Bar FX2 and Jolt Bar FXIP)
• JBFX60X1LF (Sku: JBF062 - 60X1° Linear Effect Filter for Jolt Bar FX2 and Jolt Bar FXIP)

Approvals and Ratings:

• CE
• cETLus (Control # 4010765)
• IP20

Specifications subject to change without notice.
