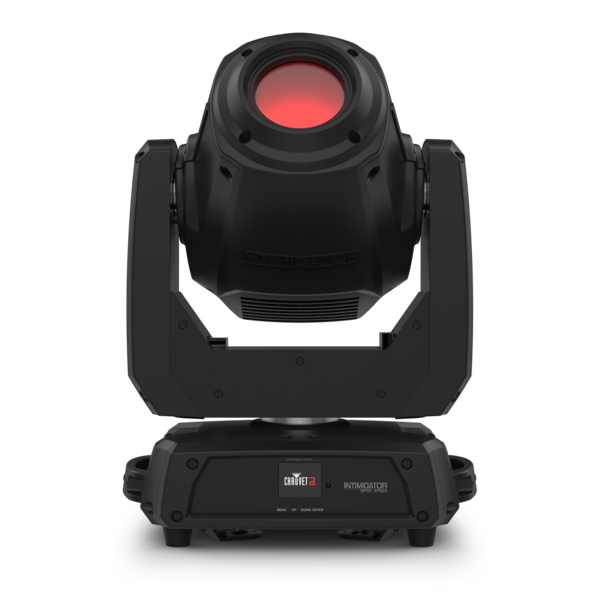

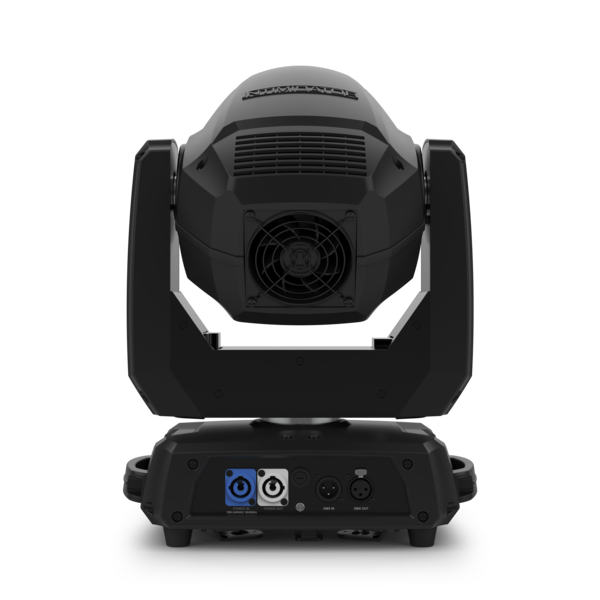

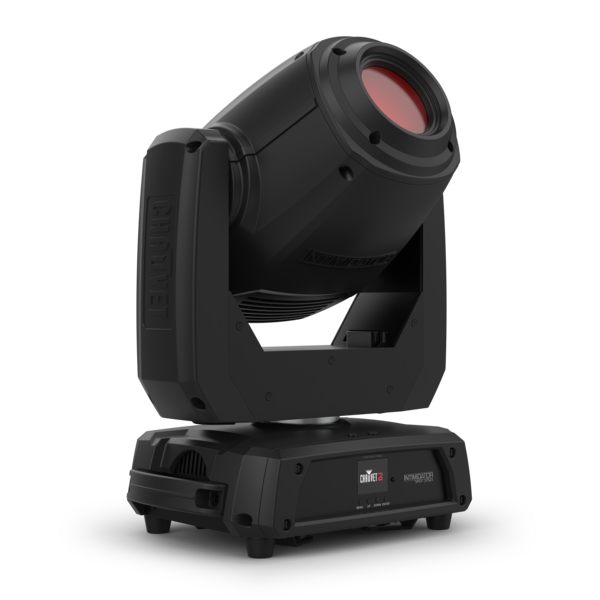

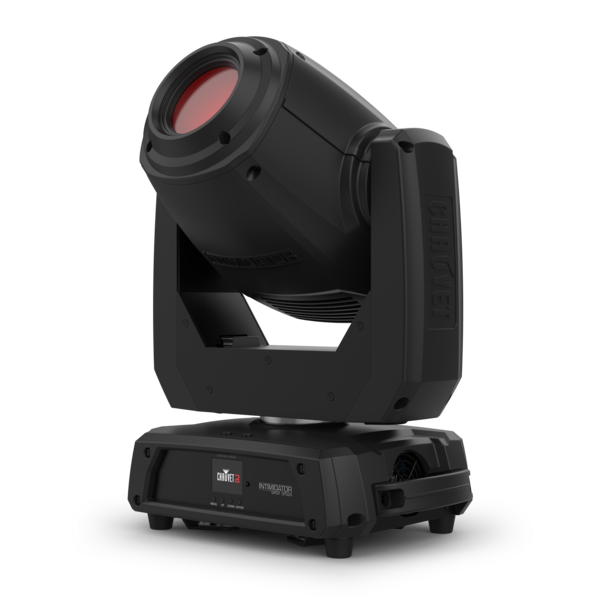

Intimidator Spot 375ZX

Intimidator Spot 375ZX

Intimidator Spot 375ZX

$1,459.99 $1,604.38

Intimidator Spot 375ZX

Compact moving head designed for large events

Product Features

Compact moving head designed for large events
Built-in RF receiver for wireless control using the RFC or RFC-XL optional remotes
New home position allows for smoother programming
Dual rotating prisms split the beam for great effects and cover a larger area
Motorized zoom for short or long throw applications
¼-turn hanging bracket allows for single or dual clamp mounting options
Project crisp gobos from nearly any distance with the motorized focus
Beams always remain on the dance floor using the built-in, innovative Totem mode
Set, save, and recall 1 scene manually, directly from the full- color LCD display
powerCON®-compatible power input/output connections saves setup time
Fits best in the Intimidator Road Case

Specifications

Weight 27.2 lb (12.4 kg)

DMX Channels 9 or 15

Size 12.7 x 8.7 x 18.3 in (322 x 220 x 466 mm)

DMX Connectors 3-pin XLR

Pan and Tilt 540°/270°

Pan and Tilt Ranges 540°, 360°, 180° pan/270°, 180°, 90° tilt

Colors 7 + white, split colors, continuous scroll at variable speeds

Gobos 7 + open (6 metal + 1 glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds

Gobo Size 24 mm outside, 20 mm image, 1.1 mm max thickness

Prism 5-facet linear, bi-directional at variable speeds

Prism 6-facet round, bi-directional at variable speeds

Light Source 1 LED (cool white) 200 W, (16 A), 50,000 hours life expectancy.

Strobe Rate 0 to 20 Hz

Zoom Angle (motorized) 10° to 23°

Illuminance (10°) 36,801 lux @ 2 m

Illuminance (23°) 21,115 lux @ 2 m

Color Temperature 15,000 K

Lumens 7,161

Power Linking 4 units @ 120 V; 8 units @ 230 V

Input Voltage 100 to 240 VAC, 50/60 Hz (auto-ranging)

Power and Current 354 W, 3.1 A @ 120 V, 60 Hz

Power and Current 337 W, 1.6 A @ 230 V, 50 Hz

Optional Controllers RFC, RFC-XL

Approvals CE, UKCA, RoHS, MET
