• Compact moving head designed for mobile events
• Built-in RF receiver for wireless control using the RFC or RFC XL optional remotes
• New home position allows for smoother programming
• Dual rotating prisms split the beam for great effects and cover a larger area
• Manual zoom for short or long throw applications
• ¼-turn hanging bracket allows for single or dual clamp mounting options
• Project crisp gobos from nearly any distance with the motorized focus
• Beams always remain on the dance floor using the built-in, innovative Totem mode
• Set, save, and recall 1 scene manually, directly from the full- color LCD display

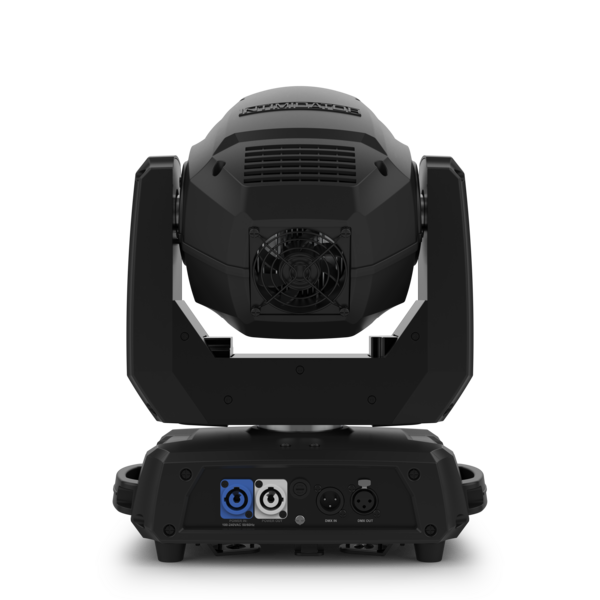

• powerCON®-compatible power input/output connections saves setup time
• Fits best in the CHS-360 VIP carry bag or the Intimidator Road Case

Specifications

• Weight: 25 lb (11.4 kg)
• DMX Channels: 8 or 14
• Size: 12.7 x 8.7 x 16.7 in (322 x 220 x 423 mm)
• DMX Connectors: 3-pin XLR
• Pan and Tilt: 540°/270°
• Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt
• Colors: 8 + white, split colors, continuous scroll at variable speeds
• Gobos: 7 + open (6 metal + 1 glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
• Gobo Size: 24 mm outside, 20 mm image, 1.1 mm max thickness
• Prism: 5-facet linear, bi-directional at variable speeds
• Prism: 3-facet round, bi-directional at variable speeds
• Light Source: 1 LED (cool white) 100 W, (4.3 A), 50,000 hours life expectancy
• Strobe Rate: 0 to 20 Hz
• Zoom angle (manual): 12° to 17°
• Illuminance (12°) : 41,601 lux @ 2 m
• Illuminance (17°) : 22,534 lux @ 2 m
• Lumens : 3,967
• Color Temperature: 15,000 K
• Power Linking: 5 units @ 120 V; 8 units @ 230 V
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 217 W, 2.6 A @ 120 V, 60 Hz
• Power and Current: 211 W, 1.5 A @ 230 V, 50 Hz
• Optional Controllers: RFC, RFC-XL
• Approvals : CE, UKCA, RoHS, MET
