• Compact moving head designed for mobile events
• Built-in RF receiver for wireless control using the RFC or RFC-XL optional remotes
• New home position allows for smoother programming
• ¼-turn hanging bracket allows for quick removal when needed
• Project crisp gobos from nearly any distance with the motorized focus
• Manual zoom for short or long throw applications
• 3-facet prism splits the beam and covers a larger area
• Beams always remain on the dance floor using the built-in, innovative Totem mode
• Set, save, and recall 1 scene manually, directly from the full color LCD display
• Link up to 4 fixtures to create eye-catching, synchronized shows in Automated or Sound mode

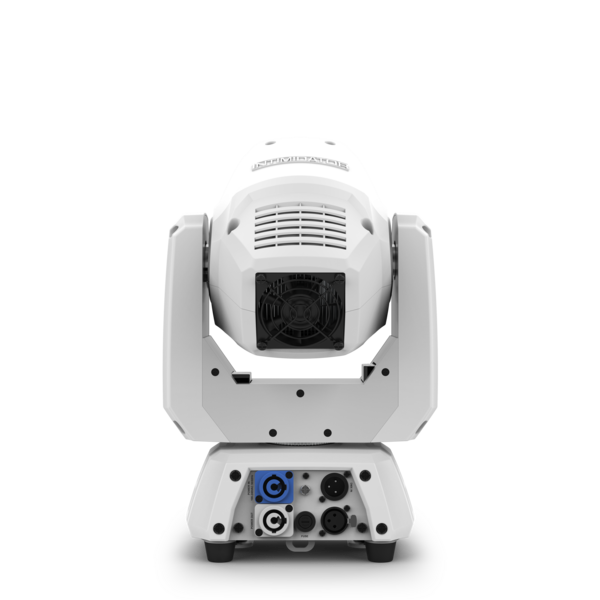

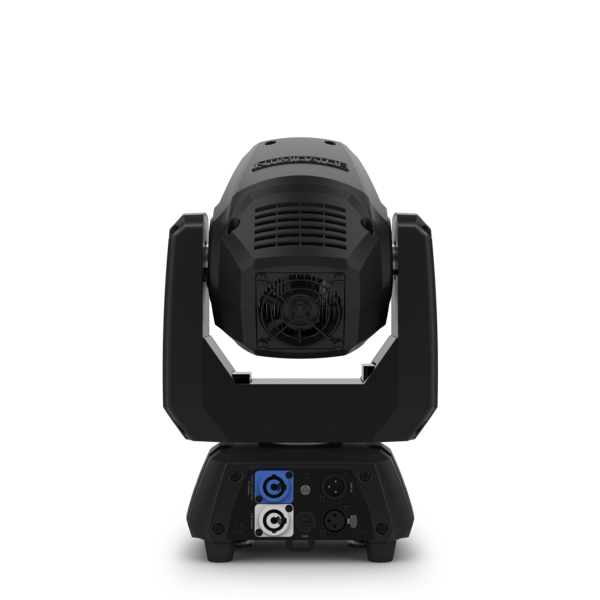

• powerCON®-compatible power input/output connections saves setup time
• Fits best in the CHS-2XX VIP Gear Bag

Specifications

• Weight: 12.2 lb (5.6 kg)
• DMX Channels: 8 or 14 • Size: 9.1 x 6.4 x 13.8 in (232 x 163 x 351 mm)
• DMX Connectors: 3-pin XLR
• Pan and Tilt: 540°/234°
• Pan and Tilt Ranges: 540°, 360°, 180° pan/234°, 180°, 90° tilt
• Colors: 8 + white, split colors, continuous scroll at variable speeds
• Gobos: 7 + open (6 metal + 1 glass), rotating, interchangeable, slot-n-lock, continuous scroll at variable
• Gobo Size: 24 mm outside, 20 mm image, 1.1 mm max thickness
• Light Source: 1 LED (cool white) 75 W, (3.3 A), 50,000 hours life expectancy
• Prism: 3-facet round, static
• Strobe Rate: 0 to 20Hz
• Zoom angle (manual): 12° to 17°
• Illuminance (12°) : 17,458 lux @ 2 m
• Illuminance (17°) : 12,848 lux @ 2 m
• Color Temperature: 15,000 K
• Power Linking: 7 units @ 120 V; 11 units @ 230 V
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 124 W, 1.8 A @ 120 V, 60 Hz
• Power and Current: 128 W, 1 A @ 230 V, 50 Hz
• Bracket Mounting Hole: 13 mm
• Optional Controllers: RFC, RFC-XL
• Approvals : CE, UKCA, RoHS
