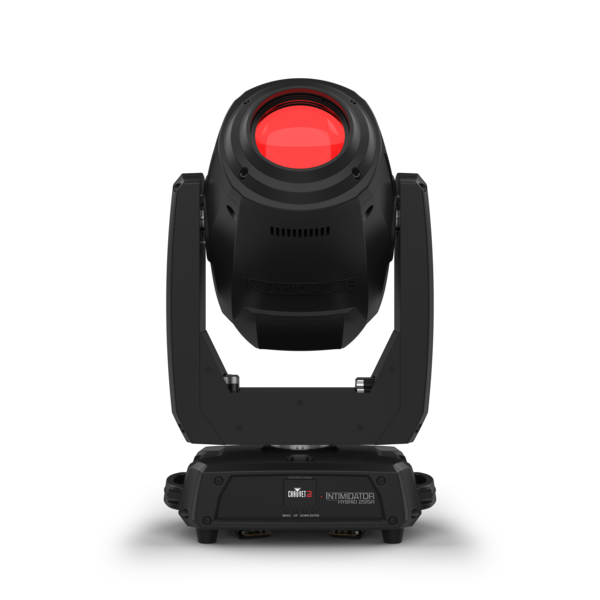

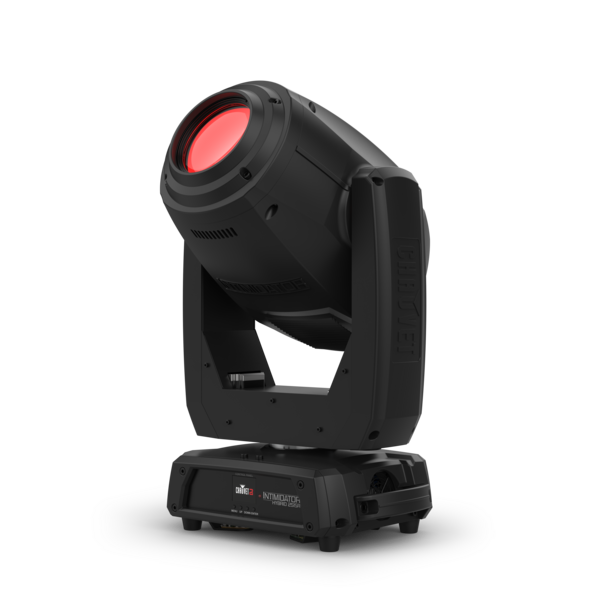

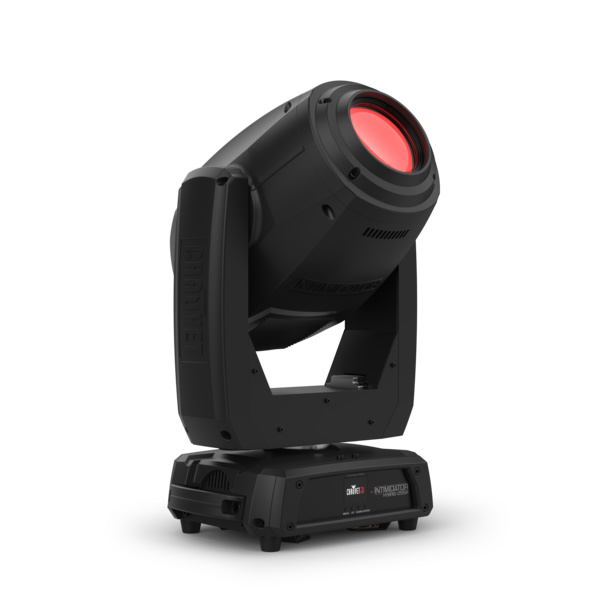

• True hybrid moving head fitted with an intense 251 W discharge light engine
• All-in-one light fixture morphs from SPOT to BEAM to WASH effortlessly
• Dual, overlapping prisms with independent control multiply the beam dynamics
• Dual gobo wheels allow for gobo morphing and amazing mid-air projections
• Motorized zoom works in beam, spot and wash modes for ultimate light control
• Unique ¼-turn hanging bracket allows for single or dual clamp mounting options
• Emit crisp projections at almost any distance using the motorized focus
• Glass optics ensure crisp beams and gobos at all times
• Full-color display with RF compatibility, totem mode and onboard memory for storing a scene

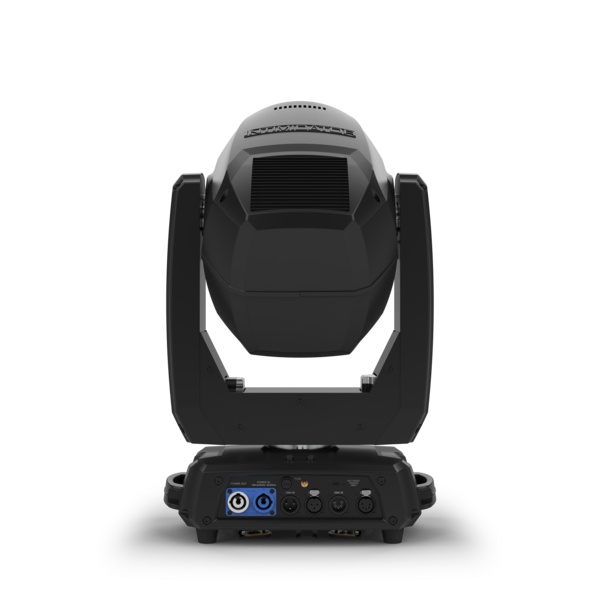

• powerCON®-compatible power input/output connections for power linking

Specifications

• Weight: 35.6 lb (16.1 kg)
• Size: 12.6 x 8.6 x 21.6 in (322 x 220 x 549 mm)
• DMX Channels: 13 or 19 • Optional Controllers: RFC-XL
• DMX Connectors: 3- and 5-pin XLR
• Pan and Tilt: 540°/270°
• Pan and Tilt Ranges: 180°, 360°, 540° pan/90°, 180°, 270° tilt
• Colors: 12 + open, split colors, continuous scroll at variable speeds
• Gobo wheel (1): 9 + open, rotating, indexing, interchangeable, slot-n-lock, continuous scroll at variable speeds
• Gobo wheel (2): 17 + open, aluminum, continuous scroll at variable speeds
• Gobo Size (rotating): 13.7 mm outside, 10 mm image, 0.8 mm max thickness
• Prism (1): 5-facet round, bidirectional rotation at variable speeds
• Prism (2): 6-facet linear, bidirectional rotation at variable speeds
• Light Source: Osram SIRIUS HRI® 251W discharge lamp (3,000 hrs)
• Strobe Rate: 0 to 20 Hz
• Zoom Angle (beam): 1° to 3°
• Zoom Angle (spot): 12° to 23°
• Zoom Angle (wash): 7° to 19°
• Illuminance (1° beam): 500,411 lux @ 5 m
• Illuminance (12° spot): 376,927 lux @ 5 m
• Illuminance (7° wash): 8,038 lux @ 5 m
• Power Linking: 3 units @ 120 V; 5 units @ 230 V
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 358 W, 3.6 A @ 120 V, 60 Hz
• Power and Current: 344 W, 2.3 A @ 230 V, 50 Hz
• Approvals: CE, MET, ROHS
