Specifications

Source:

• 40W White LED Source (9500K) @ 50,000 hours.
• CRI: 80
• LUX: 4121

Features:

• High quality optics - Clear powerful output
• Adjustable beam angle: 15-30 degrees
• Manually adjustable Focus
• 4 manually adjustable Framing Shutters
• Drop in Gobo Slot for Metal or Glass Gobos

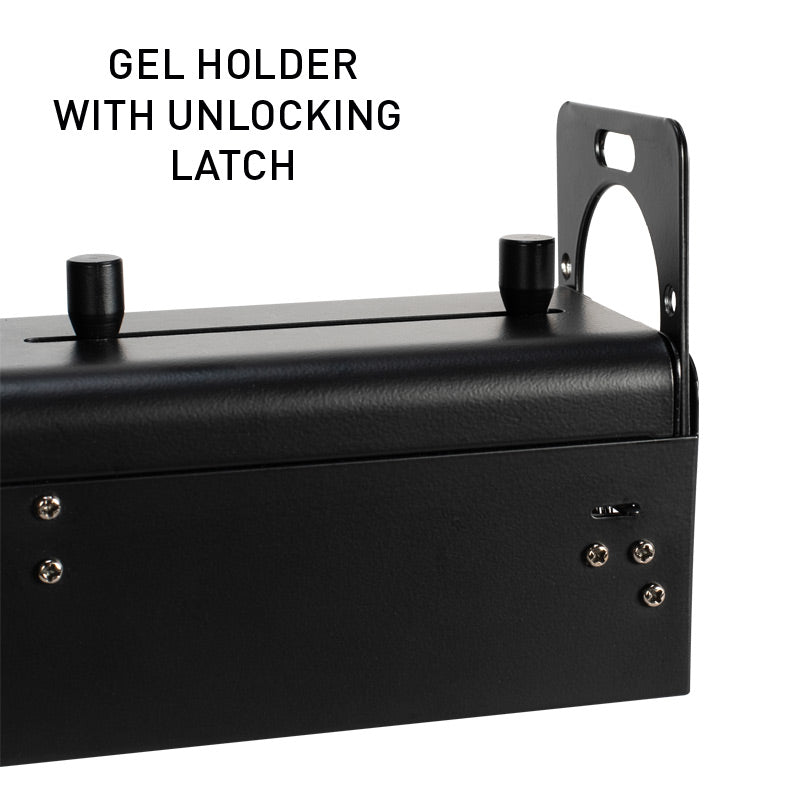

• Color Frame For Color Filters
• Run all night – No Duty Cycle
• Compatible with UC IR wireless remote control (included)

GOBO:

• Includes one textured glass GOBO

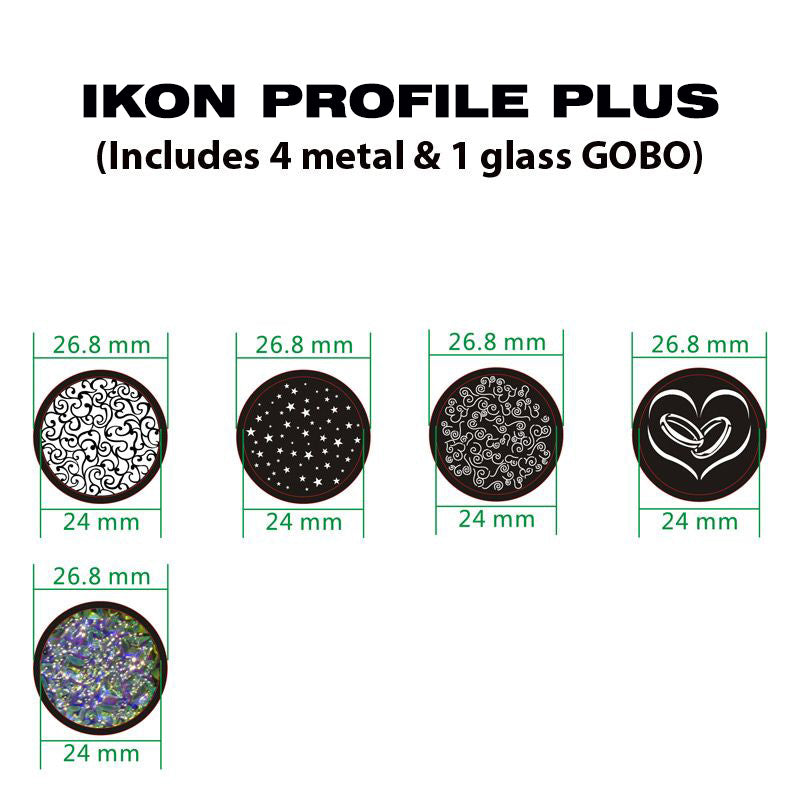

• GOBO size: 26.8mm; Viewable size: 24mm

Control:

• 2 DMX Channel Modes (3 Ch, 4 Ch)

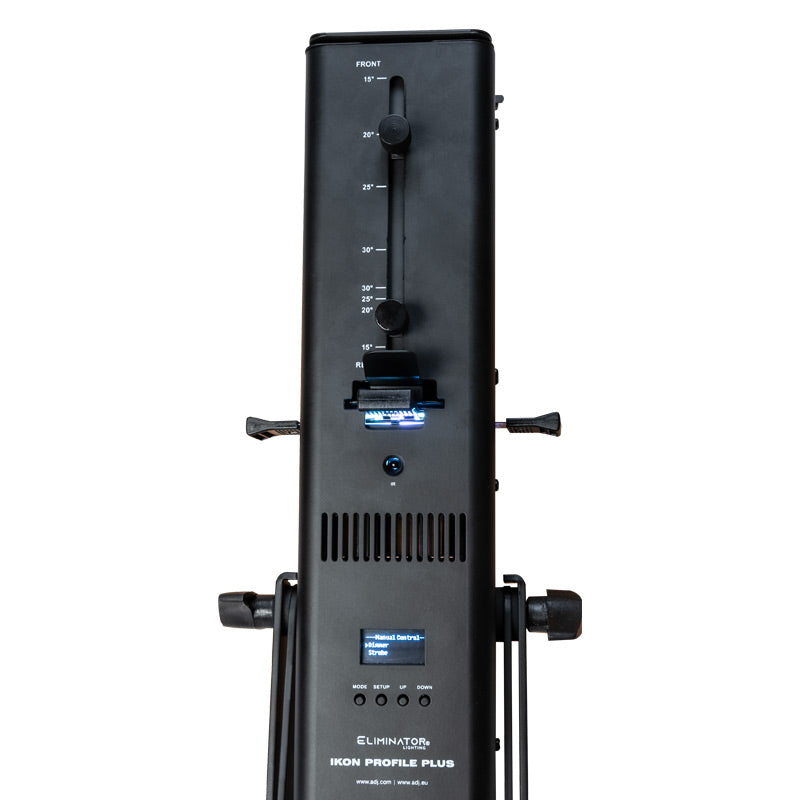

• Digital display with 4-button function menu
• RDM (Remote Device Management)
• 0-100% Dimming
• Strobe and pulse effects
• 6 Dimmer Curves
• With Wired Digital Communication Network

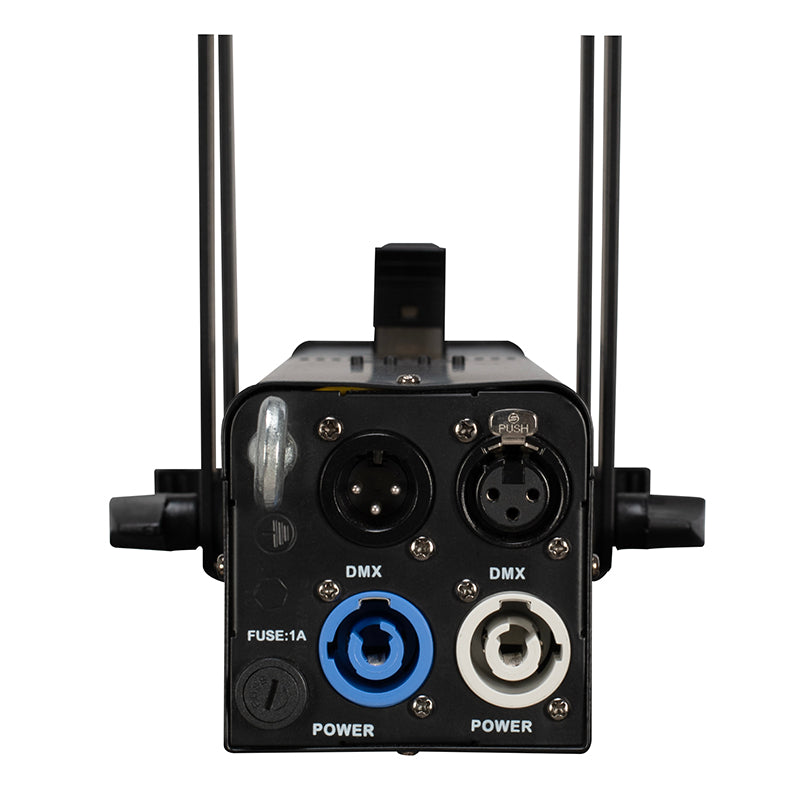

Connections:

• 3-pin DMX In/Out
• Locking power In/Out
• Safety Eyelet on Rear

Electrical:

• Multi-voltage: 100-240V, 50/60Hz
• Power consumption: 44W max
• Daisy chain power (up to 14 Ikon Profile Plus @ 120V and 24 Ikon Profile Plus @ 230V)

Dimensions Weight:

• Dimensions (LxWxH): 17.75” x 6” x 5”/ 448 x 150 x 127mm
• Weight: 6 lbs. / 2.7 kg.

What’s Included:

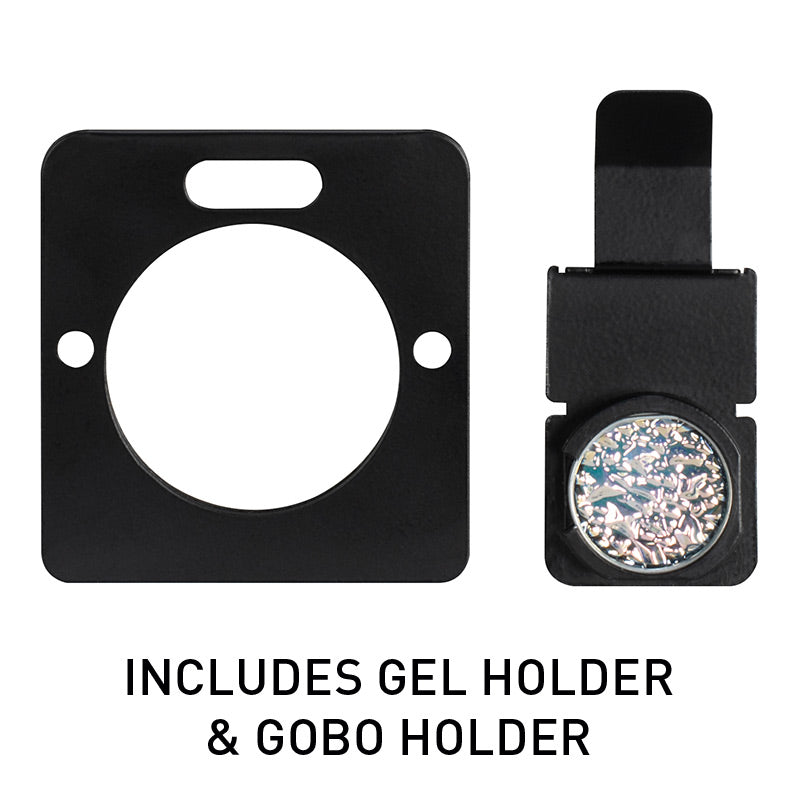

• Includes 1 Glass Gobo, 4 Metal Gobo's and 1 Gobo holder

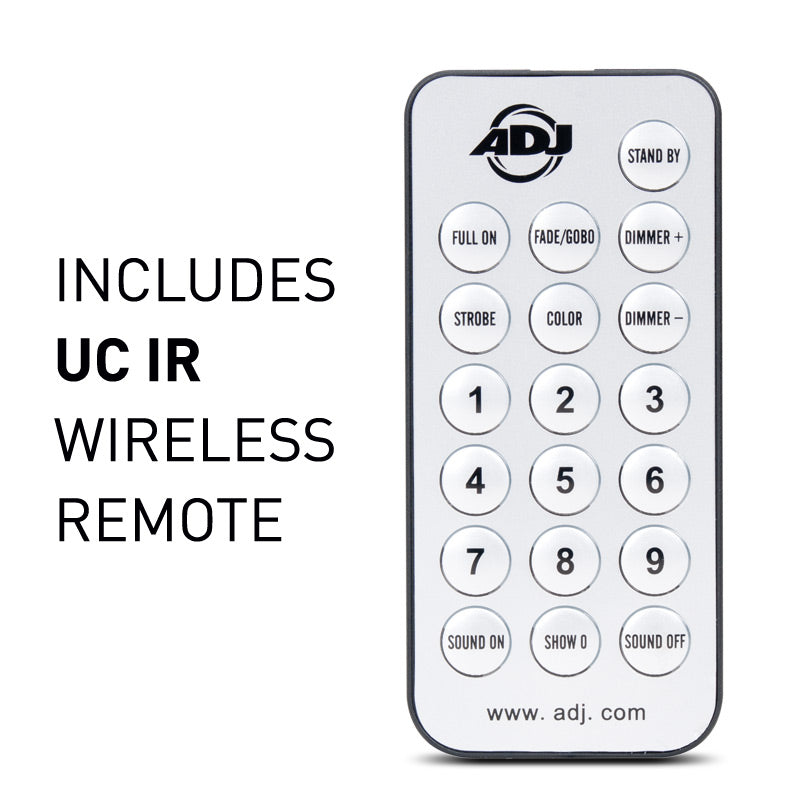

• UC-IR wireless remote
• Gel filter
• Includes scissor yoke to mount on a wall or hang from trussing
• Locking power cord

Approvals / Ratings:

• CE Compliant
• ETL Approved (Control #4002034)

Specifications are subject to change without notice.
