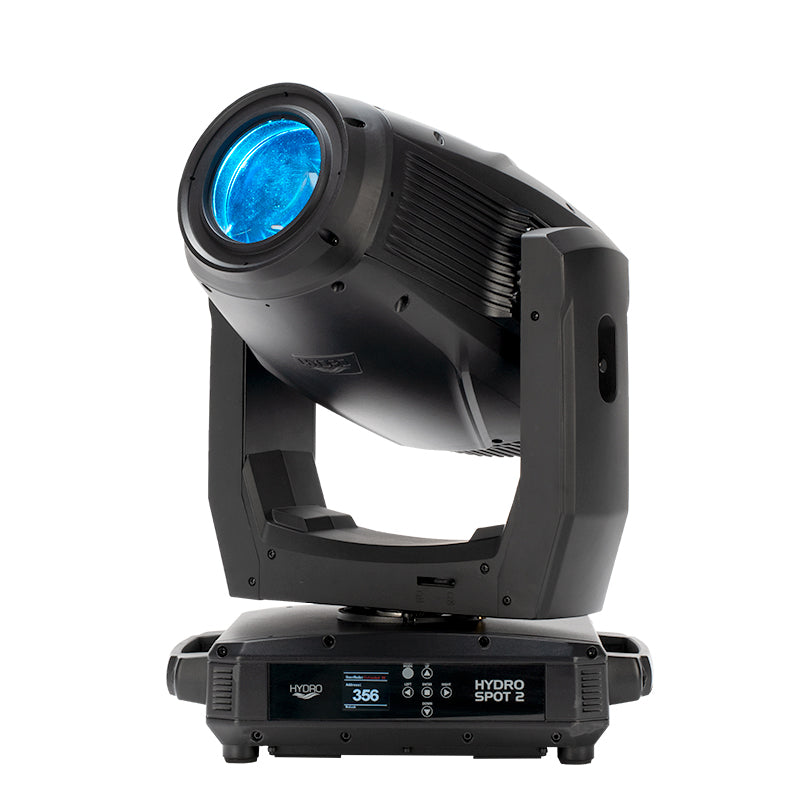

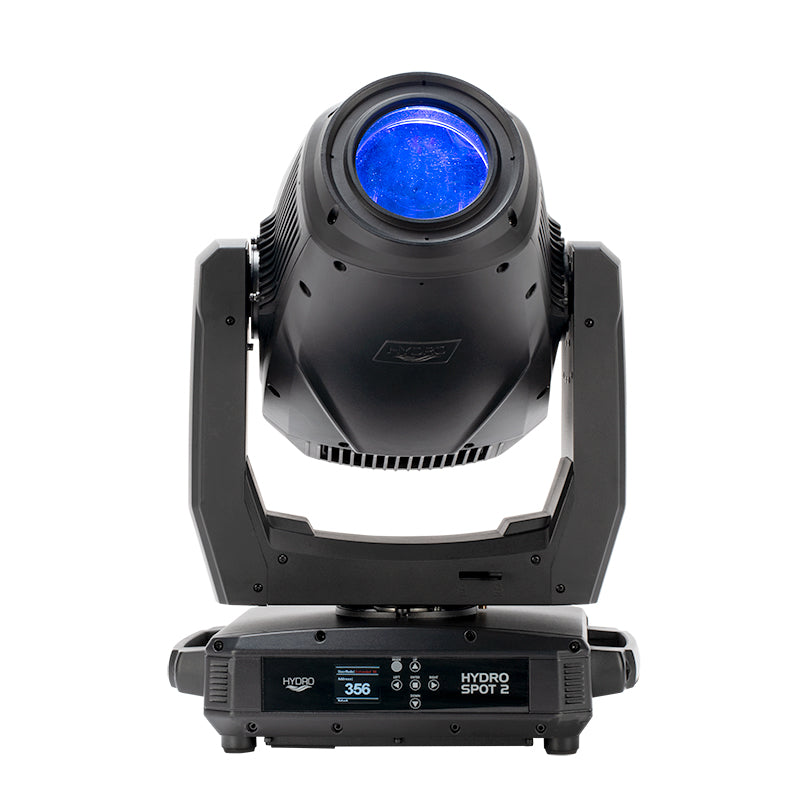

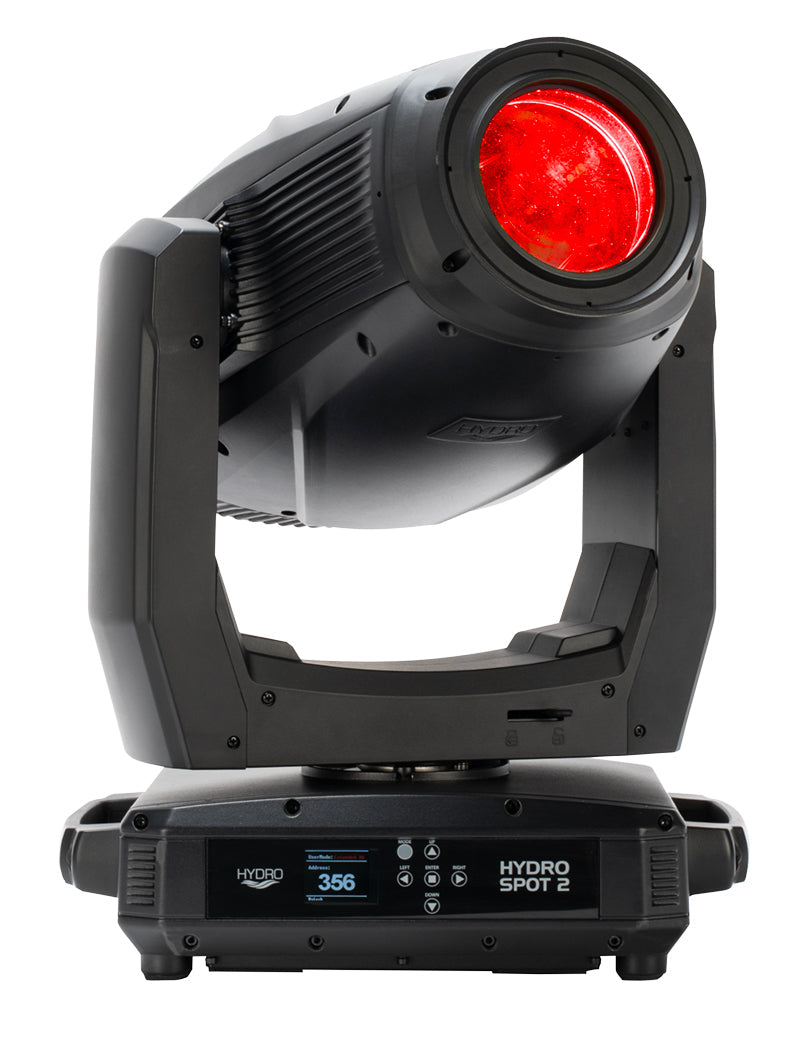

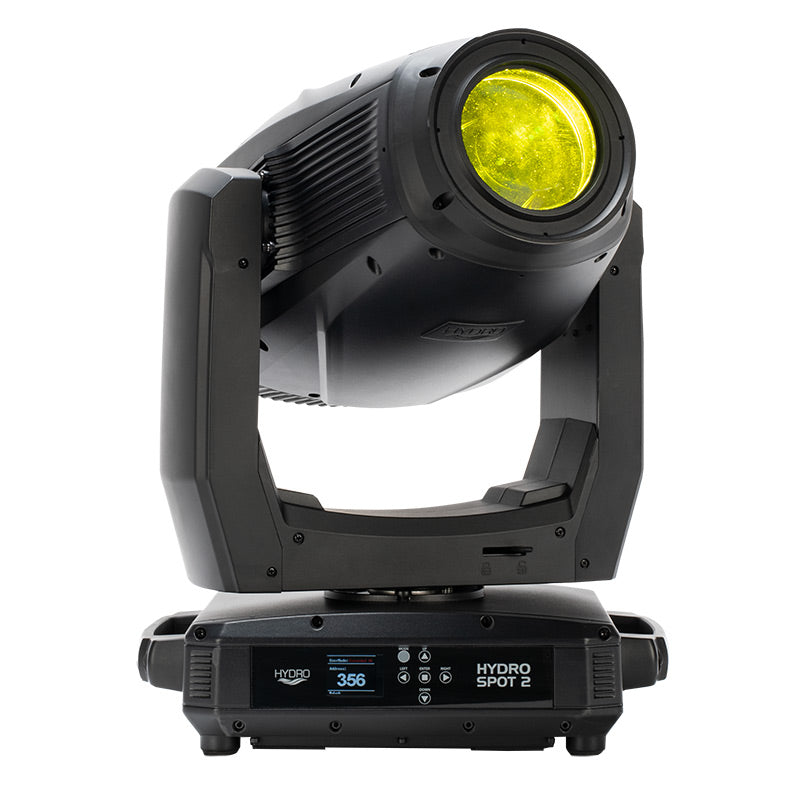

Hydro Spot 2 is an IP65-rated professional moving head luminaire powered by a potent 320-Watt cool white LED engine. It offers an impressive 15,000 lumen output while featuring a wide variety of beam shaping tools to provide lighting designers with almost limitless creative potential. Its features include motorized zoom (8 to 41-degrees) and focus; two frost filters; CMY color mixing, variable CTO flag and independent color wheel; two GOBO wheels (one fixed, one rotating and replaceable); two rotating prisms (6-facet circular and 5-facet linear); and an animation wheel.

Specifications

Light Source:

• 320W Cool White LED Engine (50,000 hr.)
• 15,000 Lumens

Features:

• Wifly EXR (Wireless DMX)
• Motorized Focus
• 2 Frost Filters
• Motorized Zoom: 8° ~ 41°
• Animation Wheel
• 2 Prism FX: Rotating 5-facet Linear rotating 6-facet Circular
• 0-100% smooth dimming
• Various strobe speeds
• 2 cooling fans

Color:

• CMY color mixing system
• Variable CTO flag

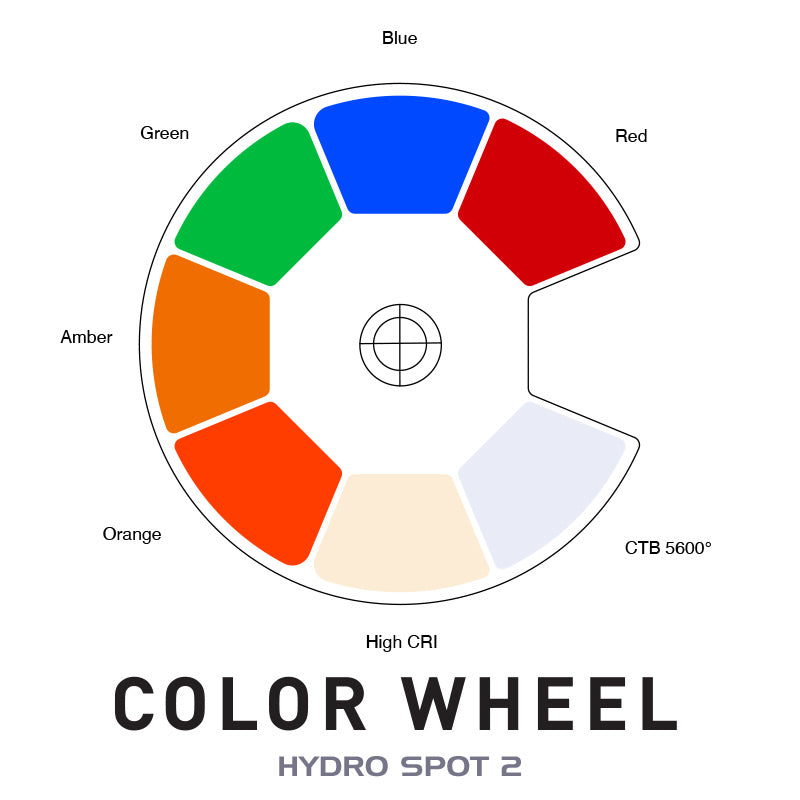

• Color wheel with 7 dichroic colors + white (includes CTB and High CRI filters

Gobo Wheels:

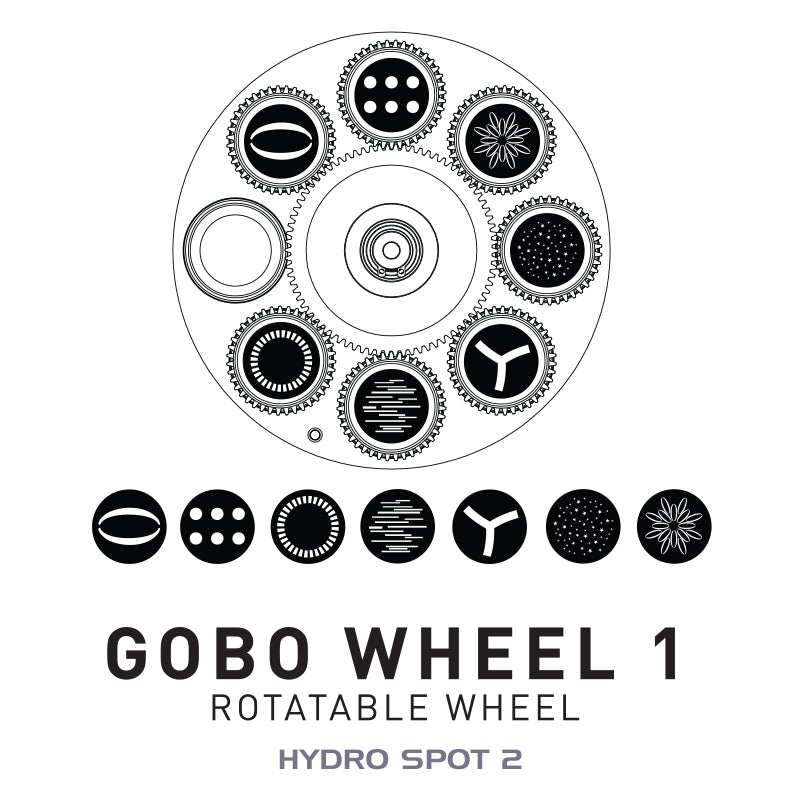

• (1) Rotating GOBO wheel with 7 GOBOs

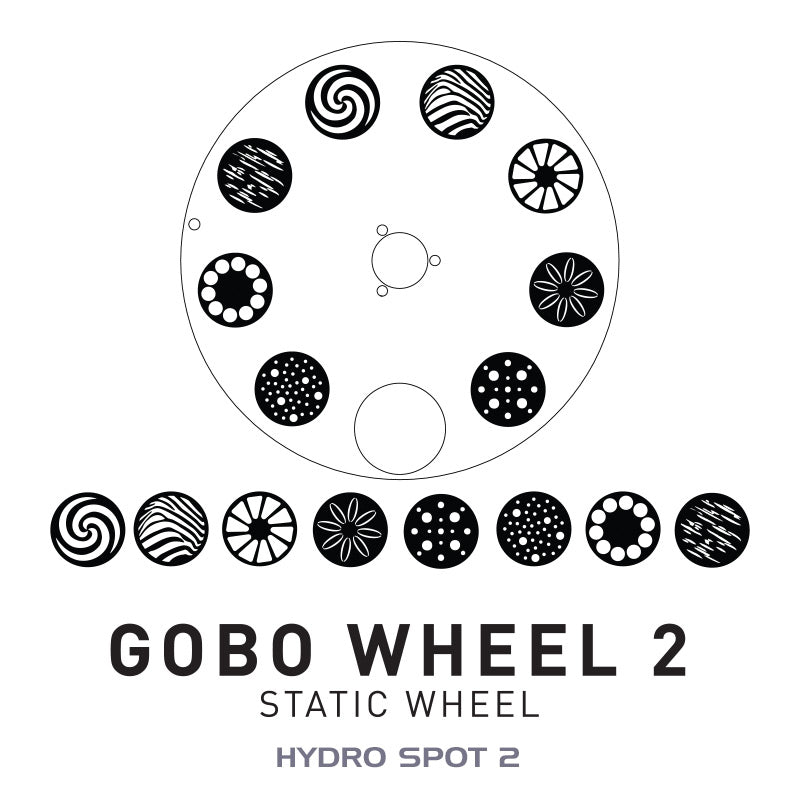

• (1) Static GOBO wheel with 8 GOBOs
• All GOBOs on rotating wheel are replaceable
• GOBO Shake Effect on both wheels
• Aluminum GOBO size: 23mm (outer); 19mm (viewable); 0.5mm (thickness)
• Glass GOBO size: 23mm (outer); 19mm (viewable); 3.3mm (thickness)

Prism Wheel:

• Prism Wheel 1: Rotatable 6-facet Circular
• Prism Wheel 2: Rotatable 5-facet Linear
• Both Prisms are indexable

Frost Filters:

• Frost 1: Heavy frost for wash effect
• Frost 2: Medium frost creates lightly blurred edges for Gobo and Prism FX

Control:

• 3 DMX Channel Modes: 24/29/36
• Wifly EXR (Wireless DMX)
• Color LCD display with 6-button function menu
• Control Mode: DMX512 or internal programs
• 6 Dim Modes: Standard, Stage, TV, Architectural, Theatre, Stage2
• 4 Dim Curves: Square, Linear, Inv. Square and S. Curve
• Selectable LED Refresh Rates (900 Hz~25K Hz)
• 0-100% smooth dimming
• Various strobe speeds
• RDM (Remote Device Management)
• With Wired Digital Communication Network

Pan/Tilt:

• Pan: 630 degrees
• Tilt: 270 degrees

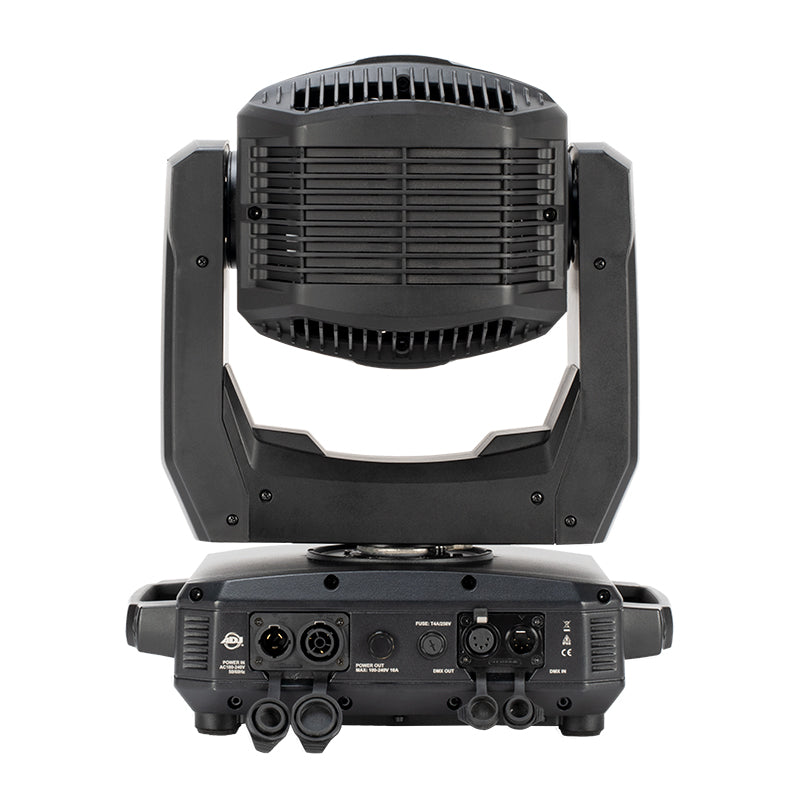

Connections:

• DMX Connections: 5-pin XLR In/Out
• Power Connections: IP65 PowerLock In/Out to daisy chain power

Electrical:

• Multi-voltage operation: 90-240V, 50/60Hz
• Max power consumption: 450W
• Min/Max Ambient Temperature: -20ºC ~ 45ºC

Dimensions Weight:

• Dimensions (LxWxH): 11.4" x 16.0" x 24.1" (290x405.9x612.1mm)
• Weight: 57.2lbs (26kg)

What’s Included:

• Two Omega Brackets
• 1.83M locking power cable

Optional Road Cases:

• DRC MHX: two Hydro Spot 2's fit in the DRC MHX Road Case

Approvals / Rating:

• ETL Approved / CE Certified
• IP65 with conformal coated p.c.b's

Specifications subject to change without notice
