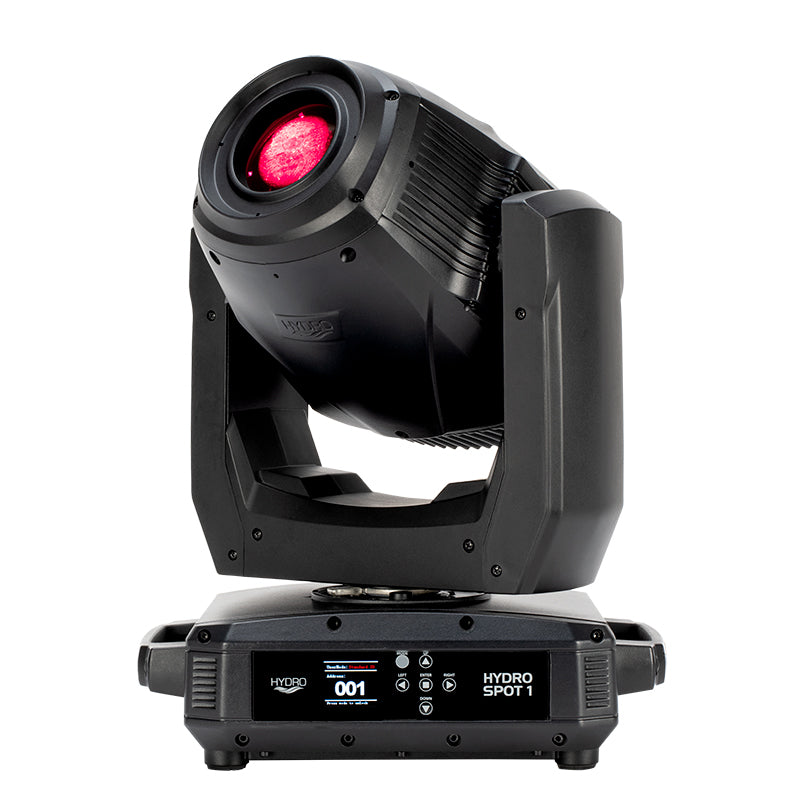

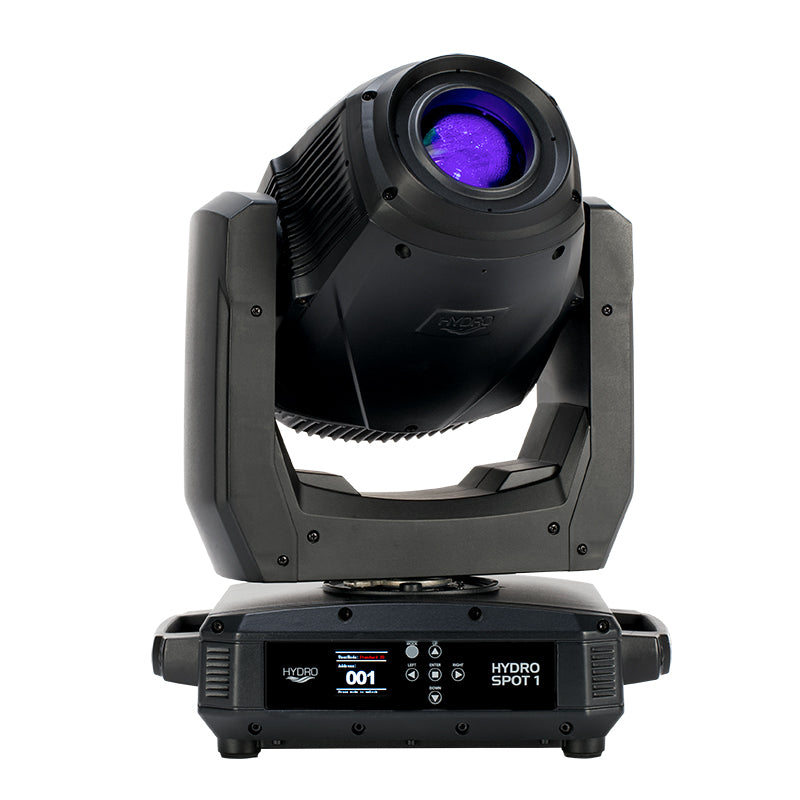

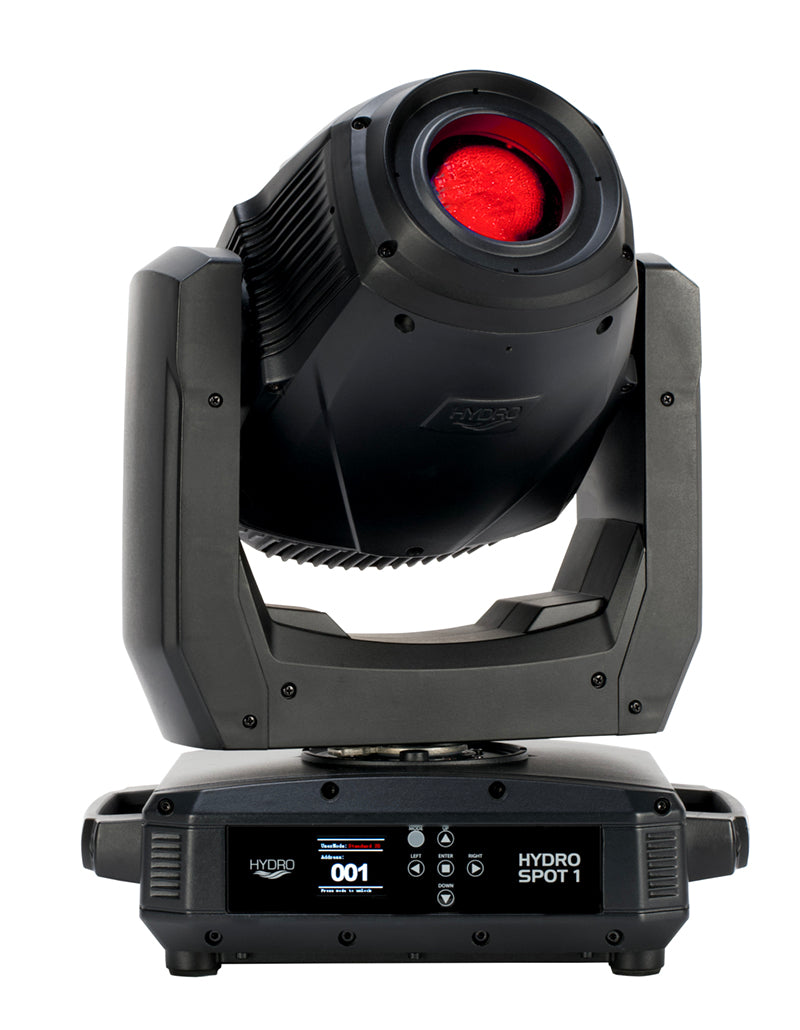

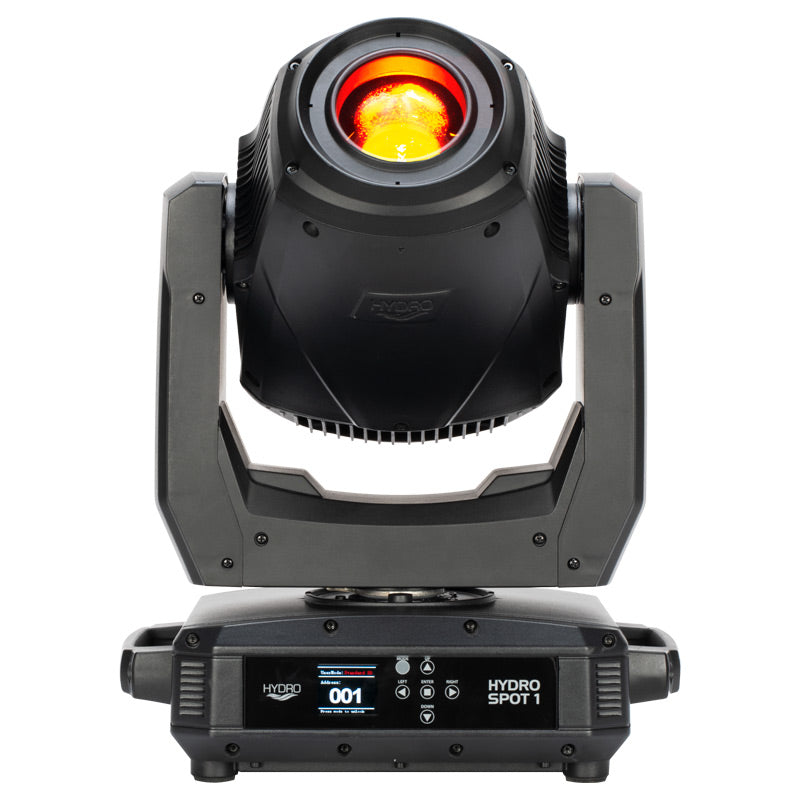

The ADJ Lighting Hydro Spot 1 is a feature-packed, LED-powered moving head spot luminaire housed within a robust IP65-rated housing. Featuring a potent 200-Watt cool white LED engine, it delivers punchy output which can be manipulated using an extensive collection of beam-shaping tools. These include motorized zoom (for a beam angle of 12° ~ 23°), motorized focus, two frost filters (light and heavy), two rotating prisms (5-facet linear 6-facet circular), 6 rotating and replaceable GOBOs, and two color wheels (each with 8 options).

Specifications

Light Source:

• 200W Cool White LED Engine (50,000 hr.)

Features:

• Wifly EXR (Wireless DMX)
• Motorized Focus
• Motorized Zoom: 12° ~ 23°
• 2 Frost Filters (Heavy and Medium)
• 2 Prism FX: Rotating 5-facet Linear rotating 6-facet Circular
• 0-100% smooth dimming
• Various strobe speeds
• 2 cooling fans

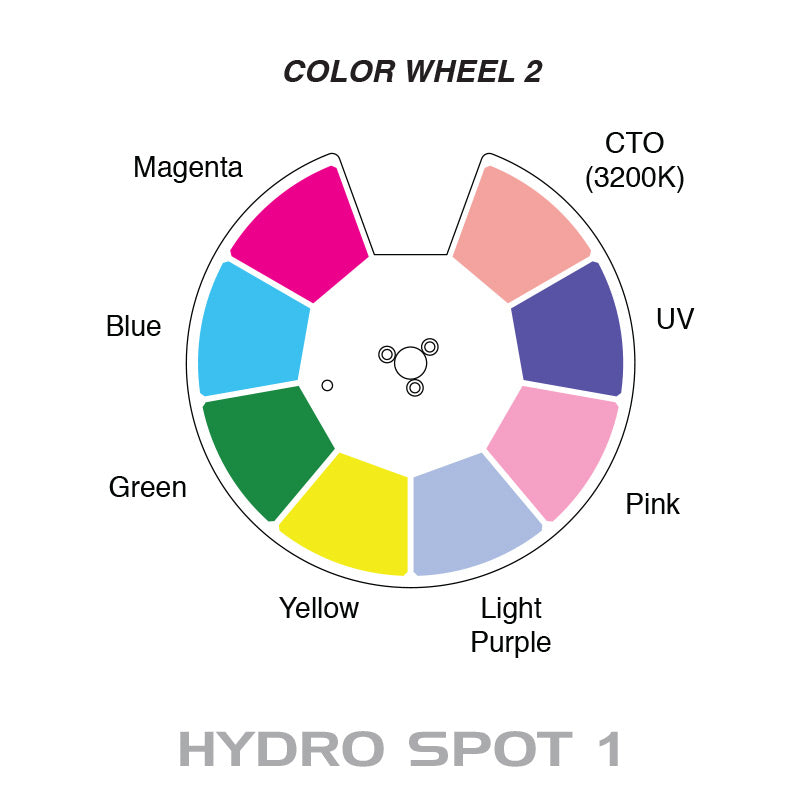

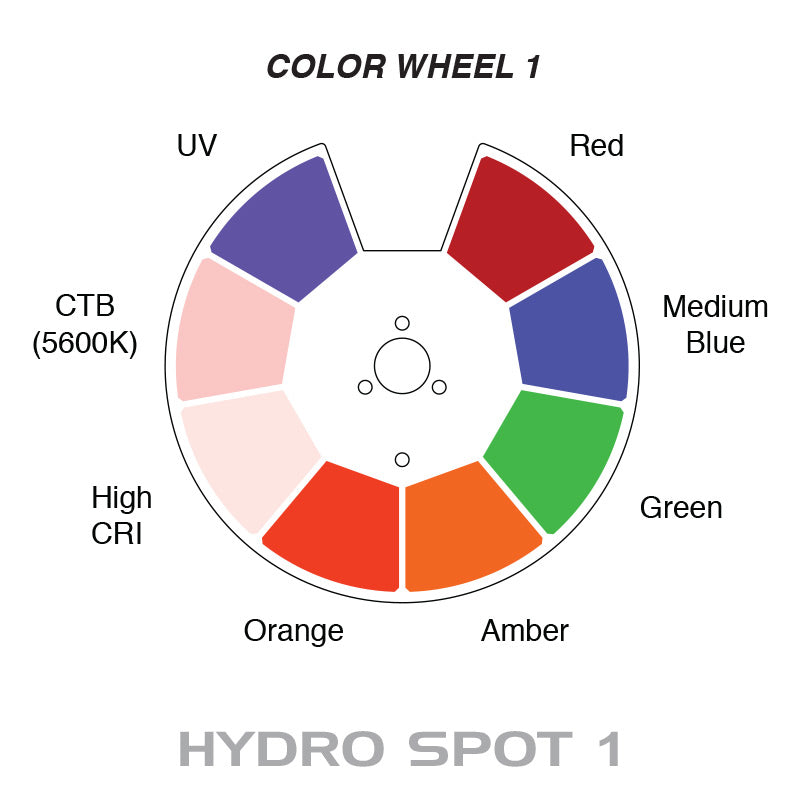

Color Wheels:

• (2) Color wheels
• 8 dichroic colors + white on each wheel (includes CTO, CTB and UV filters)

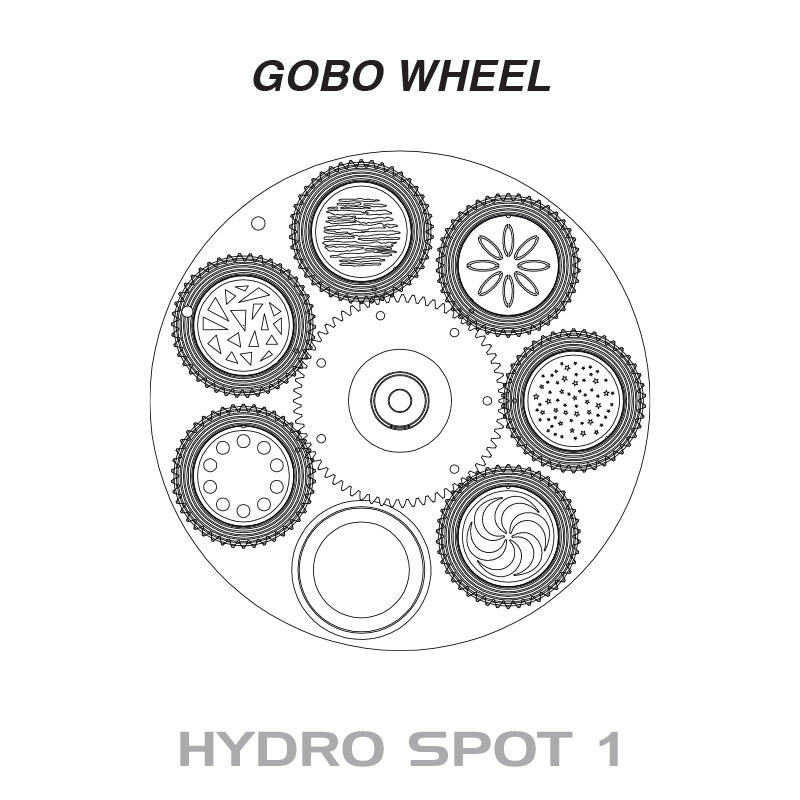

GOBO Wheels:

• (1) Wheel with 6 Rotatable GOBOs
• All GOBOs are replaceable
• GOBO Shake Effect
• Aluminum GOBO size: 23mm (outer); 19mm (viewable); 0.5mm (thickness)
• Glass GOBO size: 23mm (outer); 19mm (viewable); 3.3mm (thickness)

Prism Wheel:

• Prism Wheel 1: Rotatable 6-facet Circular
• Prism Wheel 2: Rotatable 5-facet Linear
• Both Prisms are indexable

Frost Filters:

• Frost 1: Heavy frost for wash effect
• Frost 2: Medium frost creates lightly blurred edges for Gobo and Prism FX

Control:

• 3 DMX Channel Modes: 17/20/22
• Wifly EXR (Wireless DMX)
• Color LCD display with 6-button function menu
• Control Mode: DMX512 or internal programs
• 6 Dim Modes: Standard, Stage, TV, Architectural, Theatre, Stage2
• 4 Dim Curves: Square, Linear, Inv. Square and S. Curve
• Selectable LED Refresh Rates (900 Hz~25K Hz)
• 0-100% smooth dimming
• Various strobe speeds
• RDM (Remote Device Management)
• With Wired Digital Communication Network

Pan/Tilt:

• Pan: 630 degrees
• Tilt: 270 degrees

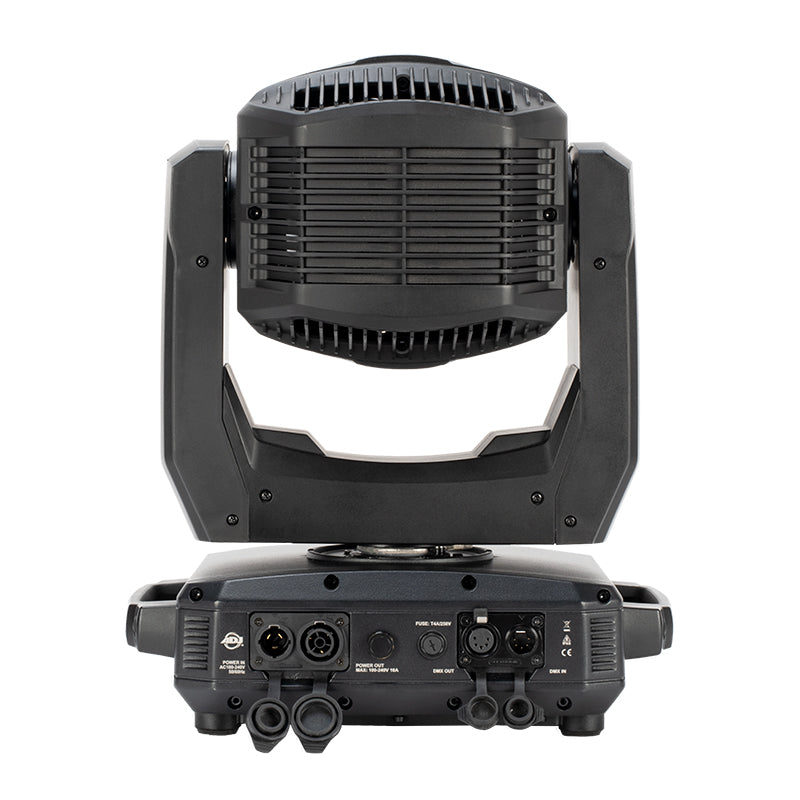

Connections:

• DMX Connections: 5-pin XLR In/Out
• Power Connections: IP65 PowerLock In/Out to daisy chain power

Electrical:

• Multi-voltage operation: 90-240V, 50/60Hz
• Max power consumption: 280W
• Min/Max Ambient Temperature: -20ºC ~ 45ºC

Dimensions Weight:

• Dimensions (LxWxH): 9.4" x 14.1" x 19.2" (239x357x488.2mm)
• Weight: 35.2lbs (16kg)

What’s Included:

• Omega Bracket
• 1.83M locking power cable

Approvals / Rating:

• ETL Approved / CE Certified
• IP65 with conformal coated PCBs

Specifications subject to change without notice
