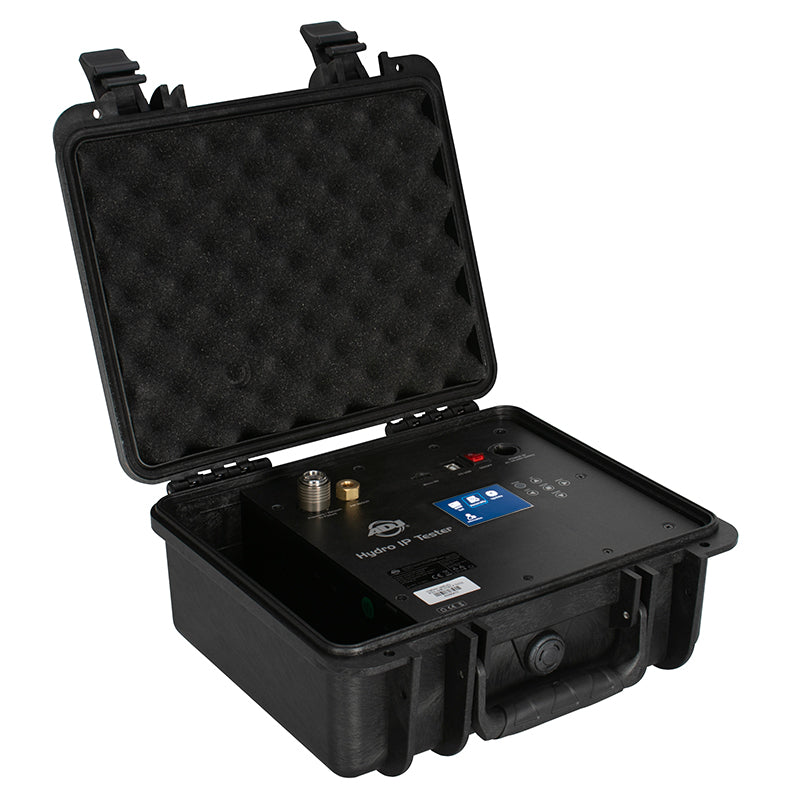

Hydro IP Tester

Specifications

FEATURES

Mobile IP Fixture Vacuum and Pressure Tester

Compatible with any IP Fixture such as ADJ's Hydro Series

Internal Profiles Storage

Manual and Auto Testing Modes

Easy to navigate LCD Control Menu Display

Micro SD Card Slot for updating Hydro IP Tester Device

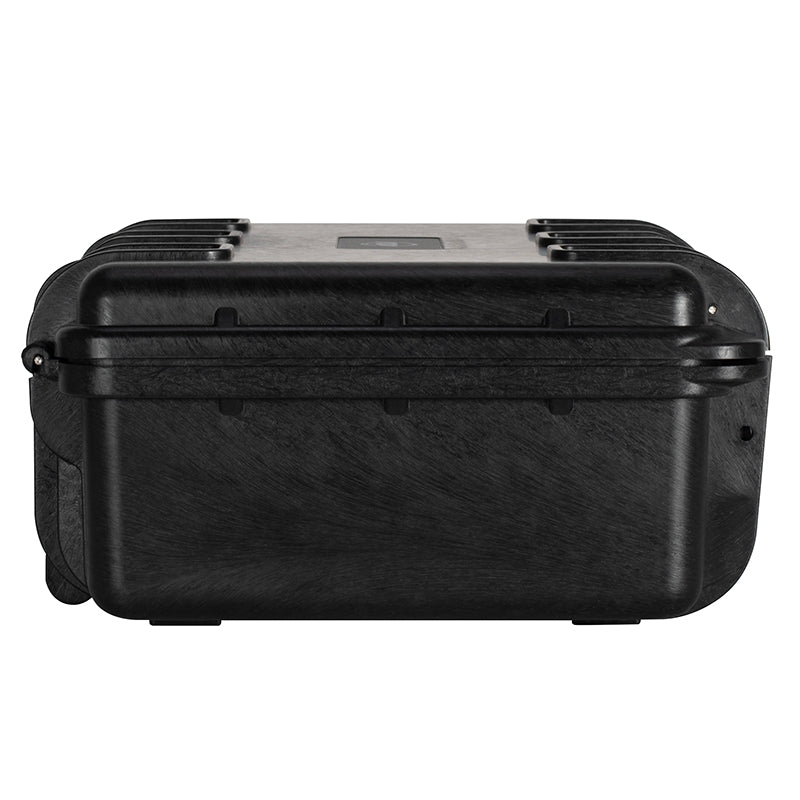

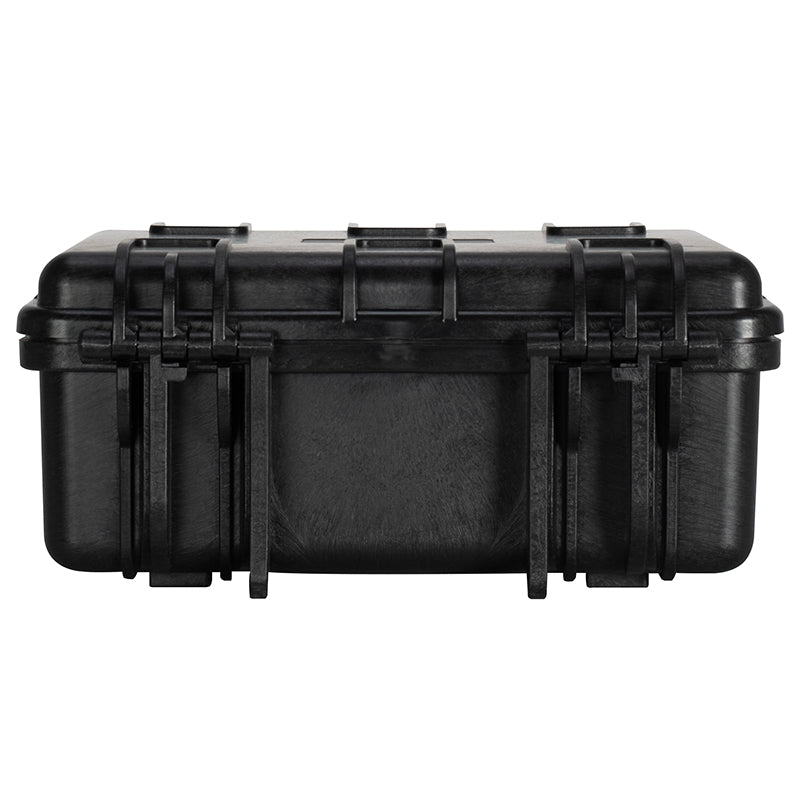

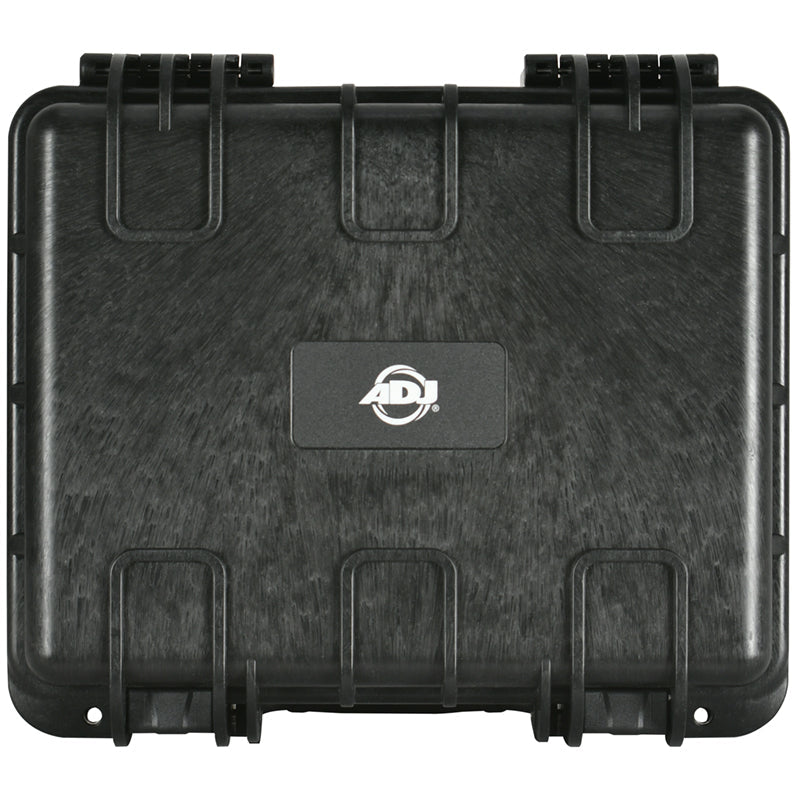

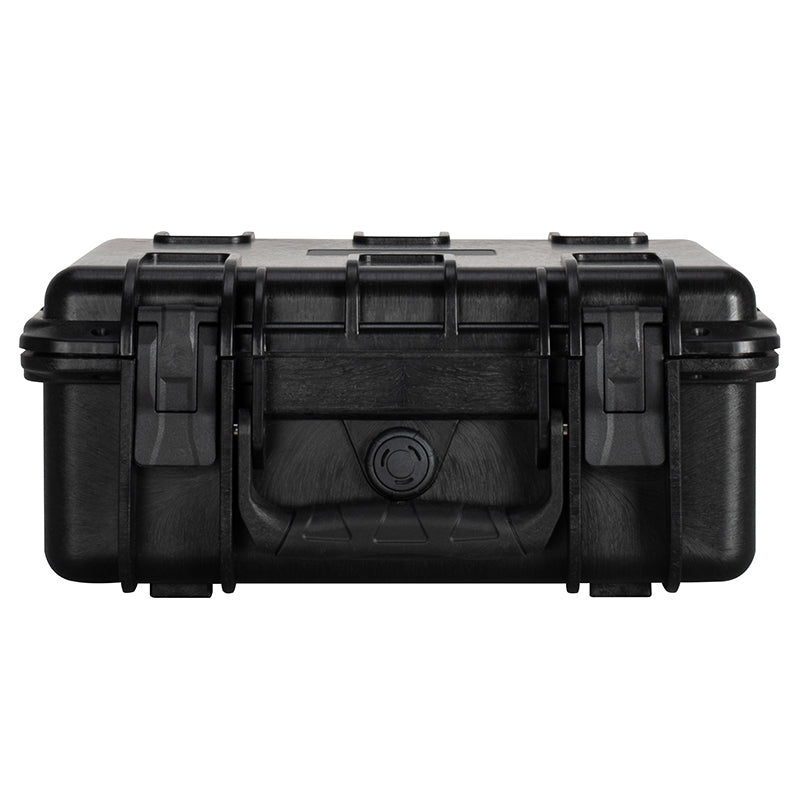

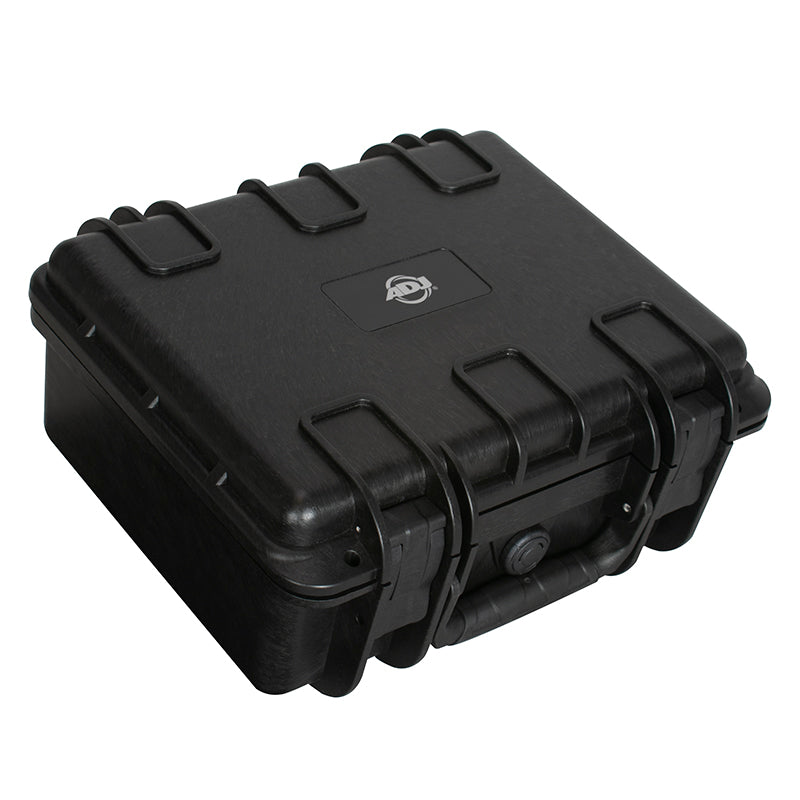

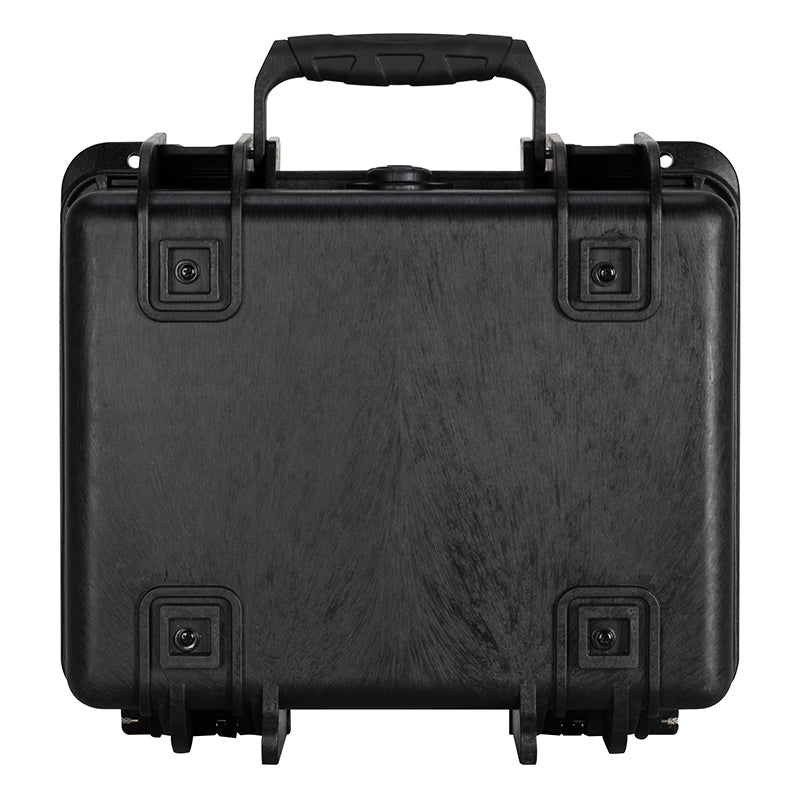

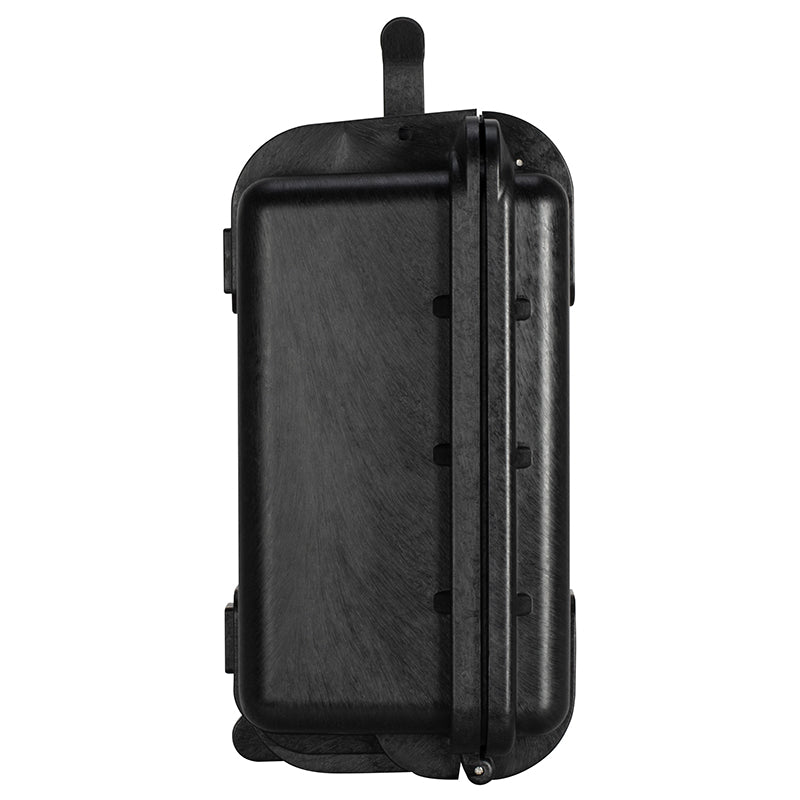

Easy To Carry Rugged Case

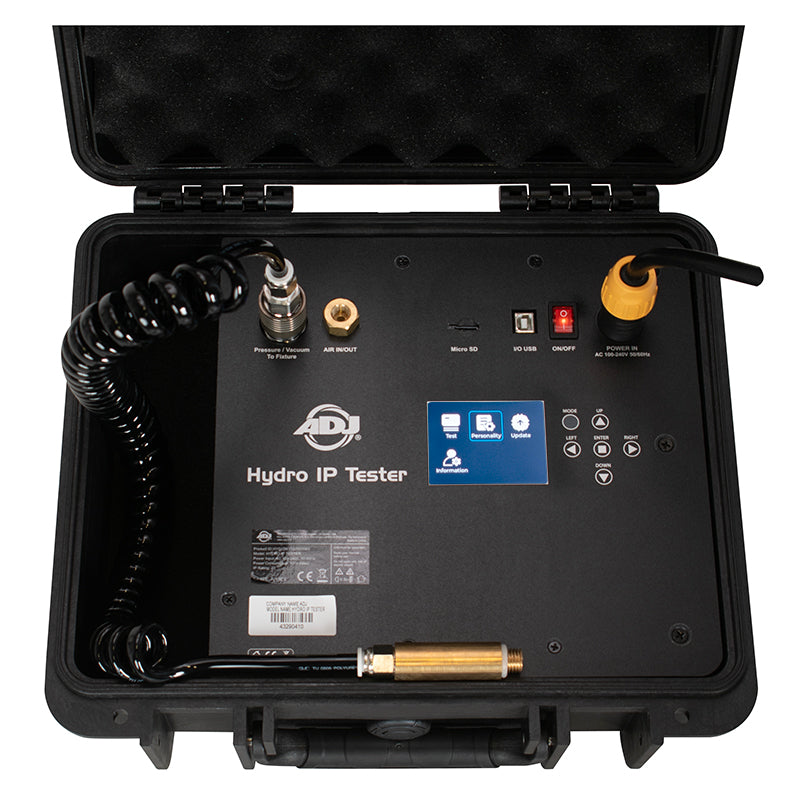

CONTROL / CONNECTIONS

LCD Control Menu Display

Air In/Out Vent

Quick-Release Air Hose Fitting

Micro SD Card Slot

USB B Port

IP65 Power In

SIZE / WEIGHT

Length: 16.5” (419.1mm)

Width: 6.5” (165.1mm)

Vertical Height: 14.25” (362mm)

Weight: 15.4 lbs. (7.0kg)

ELECTRICAL

AC 100-240V - 50/60Hz

40W Max Power Consumption

INCLUDED ITEMS

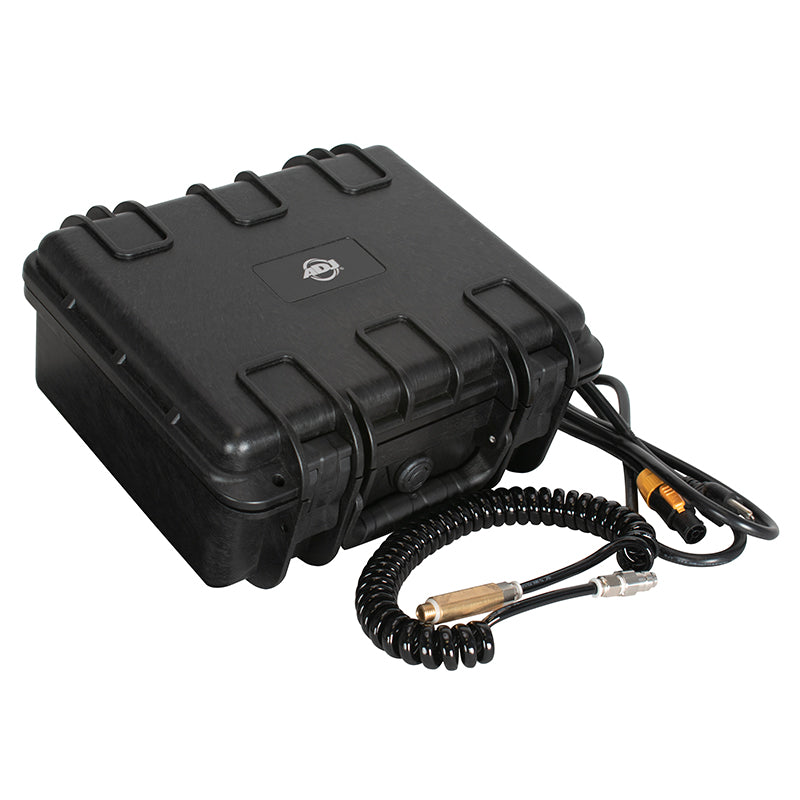

3-5ft (0.9-1.8m) Air Hose with Quick-Connect Fitting

M12 Threaded Brass Nozzle with Push-to-Connect Fitting

(x2) M12 x 1.5 Orange Colored Nylon Bolt

6ft (1.8m) USB Cable

5ft (1.5m) IP65 Power Cable

Micro SD Card (4GB min)

Specifications and documentation subject to change without notice.
