Specifications

SOURCE:

• Osram SIRIUS HRI 420W Discharge Lamp
• Full Power (420W)
• Up to 2,500 Hour Lamp Life

**Test lab conditions. May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling),Control, and Dimming.

PHOTOMETRIC DATA:

• Lumens: Beam Mode:12,319, Spot Mode:14,416
• Lux: Beam Mode: 562,600, Spot Mode: 223,200 (@5m, zoomed out
• CRI: 77 +/- 5
• Correlate color temperature: 6500K +/- 300K
• Zoom Range: Beam Mode: 1.6°-17.7° / Spot Mode: 3.1°-39.2°

EFFECTS

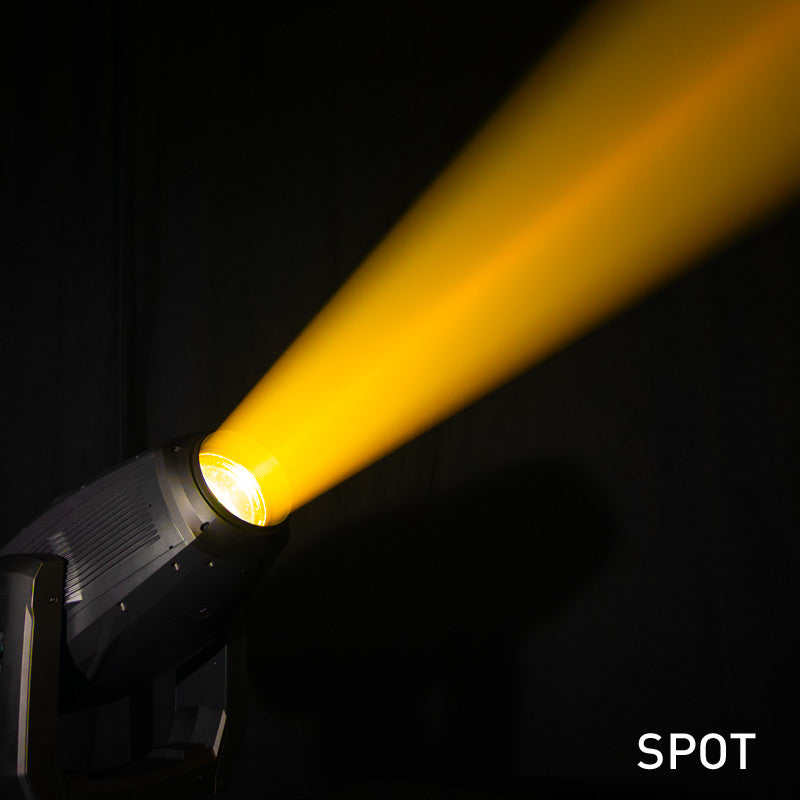

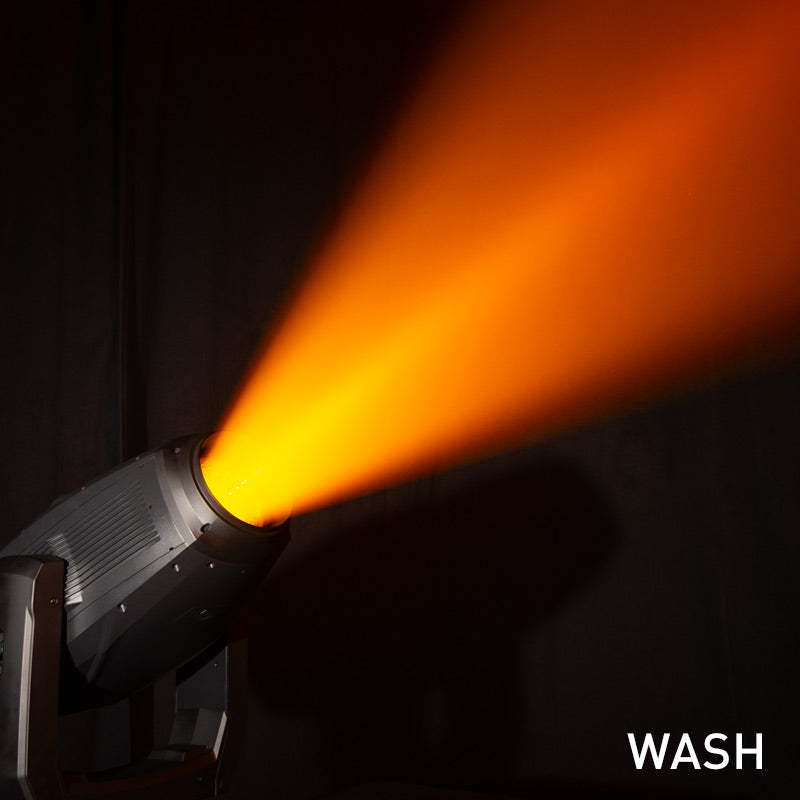

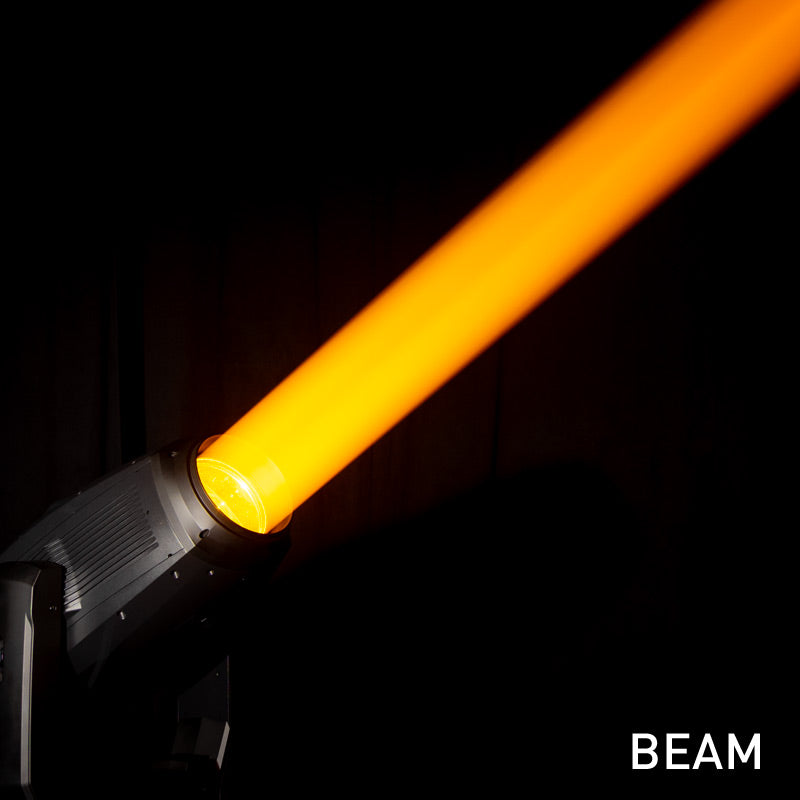

• Beam, Spot and Wash
• Motorized Zoom
• Frost Filter (Heavy)

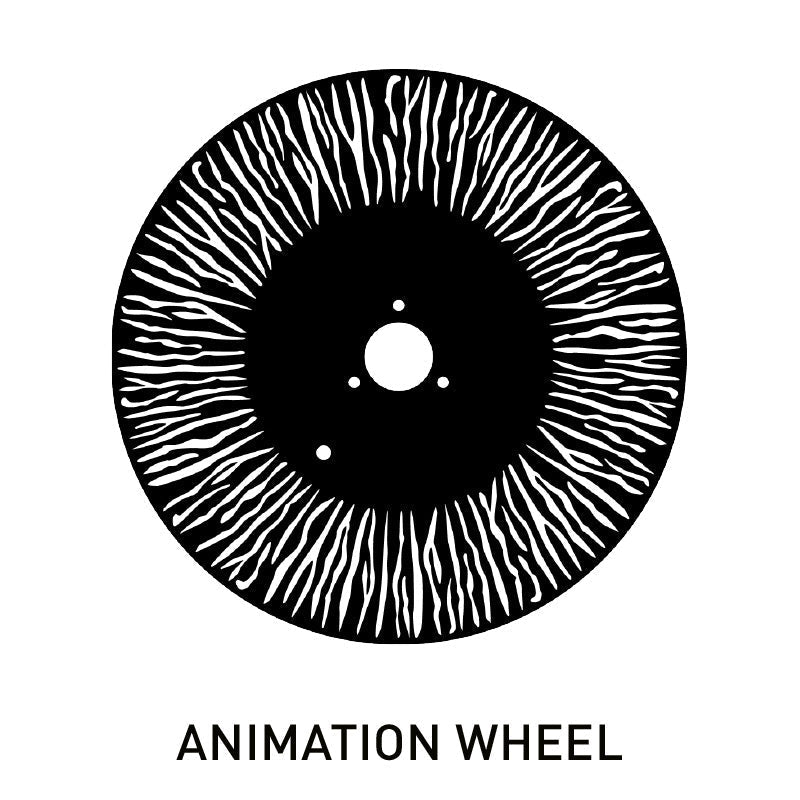

• Animation Wheel
• 2 Prisms on Dual Planes, 8-facet circular / 6-facet linear
• CMY/Color Macros
• Gobo/Prism Macros
• Motorized Focus
• High Speed Shutter and Strobe
• Pan Degree: 540°/630°
• Tilt Degree: 270°

COLOR:

• Full CMY Color Mixing System
• White Color Temp Presets

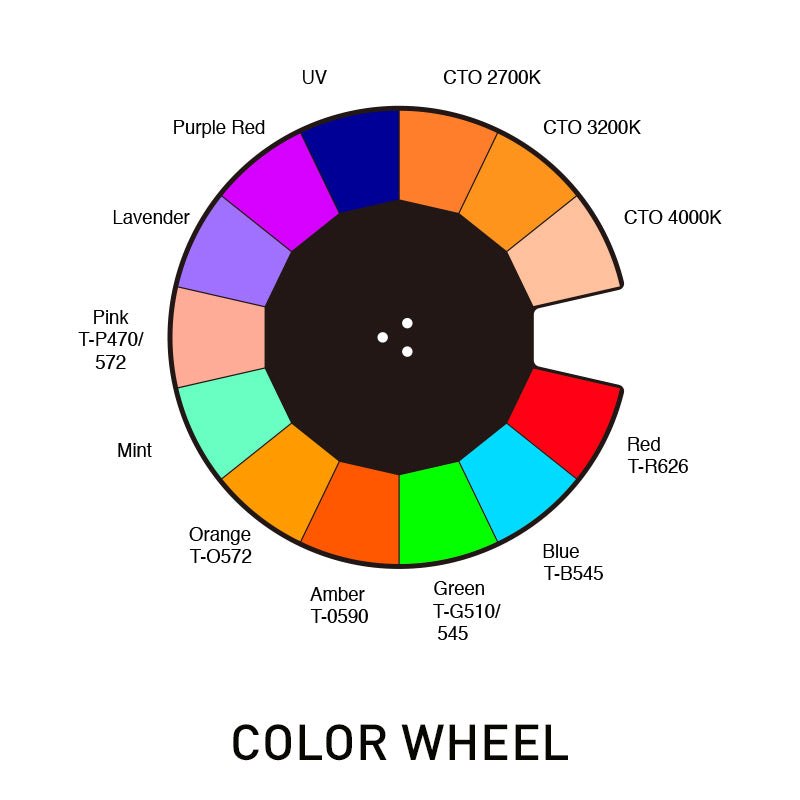

• 12 Position Color Wheel (Including: UV + CTO: 2700K, 3200K, 4000K)
• 27 Color Macros (Color Wheel + CMY)

GOBOS:

• 2 Gobo Wheels

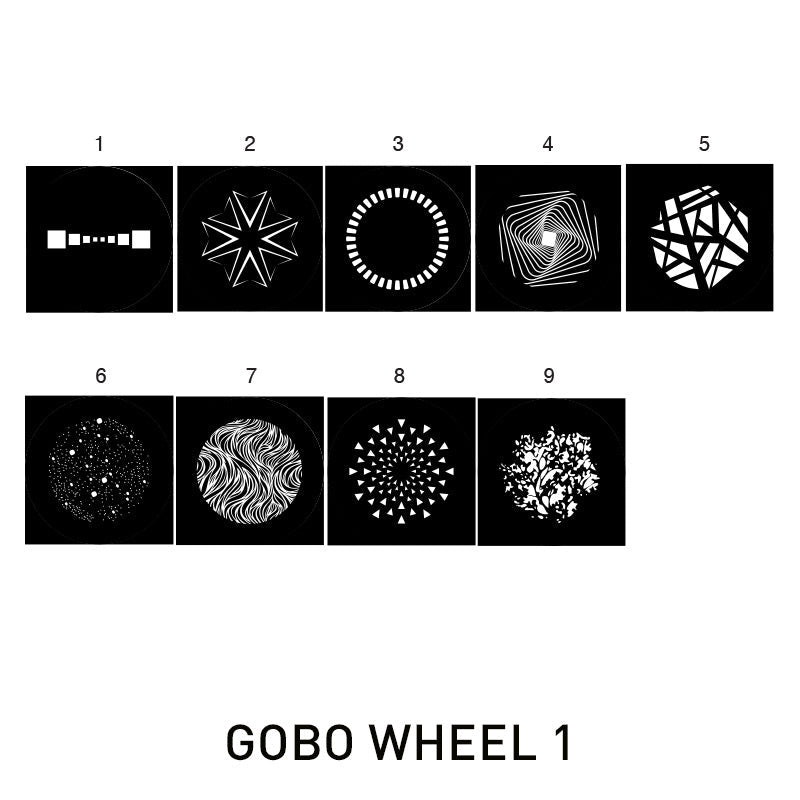

• GOBO Wheel 1: 9 Interchangeable-Rotating / Indexing Glass Black White Gobos

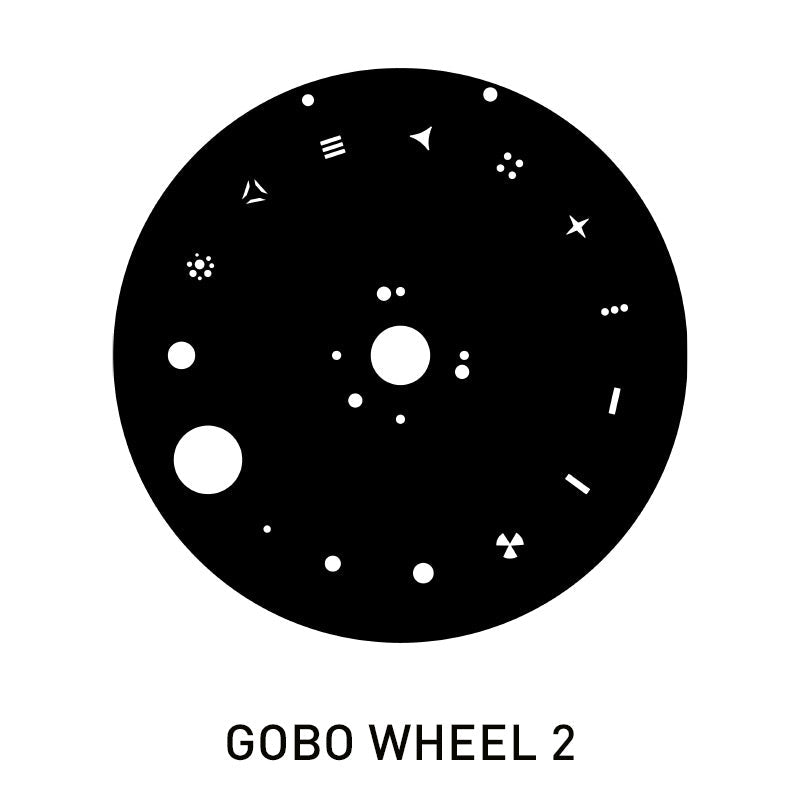

• GOBO Wheel 2: 14 Static-Stamped Metal Gobos (Including 4 beam reducers)

CONTROL / PHYSICAL:

• DMX and RDM Protocols
• 3 DMX Channel Modes (24, 27 32)
• 1 User Assignable DMX Channel Mode
• Aria X2 Wireless Management / DMX System
• (4) Button Touch Panel
• Full Color 180° Reversible LCD Menu Display

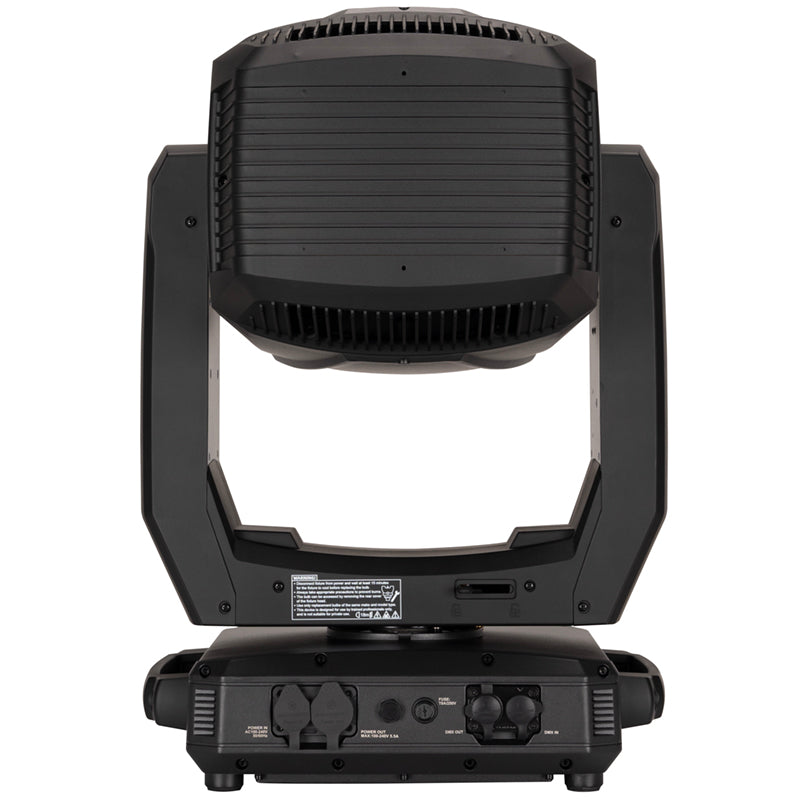

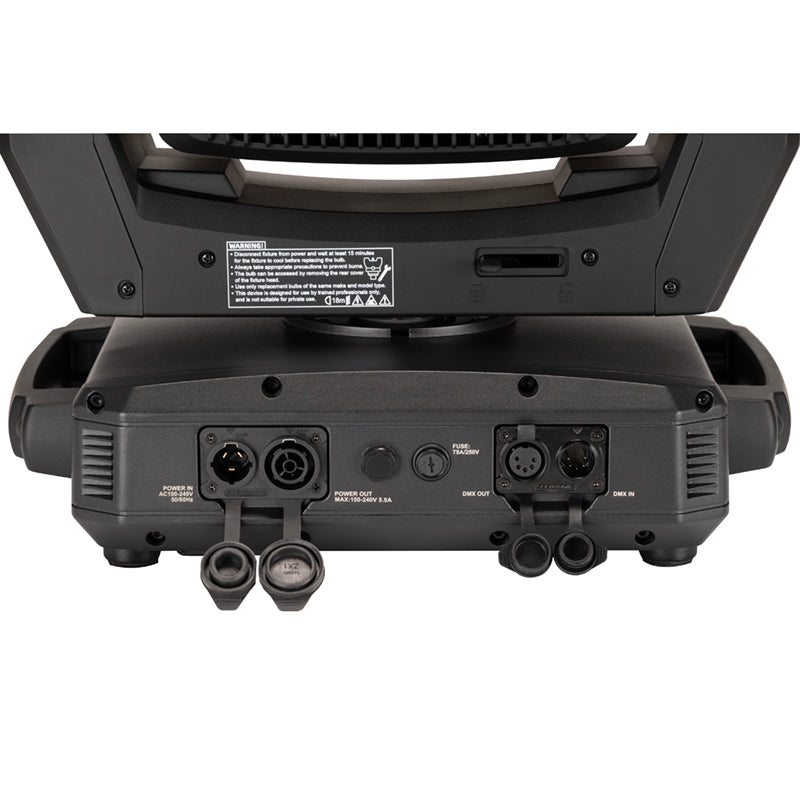

• Outdoor, IP66 5pin DMX In/Out
• Outdoor, IP66 Locking Power In/Out
• Pan/Tilt Locks

SIZE / WEIGHT:

• Length: 11.4” (290mm)
• Width: 16.31” (414.27mm)
• Height: 29.17” (741mm)
• Weight: 69.7 lbs. (31.6 kg)

ELECTRICAL / THERMAL:

• AC 100-240V 50/60Hz
• 580W Max Power Consumption
• -4° to 113°F (-20°C to 45°C)
• Min/Max Ambient Temperature: -20ºC ~ 45ºC

APPROVALS / RATINGS:

• CE
• cETLus (Control # 4010765)

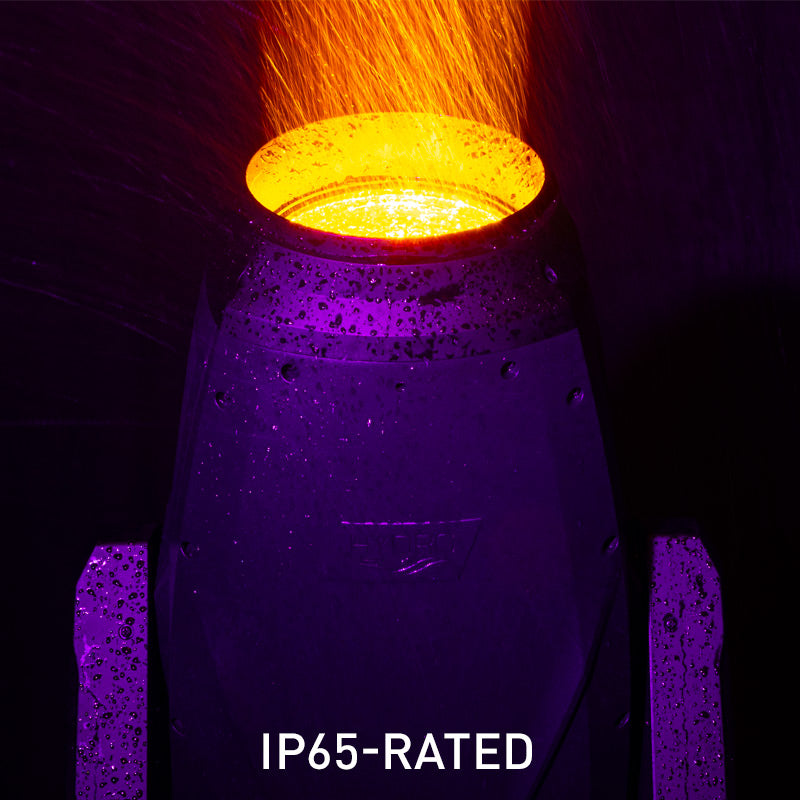

• IP65

Specifications and documentation subject to change without notice.
