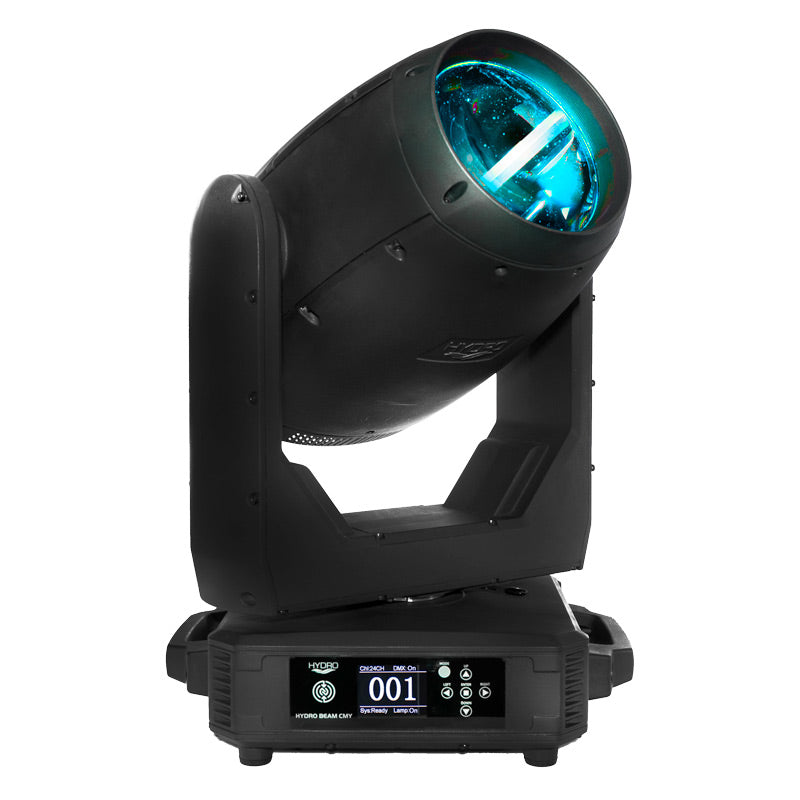

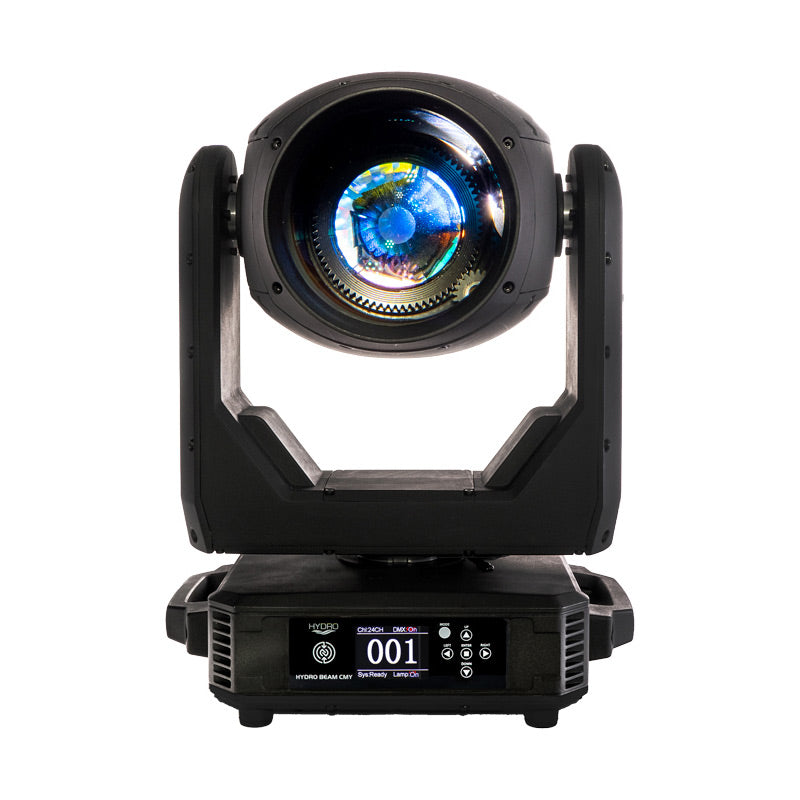

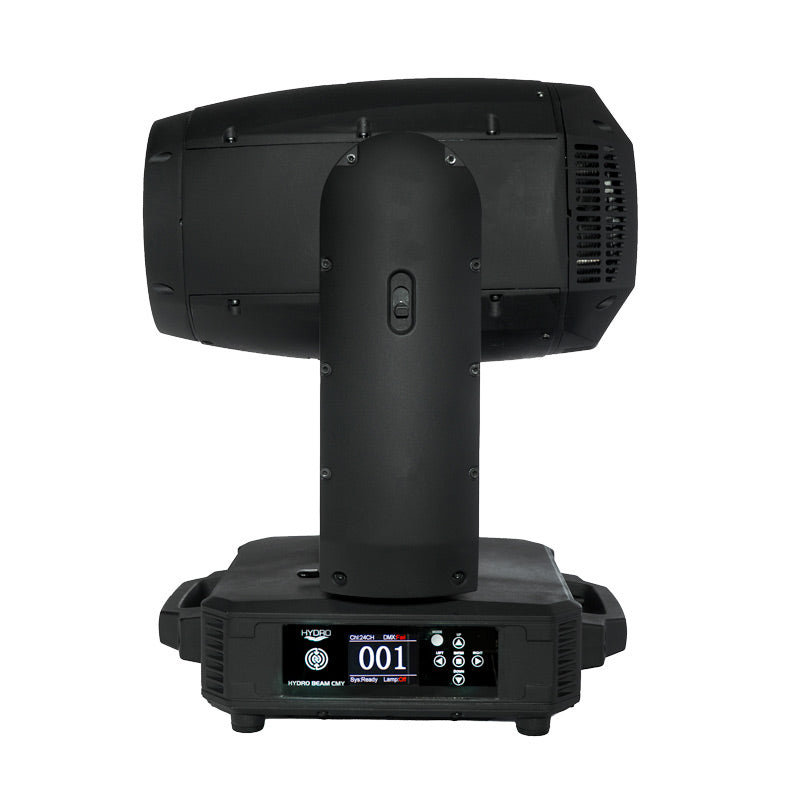

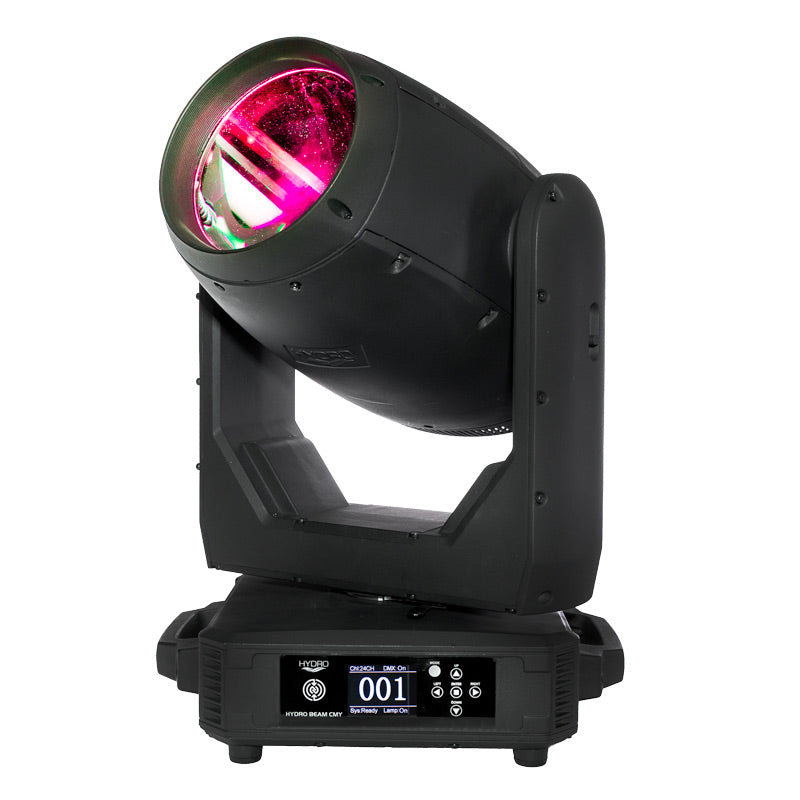

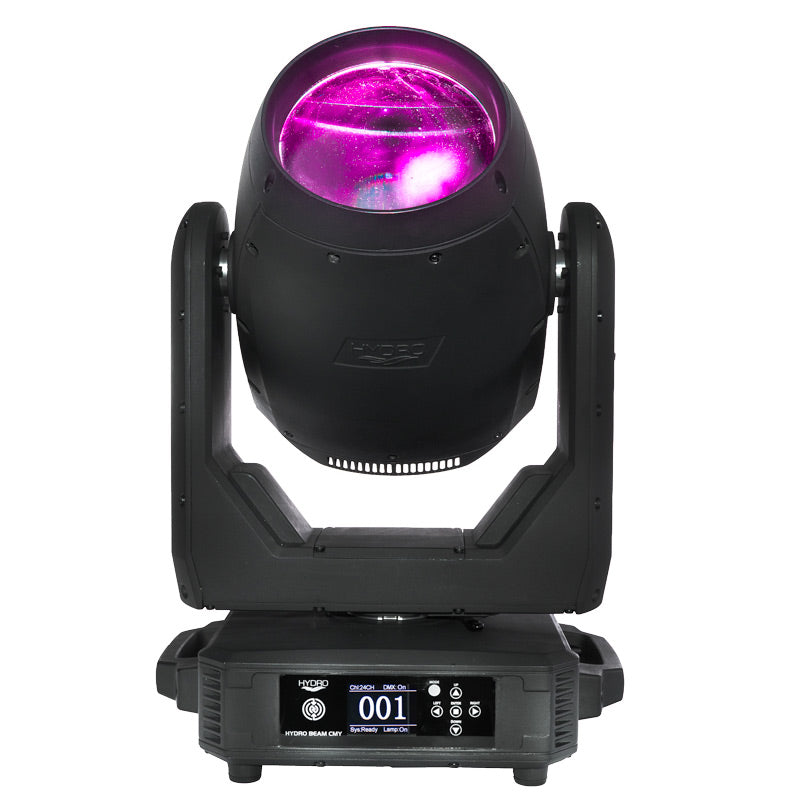

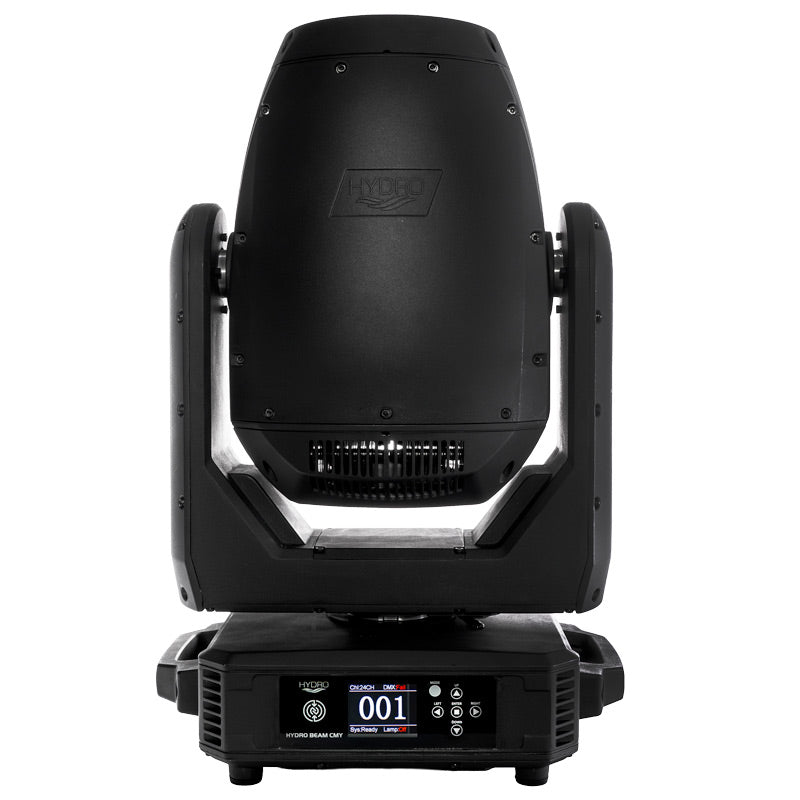

Offering power, precision and reliability, the Hydro Beam CMY is a versatile IP65-rated automated beam luminaire. Harnessing the power of an OSRAM Sirius HRI 310W PRO discharge lamp, focused through precision-engineered optics and projected from a high-quality glass lens, it generates a razor-sharp 2-degree beam. An extensive feature set is headlined by CMY color mixing and also includes 17 static GOBOS, two rotating prisms, a frost filter, and integrated Aria X2 wireless DMX control and remote fixture management. Featuring lightning-fast movement, this robust fixture is designed to create impressive aerial effects for large indoor as well as outdoor events.

Specifications

Light Source:

OSRAM Sirius HRI 310W PRO Discharge Lamp (6,000 hr.)

Color temperature: 7850K (+/- 500K)

CRI: 86 (+/- 5)

Features:

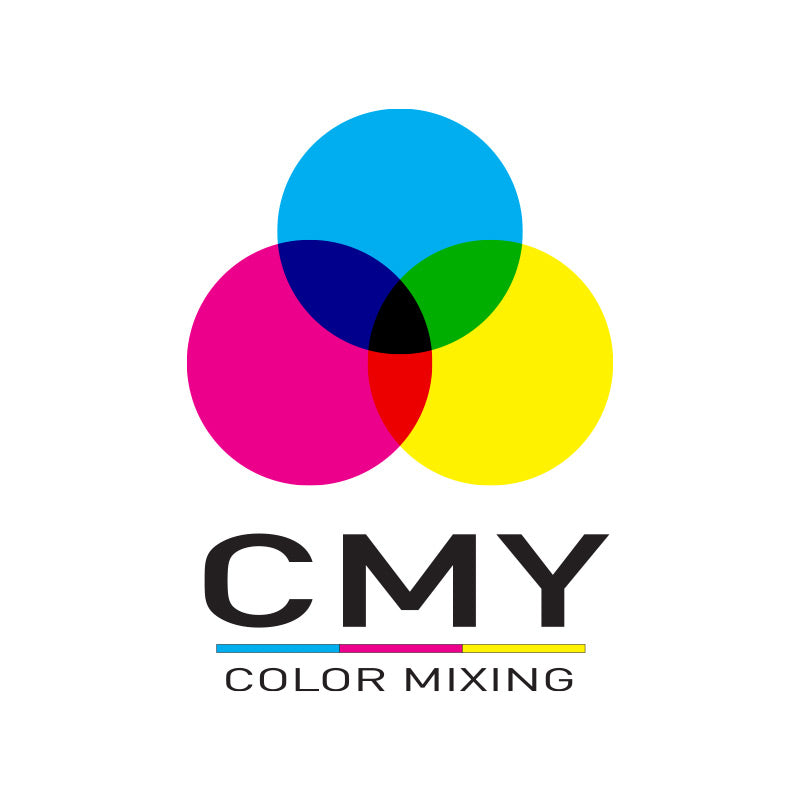

CMY Color Mixing

On-Board Wireless DMX

Motorized Focus + 16-bit fine focus

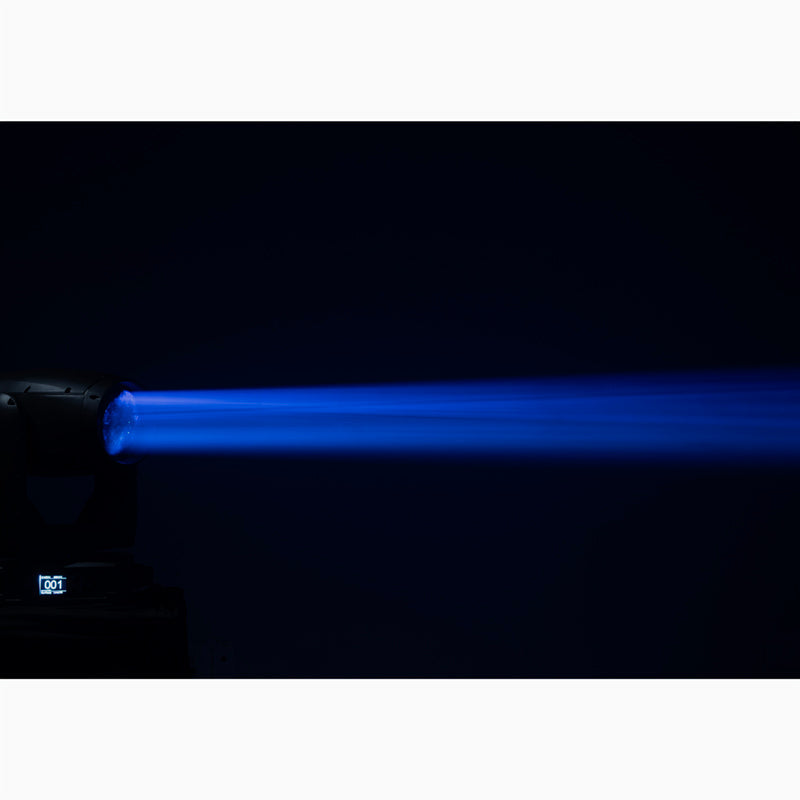

2-degree beam angle

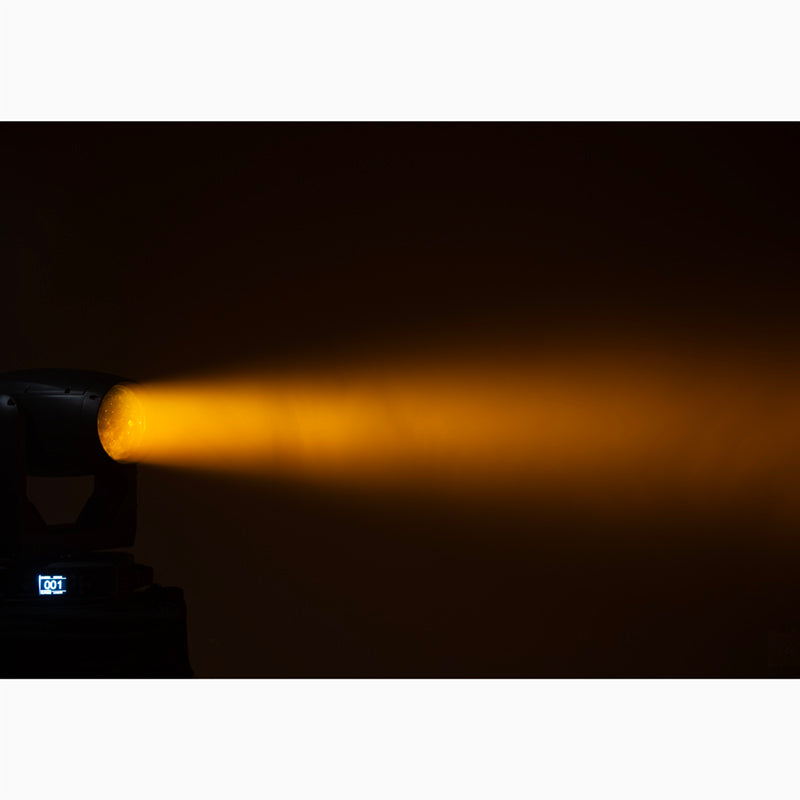

Frost Filter to create wash effect

High quality glass lens

2 Rotating prisms

0-100% smooth dimming

Pan/Tilt locks

Various strobe speeds

OTA, wireless, firmware updates

Fan cooled

Color Wheel:

14 dichroic colors + white (Includes CTO (3200K), CTB (9000k) & UV)

Indexable color wheel for split colors

Separate Multi-Color Effect

GOBO Wheel:

17 static GOBOs + open (4 GOBOs are beam reducers)

GOBO Shake Effect

Prism Wheels:

2 Rotating prisms

16 facet circular and 6 facet linear prisms

Prisms Overlay

Control:

Protocols: DMX512, RDM, Aria X2, NFC

Control Mode: DMX512 & Manual (On-board Controls)

2 DMX Channel Modes: 20/24 Channels

Color LCD display with 4-button function menu

0-100% smooth dimming

Various strobe speeds

With Wired Digital Communication Network

Pan/Tilt:

Pan: 540 degrees (plus 16-bit fine pan)

Tilt: 270 degrees (plus 16-bit fine tilt)

3-phase, High Speed, Pan/Tilt motors

Connections:

DMX Connections: Seetronic IP65 Rated, 5-pin DMX In/Out (Data link max: 32 fixtures)

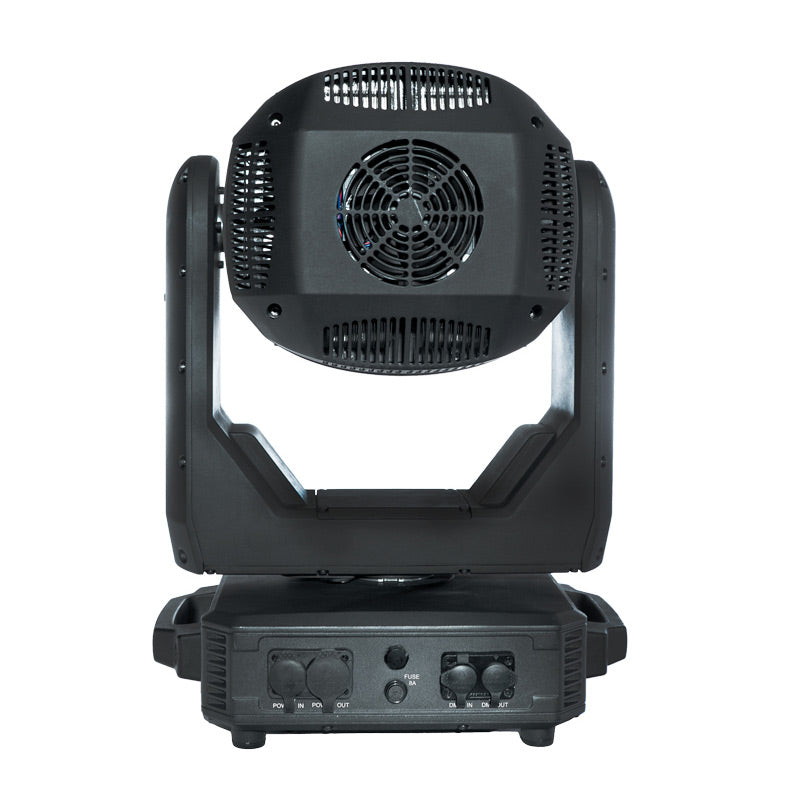

Power Connections: IP65 locking power In/Out connections to daisy chain power

Electrical:

Multi-voltage operation: 100-240V, 50/60Hz

Max power consumption: 450W (@120V), 430W (@230V)

Fuze Protected: 6.5A

Dimensions & Weight:

Dimensions: 15” (L) x 11.2” (W) x 23” (H) / 381.6 x 284.5 x 568.5mm

Weight: 56 lbs. / 25.6 kg.

Approvals / Ratings

CE

cETLus (Pending)

FCC

IP65

What’s Included:

2x Omega Brackets (107 Type)

2M, outdoor locking 14AWG power cord

Accessories (Sold Separately):

Quick Rig Clamp

Quick Rig Clamp BLK

Pro-Clamp

Accu-Cable Tour Link 5P15 - 15ft. 5-pin male/female professional grade DMX Cable

SIP152 - 16ft., IP65-Rated male to female locking power cord

(2) Hydro Beam CMY fixtures fit in the ADJ DRC MHX Road Case

Specifications are subject to change without notice.
