Specifications

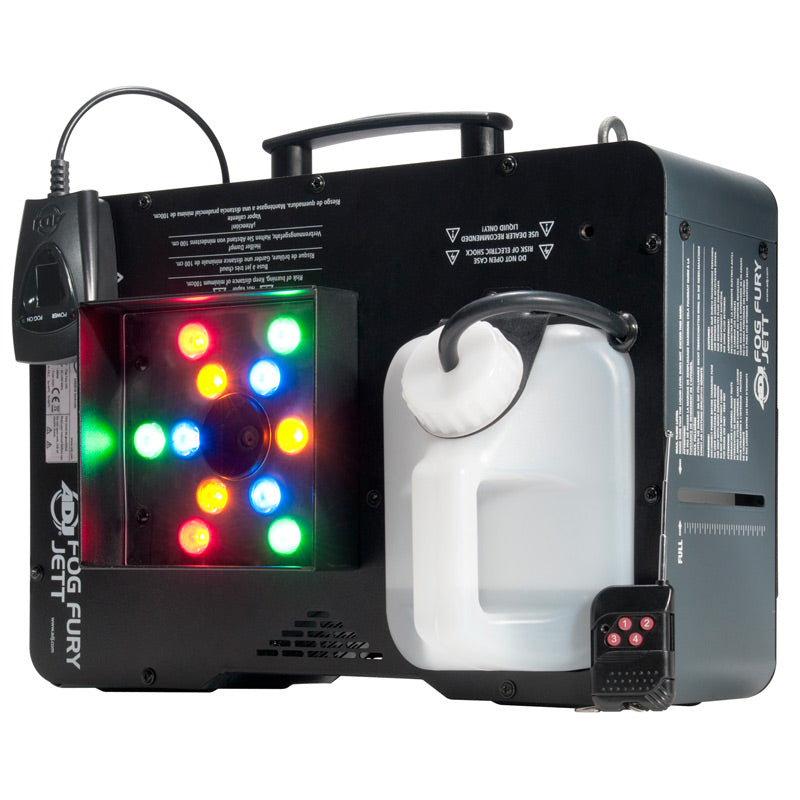

700W professional DMX vertical Fog Machine with 12x 3-Watt LEDs

High performance pump for optimum output

ADJ

’

s Electronic Thermo Sensing (ETS) technology

Special heating element design that uses an oil type transmission pipeline system to minimize the possibility clogging

3 Operational modes: Manual, Remote Control, or DMX Controlled

5 DMX Channels, 1, 2, 3 5 or 7 ch

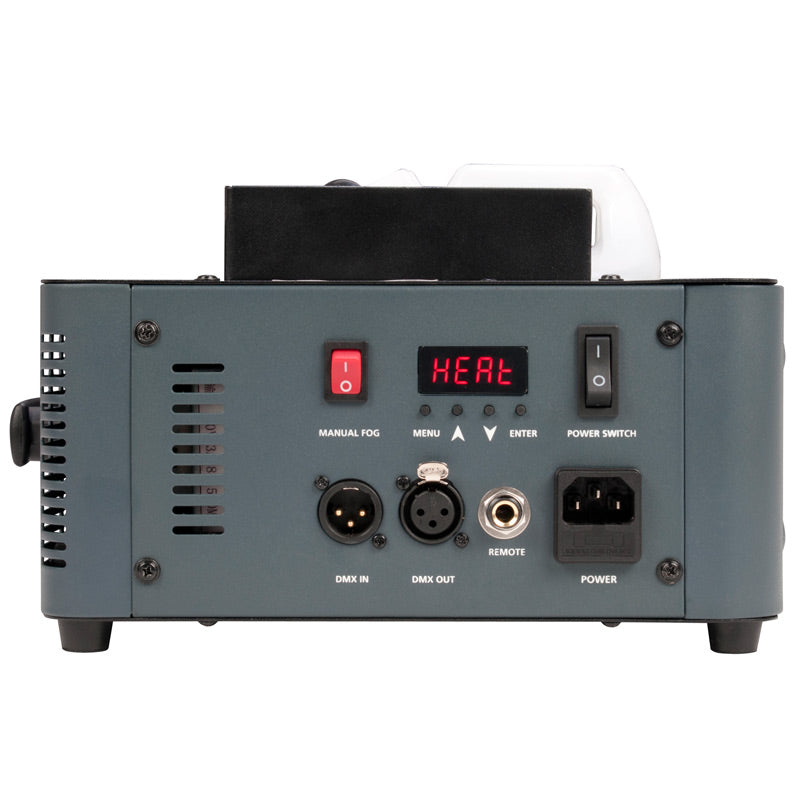

4-button control panel LCD display on rear panel

3-pin DMX XLR In/Out connections

Convenient carrying handle

Low Fluid Indicator on rear

Warm-up time: 9 min

External fog fluid tank: 3 Liter

Fog Output: 20,000 (cu.ft/min)

• Fluid Consumption: 120 ml/min

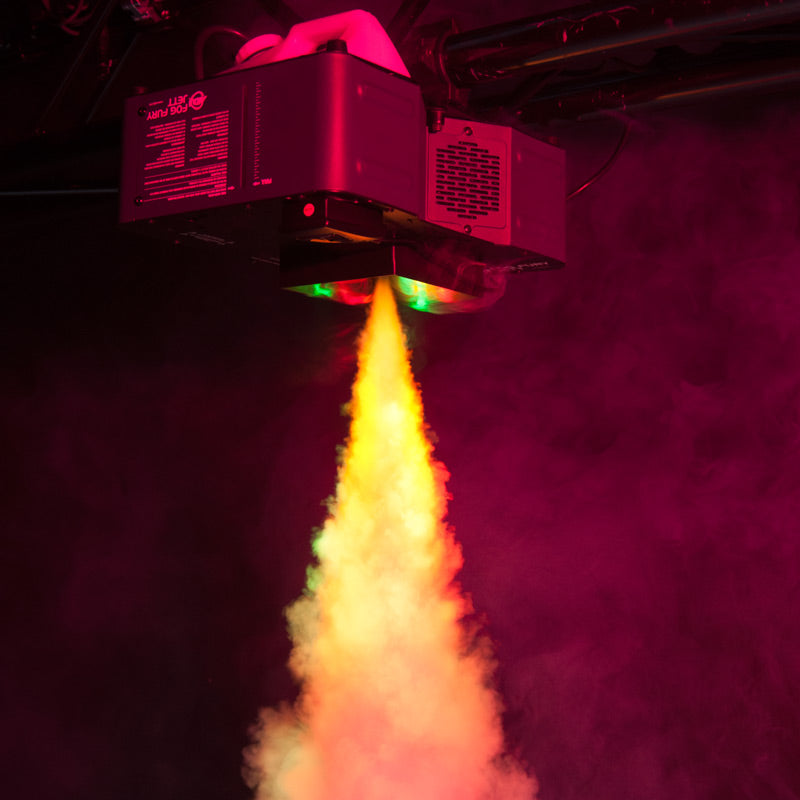

Tank can be mounted to either front or rear so that the effect may be pointed up or down

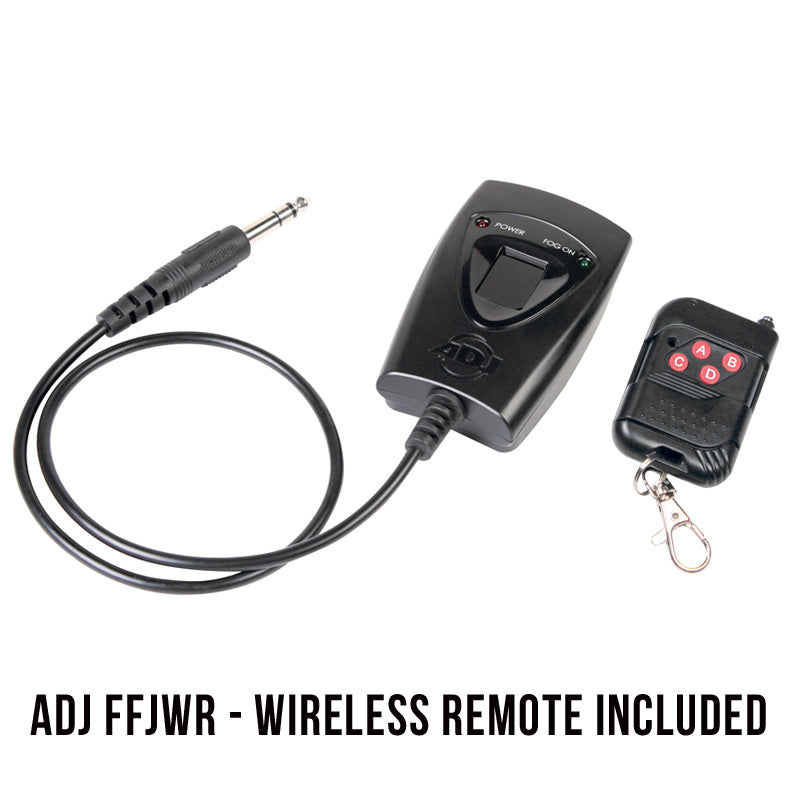

Included Accessory: ADJ FFJWR - wireless remote

Power Connection: IEC AC In

Safety Loop on board

Only use high quality, water-based fog fluid

Light Source: 12x 3-Watt LEDs, (3 Red, 3 Green, 3 Blue 3 Amber LEDs)

Heater: 700W

Voltage: AC 120V, 230 or 240 50/60Hz (non switching)

Power Consumption: 730W (Full on)

Dimensions (LxWxH): 15.5

”

x 12

”

x 7.5

”

/ 397 x 302 x 191mm

Weight: 16 lbs. / 7.1 kg.

• ETL Approved
