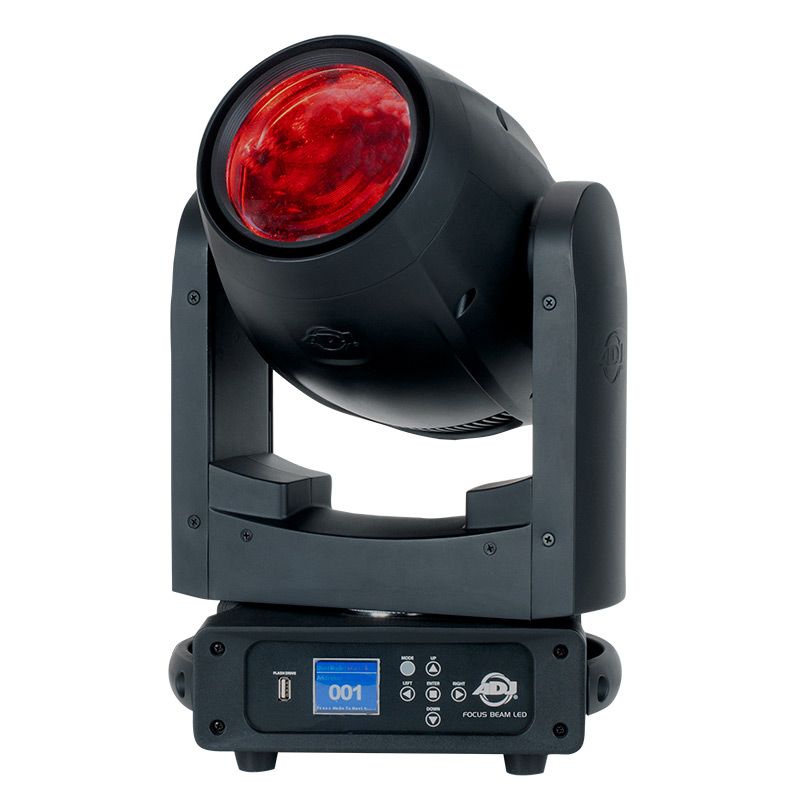

The Focus Beam LED, a complimentary fixture to the other Focus Series moving heads, uses a powerful 80W LED engine to produce a powerful, 7400K, 2.5-degree beam from an advanced optical system. This fixture features motorized focus, two prism effects (rotatable 8-facet Circular and rotatable 6-facet Linear), and it has a built-in in frost filter for wash effects.
There are a variety of control options on the Focus Beam LED such as: DMX & RDM protocol, a variety of dimming modes, fine pan and fine tilt options, and adjustable gamma and LED refresh rate settings. There is an on-board function display with 5 touch buttons making it easy to dial in custom settings.
The Focus Beam LED offers 13 dichroic colors plus white, and has 15 fixed GOBOs plus open and a GOBO shake effect. Â
There is a convenient USB port on the rear panel used to update firmware. The fixture has locking Seetronic In/Out connections to daisy chain power, and 5-pin DMX In/Out to link data. The fixture is compact and lightweight suitable for fixed installations or temporary, mobile event applications.Â
Light Source:
1x 80W Cool White LED Engine
2.5° Beam Angle
Color Temperature: 7400K
50,000 Hour Average LED Life
Â
Features:
Control Protocol: DMX & RDM (Remote Device Management)
DMX Modes: 2 (16 & 18)
Dim Modes: 6 Presets (Standard, Stage, TV, Architectural, Theatre & Stage 2)
Dim Speed control (0.1~10 Seconds)
Dimming: 0 - 100%Â
Strobe & pulse control
Motorized Focus
Linear Frost 0-100% (Wash effect)
2 Prisms: 6 & 8 Facet, Indexable and Rotatable
USB firmware update port
Adjustable LED Refresh Rates (900~25k Hz)
Adjustable Gamma Settings (1.0-2.8)
With Wired Digital Communication Network
Display: Touch display with 5-button touch menu
Â
Color Wheel:
13 dichroic colors + whiteÂ
Â
GOBO Wheel:
Metal wheel with 15 fixed GOBOs + Open
GOBO shake effect
Â
Prism Wheel:
Prism Wheel 1: Rotatable 8-facet Circular
Prism Wheel 2: Rotatable 6-facet Linear
Prism Indexing with overlay feature
Â
Control:
Control Modes: DMX512, RDM (Remote Device Management)
 & Stand Alone Internal Programs
2 DMX Channel Modes: 16 & 18 channels
16-Bit Pan, Tilt & Dimmer control
Connections:
DMX Connections: 5-pin Locking XLR In & Out
Power Connections: Seetronic Locking Power In & Out
Pan/Tilt:
Pan & Pan Fine: 630 degrees
Tilt & Tilt Fine: 270 degrees
Electrical:
Multi-voltage operation: AC 100-240V, 50-60Hz (Auto Sensing)
Maximum Power Consumption: 136W @ 120V
Daisy chain: 15 units @ 120V; 30 units @ 230V
Dimensions & Weight:
Dimensions (LxWxH): Â 10.96" x 7.55" x 17.61" / 278x191x447mm
Weight: 27 lbs. (12.25 kg)
Â
What’s Included:Â
2x Omega Brackets
1x Seetronic Power Locking Power Cable
