Specifications

SOURCE

400W LED Engine

20,000 Hour Average LED Life

PHOTOMETRIC DATA

20,000 Total Lumens

6,700K, >70CRI (

without CRI Filter

)

6,200K >87CRI (

with CRI Filter

)

44,330 LUX 4,118 FC @16.4’ (5m) (7.32° Beam)

1,767 LUX 164 FC @16.4’ (5m) (45° Beam)

EFFECTS

4 Rotating Framing Shutters, +/-60°, plus shape rotation

3-Facet Circular 4-Facet Linear Rotating Prisms

Replaceable Medium Frost Filter

Animation Wheel

Motorized Zoom (7~45-degrees)

Motorized Focus

Motorized Iris

Electronic Dimming Strobe (1-20Hz)

COLOR

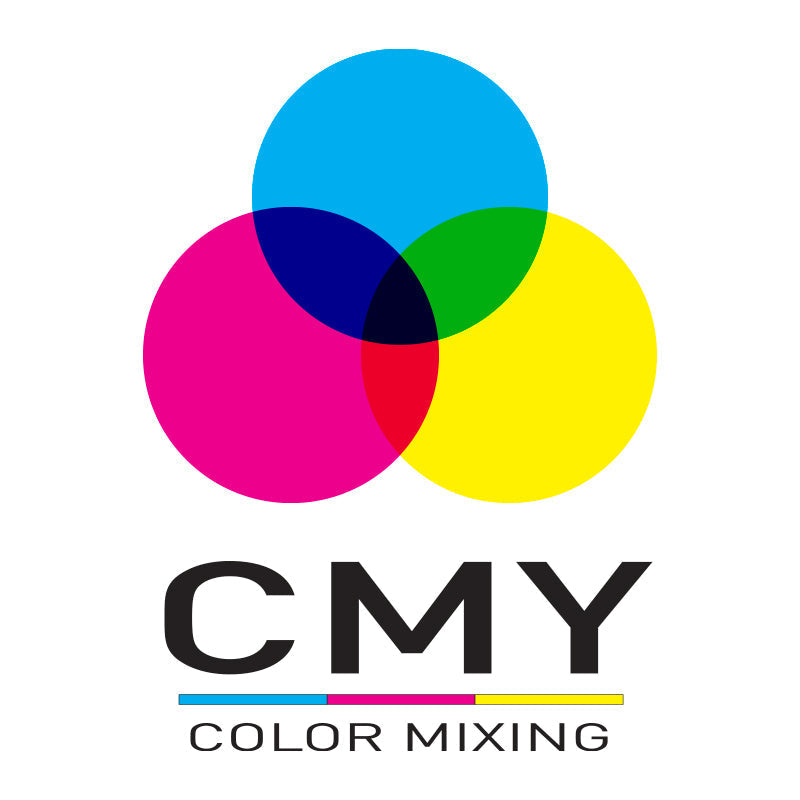

Full CMY color mixing

Variable CTO (2700K to 6700K)

Colors Wheel with 6 dichroic colors

GOBOS

(2) Gobo Wheels

#1 - (7) Rotating Glass Gobos (Interchangeable and Indexable)

#2 - (8) Static Glass Gobos

CONTROL / CONNECTIONS

(3) DMX Channel Modes (36 / 40 / 51)

RDM (Remote Device Management)

6 Button Touch Control Panel

Full Color 180° Reversible LCD Menu Display

8 / 16 Bit Resolution Adjustable Movement

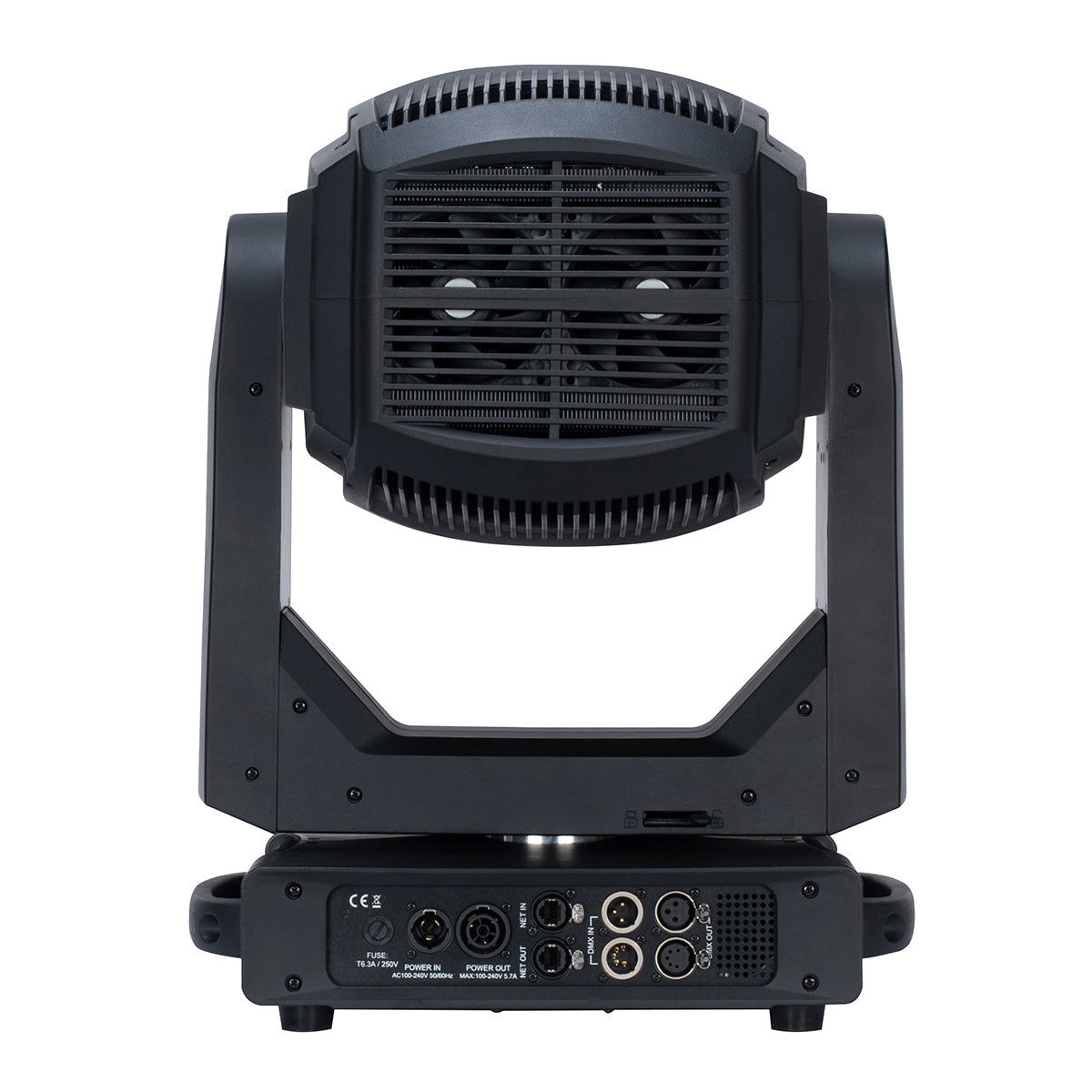

3 5 pin XLR DMX In/Out

RJ45 Ethernet In/Out (Art-NET)

Locking In/Out power connections

With Wired Digital Communication Network

PAN / TILT

Pan: 540-degrees

Tilt: 270-degrees

Pan Tilt Locks

SIZE / WEIGHT

Length: 15.7" (400mm)

Width: 10.2" (259mm)

Vertical Height: 26.1” (664mm)

Weight: 61.2 lbs. (27.75kg)

ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz

Max Power Consumption: 560W

Max ambient temperature: -13°F to 113°F (-25°C to 45°C)

Max housing temperature: 136°F (58°C)

TECHNICAL DATA

DB Rating @ 3ft.: 49dB

BTU: 0.53

BTU/H: 1,909.60

APPROVALS / RATINGS

CE | FCC | ETL (Control #4010765)

IP20

INCLUDED ACCESSORIES

(1) Power cable

(2) Omega brackets

(1) Heavy frost filter (JMJ03)

Specifications and documentation subject to change without notice.
