FOCUS HYBRID

FOCUS HYBRID

$2,429.99
$2,429.99 $3,399.95

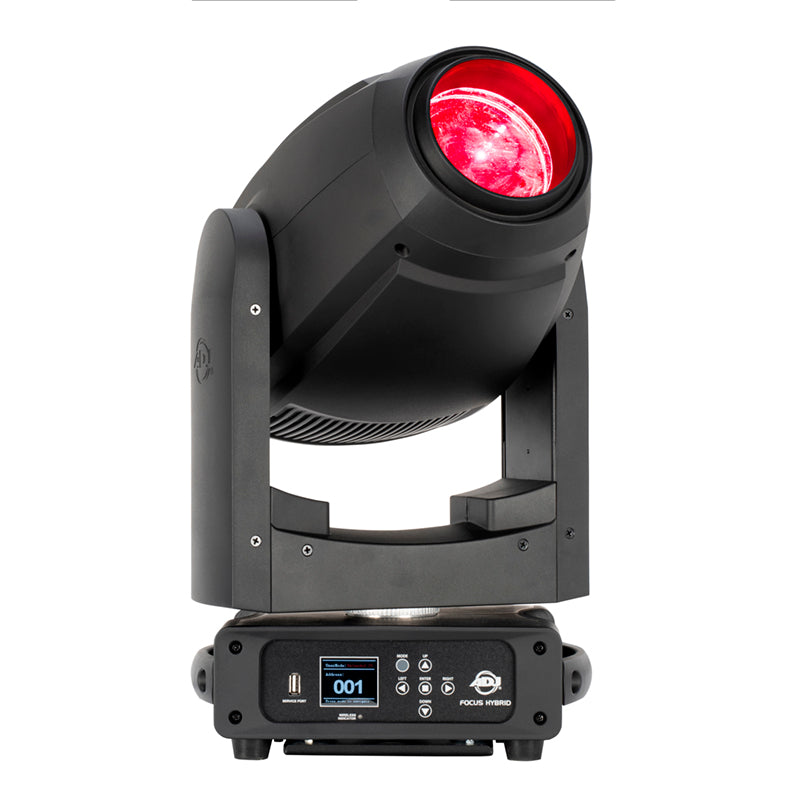

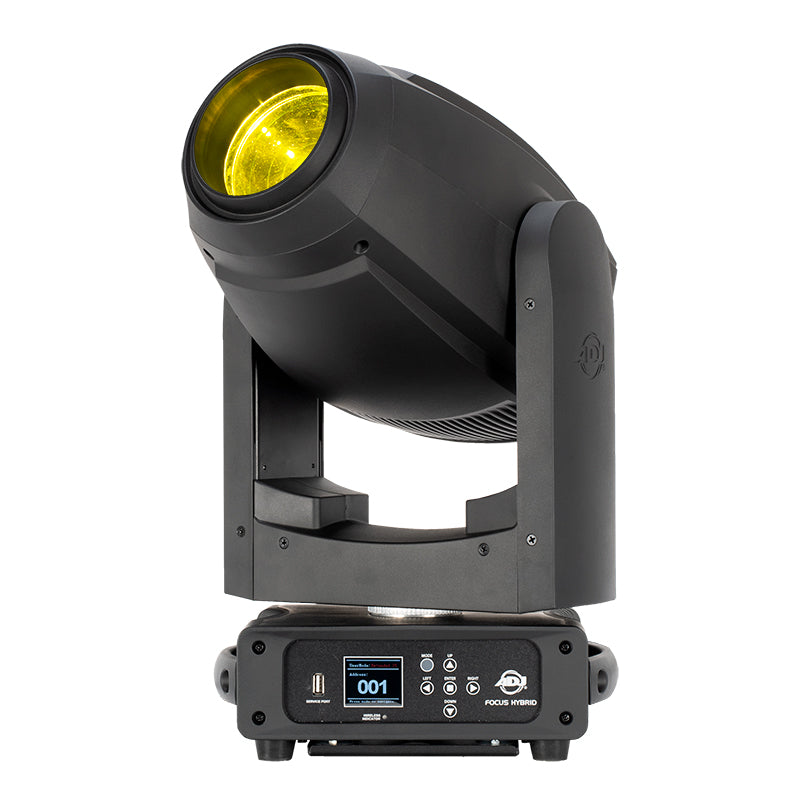

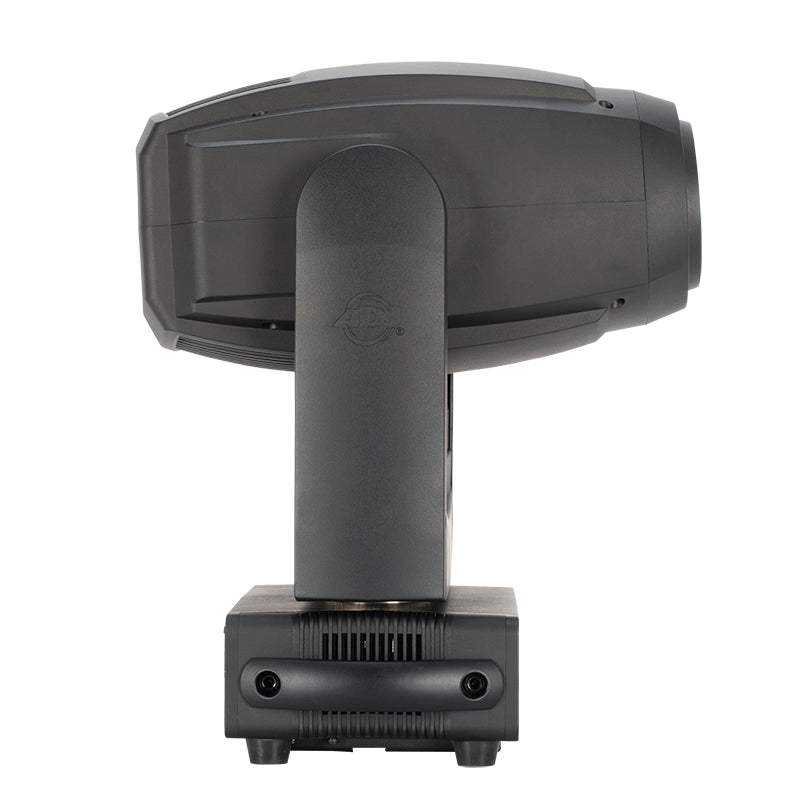

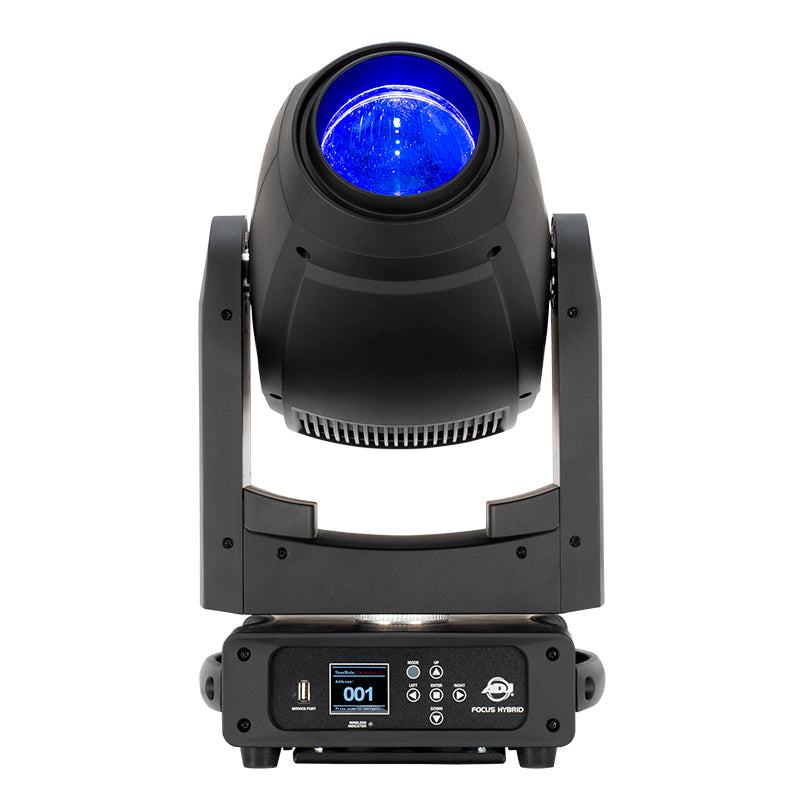

Offering an efficient 200W LED light source combined with an extensive feature set, the ADJ Focus Hybrid is a versatile moving head luminaire. It can function interchangeably as a spot, wash or beam fixture, making it ideal for rental and event production applications as well as for installation in venues that require a moving light which can deliver a high degree of flexibility. It features motorized zoom and focus, two GOBO wheels, an independent color wheel, two rotating prisms and a replaceable frost filter.

Specifications

SOURCE

200W LED Engine

50,000 Hour Average LED Life

PHOTOMETRIC DATA

4,100 Total Lumens

7,500K, >70CRI

57,433 LUX 5,336 FC @16.4’ (5m) (3.1° Beam)

1,293 LUX 120 FC @16.4’ (5m) (23.8° Beam)

EFFECTS

8-Facet Circular & 6-Facet Linear Rotating Prisms

Prism Layering

Replaceable Frost Filter (Heavy Frost Default)

Motorized Zoom (2° to 24°)

Motorized Focus

Electronic Dimming & Strobe (1-20Hz)

COLOR

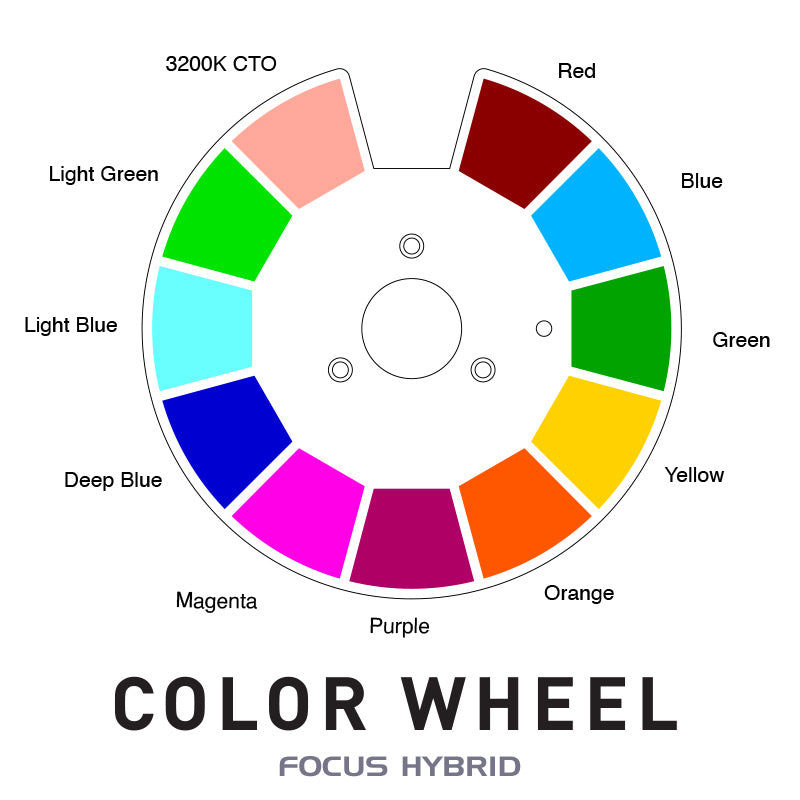

Color Wheel with 11 dichroic colors, includes 3200 CTO Filter

GOBOS

(2) Gobo Wheels

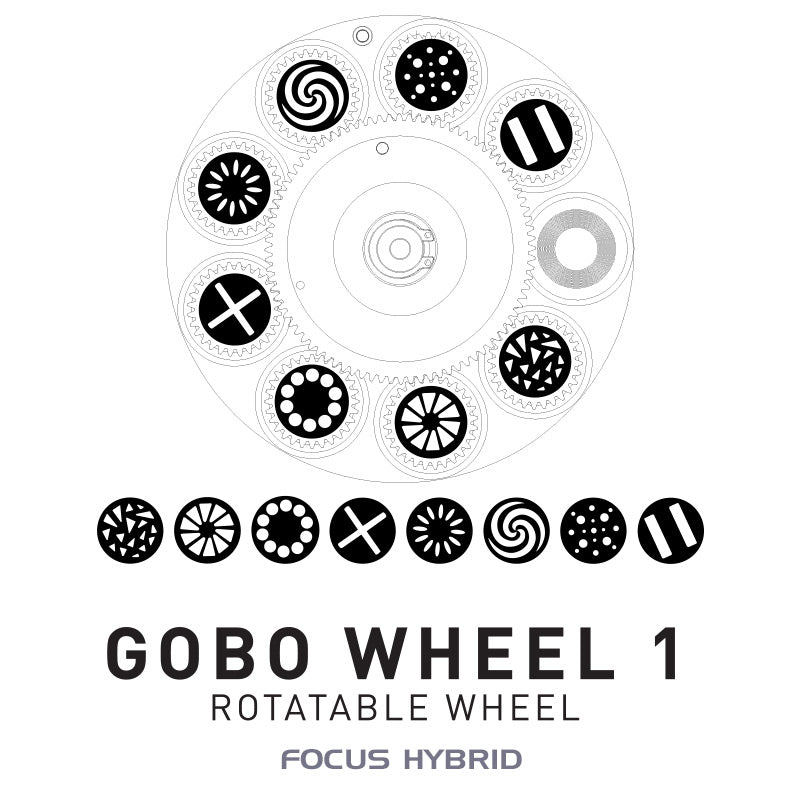

#1 - (7) Interchangeable Rotating-Indexing Gobos

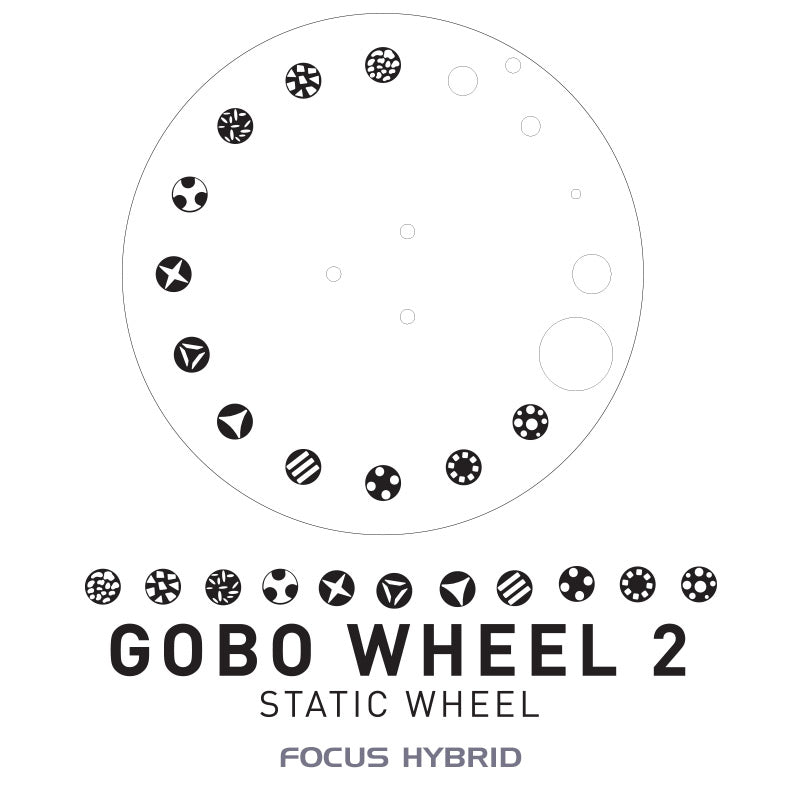

#2 - (15) Static-Stamped Gobos

CONTROL / CONNECTIONS

(3) DMX Channel Modes (19 / 23 / 25)

WiFLY EXR Wireless DMX built-in (2500 ft. / 700M line of sight). Also compatible with Aria X2 Transceivers for 2.4Ghz Wireless DMX control.

RDM (Remote Device Management)

6 Button Touch Control Panel

Full Color 180° Reversible LCD Menu Display

8 / 16 Bit Resolution Adjustable Movement

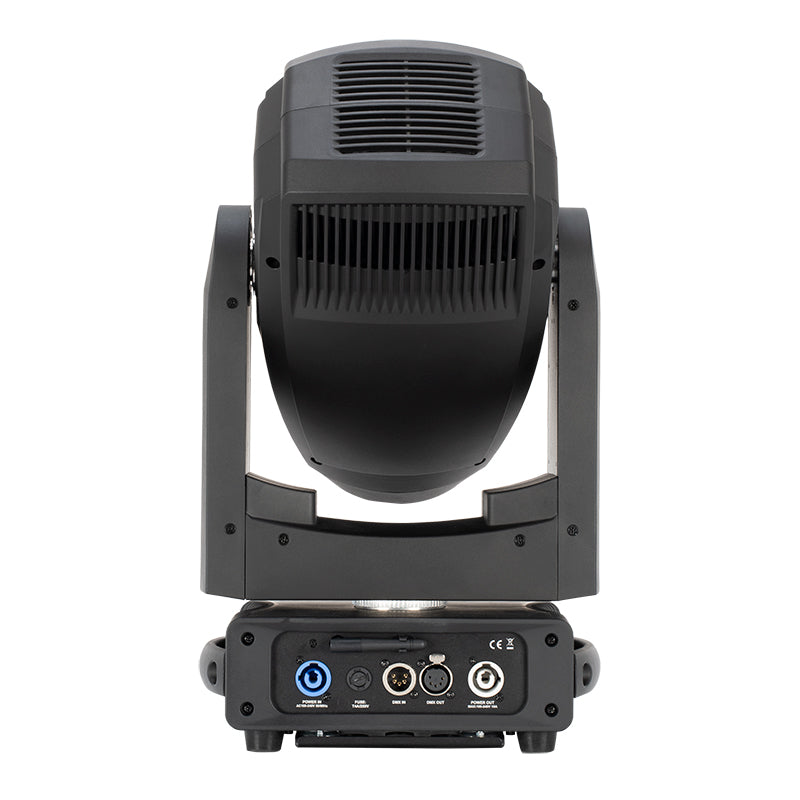

5 pin XLR DMX In/Out

Locking In/Thru power connections

Antenna on rear for WiFLY EXR Wireless DMX connection

With Wired Digital Communication Network

PAN / TILT

Pan: 540-degrees

Tilt: 270-degrees

SIZE / WEIGHT

Length: 13.8" (351mm)

Width: 11.0" (279mm)

Vertical Height: 20.9" (530mm)

Weight: 31 lbs. (14.10kg)

ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz

Max Power Consumption: 335W

Max ambient temperature: -13°F to 113°F (-25°C to 45°C)

Max housing temperature: 136°F (58°C)

Daisy chain power up to 2 units @ 120V or 6 units @ 240V

TECHNICAL DATA

DB Rating @ 3ft.: 43.2dB

BTU: 0.32

BTU/H: 1,142.35

APPROVALS / RATINGS

CE | ETL (Pending)

IP20

INCLUDED ACCESSORIES

(1) Power cable

(2) Omega brackets

(1) Medium frost filter

Specifications and documentation subject to change without notice.
