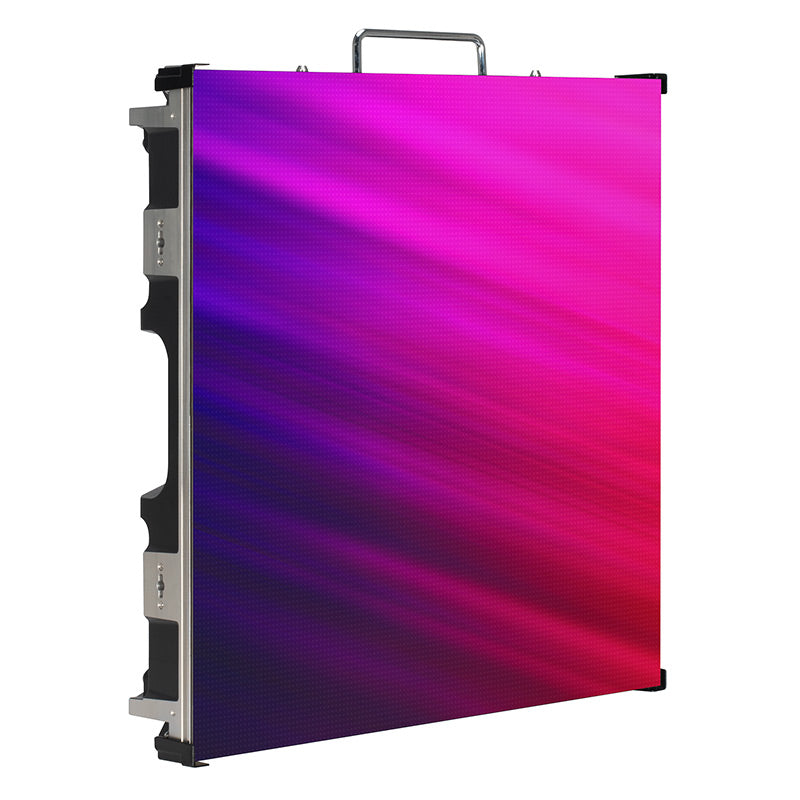

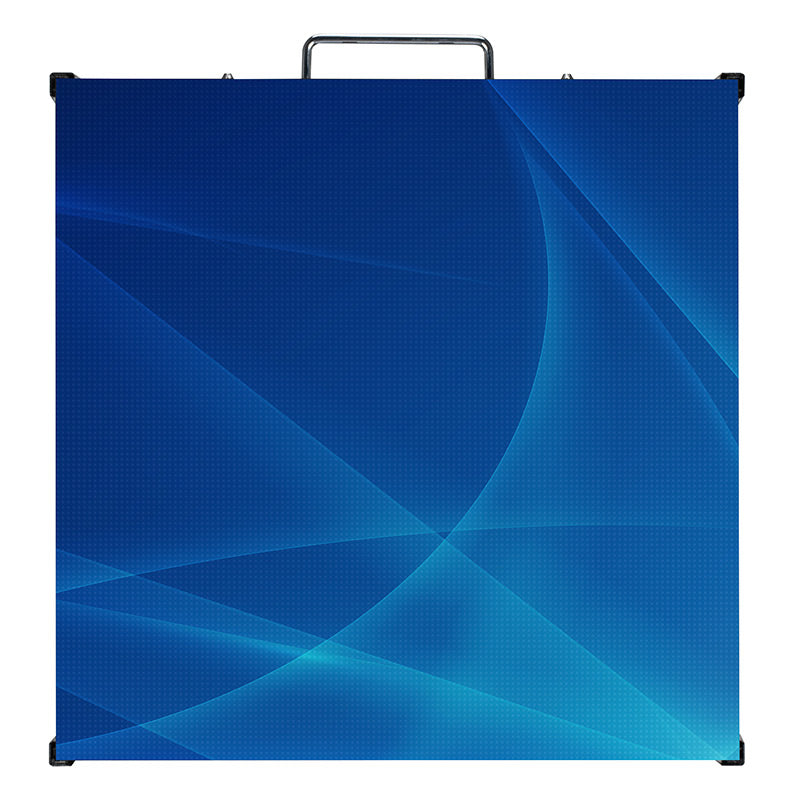

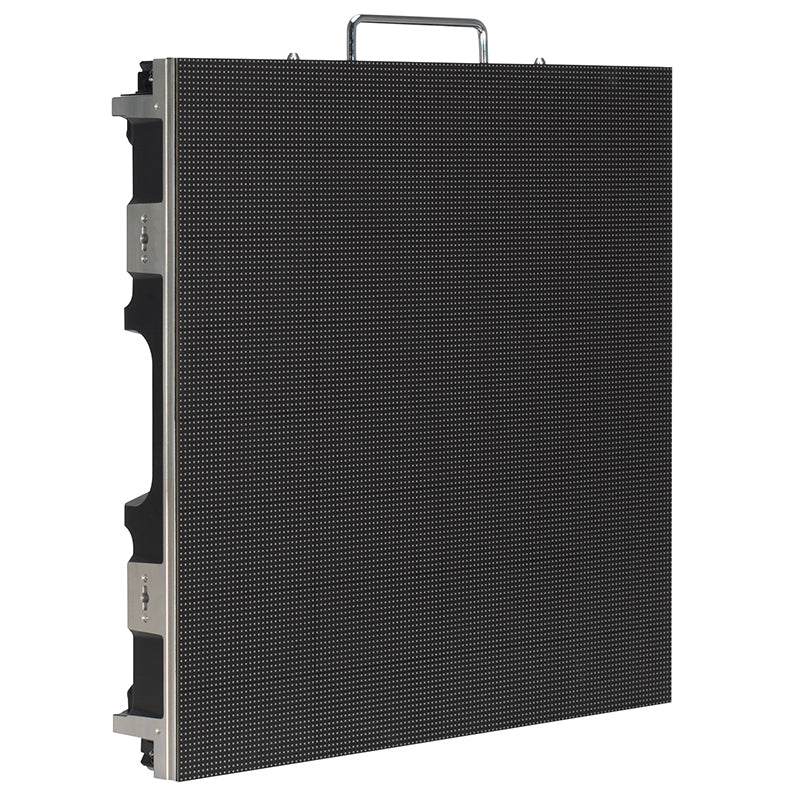

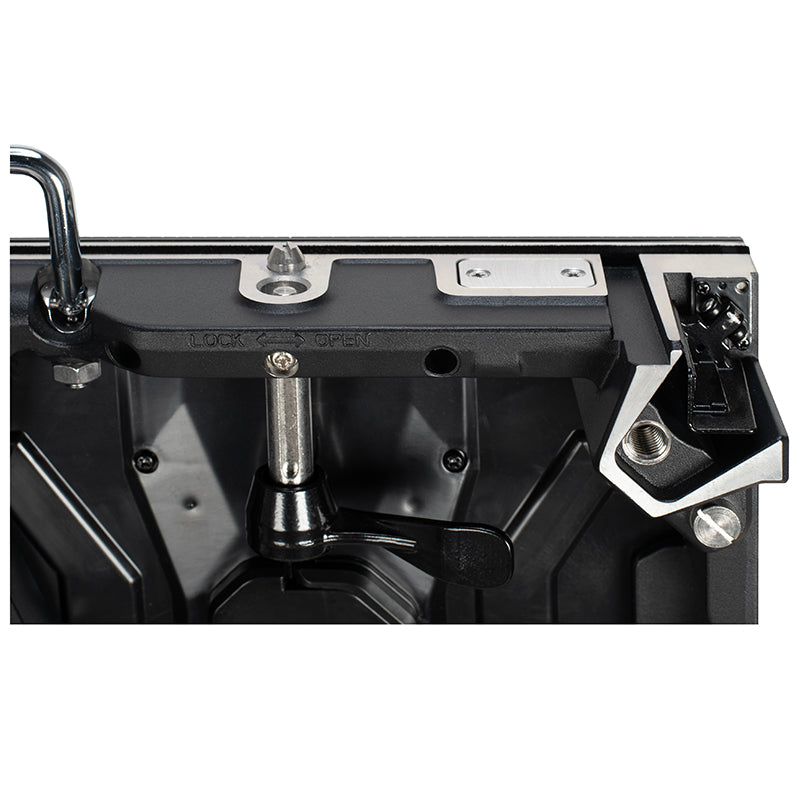

The ADJ Lighting EVS3 LED Video panel has a pixel pitch of 3.91mm with a configuration of a 3-in-1 RGB SMD2121 LED. Each panel has four individual mini modules and is front and rear serviceable. Up to 8 EVS3 video panels fit inside the VSFC8 flight case. Hang up to 20 EVS3's vertically with the VSRB1 rigging bar.
Specifications
SPECIFICATIONS:
- Pixel Pitch: 3.91mm (0.15”)
- LED Configuration: 3-in-1 SMD2121 LED
- Pixel Density: 128x128; 65536 per square meter
- Size :19.68” x 19.68” x 2.96” / 500 x 500 x 75mm
- Module Quantity: 4
- Weight: 16.5 lbs. / 7.5kg.
FEATURES:
- Memory on Module (MOM): Enhanced functionality for seamless operation

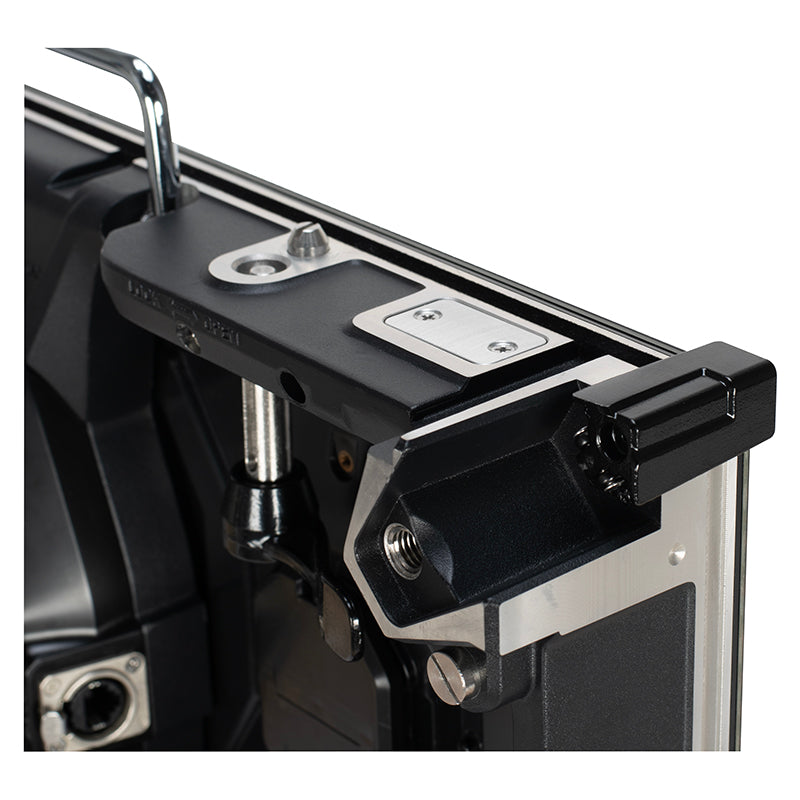

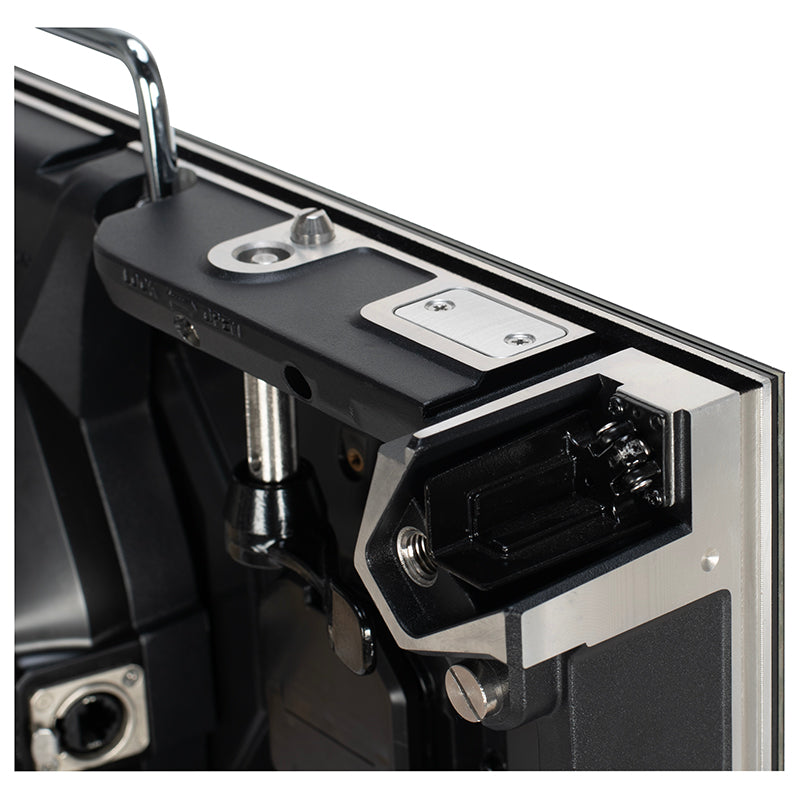

- Corner Protectors to protect the corners of the EVS3 during transport, set-up and teardown

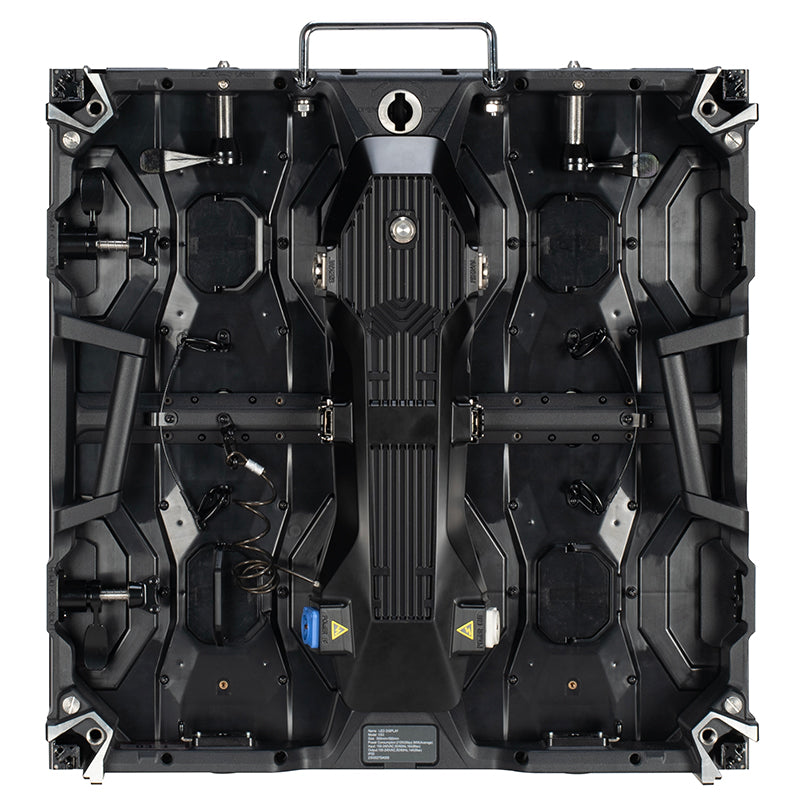

- Front and rear serviceable: 4 easy to replace video modules on each panel
MECHANICAL RATINGS:
- Surface Flatness: Gaps<0.5mm
OPTICAL RATINGS:
- Brightness: 800 NITS
- View Angle: Horizontal 160°/Vertical 140° @ 9.75 ft. (3m)
- Gray Scale: ≥14-bit
- Display Color: 256
- Brightness Adjustment: 0~100% 100 Levels
- Contrast ratio: 5000:1
- Processing: 14-bit
POWER SUPPLY:
- Operation Power: 100~240V 50-60Hz
- Max. Power Consumption: 120W/per panel
- Ave. Power Consumption: 48W/per panel
- Connections Power/Data: Power-PowerLock In/Out; DataLock In/Out
CONTROL SYSTEM:
- Control Mode: Nova Star Synchronous System with Control via DVI
- Frame Update Frequency: 50-75Hz
- Scan Mode: 1/16
- Refresh Rate: 3840Hz
- Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
- Control Distance: Ethernet Cable <120m or Fiber Optic>120m
- Support VGA Mode: 1024 x 768, 1280 x 1024, 1600 x 1200, 1920 x 1280
- Brightness Correction: Pixel, Module, Cabinet
ENVIRONMENTAL:
- Operating Temp / Humidity: Fahrenheit: -4° + 104° / Celsius: -20° + 40°/ 10-90% (No Condensation)
- Operating Life / MTBF: 50,000 Hours / 5,000 Hours
- Protection Level: IP20 (Front and Back)
- Out of Control Rate: <0.02%
VIDEO WALL SYSTEMS:
EVS3 video wall systems include: video panels, video processor, power cables, data cables, rigging bars and video software (computer sold separately).
EVS3-4X2
: 8 Panel (4x2) Video Wall System
EVS3-5X3
: 15 Panel (5x3) Video Wall System
EVS3-7X4
: 28 Panel (5x3) Video Wall System
OPTIONAL ACCESSORIES:
- VSFC8 (VS8100): Flight Case – Fits 8 EVS3 Video Panels
- VSRB1 (VS1100): Rigging Bar – Hang up to 20 EVS3 Video Panels vertically

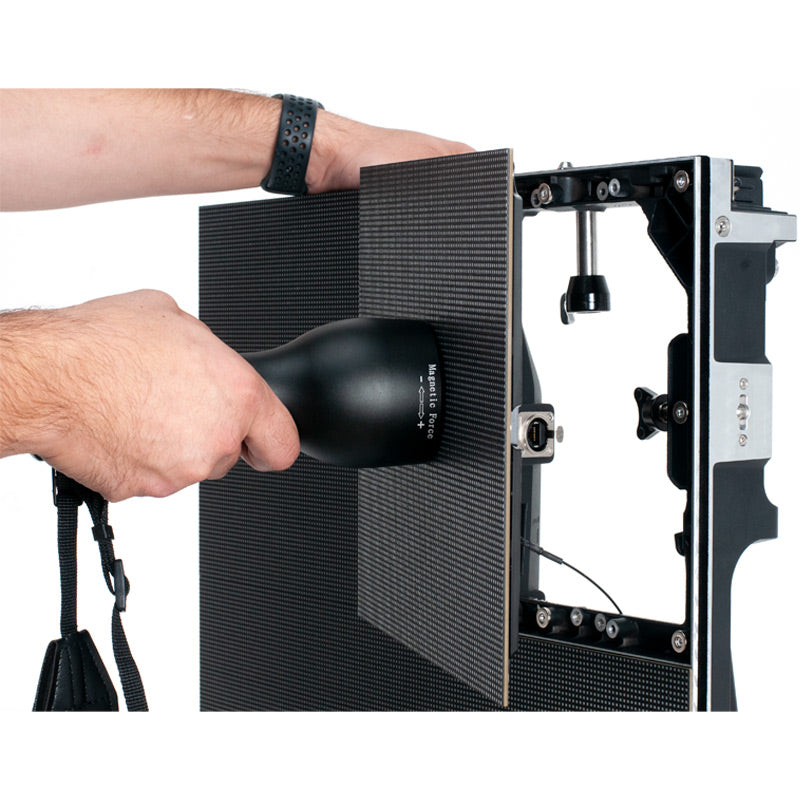

- VSMRT (VSM111): Module Removal tool - Magnetically assists the tech in removing modules from the front side when servicing.
- VSRQR (VSR210): Quick Rig - Attaches and locks on to the rear of EVS3 so it can be fastened to a 2" pipe or truss
- VS1RSB (VS1126) Rear Support Bracket for EVS3
- VSSCSB VSS225): Single Column Support Base
- VSGSB (VSG100): Ground Support Base
- VSGSLT (VSG132): Ground Support Ladder Truss
- VSGSCSB (VSG155): Clamp Support Bar
- EVSVAC (EVSVAC): Vacuum Tool to Remove Modules
- Novastar VX4S: Video Processor
- Novastar MCTRL-300: Video Processor
- Novastar Nova Pro HD: Video Processor
- Arkaos Media Master: Video Software
- Arkaos GrandVJ 2.0: Video Software
CABLES:
- Cabinet to Cabinet Data Link Cables (Ethernet Locking Connectors)
- Indoor Power Locking Link Cables
- Indoor Power Locking Main Power Cables
CERTIFICATIONS:
This product was developed for temporary use only! It should not be permanently installed.
Specifications are subject to change without notice.
