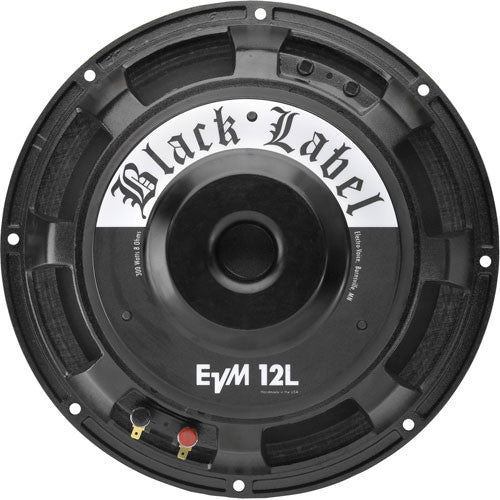

Electro Voice EVM12L8OHMCLSC 12-inch, 200-watt premium guitar speaker, 8 ohms

$533.00 $249.00

Features: The EVM12L Classic Guitar Loudspeaker from Electo-Voice is a 12" diameter speaker designed for professional, high-quality guitar amplification systems. The high-range frequency response is specifically designed for lead guitar performances and classic guitar tones. Packaged around an eight-spoke, diecast aluminum frame, the speaker features a low-mass edgewound voice coil...

Qty:
Features:

The EVM12L Classic Guitar Loudspeaker from Electo-Voice is a 12" diameter speaker designed for professional, high-quality guitar amplification systems. The high-range frequency response is specifically designed for lead guitar performances and classic guitar tones. Packaged around an eight-spoke, diecast aluminum frame, the speaker features a low-mass edgewound voice coil on a laminated polyimide coil form, driven by a 16 Lbs. magnetic structure. The speaker also features a curvilinear cone and fatigue-resistant cone suspension, and both the coil and magnetic structure are vented. This speaker can be front or rear mounted.

Features:

  • 200W power handling
  • 100 dB sensitivity
  • Cast frame creates a reduced low-frequency flex
  • Edge-wound flat aluminum wire featured for maximum output and reliability
  • 16.0 Lbs. (7.3 kg) magnet assembly
  • Specifications:
  • Power:
    • Continuous: 200 W
    • RMS: 300 W
    • Peak: 1000 W
  • Sensitivity: 100 dB
  • Frequency Response: 80 to 5,000 Hz
  • Nominal Impedance: 8 ohms
  • Maximum Sound Pressure Level (SPL): 100 dB (1 W / 39.4" (1.0 m))
  • Parameters:
    • Thiele-Small Driver Parameters: fs (free-air resonance frequency) 55 Hz
    • Qes (electromagnetic Q at fs): 0.245
    • Qms (mechanical Q at fs): 4.37
    • Qts (total Q at fs): 0.232
    • Vas (volume of air having same acoustic compliance as driver suspension): 2.9 ft3 (82.9 liters )
    • n0 (half-space reference efficiency): 4.3%
    • Vd (peak displacement volume of diaphragm: 0.0059 ft3 (0.165 liters)
    • Sd (effective diaphragm area ) : 78 in2 (0.050 m2)
    • Xmax (peak linear displacement of diaphragm): 0.13" (3.3 mm)
  • Mounting:
    • Mounting Hole Diameter (8 evenly spaced holes): 0.28" (7.1 mm) - letter "L" drill
    • Bolt Circle Diameter: 11.56" (294 mm)
    • Baffle Opening Diameter (front or rear mounting): 11.0" (279 mm)
    • Optional Mounting Accessory: SMH-1 mounting hardware kit (sold separately)
  • Voice Coil Diameter: 2.5" (6.35 cm)
  • Overall Diameter: 12.2" (31.0 cm)
  • Overall Depth: 5.5" (13.8 cm)
  • Weight: 19.0 Lbs. (8.6 kg)


  • Model: EVM12L8OHMCLSC
    Manufacturer: Electro Voice
