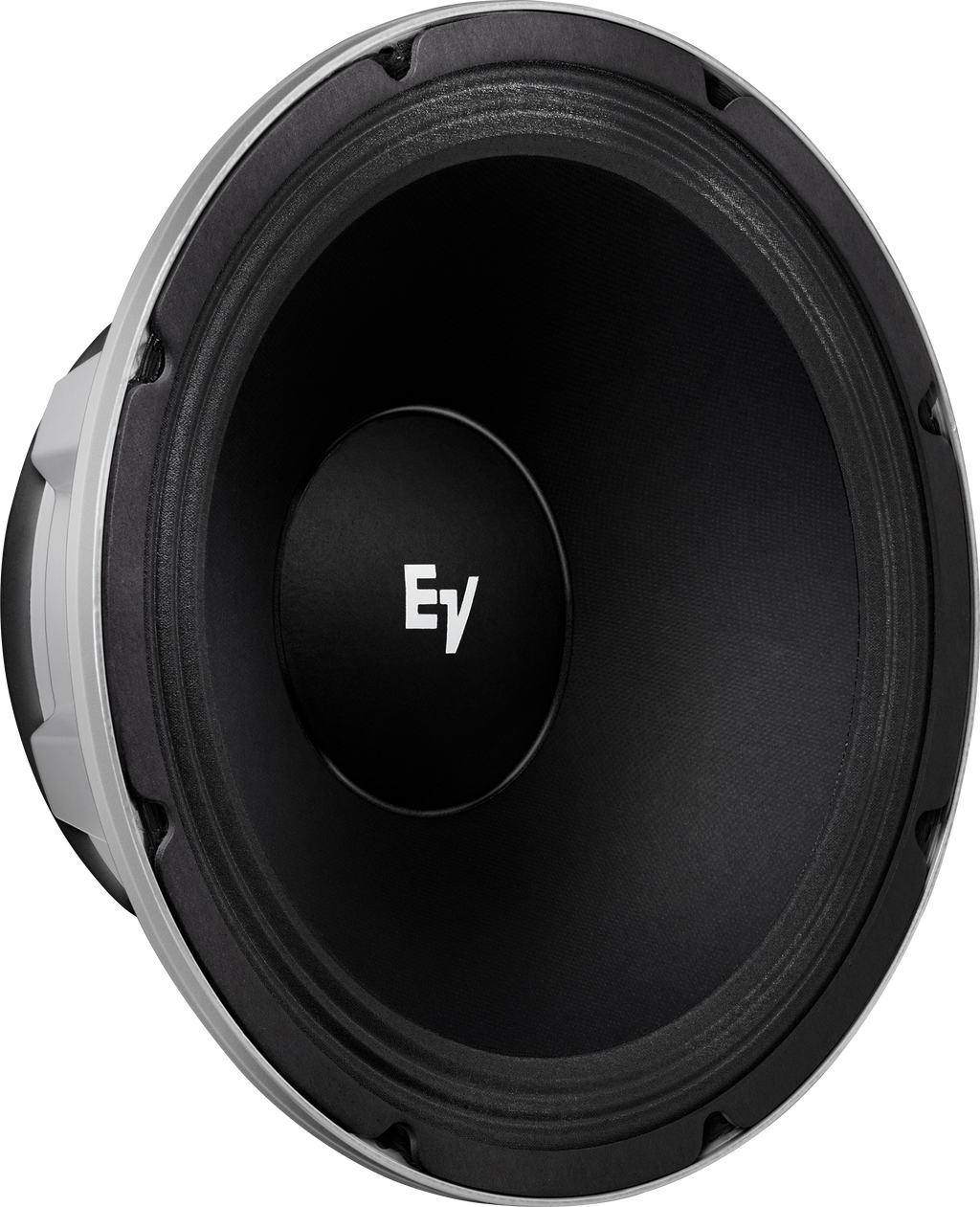

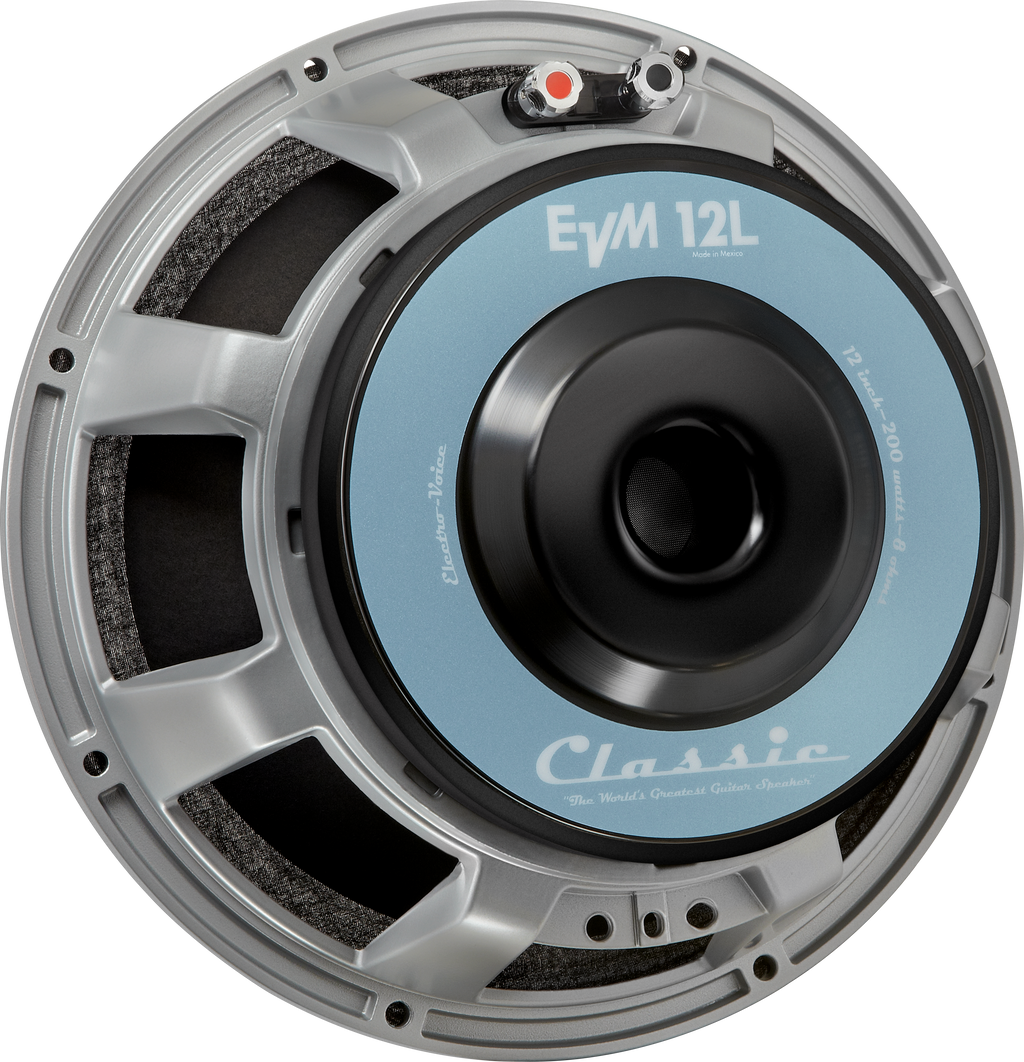

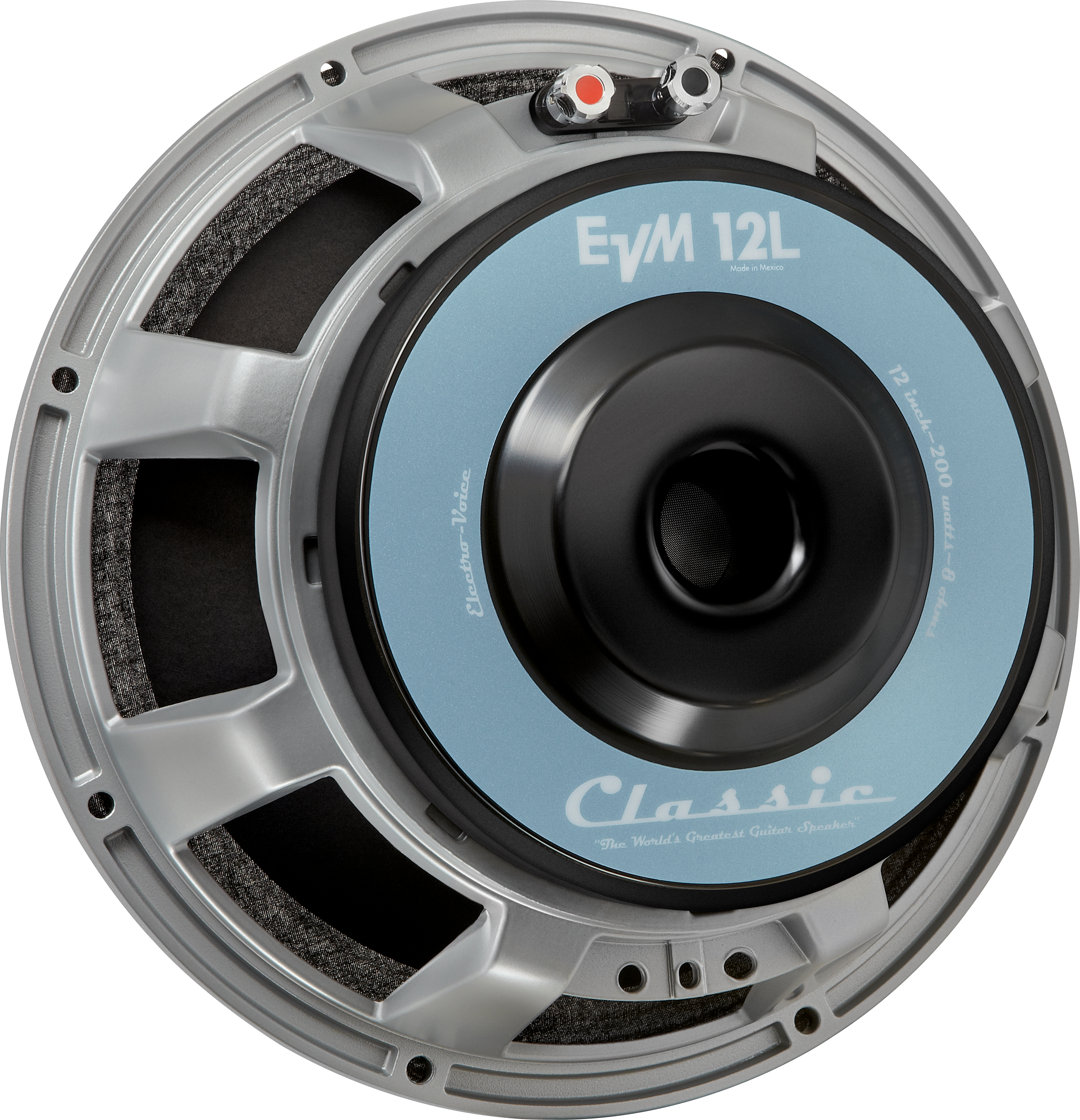

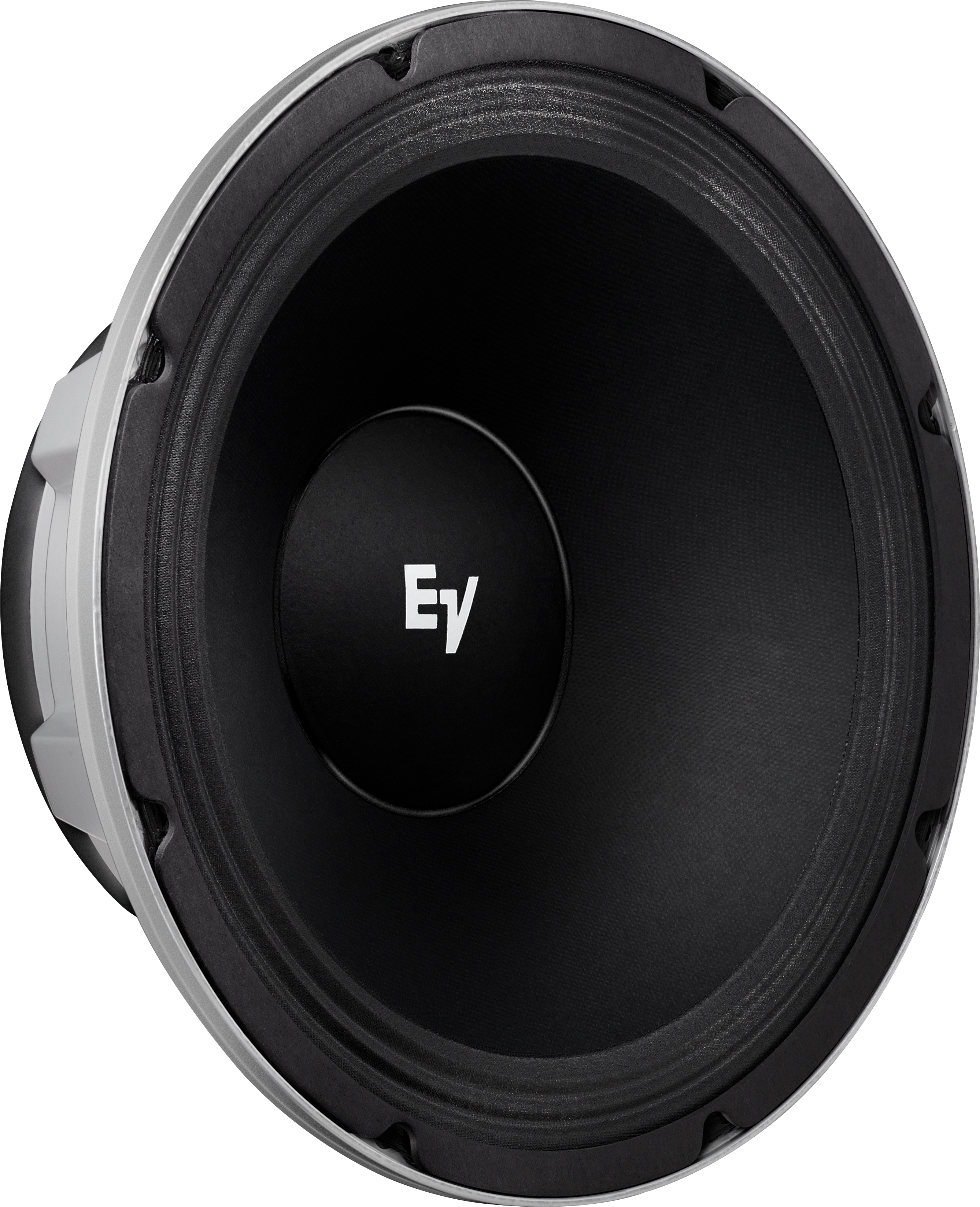

Name: Electro-Voice EVM12L8OHMCLASSIC – 12-inch, 200-watt premium guitar speaker, 8 ohms
Brand: Electro-Voice
SKU: EVM12L8OHMCLASSIC
Price: 309.00 USD
Availability: InStock

Electro-Voice EVM12L8OHMCLASSIC – 12-inch, 200-watt premium guitar speaker, 8 ohms

$309.00

$309.00 $642.00

Electro-Voice

EVM12L8OHMCLASSIC – 12-inch, 200-watt premium guitar speaker, 8 ohms

Overview

World’s greatest guitar loudspeaker

Highlights

✓Classic sound with road-ready reliability
✓Favorite of guitarists in all styles
✓High-performance heavy-duty design
✓200W Power handling
✓Frequency response: 80Hz – 7kHz (-10 dB)
✓Heavy-duty cast frame for reduced low-frequency flex
✓Large 16 lbs (7.3 kg) magnet assembly

Specifications

Usable Frequency Response in a Typical Vented 1.3-Cubic-Foot Enclosure (1 watt/1 meter)	80-5,000 Hz
Sound Pressure Level (1 watt/1 meter)	100 dB
Long-Term Average Power Handling Capacity (per EIA RS-426-A 1980	200 watts
Specifications Nominal Impedance	8 ohms
Voice Coil Diameter	63.5 mm (2.5 in.)
Thiele-Small Driver Parameters fs (free-air resonance frequency)	55 Hz
Q ES (electromagnetic Q at fs)	0.245
QMS (mechanical Q at fs)	4.37
Q TS (total Q at fs: (Qes Qms)/(Qes + Qms))	0.232
V AS (volume of air having same acoustic compliance as driver suspension)	82.9 liters (2.9 ft³)
h 0 (half-space reference efficiency)	4.30%
V D (peak displacement volume of diaphragm: S D x X max )	0.165 liters (0.0059 ft³)
S D (effective diaphragm area)	0.050 m2 (78 in.²)
X max (peak linear displacement of diaphragm)	3.3 mm (0.13 in.)
Mounting Hole Diameter (eight evenly spaced holes)	7.1 mm (0.28 in.)-letter "L" drill
Bolt Circle Diameter	294 mm (11.56 in.)
Baffle Opening Diameter (front or rear mounting)	279 mm (11.0 in.) Dimensions (Depth x Diameter): 138 mm (5.5 in.) x 310 mm (12.20 in.)
Net Weight	8.6 kg (19 lb)
Shipping Weight	10.0 kg (21.5 lb)
