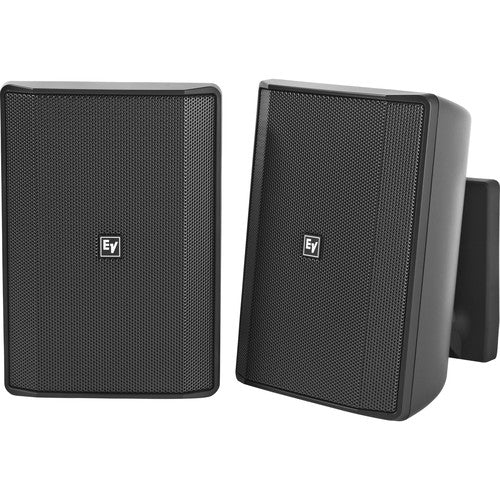

Electro Voice EVID-S5.2T 5.25" 2-Way 70/100V Commercial Loudspeaker Pair - Black

$315.00

Electro Voice EVID-S5.2T 5.25" 2-Way 70/100V Commercial Loudspeaker Pair - Black The black Electro Voice EVID-S5.2T is a pair of 5.25” 2-way 70/100V commercial loudspeakers designed to provide full-range sound reproduction and even coverage for system designers, installers, and audio engineers configuring systems for paging and background and foreground music...

Qty:

Electro Voice EVID-S5.2T 5.25" 2-Way 70/100V Commercial Loudspeaker Pair - Black

The black Electro Voice EVID-S5.2T is a pair of 5.25” 2-way 70/100V commercial loudspeakers designed to provide full-range sound reproduction and even coverage for system designers, installers, and audio engineers configuring systems for paging and background and foreground music in stores, clubs, eateries, schools, and more. Each speaker is IP54-certified for weather-resistant use outdoors and features a fire-rated ABS plastic enclosure. A pre-assembled mounting system and supplied mounting hardware enable simple and efficient setup.

A removable, locking 4-pin Euroblock connector allows for compatibility with commercial amplifiers. The 5.25” woofer and 0.75” high-frequency driver yield a frequency response of 60 Hz to 20 kHz. With a 109 dB maximum SPL and a coverage area of 90° by 90°, the EVID-S5.2T speakers deliver consistent audibility and even sound distribution.

Features:

  • Pre-assembled mounting system allows 90° of horizontal rotation and 45° of vertical rotation
  • 90° horizontal by 90° vertical coverage
  • Fire-rated ABS plastic enclosure
  • IP54-certified for enhanced weather resistance
  • 5.25" long-throw woofer and 0.75" high-frequency driver
  • 60 Hz to 20 kHz frequency response (-10 dB), 85 Hz to 20 kHz frequency response (-3 dB)
  • 300W peak (75W continuous) power handling for 109 dB maximum SPL (115 dB peak)
  • Removable, locking 4-pin Euroblock connector accepts up to 12 AWG (2.5mm) wire size
  • Logo can be replaced to match speaker orientation

Specifications:

  • LF Driver: 5.25" / 133 mm
  • HF Driver: 0.75" / 20 mm
  • Connector Type: 1 x 4-pin Euroblock connector (removable, locking)
  • Maximum Wire Size: 12 AWG (2.5 mm)
  • Coverage Horizontal: 90° (nominal -6 dB)
  • Coverage Vertical: 90° (nominal -6 dB)
  • Environmental Specifications: IP54 (per IEC-60529)
  • Frequency Response: 60 Hz to 20 kHz (-10 dB), 85 Hz to 20 kHz (-3 dB)
  • Sensitivity: 90 dB (half space on wall averaged 100 Hz to 10 kHz, 1 W)
  • Maximum SPL: 109 dB calculated, 115 dB peak
  • Power Handling: 300 W peak (75 W with continuous pink noise for 100 hours)
  • Low Impedance: Yes
  • Impedance Nominal: 8 Ohms
  • Impedance Minimum: 6.4 Ohms
  • Transformer: 30 W
  • Transformer Taps: 3.7 W (70 V only), 7.5 W, 15 W, 30 W
  • Enclosure Material: Fire-rated ABS plastic
  • Dimensions (H x W x D): 10.0 x 7.1 x 5.9" / 255 x 180 x 151 mm
  • Weight: 7 lb / 3.2 kg

Packaging Info

  • Package Weight: 17.7 lb
  • Box Dimensions (LxWxH): 16.2 x 13.3 x 12.5"
