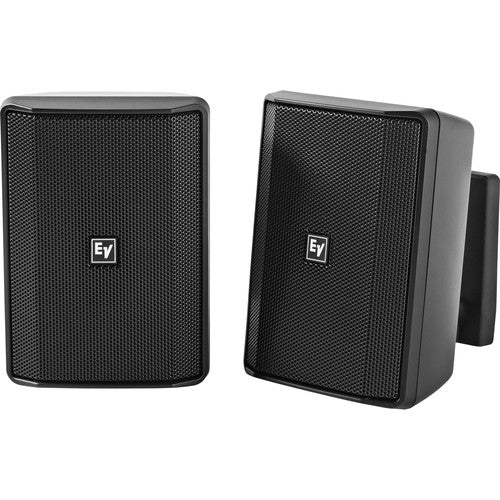

Electro Voice EVID-S4.2T 4" 2-Way 70/100V Commercial Loudspeaker Pair - Black
The black Electro Voice EVID-S4.2T is a pair of 4” 2-way 70/100V commercial loudspeakers designed to provide full-range sound reproduction and even coverage for system designers, installers, and audio engineers configuring systems for paging and background and foreground music in stores, clubs, eateries, schools, and more. Each speaker is IP54-certified for weather-resistant use outdoors and features a fire-rated ABS plastic enclosure. A pre-assembled mounting system and supplied mounting hardware enable simple and efficient setup.
A removable, locking 4-pin Euroblock connector allows for compatibility with commercial amplifiers. The 4” woofer and 0.75” high-frequency driver yield a frequency response of 75 Hz to 20 kHz. With a 98.5 dB maximum SPL and a coverage area of 110° by 110°, the EVID-S4.2T speakers deliver consistent audibility and even sound distribution.
Features:
- Pre-assembled mounting system allows 90° of horizontal rotation and 45° of vertical rotation
- 110° horizontal by 110° vertical coverage
- Fire-rated ABS plastic enclosure
- IP54-certified for enhanced weather resistance
- 4" long-throw woofer and 0.75" high-frequency driver
- 75 Hz to 20 kHz frequency response (-10 dB), 100 Hz to 20 kHz frequency response (-3 dB)
- 160W peak (40W continuous) power handling for 98.5 dB maximum SPL (104.5 dB peak)
- Removable, locking 4-pin Euroblock connector accepts up to 12 AWG (2.5mm) wire size
- Logo can be replaced to match speaker orientation
Specifications:
- LF Driver: 4" / 102 mm
- HF Driver: 0.75" / 20 mm
- Connector Type: 1 x 4-pin Euroblock connector (removable, locking)
- Maximum Wire Size: 12 AWG (2.5 mm)
- Coverage Horizontal: 110°
- Vertical: 110°
- Environmental Specifications: IP54 (per IEC-60529)
- Frequency Response: 75 Hz to 20 kHz (-10 dB), 100 Hz to 20 kHz (-3 dB)
- Sensitivity: 86.5 dB (half space on wall averaged 100 Hz to 10 kHz, 1 W)
- Maximum SPL: 98.5 dB calculated, 104.5 dB peak
- Power Handling: 160 W peak (40 W with continuous pink noise for 100 hours)
- Low Impedance: No
- Impedance: N/A
- High-Pass Filter: Recommended 70 Hz (24 dB/octave)
- Transformer: 15 W
- Transformer Taps: 3.75 W (70 V only), 7.5 W, 15 W
- Enclosure Material: Fire-rated ABS plastic
- Dimensions (H x W x D): 7.6 x 5.5 x 4.6" / 193 x 140 x 118 mm
- Weight: 4 lb / 1.8 kg
Packaging Info
- Package Weight: 10.45 lb
- Box Dimensions (LxWxH): 13.1 x 10.3 x 9.9"
