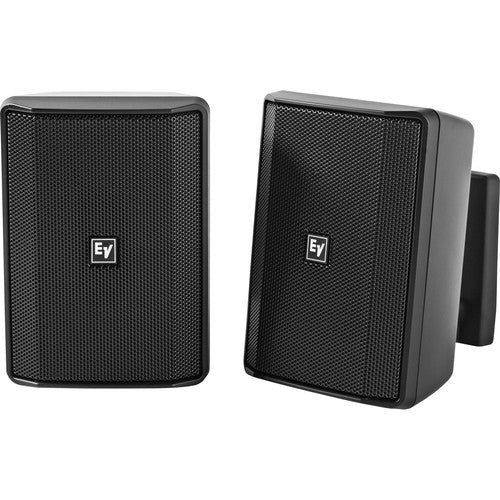

Electro Voice EVID-S4.2 4" 2-Way 8 Ohms Commercial Loudspeaker Pair - Black

$215.00

Electro Voice EVID-S4.2 4" 2-Way 8 Ohms Commercial Loudspeaker Pair - Black The black Electro Voice EVID-S4.2 is a pair of 4” 2-way 8 Ohms commercial loudspeakers designed to provide full-range sound reproduction and even coverage for system designers, installers, and audio engineers configuring systems for paging and background and...

Qty:

Electro Voice EVID-S4.2 4" 2-Way 8 Ohms Commercial Loudspeaker Pair - Black

The black Electro Voice EVID-S4.2 is a pair of 4” 2-way 8 Ohms commercial loudspeakers designed to provide full-range sound reproduction and even coverage for system designers, installers, and audio engineers configuring systems for paging and background and foreground music in stores, clubs, eateries, schools, and more. Each speaker is IP54-certified for weather-resistant use outdoors and features a fire-rated ABS plastic enclosure. A pre-assembled mounting system and supplied mounting hardware enable simple and efficient setup.

A removable, locking 4-pin Euroblock connector allows for compatibility with commercial amplifiers. The 4” woofer and 0.75” high-frequency driver yield a frequency response of 75 Hz to 20 kHz. With a 103 dB maximum SPL and a coverage area of 110° by 110°, the EVID-S4.2 speakers deliver consistent audibility and even sound distribution.

Features:

  • Pre-assembled mounting system allows 90° of horizontal rotation and 45° of vertical rotation
  • 110° horizontal by 110° vertical coverage
  • Fire-rated ABS plastic enclosure
  • IP54-certified for enhanced weather resistance
  • 4" long-throw woofer and 0.75" high-frequency driver
  • 75 Hz to 20 kHz frequency response (-10 dB), 100 Hz to 20 kHz frequency response (-3 dB)
  • 160W peak (40W continuous) power handling for 103 dB maximum SPL (109 dB peak)
  • Removable, locking 4-pin Euroblock connector accepts up to 12 AWG (2.5mm) wire size
  • Logo can be replaced to match speaker orientation

Specifications:

  • LF Driver: 4" / 102 mm
  • HF Driver: 0.75" / 20 mm
  • Connector Type: 1 x 4-pin Euroblock connector (removable, locking)
  • Maximum Wire Size: 12 AWG (2.5 mm)
  • Coverage Horizontal: 110°
  • Coverage Vertical: 110°
  • Environmental Specifications: IP54 (per IEC-60529)
  • Frequency Response: 75 Hz to 20 kHz (-10 dB), 100 Hz to 20 kHz (-3 dB)
  • Sensitivity: 87 dB (half space on wall averaged 100 Hz to 10 kHz, 1 W)
  • Maximum SPL: 103 dB calculated, 109 dB peak
  • Power Handling: 160 W peak (40 W with continuous pink noise for 100 hours)
  • Low Impedance: Yes
  • Impedance: Nominal: 8 Ohms
  • Minimum: 6.4 Ohms
  • High-Pass Filter: Recommended 70 Hz (24 dB/octave)
  • Transformer: None
  • Transformer Taps: N/A
  • Enclosure Material: Fire-rated ABS plastic
  • Dimensions (H x W x D): 7.6 x 5.5 x 4.6" / 193 x 140 x 118 mm
  • Weight: 3.3 lb / 1.5 kg

Packaging Info

  • Package Weight: 8.44 lb
  • Box Dimensions (LxWxH): 13.2 x 10.5 x 10"
