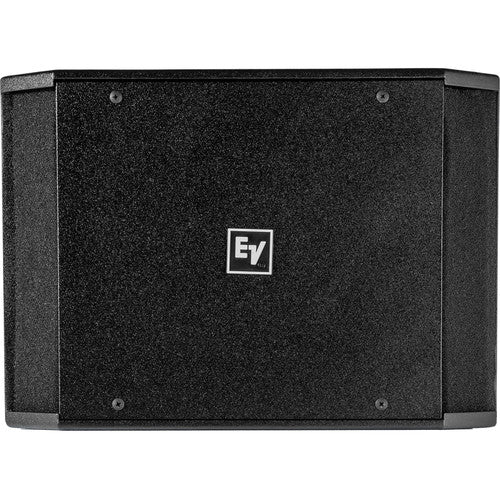

Electro Voice EVID-S12.1 12" Subwoofer - Black

The black Electro Voice EVID-S12.1 is a 12” subwoofer designed to provide low-end reinforcement for system designers, installers, and audio engineers configuring systems for background and foreground music in stores, clubs, eateries, schools, and more. Its acoustic ports and 12” dual voice-coil, high-excursion woofer yield a frequency response of 40 to 140 Hz and a 127 dB maximum SPL.

Inputs and outputs utilize spring-loaded speaker terminals. The subwoofer can accept a stereo input and drive up to four satellite speakers (available separately). It includes hardware for mounting to a wall or corner and has an eyebolt for the attachment of a safety line.

Features:

• 12" dual voice-coil, high-excursion woofer and acoustic ports yield a frequency response of 40 to 140 Hz
• 800W peak (200W continuous) power handling for 127 dB maximum SPL (133 dB peak)
• Spring-loaded speaker terminals for inputs and outputs
• Simultaneously drive up to four satellite speakers (available separately)
• Logo can be replaced to match speaker orientation
• Includes hardware for mounting subwoofer to a wall or corner

Specifications:

• LF Driver: 1 x 12" / 305 mm
• Input: Spring-loaded speaker terminals
• Output: Spring-loaded speaker terminals
• Frequency Response: 40 to 140 Hz (-10 dB)
• Sensitivity: 104 dB (eighth space on corner averaged 60 to 100 Hz, 1 W)
• Maximum SPL: 127 dB calculated, 133 dB peak
• Power Handling: 800 W peak (200 W with continuous pink noise for 100 hours)
• Low Impedance: Yes
• Nominal Impedance: 8 Ohms
• Dimensions (H x W x D): 16.3 x 23.0 x 11.9" / 413 x 584 x 303 mm
• Weight: 39.2 lb / 17.8 kg

Packaging Info

• Package Weight: 47 lb
• Box Dimensions (LxWxH): 25.5 x 17.7 x 14"
