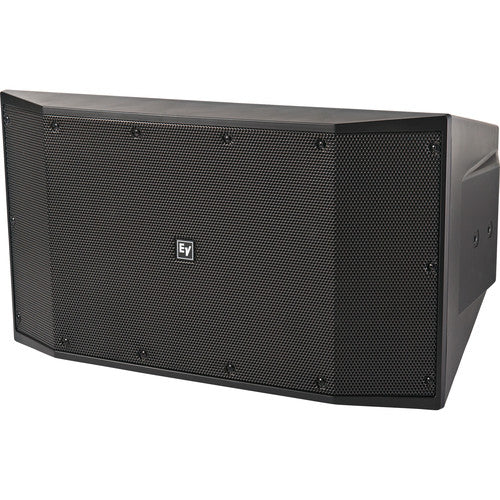

Electro Voice EVID-S10.1D 2x10" Subwoofer - Black
Electro Voice EVID-S10.1D 2x10" Subwoofer - Black The black Electro Voice EVID-S10.1D is a 2x10” subwoofer designed to provide low-end reinforcement for system designers, installers, and audio engineers configuring systems for background and foreground music in stores, clubs, eateries, schools, and more. It is IP54-certified for weather-resistant use outdoors and...
Electro Voice EVID-S10.1D 2x10" Subwoofer - Black
The black Electro Voice EVID-S10.1D is a 2x10” subwoofer designed to provide low-end reinforcement for system designers, installers, and audio engineers configuring systems for background and foreground music in stores, clubs, eateries, schools, and more. It is IP54-certified for weather-resistant use outdoors and includes weather port covers that can be installed for compliance with IP65 standards. Installation versatility is offered via integrated U-bracket mounting points and M8 safety and flying points.
Removable, locking 4-pin Euroblock connectors allow for compatibility with commercial amplifiers and speakers. The two 10” high-excursion woofers yield a frequency response of 33 to 500 Hz and a 120 dB maximum SPL. A rear-panel switch allows for mono or stereo operation.
Features:
- Dual 10" high-excursion woofers yield a frequency response of 33 to 500 Hz
- IP54-certified for enhanced weather resistance
- Install supplied weather port covers for compliance with IP65 standards
- 1600W peak (400W continuous) power handling for 120 dB maximum SPL (126 dB peak)
- Removable, locking 4-pin Euroblock connectors accept up to 12 AWG (2.5mm) wire size
- Integrated U-bracket mounting points
- Built-in M8 flying points and safety point
- Logo can be replaced to match speaker orientation
- Crossover and transformer input panels (available separately) may be installed for enhanced functionality with 8 Ohms or 70/100V systems
Specifications:
- LF Driver: 2 x 10" / 254 mm
- Input: 1 x 4-pin Euroblock connector (removable, locking)
- Output: 1 x 4-pin Euroblock connector (removable, locking)
- Maximum Wire Size: 12 AWG (2.5 mm)
- Environmental Specifications: IP54 (per IEC-60529), IP65 with port covers
- Frequency Response: 33 to 500 Hz (-10 dB)
- Sensitivity: 94 dB (half space on wall averaged 50 to 150 Hz, 1 W)
- Maximum SPL: 120 dB calculated, 126 dB peak
- Power Handling: 1600 W peak (400 W with continuous pink noise for 100 hours)
- Low Impedance: Yes
- Nominal Impedance Stereo Mode: 8 Ohms
- Nominal Impedance Mono Mode: 4 Ohms
- High-Pass Filter: Recommended 40 Hz (24 dB/octave)
- Dimensions (H x W x D): 14.0 x 25.6 x 19.3" / 356 x 651 x 491 mm
- Weight: 39.5 lb / 17.9 kg
Packaging Info
- Package Weight: 47.25 lb
- Box Dimensions (LxWxH): 28.5 x 22 x 16.5"
