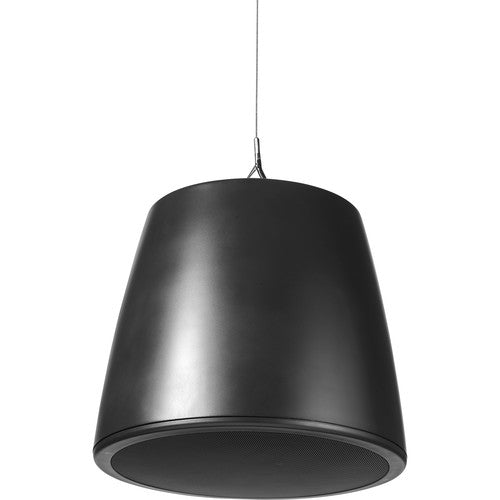

Electro Voice EVID-P6.2 - 6.5" Pendant Speaker - Black

The black Electro Voice EVID-P6.2 is a 6.5" coaxial pendant speaker that provides a convenient way to equip open ceiling spaces with sound where conventional surface or ceiling mount speakers cannot be used. The pendant speaker is effective as a background music and paging solution for offices, waiting rooms, retail, bars, and other similar spaces.

Each speaker is equipped with a line-matching transformer for 70V/100V operation, and a transformer tap-selector switch that includes 8-Ohm bypass operation, conveniently located on the front of the speaker. The EVID-P6.2 provides wide dispersion, high-efficiency, high-maximum output, ease of installation, and wide-range reproduction of music or voice.

Features:

• 6.5" coaxial 2-way pendant speaker for ceiling hangs
• High-output speaker optimized for reproduction of background music or paging/announcement requirements
• Full-bandwidth overload protection circuitry; protects network, woofer and tweeter drivers from excessive power levels
• Waveguide coupled titanium tweeter for smooth high frequency dispersion
• Integrated low-loss, line-matching transformer for 70V/100V or 8-Ohm bypass operation
• Front-baffle wattage selector switch allows for 1.8 (70V only) / 3.75 / 7.5 / 15 / 30W delivery to loudspeaker system when using 70V/100V lines
• Perforated magnetic grille speaker covers with powder-coated, semi-gloss black enamel finish

Specifications:

• Frequency Response: 60 Hz to 20 kHz
• Sensitivity: 87 dB (SPL 1 W/1 m)
• Coverage: 115° Conical
• Power Handling: 75 W at 8 Ohms (with Overload Protection)
• Rated Impedance: 8 Ohms
• High Pass Filter: 60 Hz
• Input Configuration: 8 Ohms, 70 V/100 V
• Power Taps: 70 V/100 V Power Taps: 1.8 (70 V Only), 3.7, 7.5, 15, 30 W
• Transducers LF Transducer: 6.5" / 165.1 mm High-Compliance Driver (Weatherized Cone)
• Transducers HF Transducer: 1.0" / 25.4 mm Ti-Coated Dome
• Mounting System: Rear Mounted Suspension Points
• Design: Acoustic Design: Ported Cabinet, Two-Way Design, Internally Damped, with Passive Crossover
• Approvals: CE, UL 1480A, CSA 22.2
• Cabinet Construction: UL94V-0 Rated Enclosure and Baffle
• Grille: Powder-Coated Steel
• Color: Black
• Included Accessories: Pendant Suspension Cable: Steel Wire Rope
• Working Load Limit: 22.0 lb / 10.0 kg
• Length: 15.0' / 4.6 m
• Approvals: UL2442
• Dimensions Depth and Diameter: 11.9 x 12.2" / 302.3 x 309.9 mm
• Weight: 11.7 lb / 5.3 kg
