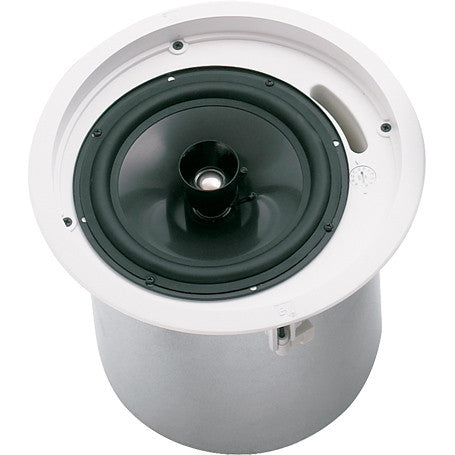

Electro Voice EVIDC82 8" Coaxial Speaker W/Horn Loaded Ti Coated Tweeter, Taps At 30, 15, 7.5, 3.75
$329.00
Features: 8-inch two-way coaxial ceiling loudspeaker Features: Low-profile for rich sound in tight spaces Ported enclosure for extended bass response Waveguide-coupled 1-inch titanium-coated tweeter Full-bandwidth overload protection Integrated transformer for 70 V, 100 V, or 8 O use Front-panel mode/wattage selector Safe, easy installation with included tile bridge and mounting...
Features:
8-inch two-way coaxial ceiling loudspeakerLow-profile for rich sound in tight spaces
Ported enclosure for extended bass response
Waveguide-coupled 1-inch titanium-coated tweeter
Full-bandwidth overload protection
Integrated transformer for 70 V, 100 V, or 8 O use
Front-panel mode/wattage selector
Safe, easy installation with included tile bridge and mounting ring
White semi-gloss perforated grille
Complete package, requires no additional accessories
Specifications:
Chassis Size: 8" (203.2 mm)
Color: White (paintable surface)
Coverage (Nominal -6 dB): 110 conical
Diameter (Max): 10.63" (270 mm)
Input Formats: 8 O, 70 V, 100 V
LP Height: 10.04" (255 mm)
Mounting Systems: Integrated 3-point toggle anchors
Speaker Type: Ported cabinet, internally damped, two-way (passive crossover included)
Transformer: Yes
Transformer Taps (Transformer Version Only): (1.88 - 70 V only), 3.75, 7.5, 15, 30
Frequency Response (-10 dB): 50 - 20000 Hz
Sensitivity 1 W/1 m: 91 dB
System Power Handling (Continuous/Program/Peak): 100 Watts Overload Protected
LF Transducer: 8-inch polypropylene cone
HF Transducer: 1-inch (25 mm) Ti Mylar Laminate Dome
Enclosure Material: Steel enclosure and UL94V-0 rated baffle and bezel
Outdoor: No
Grill: Powder-coated steel
Height: 7.01" (178 mm)
Weight Net: 5 kg (11.02 Lbs.)
8-inch two-way coaxial ceiling loudspeaker
Features:
| Model: | EVIDC82 |
| Manufacturer: | Electro Voice |
