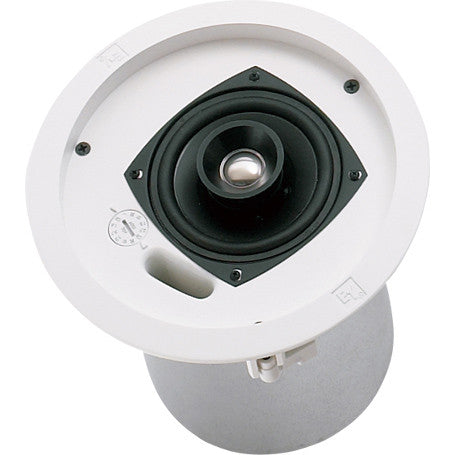

Electro Voice EVIDC42 4" Coaxial Speaker W/Horn Loaded Ti Coated Tweet

Electro Voice EVIDC42 4" Coaxial Speaker W/Horn Loaded Ti Coated Tweeter, Taps At 30, 15, 7.5, 3.75

$372.00 $299.00

Features: 4-inch two-way coaxial ceiling loudspeaker Features: Designed for air-handling spaces Ported enclosure for extended bass response Waveguide-coupled 0.75-inch titanium-coated tweeter Full-bandwidth overload protection Integrated transformer for 70 V, 100 V, or 8 O use Front-panel mode/wattage selector Safe, easy installation with included tile bridge and mounting ring White semi-gloss...

Product Description

Features:

4-inch two-way coaxial ceiling loudspeaker

Features:

Designed for air-handling spaces

Ported enclosure for extended bass response

Waveguide-coupled 0.75-inch titanium-coated tweeter

Full-bandwidth overload protection

Integrated transformer for 70 V, 100 V, or 8 O use

Front-panel mode/wattage selector

Safe, easy installation with included tile bridge and mounting ring

White semi-gloss perforated grille

Complete package, requires no additional accessories

Specifications:

Chassis Size: 4" (101.6 mm)

Color: White (paintable surface)

Coverage (Nominal -6 dB): 130 conical

Diameter (Max): 7.13" (181 mm)

Input Formats: 8 O, 70 V, 100 V

Mounting Systems: Integrated 3-point toggle anchors

Speaker Type: Ported cabinet, internally damped, two-way passive crossover included

Transformer: Yes

Transformer Taps (Transformer Version Only): (1.88 - 70 V only), 3.75, 7.5, 15, 30

Frequency Response (-10 dB): 65 - 20000 Hz

Sensitivity 1 W/1 m: 86 dB

System Power Handling (Continuous/Program/Peak): 80 Watts Overload Protected

LF Transducer: 4-inch polypropylene cone

HF Transducer: 0.75-inch (19 mm) Ti Mylar Laminate Dome

Enclosure Material: Steel enclosure and UL94V-0 rated baffle and bezel

Outdoor: No

Grill: Powder-coated steel

Height: 6.93" (176 mm)

Weight Net: 2.7 kg (5.95 Lbs.)

Model:	EVIDC42
Manufacturer:	Electro Voice
