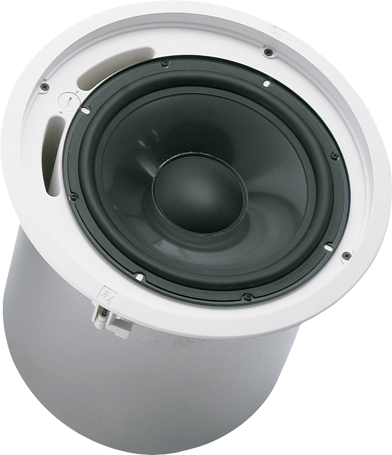

Electro Voice 10" High‑Power Ceiling Subwoofer

Electro Voice 10" High‑Power Ceiling Subwoofer

Features:

• Supplemental LF for ceiling systems
• High-excursion woofer in ported enclosure for extended lows
• Low pass network with overload protection
• Integrated transformer for 70 V, 100 V, or 8 Ω use
• Front-panel mode/wattage selector
• Internally damped heavy-gauge steel enclosure
• Safe, easy installation with included tile bridge and mounting ring
• White semi-gloss perforated grille
• Complete package, requires no additional accessories

Specifications:

• Frequency Range (-10 dB): 45 - 180kHz
• Weight Net: 15.43lbs (7kg)
• Height: 11.93" (303mm)
• Available Color: White (paintable surface)
• Chassis Size: 10" (254mm)
• Coverage (Nominal -6 dB): 180
• Diameter (Max): 12.6" (320mm)
• Enclosure Material: Steel enclosure and UL94V-0 rated baffle and bezel
• Flying: No
• Grille: Powder-coated steel
• Input Formats: 8ω, 70 V, 100 V
• LF Transducer: 10-inch polypropylene cone
• Max. SPL/1m (calc): 122dB
• Mounting Systems: Integrated 3-point toggle anchors
• Power Rating: 600W
• Sensitivity 1 W/1 m: 94dB
• Speaker Type: Dual ported cabinet, internally damped
• System Power Handling (Continuous/Program/Peak): 150Watts
• Transformer: Yes
• Transformer Taps (Transformer Version Only): (7.5 - 70 V only), 15, 30, 60
• Weatherized: No
