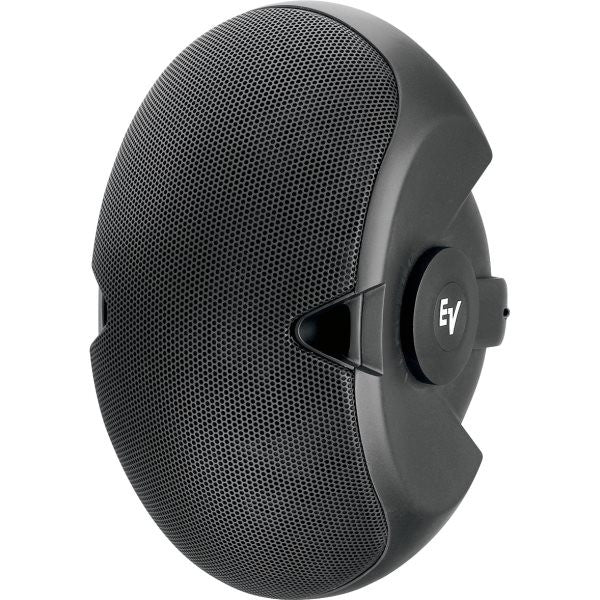

Electro Voice EVID62 Two-Way Twin 6" Woofer and 1" Horn Loaded 100 X 9

Electro Voice EVID62 Two-Way Twin 6" Woofer and 1" Horn Loaded 100 X 90 Tweeter, Black Cabinet

$734.00 $589.00

Features: Dual 6-inch two-way surface-mount loudspeaker - Black Cabinet Features: Compact full range Ideal for shopping malls, sports bars, and health clubs Vented LF enclosure 1-inch titanium diaphragm HF driver with neodymium magnetic structure Coherent Coverage Waveguide Full-bandwidth overload protection (LF and HF) Elliptical weather-resistant ABS enclosure Paintable black or...

Product Description

Features:

Dual 6-inch two-way surface-mount loudspeaker - Black Cabinet

Features:

Compact full range

Ideal for shopping malls, sports bars, and health clubs

Vented LF enclosure

1-inch titanium diaphragm HF driver with neodymium magnetic structure

Coherent Coverage Waveguide

Full-bandwidth overload protection (LF and HF)

Elliptical weather-resistant ABS enclosure

Paintable black or white finish

Magnetically shielded for video applications

Strong-Arm Mount^TM for easy, flexible aiming

"T" version for 70 or 100 V distributed systems

Specifications:

Chassis Size: 6" (152.4 mm)

Color: Black

Input Connections: Spring Terminal

Speaker Type: Full-range, Mid-High, Two-Way

Transformer Taps (Transformer Version Only): 70 V/100 V: 15 W, 30 W, 60 W, 8 O Bypass

Frequency Response (-10 dB): 62 - 20000 Hz

Internal Crossover: Yes

Sensitivity 1 W/1 m: 94 dB

Max. SPL/1m (calc): 122 dB

Coverage (Nominal -6 dB) H: 100 °¸

Coverage (Nominal -6 dB) V: 80 °¸

System Power Handling (Continuous/Program/Peak): 150//600 Watts

LF Transducer: Two 6-inch

LF Power Handling: Two 6-inch Watts

HF Power Handling: 1-inch Watts

HF Transducer: 1-inch

Nominal Impedance (Passive): 8 O

Minimum Impedance: 6 O

Outdoor: Yes

Height: 16.5" (419 mm)

Width: 8.98" (228 mm)

Depth: 11.73" (298 mm)

Weight Net: 5.3 kg (11.68 Lbs.)

Model:	EVID62
Manufacturer:	Electro Voice
