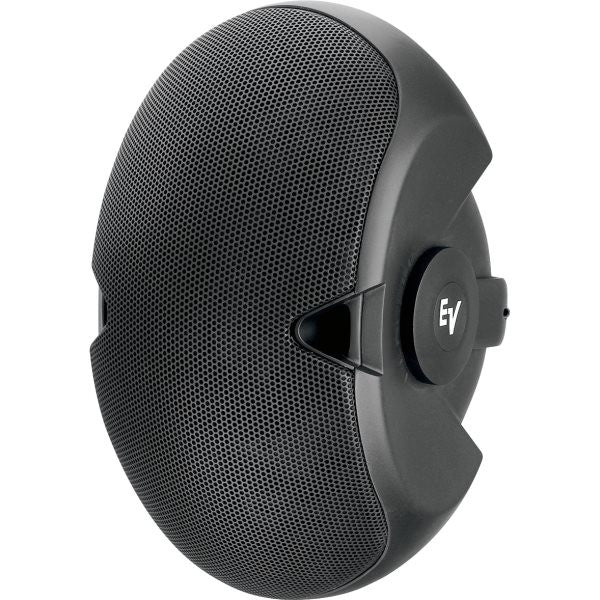

Electro Voice EVID42 Two-Way Twin 4" Woofer and 1" Horn Loaded 100 X 9

Electro Voice EVID42 Two-Way Twin 4" Woofer and 1" Horn Loaded 100 X 90 Tweeter, Black Cabinet

$466.00 $369.00

Features: Dual 4-inch two-way surface-mount loudspeaker -: Black Cabinet Features: Compact full range Ideal for restaurants, bars, patios, and retail Vented LF enclosure 1-inch titanium diaphragm HF driver with neodymium magnetic structure Coherent Coverage Waveguide Full-bandwidth overload protection (LF and HF) Elliptical weather-resistant ABS enclosure Paintable black or white finish...

Product Description

Features:

Dual 4-inch two-way surface-mount loudspeaker -: Black Cabinet

Features:

Compact full range

Ideal for restaurants, bars, patios, and retail

Vented LF enclosure

1-inch titanium diaphragm HF driver with neodymium magnetic structure

Coherent Coverage Waveguide

Full-bandwidth overload protection (LF and HF)

Elliptical weather-resistant ABS enclosure

Paintable black or white finish

Magnetically shielded for video applications

Strong-Arm Mount^TM for easy, flexible aiming

"T" version for 70 or 100 V distributed systems

Specifications:

Chassis Size: 4" (101.6 mm)

Color: Black

Input Connections: Spring Terminal

Speaker Type: Full-range, Mid-High, Two-Way

Transformer Taps (Transformer Version Only): 70 V: 3.75 W, 70 V/100 V:7.5 W, 15 W,30 W,8 O Bypass

Frequency Response (-10 dB): 65 - 20000 Hz

Internal Crossover: Yes

Sensitivity 1 W/1 m: 89 dB

Max. SPL/1m (calc): 115 dB

Coverage (Nominal -6 dB) H: 120 °¸

Coverage (Nominal -6 dB) V: 80 °¸

System Power Handling (Continuous/Program/Peak): 100//400 Watts

LF Transducer: Two 4-inch

LF Power Handling: Two 4-inch Watts

HF Power Handling: 1-inch Watts

HF Transducer: 1-inch

Nominal Impedance (Passive): 8 O

Minimum Impedance: 6 O

Outdoor: Yes

Height: 12.2" (309.89 mm)

Width: 6.9" (175.26 mm)

Depth: 8.5" (215.9 mm)

Weight Net: 3.9 kg (8.6 Lbs.)

Model:	EVID42
Manufacturer:	Electro Voice
