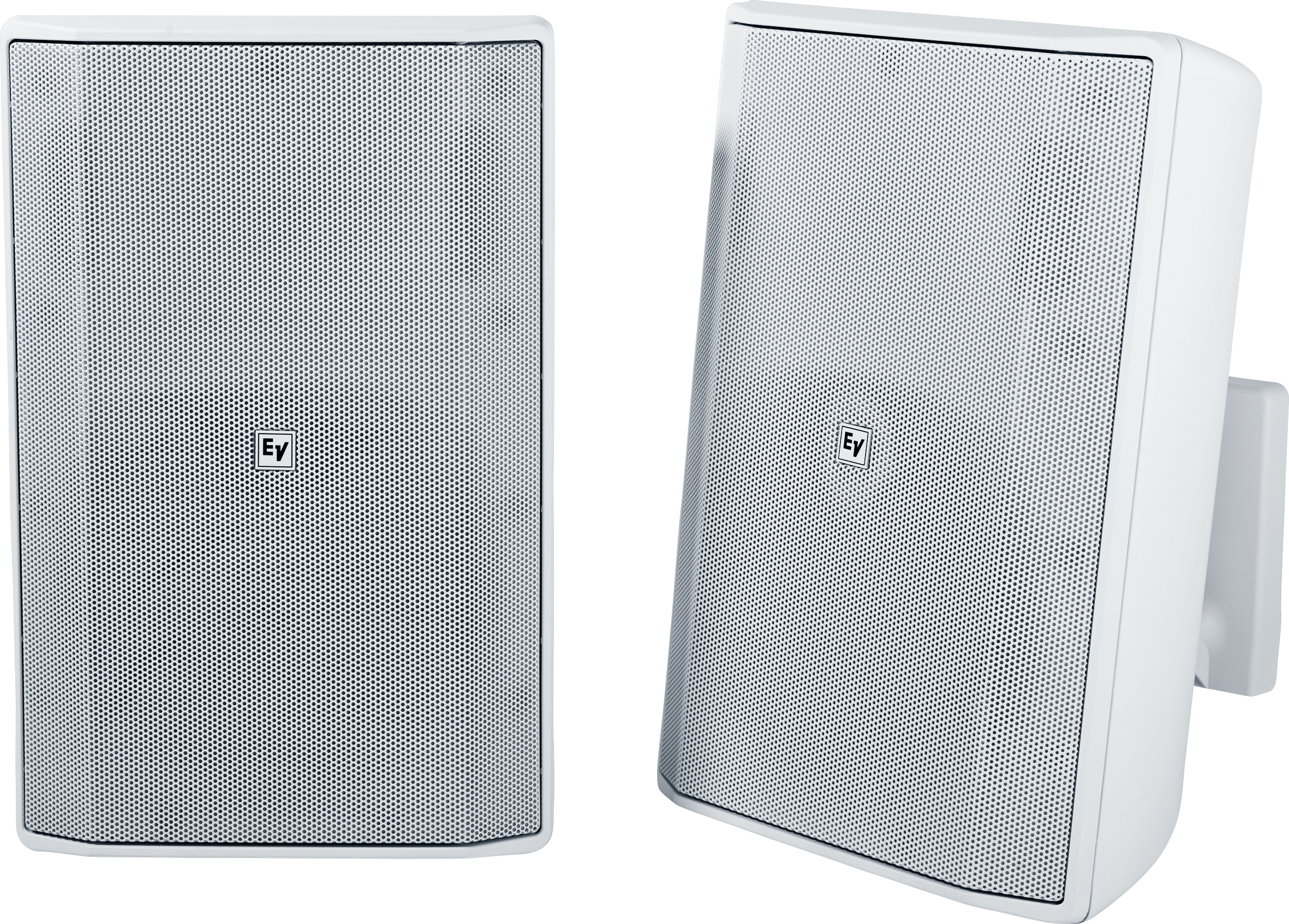

Electro-Voice EVID-S8.2TW

Electro-Voice EVID-S8.2TW – 8” cabinet 8Ω pair

$779.00 $970.00
Skip to product information
Electro-Voice EVID-S8.2TW
  • Electro-Voice EVID-S8.2TW
  • Electro-Voice EVID-S8.2TW
Electro-Voice EVID-S8.2TW – 8” cabinet 8Ω pair

Electro-Voice EVID-S8.2TW – 8” cabinet 8Ω pair

$779.00 $970.00

Electro-Voice

EVID-S8.2TW – 8” cabinet 8Ω pair

Overview

8” cabinet 8Ω pair

Highlights

  • ✓Innovative mount system is included for quick, simple, and reliable installations
  • ✓Carefully engineered for outdoor environments (IP54), without compromising performance
  • ✓Long throw 8" (203 mm) woofer housed in a fire rated ABS plastic enclosure for extended LF performance down to 50 Hz
  • ✓90 W power handling provides for 110 dB maximum SPL (116 dB peak)
  • ✓70/100 V transformer version (EVID 8.2T) available for constant voltage systems

Specifications

Frequency Range (-10 dB) 50 Hz – 20 k
Weatherized Yes
Minimum Impedance 6
HF Transducer 1 inch (25 mm)
Frequency Response (-3 dB)¹ 70 Hz – 20 k
Max. SPL/1m (calc)² 110
Specifications Coverage (Nominal -6 dB) H 90
Coverage (Nominal -6 dB) V 90
LF Transducer 8 inch (203 mm)
Connector Type Captive screws on wall bracket. Removable locking 4-pin connector (Euroblock) – (2) for connection to additional speakers in a distributed line. Max. wire size 12AWG (2.5 mm)
Available Color Black or White
Height 390
Width 250
Recommended High-Pass Frequency 50
Depth 223
Weight Net 5.1
Shipping Weight 13
Environmental Specs IP54 (per IEC-60529)
Nominal Impedance 8
Power Handling (Continuous / Peak) 90W/360

Product identifiers

SKU EVID-S8.2TW
