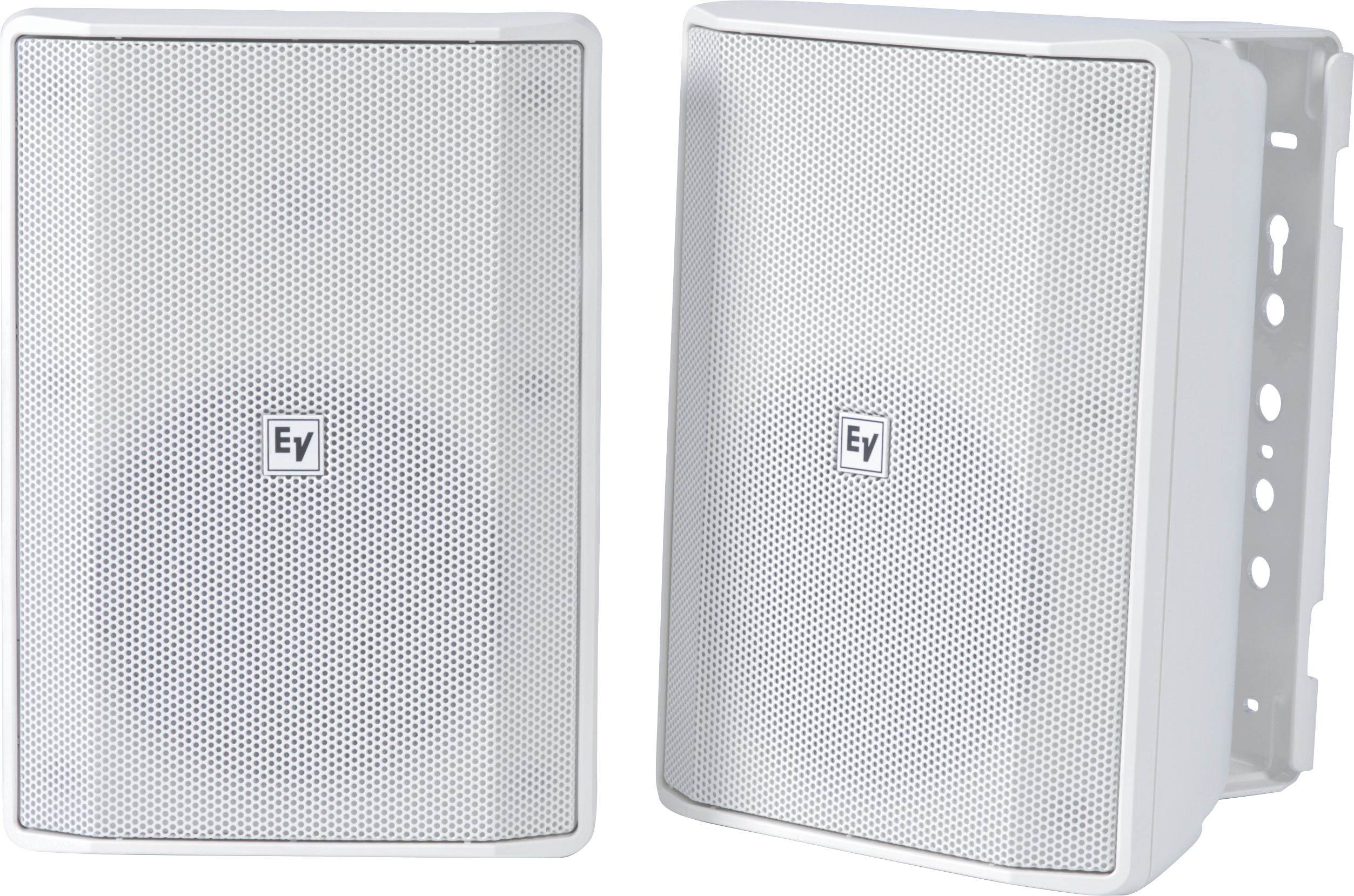

Electro-Voice EVID-S5.2XW – 5” cabinet 8Ω pair

Electro-Voice EVID-S5.2XW – 5” cabinet 8Ω pair

$549.00 $692.00

Electro-Voice

EVID-S5.2XW – 5” cabinet 8Ω pair

Overview

5” cabinet 70/100v ip65

Highlights

  • ✓Carefully engineered for the toughest weather conditions (IP65)
  • ✓Long throw 5.25" (133 mm) woofer housed in a UL 94-5VB fire rated ABS plastic for extended LF performance down to 55 Hz
  • ✓90 W power handling provides for 108 dB maximum SPL (114 dB Peak)
  • ✓60 W transformer with 8Ω pass-through

Specifications

Frequency Range (-10 dB) 55 Hz – 20 k
Weatherized Yes
Minimum Impedance 6
HF Transducer 0.75 inch (20 mm)
Frequency Response (-3 dB)¹ 90 Hz – 20
Max. SPL/1m (calc)² 108
Specifications Coverage (Nominal -6 dB) H 90
LF Transducer 5.25 inch (122 mm)
Coverage (Nominal -6 dB) V 90
Connector Type Removable locking 4-pin connector (Euroblock) – (2) for connection to additional speakers in a distributed line. Max. wire size 12AWG (2.5 mm)
Available Color Black or White
Sensitivity 1 W/1 m 90
Height 255
Width 180
Recommended High-Pass Frequency 60
Depth 148
Weight Net 3.2
Shipping Weight 9.5
Transformer 70V/100V (60W)
Environmental Specs IP-65 (per IEC-60529)
Nominal Impedance 8

Product identifiers

SKU EVID-S5.2XW
