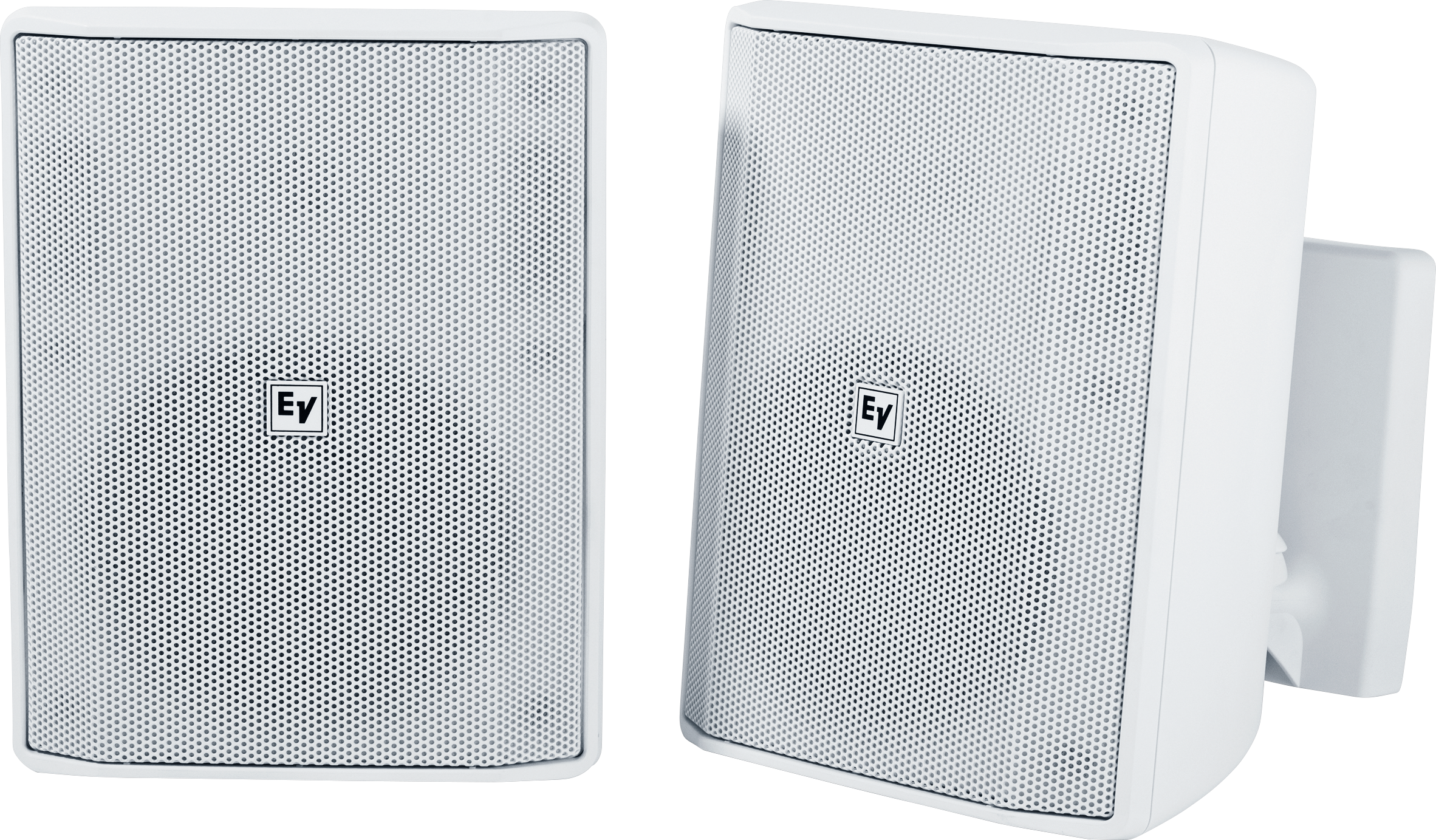

Name: Electro-Voice EVID-S5.2TW – 5” cabinet 8Ω pair
Brand: Electro-Voice
SKU: EVID-S5.2TW
Price: 479.00 USD
Availability: InStock

Electro-Voice EVID-S5.2TW – 5” cabinet 8Ω pair

$479.00

$479.00 $602.00

Electro-Voice

EVID-S5.2TW – 5” cabinet 8Ω pair

Overview

5” cabinet 8Ω pair

Highlights

✓Innovative mount system is included for quick, simple, and reliable installations
✓Carefully engineered for outdoor environments (IP54), without compromising performance
✓Long throw 5.25" (133 mm) woofer housed in a fire rated ABS plastic enclosure for extended LF performance down to 60 Hz
✓75 W power handling provides for 109 dB maximum SPL (115 dB peak)
✓70/100V transformer version available (EVID-S5.2T) for constant voltage systems

Specifications

Frequency Range (-10 dB)	60 Hz – 20 k
Weatherized	Yes
Minimum Impedance	6
HF Transducer	0.75 inch (20 mm)
Frequency Response (-3 dB)¹	85 Hz – 20
Max. SPL/1m (calc)²	109
Specifications Coverage (Nominal -6 dB) H	90
Coverage (Nominal -6 dB) V	90
LF Transducer	5.25 inch (133 mm)
Connector Type	Captive screws on wall bracket. Removable locking 4-pin connector (Euroblock) – (2) for connection to additional speakers in a distributed line. Max. wire size 12AWG (2.5 mm)
Available Color	Black or White
Sensitivity 1 W/1 m	90
Height	255
Width	180
Recommended High-Pass Frequency	60
Depth	151
Weight Net	2.7
Shipping Weight	6.7
Environmental Specs	IP54 (per IEC-60529)
Nominal Impedance	8
