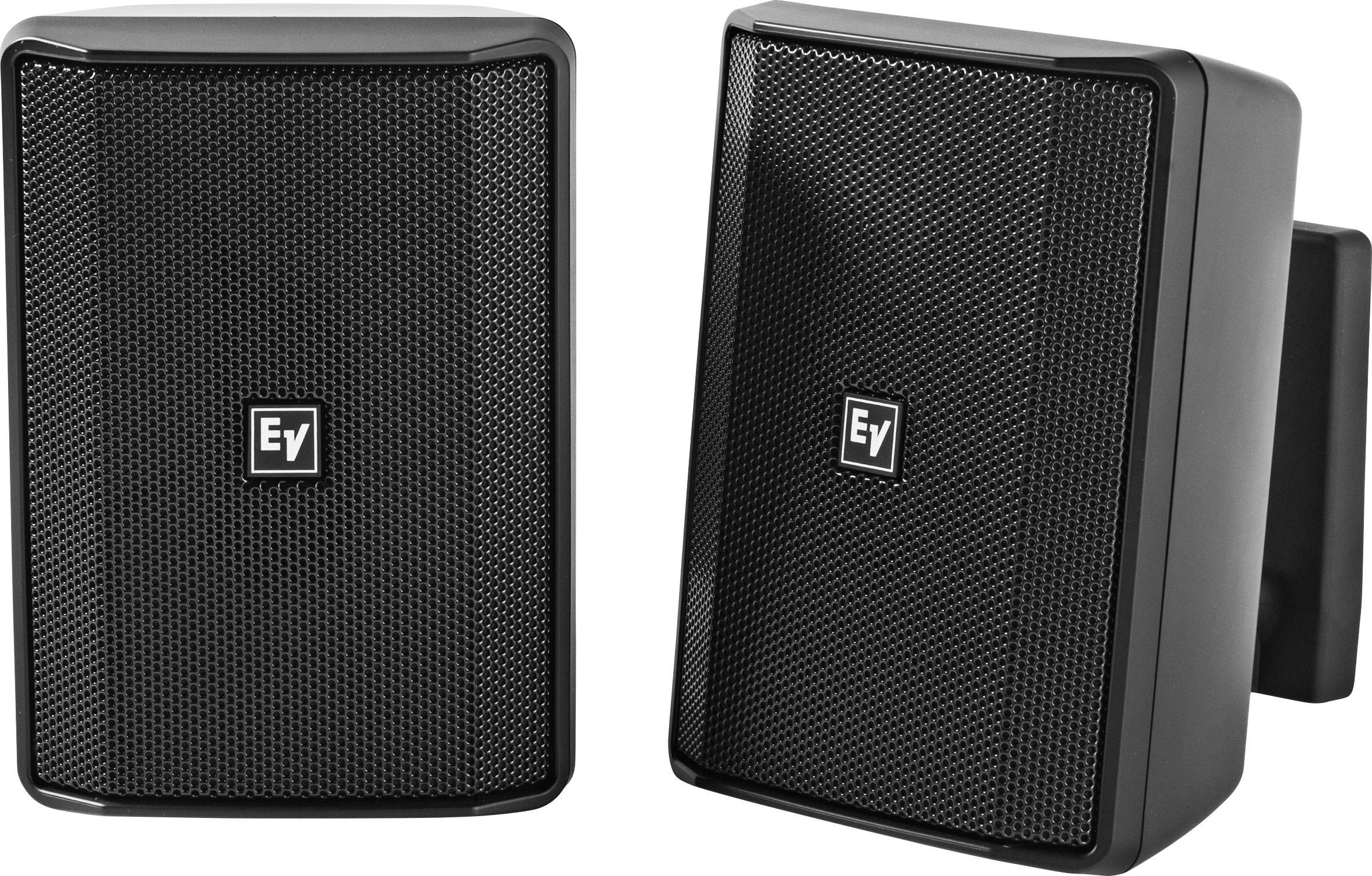

Electro-Voice EVID-S4.2TB

Electro-Voice EVID-S4.2TB – 4” cabinet 8Ω pair

$339.00
$339.00 $421.00
Skip to product information
Electro-Voice EVID-S4.2TB
  • Electro-Voice EVID-S4.2TB
  • Electro-Voice EVID-S4.2TB
Electro-Voice EVID-S4.2TB – 4” cabinet 8Ω pair

Electro-Voice EVID-S4.2TB – 4” cabinet 8Ω pair

$339.00
$339.00 $421.00

Electro-Voice

EVID-S4.2TB – 4” cabinet 8Ω pair

Overview

4” cabinet 8Ω pair

Highlights

  • ✓Innovative mount system is included for quick, simple, and reliable installations
  • ✓Carefully engineered for outdoor environments (IP54), without compromising performance
  • ✓Long throw 4" (102 mm) woofer housed in a fire rated ABS plastic enclosure for extended LF performance down to 75 Hz
  • ✓40 W power handling provides for 103 dB maximum SPL (109 dB peak)
  • ✓70 V/100 V transformer version (EVID-4.2T) available for constant voltage systems

Specifications

Frequency Range (-10 dB) 75 Hz – 20 k
Weatherized Yes
Minimum Impedance 6.4
HF Transducer 0.75 inch (20 mm)
Frequency Response (-3 dB)¹ 100 Hz – 20 k
Max. SPL/1m (calc)² 103
Specifications Coverage (Nominal -6 dB) H 110
Coverage (Nominal -6 dB) V 110
LF Transducer 4 inch (102 mm)
Power Rating 160
Connector Type Captive screws on wall bracket. Removable locking 4-pin connector (Euroblock) – (2) for connection to additional speakers in a distributed line. Max. wire size 12AWG (2.5 mm)
Sensitivity 1 W/1 m 87
Available Color Black or White
Recommended High-Pass Frequency 70
Depth 118
Weight Net 1.5
Shipping Weight 5
Environmental Specs IP54 (per IEC-60529)
Nominal Impedance 8
Power Handling (Continuous / Peak) 40 W/160

Product identifiers

SKU EVID-S4.2TB
