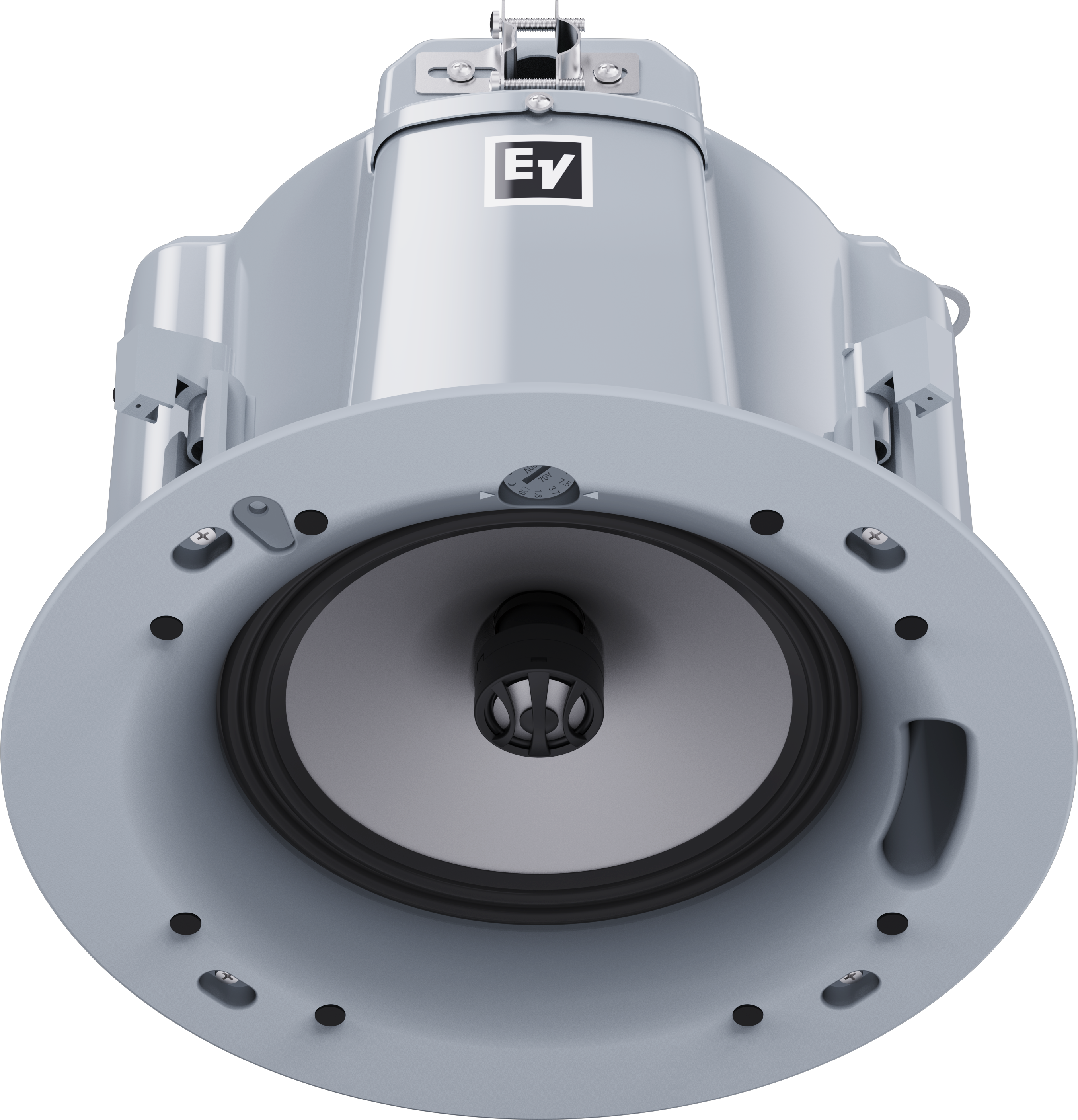

Electro-Voice EVID-EC8.2

Electro-Voice EVID-EC8.2 – Ceiling speaker 8" 70/100V white

$249.00 $311.00
Skip to product information
Electro-Voice EVID-EC8.2
  • Electro-Voice EVID-EC8.2
  • Electro-Voice EVID-EC8.2
Electro-Voice EVID-EC8.2 – Ceiling speaker 8" 70/100V white

Electro-Voice EVID-EC8.2 – Ceiling speaker 8" 70/100V white

$249.00 $311.00

Electro-Voice

EVID-EC8.2 – Ceiling speaker 8" 70/100V white

Overview

Ceiling speaker 8" 70/100V white

Highlights

  • ✓Bezel-less design with easy-attach grille
  • ✓Front baffle wattage tap adjustment
  • ✓Includes tile bridge and C-ring for easy installation
  • ✓UL 1480A, UL 2043, CSA C22.2 No. 205 and IEC 62368-1 certified

Specifications

Frequency range (-10 dB) (Hz) 1 75 Hz – 20,000 Hz
Maximum SPL (continuous) (dB) 2 110 dB
Maximum SPL (peak) (dB) 2 116 dB
Sensitivity (1 W, 1 m) 3 92 dB SPL 1 W, 1 m
Coverage angle conical (°) 90°
Power handling (continuous) (W) 4 70 W
Power handling (peak) (W) 4 280 W
Long term power handling (continuous) (W) 5 50 W
Long term power handling (peak) (W) 5 200 W
Nominal impedance (Ω) (Low Z) 8 Ω
Specifications Recommended high pass (Hz) 6 70 Hz
Transformer taps 70 V line (W) 30 W, 15 W, 7.5 W, 3.75 W, 1.88 W
Transformer taps 100 V line (W) 30 W, 15 W, 7.5 W, 3.75 W
LF transducer size (in) 8 in
HF transducer size (in) 1 in
Material Steel
Grille material Powder coated steel
Connector type 4-pin Euroblock Input + Pass through

Product identifiers

SKU EVID-EC8.2
