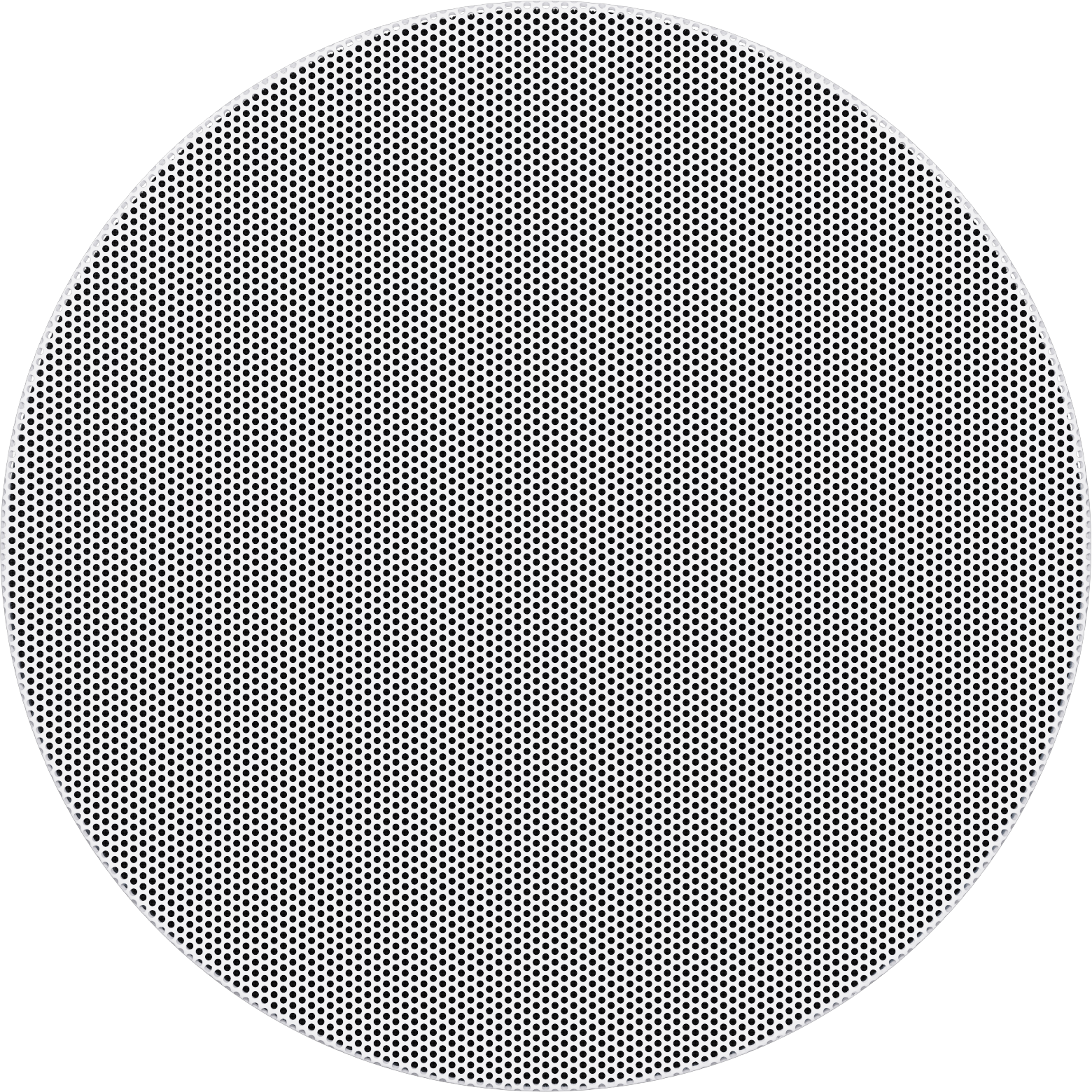

Name: Electro-Voice EVID-EC4.2 – Ceiling speaker 4" 70/100V white
Brand: Electro-Voice
SKU: EVID-EC4.2
Price: 149.00 USD
Availability: InStock

Electro-Voice EVID-EC4.2 – Ceiling speaker 4" 70/100V white

$149.00

$149.00 $182.00

Electro-Voice

EVID-EC4.2 – Ceiling speaker 4" 70/100V white

Overview

Ceiling speaker 4" 70/100V white

Highlights

✓Bezel-less design with easy-attach grille
✓Front baffle wattage tap adjustment
✓Includes tile bridge and C-ring for easy installation
✓UL 1480A, UL 2043, CSA C22.2 No. 205 and IEC 62368-1 certified

Specifications

Frequency range (-10 dB) (Hz) 1	80 Hz – 2,0000 Hz
Maximum SPL (continuous) (dB) 2	106 dB
Maximum SPL (peak) (dB) 2	112 dB
Sensitivity (1 W, 1 m) 3	89 dB SPL 1 W, 1 m
Coverage angle conical (°)	130°
Power handling (continuous) (W) 4	50 W
Power handling (peak) (W) 4	200 W
Long term power handling (continuous) (W) 5	40 W
Long term power handling (peak) (W) 5	160 W
Nominal impedance (Ω) (Low Z)	8 Ω
Specifications Recommended high pass (Hz) 6	90 Hz
Transformer taps 70 V line (W)	20 W; 10 W; 5 W; 2.5 W; 1.25 W
Transformer taps 100 V line (W)	20 W; 10 W; 5 W; 2.5 W
LF transducer size (in)	4 in
HF transducer size (in)	0.75 in
Material	Steel
Grille material	Powder coated steel
Connector type	4-pin Euroblock Input + Pass through
