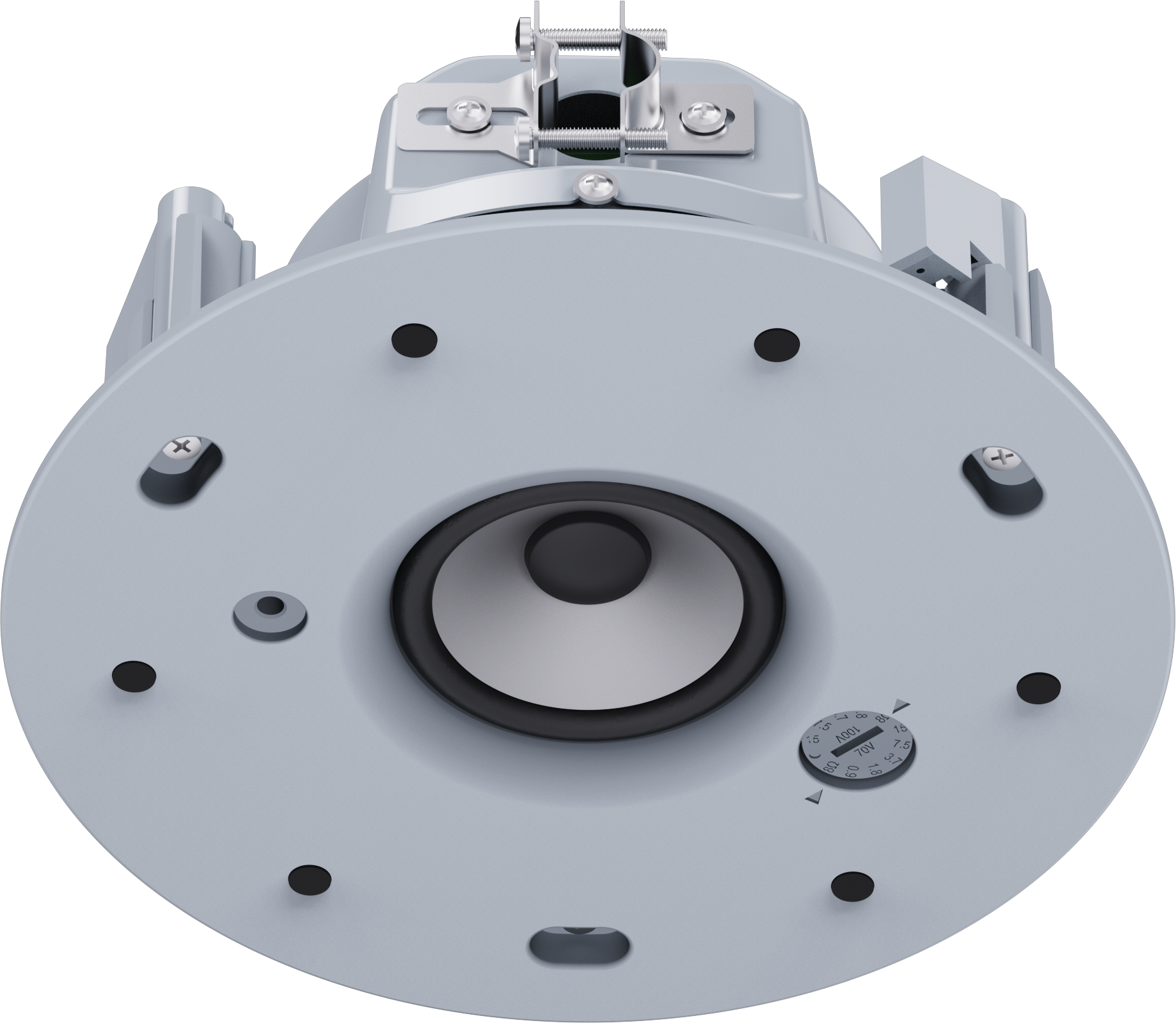

Name: Electro-Voice EVID-EC3.1 – Ceiling speaker 3" 70/100V white
Brand: Electro-Voice
SKU: EVID-EC3.1
Price: 99.00 USD
Availability: InStock

Electro-Voice EVID-EC3.1 – Ceiling speaker 3" 70/100V white

$99.00

$99.00 $128.00

Electro-Voice

EVID-EC3.1 – Ceiling speaker 3" 70/100V white

Overview

Ceiling speaker 3" 70/100V white

Highlights

✓Bezel-less design with easy-attach grille
✓Front baffle wattage tap adjustment
✓Includes tile bridge and C-ring for easyinstallation
✓UL 1480A, UL 2043, CSA C22.2 No. 205 andIEC 62368-1 certified

Specifications

Frequency range (-10 dB) (Hz) 1	90 Hz – 19,000 Hz
Maximum SPL (continuous) (dB) 2	100 dB
Maximum SPL (peak) (dB) 2	106 dB
Sensitivity (1 W, 1 m) 3	84 dB SPL 1 W, 1 m
Coverage angle conical (°)	135°
Power handling (continuous) (W) 4	40 W
Power handling (peak) (W) 4	160 W
Long term power handling (continuous) (W) 5	25 W
Long term power handling (peak) (W) 5	100 W
Nominal impedance (Ω) (Low Z)	8 Ω
Specifications Recommended high pass (Hz) 6	110 Hz
Transformer taps 70 V line (W)	15 W; 7.5 W; 3.75 W; 1.88 W; 0.9 W
Transformer taps 100 V line (W)	15 W; 7.5 W; 3.75 W; 1.88 W
LF transducer size (in)	3 in
Material	Steel
Grille material	Powder coated steel
Connector type	4-pin Euroblock Input + Pass through
Wire size (AWG)	12AWG (maximum)
