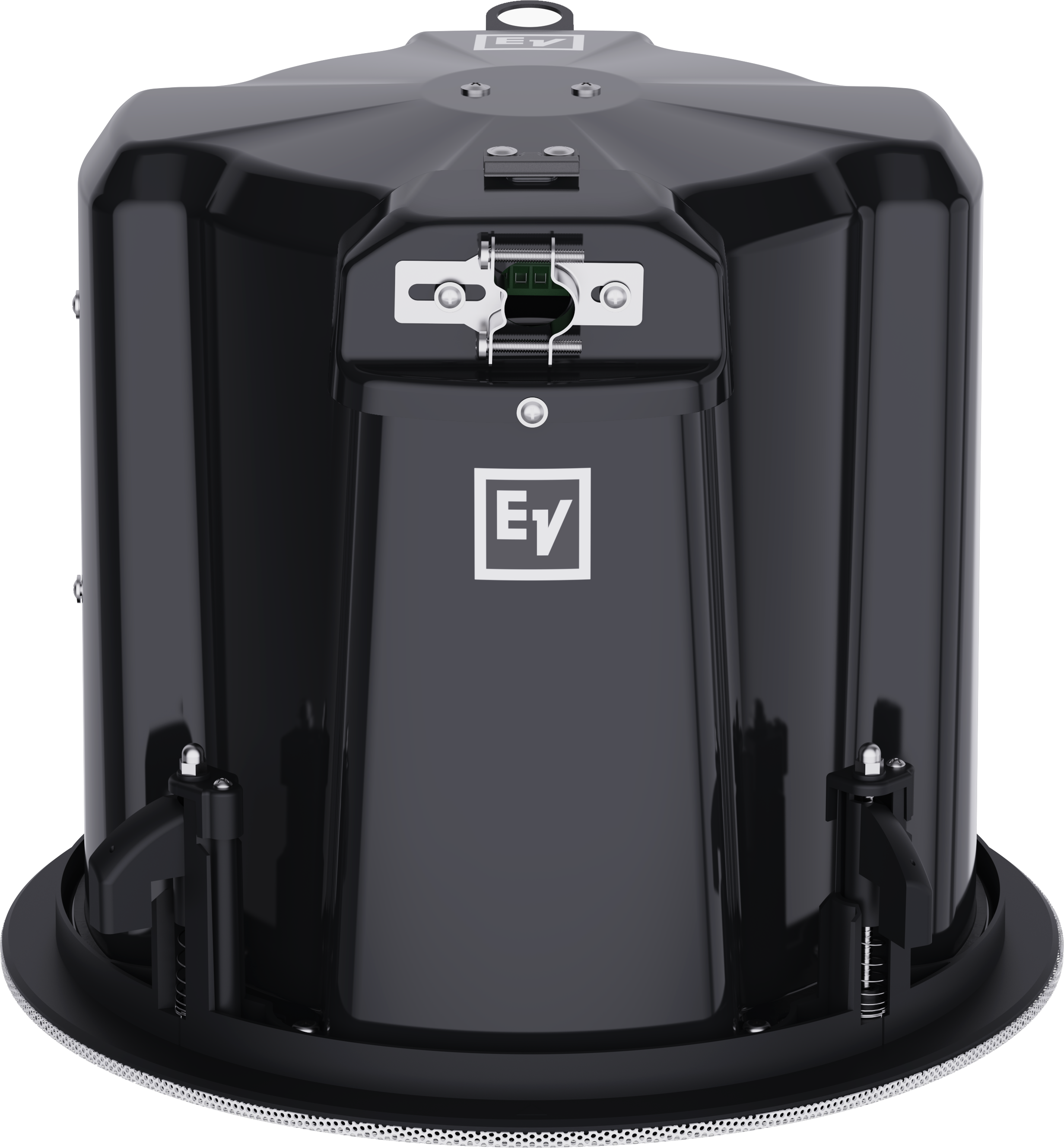

Name: Electro-Voice EVID-C8.2-G2 – Ceiling speaker 8" 70/100V white
Brand: Electro-Voice
SKU: EVID-C8.2-G2
Price: 289.00 USD
Availability: InStock

Electro-Voice EVID-C8.2-G2 – Ceiling speaker 8" 70/100V white

$289.00

$289.00 $364.00

Electro-Voice

EVID-C8.2-G2 – Ceiling speaker 8" 70/100V white

Overview

Ceiling speaker 8" 70/100V white

Highlights

✓SwiftLock mounting system for quick, safe, and reliable installation.
✓Bezel-less design with easy-attach grille.
✓Front baffle wattage tap adjustment.
✓Includes tile bridge and mounting ring for easy installation.
✓UL 1480A, UL 2043 and CSA 22.2 205 certified.

Specifications

Frequency range (-10 dB) (Hz) 1	60 Hz – 20,000 Hz
Maximum SPL (continuous) (dB) 2	110 dB
Maximum SPL (peak) (dB) 2	116 dB
Sensitivity (1 W, 1 m) 3	90 dB SPL 1 W, 1 m
Specifications Coverage angle conical (°)	90°
Power handling (continuous) (W) 4	90 W
Power handling (peak) (W) 4	360 W
Long term power handling (continuous) (W) 5	75 W
Long term power handling (peak) (W) 5	300 W
Nominal impedance (Ω) (Low Z)	8 Ω
Recommended high pass (Hz) 6	50 Hz
Transformer taps 70 V line (W)	60 W; 30 W; 15 W; 7.5 W; 3.75 W
Transformer taps 100 V line (W)	60 W; 30 W; 15 W; 7.5 W
LF transducer size (in)	8 in
HF transducer size (in)	1 in
Material	Steel
Grille material	Powder coated steel
Connector type	4-pin Euroblock Input + Pass through
