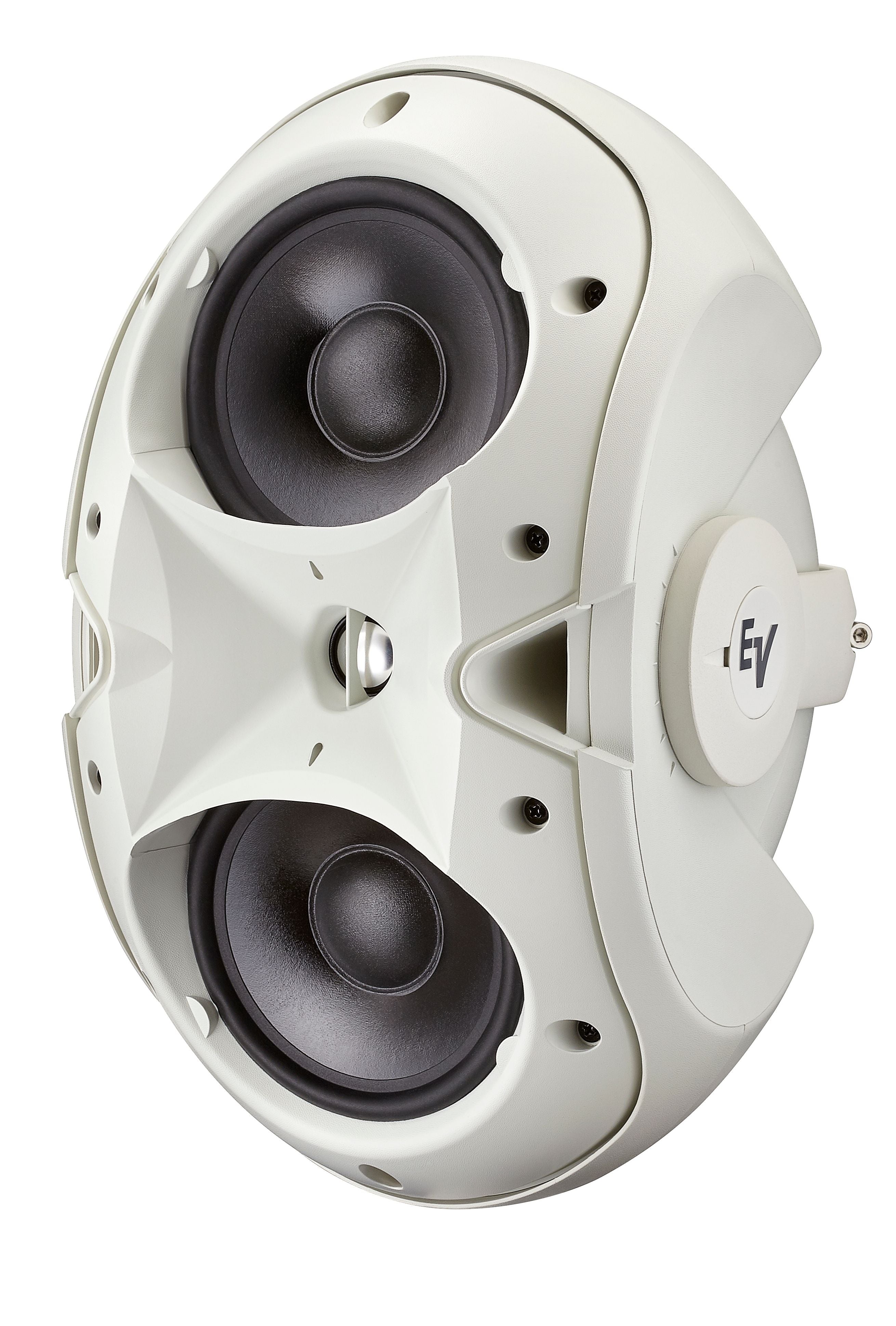

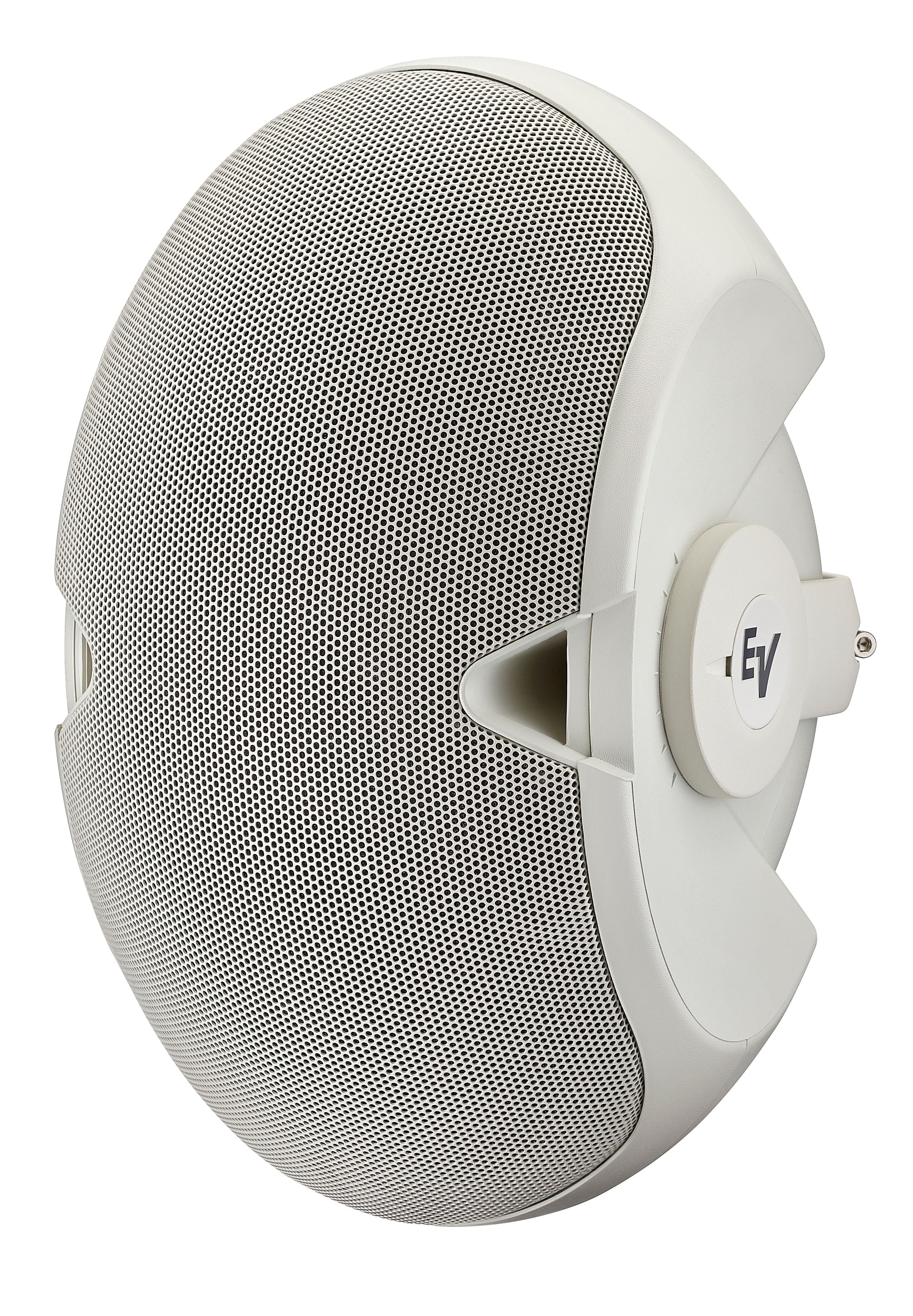

Name: Electro-Voice EVID 6.2W – Dual 6" 2‑way surface-mount loudspeaker
Brand: Electro-Voice
SKU: EVID 6.2W
Price: 709.00 USD
Availability: InStock

Electro-Voice EVID 6.2W – Dual 6" 2‑way surface-mount loudspeaker

$709.00 $887.00

Electro-Voice

EVID 6.2W – Dual 6" 2‑way surface-mount loudspeaker

Overview

Dual 6" 2‑way surface-mount loudspeaker

Highlights

✓Compact full range
✓Ideal for shopping malls, sports bars, and health clubs
✓Vented LF enclosure
✓1-inch titanium diaphragm HF driver with neodymium magnetic structure
✓Coherent Coverage Waveguide
✓Full-bandwidth overload protection (LF and HF)

Specifications

Frequency Response ¹ ( z -10 dB)	62 Hz - 20 kHz
Power Handling ²	300W Cont. Prog./600W Peak
Sensitivity ³	94 dB, 1W/1m
Specifications Impedance	8 ohms
Max SPL	118 d
Horizontal Coverage⁴	100°
Vertical Coverage⁴	80°
Crossover Frequency	1.6 kHz
LF Transducer	2 x 6" (100 mm)
HF Transducer	1" (25 mm)
Protection	Full Syste
Weather Resistance	Meets Mil Spec 810 humidity, salt spray, temperature and UV, and IEC 529 IP 34 splashproof ratings
Swing x Rotation	100° x 90°
Terminals	Phoenix Connector
Enclosure Material	ABS (paintable)
"t" Version Wattage Taps	70V 7.5 W 70V/100V 15W, 30W, 60W, 8 ohm bypass
Dim (H x W x D)	16.5" x 9" x 11.75" (419 mm x 228 mm x 298 mm)
Net Weight (each)	12 lbs (5.3kg)
