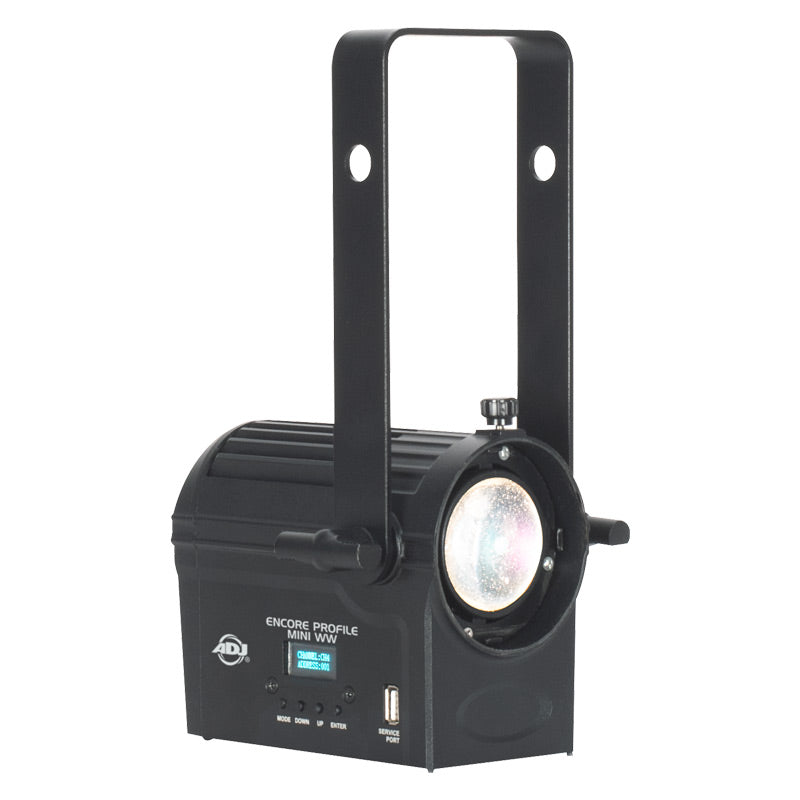

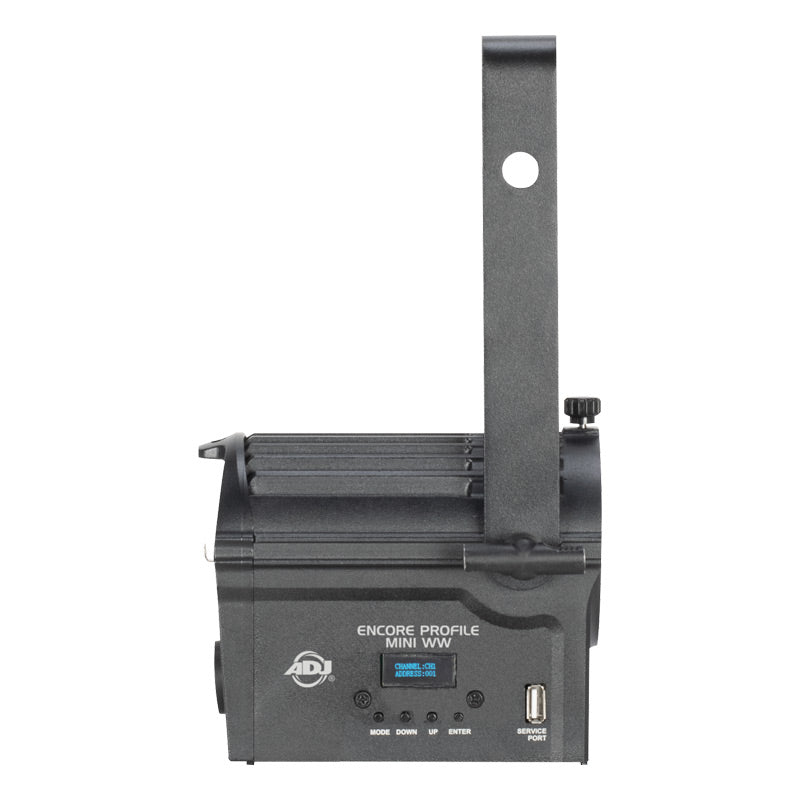

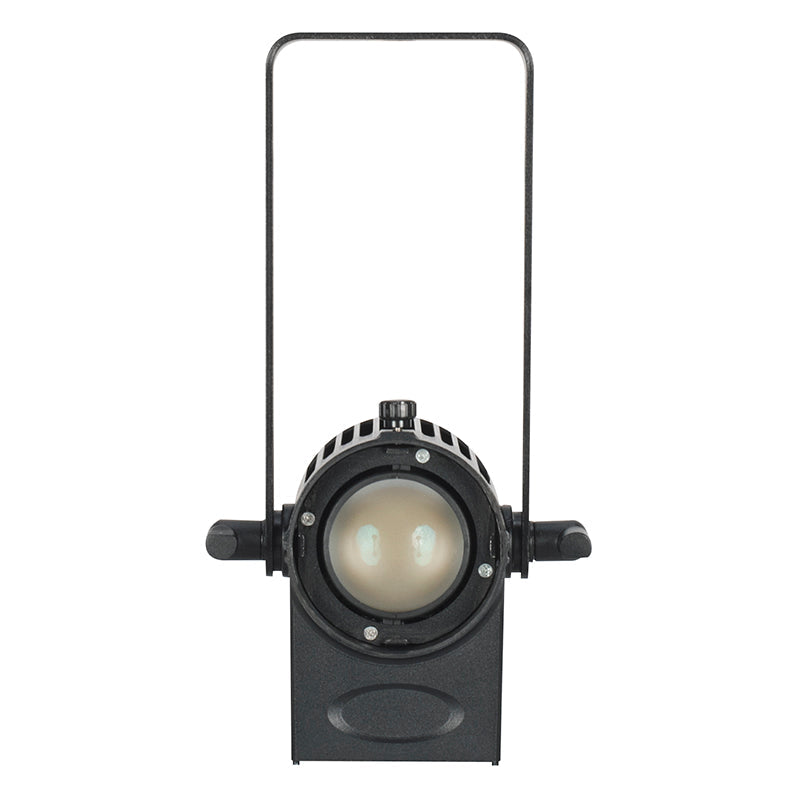

Incredibly compact, yet impressively powerful, the ADJ Lighting Encore Profile Mini WW is a feature-packed ellipsoidal that is ideal for applications where space is at a premium. It features a 40W warm white (3000K) LED light engine, which offers an output of 900 Lumens and a phenomenally high CRI of >98. For maximum versatility, it can be used with a choice of two manual zoom lens options and is supplied with a holder for “E” size GOBOs. This small, but perfectly formed, luminaire is suitable for a wide range of applications, including small theatres, bar stages, museums, theme park attractions and window displays.

Specifications

SOURCE:

• 40W Warm White LED Engine (One of the two lens options must be use for the fixture to work properly - See optional accessories below)
• 50,000 Hour Average LED Life (LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming)

PHOTOMETRIC DATA:

• >98CRI
• 900 Total Lumens
• 3000K Color Temperature

EFFECTS:

• Electronic Strobe and Dimming
• Variable Dimming Curves and Dimming Modes

GOBOS:

Metal

GOBO Dimensions: Outer Diameter 45mm, Image Diameter 31mm

Glass

GOBO Dimensions: Outer Diameter 39.5mm, Image Diameter 31mm

• GOBO Holder is included

GOBOs are sold separately

CONTROL / CONNECTIONS:

• (3) DMX Channel Modes (2 / 3 / 6)
• Adjustable Refresh Rates (900-1500, 25,000 Hz)
• 4 Button Control Panel
• OLED Menu Display

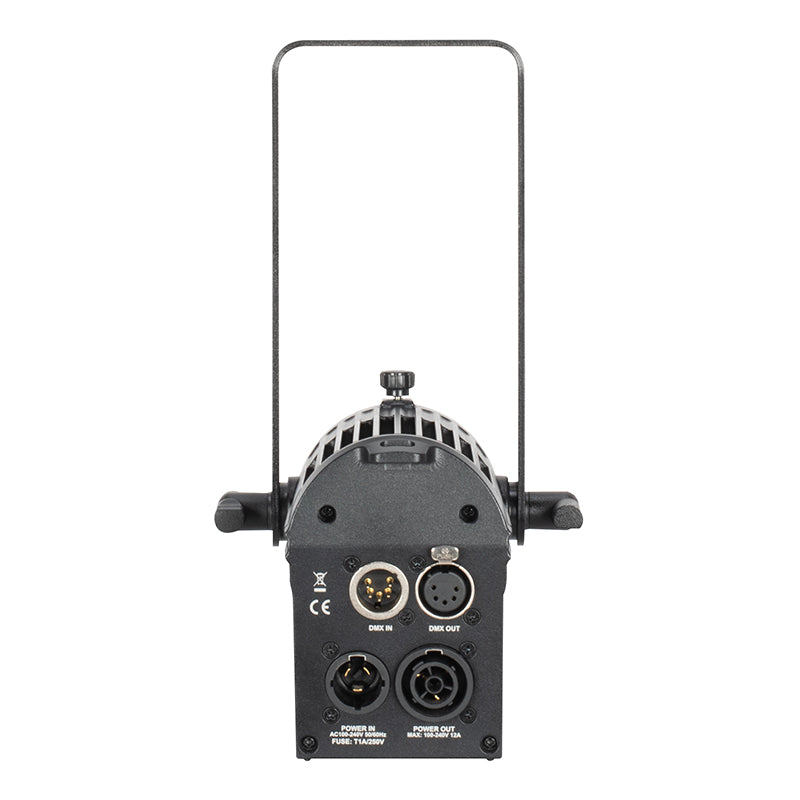

• Locking 5-pin XLR Connector In/Out
• IP65 Locking Power In/Out
• With Wired Digital Communication Network
• RDM (Remote Device Management)
• USB Service Port

SIZE / WEIGHT:

• Length: 8.8” (224mm) (NO LENS)
• Width: 5.7” (144mm)
• Vertical Height: 10.9” (276mm)
• Weight: 4.0 lbs. (1.8 kg)

ELECTRICAL / THERMAL:

• Convection Cooled
• AC 100-240V - 50/60Hz
• 45.6W Max Power Consumption @ 120V
• 45.7W Max Power Consumption @ 230V
• Power Linking: 25pcs Max @120V / 53pcs Max @230V
• Minimum and Maximum Ambient Temperatures: 14° to 113°F (-10° to 45°C)

APPROVALS / RATINGS:

• CE | cETLus

(Control #4010765)

| IP20

INCLUDED ITEMS:

• (1) IP65 Locking Connector to Edison Power Cable
• (1) EP Mini GH (EPG001): Gobo Holder

OPTIONAL ACCESSORIES:

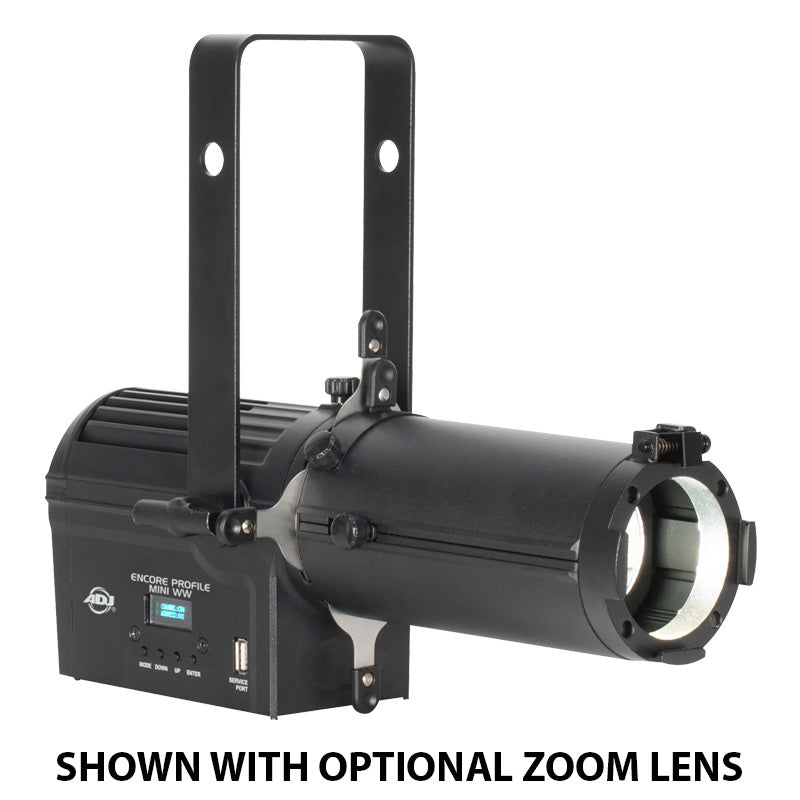

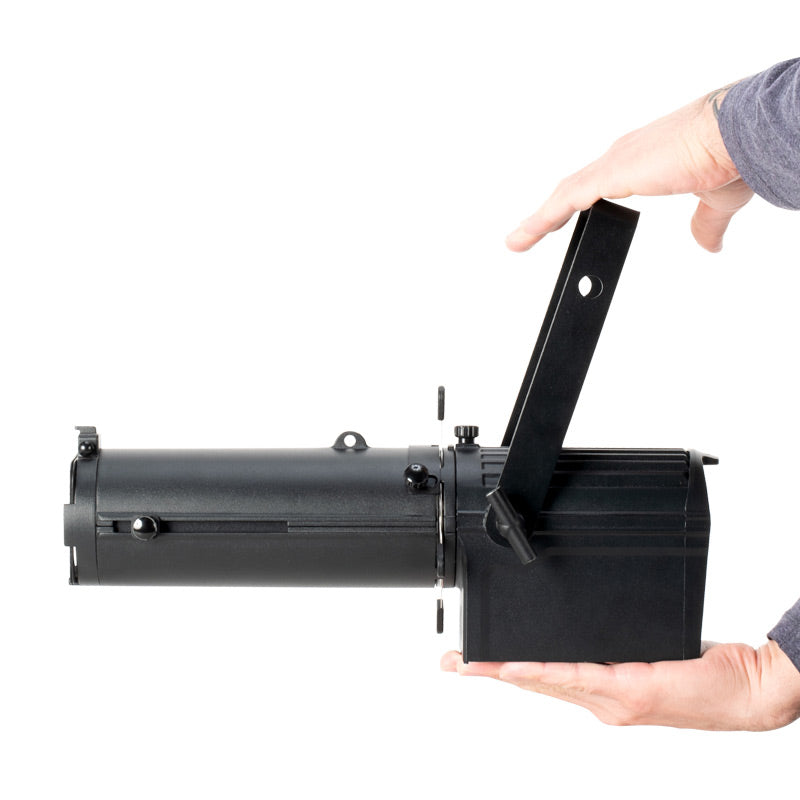

• EP Mini Lens 1530 (15° - 30° Manual Zoom Lens)
• EP Mini Lens 2550 (25° - 50° Manual Zoom Lens)
• EP Mini BDA (EPL153) (Optional Barn Door Assembly)
• EP Mini GH (EPG001) (Replacement Gobo Holder)
• EP Mini Fresnel Lens (EPL166)
• SIP064: 1.64ft. IP65 male to female twist lock power link cable
• SIP113: 3ft. IP65 male to female twist lock power link cable
• SIP126: 5ft. IP65 male to female twist lock power link cable
• SIP139: 10ft. IP65 male to female twist lock power link cable
• SIP152: 16ft. IP65 male to female twist lock power link cable
• SIP165: 25ft. IP65 male to female twist lock power link cable
• SIP178: 50ft. IP65 male to female twist lock power link cable
• SIP191: 100ft. IP65 male to female twist lock power link cable

Specifications and documentation subject to change without notice.
