Specifications

SOURCE:

• Light Source: 12 x 20-Watt Quad RGBL LEDs (4-IN-1: Red, Green, Blue Lime)
• Rated Life: 50,000 Hours

PHOTMETRIC DATA:

• Beam angle: 5° to 30°
• Field angle: 9° to 50°
• CRI: 84.4
• CRI R9: 77
• Lumens: 4400

EFFECTS:

• Motorized Zoom (5° to 30° Beam Angle, 9° to 50° Field Angle)

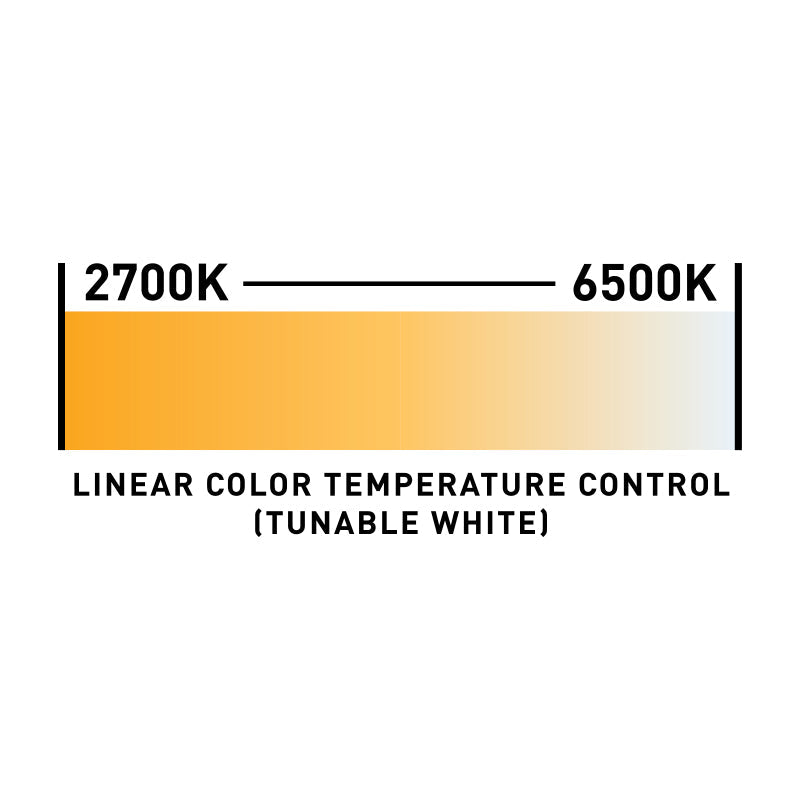

• Linear Color Temperature Control (2700K to 6500K)

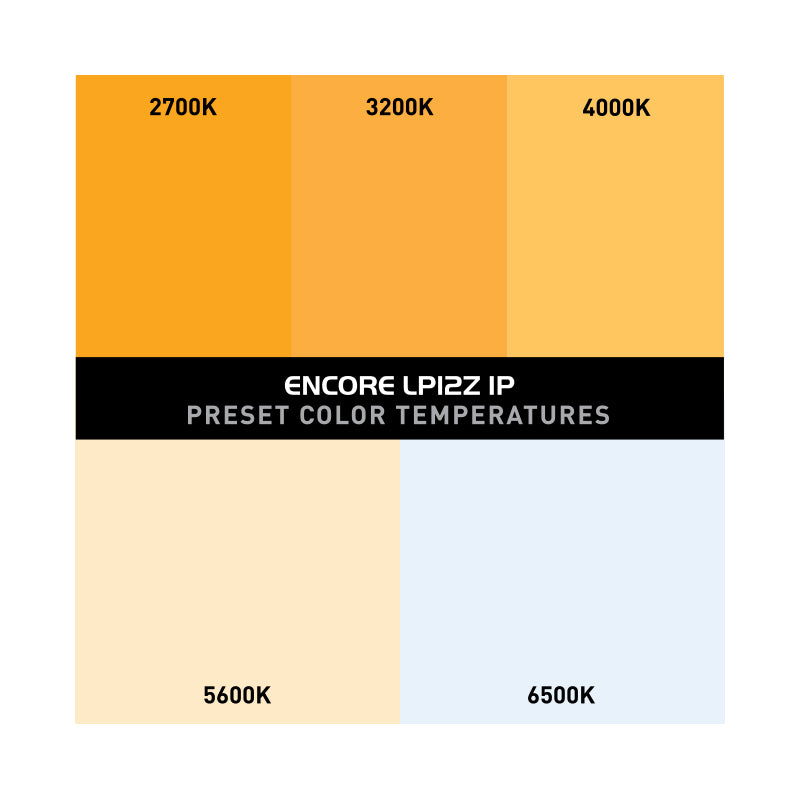

• Preset Color Temperatures (2700K, 3200K, 4000K, 5600K and 6500K)
• 16-Bit Fine Color Control (Red, Green, Blue Lime)
• 64 built-in Color Macros

CONTROL / CONNECTIONS:

• 4-button, DMX digital display on rear panel
• Operational modes: Static Color Mode, RGBL Dimmer Mode, Program Mode and DMX Controlled
• Aria X2 Wireless Management System
• RDM Compliant (Remote Device Management)
• With Wired Digital Communication Network
• 6 selectable Dimming Modes (Standard, Stage, TV, Architectural, Theatre Stage 2)
• 4 selectable Dim Curves (Linear, Square Inv. Squa, S-Curve)
• Adjustable Refresh Rate (14 presets from 900 – 25,000Hz)
• Flicker Free operation (No flickering on camera)
• LED pulse and strobe effect
• Electronic Dimming: 0 - 100%
• 6 DMX Modes: 6, 9, 10, 12, 15 18-channel
• Quiet fan mode

CONSTRUCTION:

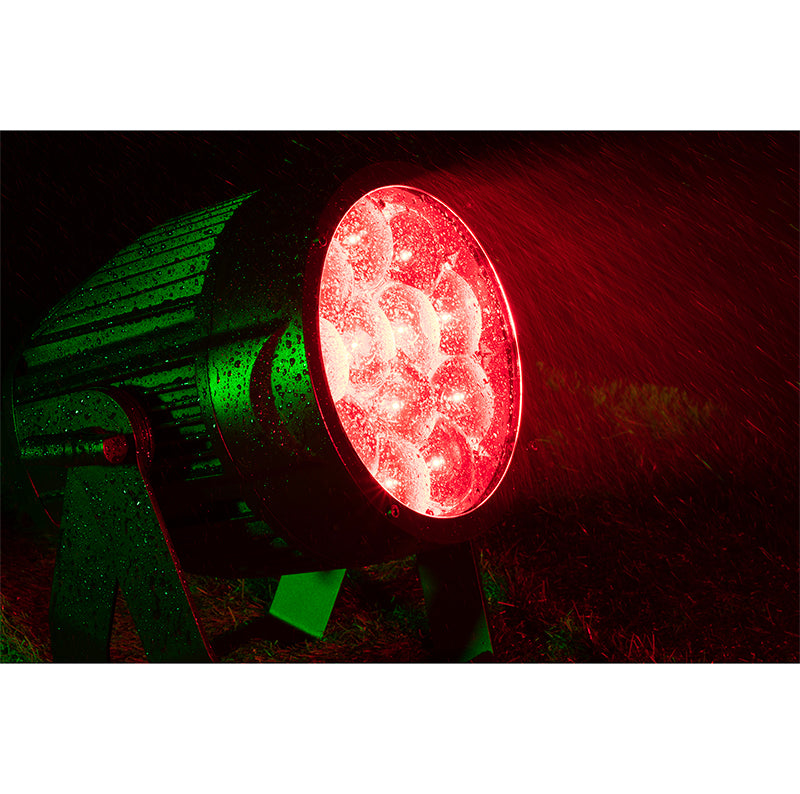

• IP65 Rated: Ingress Protection against liquid, snow, dust and sand
• All aluminum construction
• Anti-corrosion coating: C3

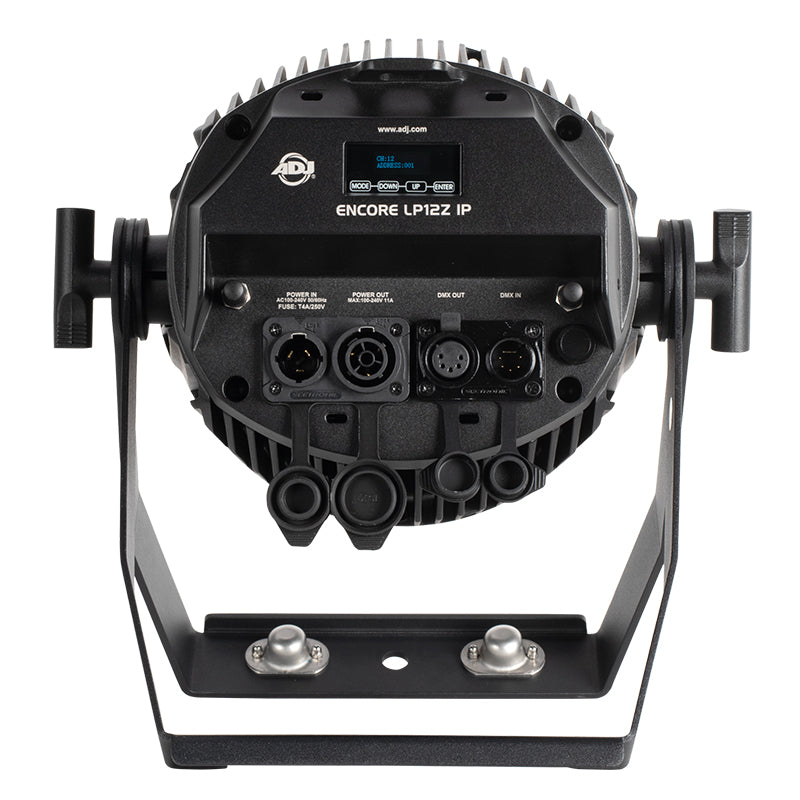

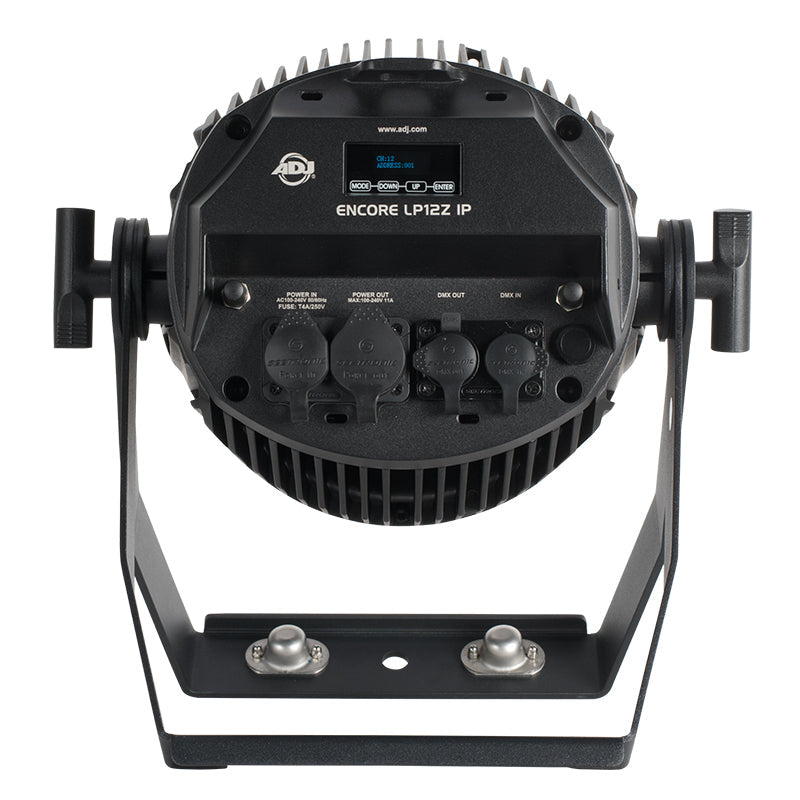

• IP Rated rubber covers protect In/Out Locking Power connectors and IP rated 5-pin sockets
• Locking, outdoor In/Out Power connectors
• Data linkable via 5-pin XLR DMX connections
• Scissor Yoke safety eye

ELECTRICAL / THERMAL:

• Multi-voltage operation: AC 100-240V, 47/63Hz
• Daisy chain: 6 @ 120V, 12 @ 220V
• Max power: 227W
• Min/Max Ambient Temperature: -4º F ~ 113º F (-20ºC ~ 45ºC)

DIMENSIONS / WEIGHT:

• Dimensions (LxWxH): 14.6” x 12.4” x 13.6” (371x316x346mm)
• Weight: 16.6 lbs. / 7.5 kg.

APPROVALS / RATINGS:

• cETLus (Control # 4010765)
• CE
• FCC
• UKCA
• IP65

INCLUDED ACCESSORIES:

(1) Power Cord

OPTIONAL ACCESSORIES:

Z-8050000053: 107mm Omega Bracket

ELP18IPBDA (ELP417): Barn Door / Gel Frame Kit

*Specifications are subject to change without notice.
