Specifications

SOURCE

400W 6-IN-1 LED (Red, Green, Blue, Amber, Cyan and Lime)

50,000 Hour Average LED Life*

*May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

PHOTOMETRIC DATA

9028 Total Stable Lumen Output (Full ON, Zoomed Out to Full)

9940 LUX, 923 FC @ 9.8’ (3m) (Zoomed In / Full ON)

2756 LUX, 256 FC @ 9.8’ (3m) (Zoom Out / Full ON)

Beam Angle: 9° to 37.5°

Max Field Angle: 49.8°

Color Temperature: Tunable, 2400K to 8500K

CRI: 97.8

COLOR:

Individual RGBACL Red, Green, Blue, Amber, Cyan and Lime) Control

Virtual Color Wheel Control

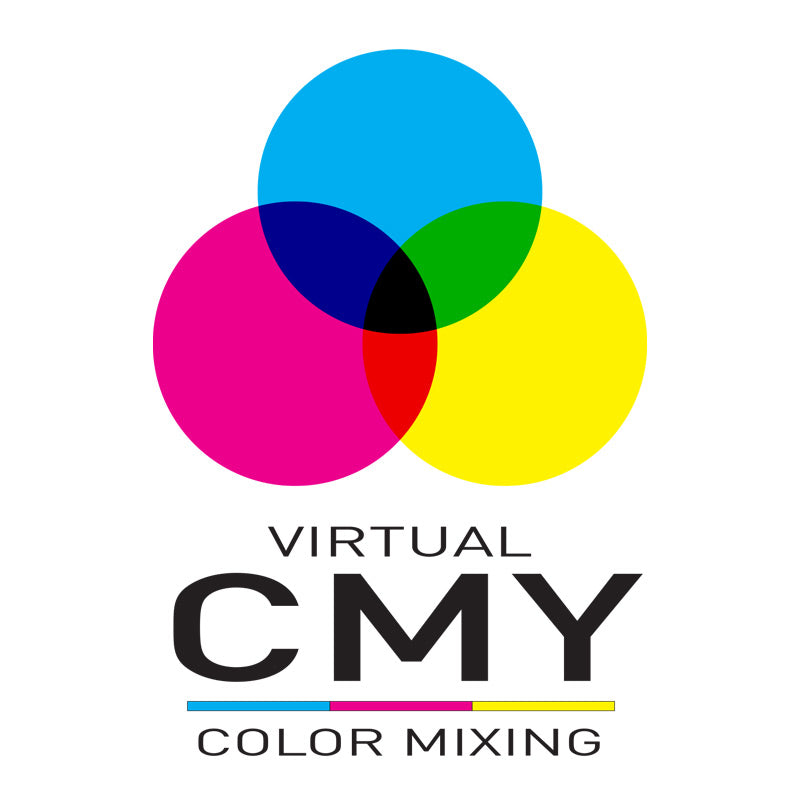

Virtual CMY Control

EFFECTS

Motorized Zoom

Electronic Dimmer and Strobe (1-20Hz)

Variable 16-bit Dimming Modes and Curves

Virtual CMY Color Mixing DMX Control Modes

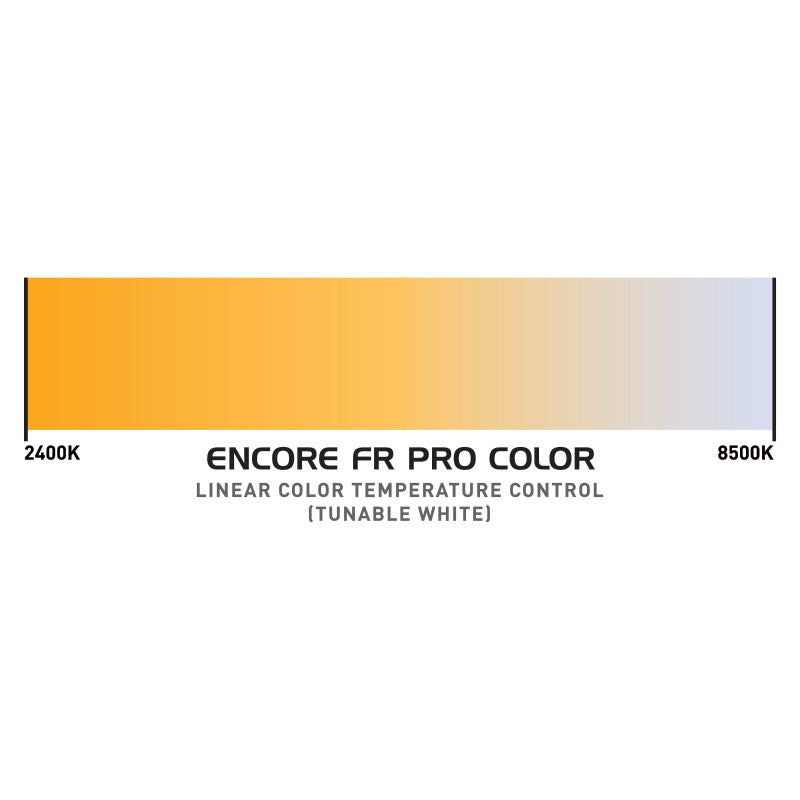

Tunable White Color Temperature from 2400K to 8500K

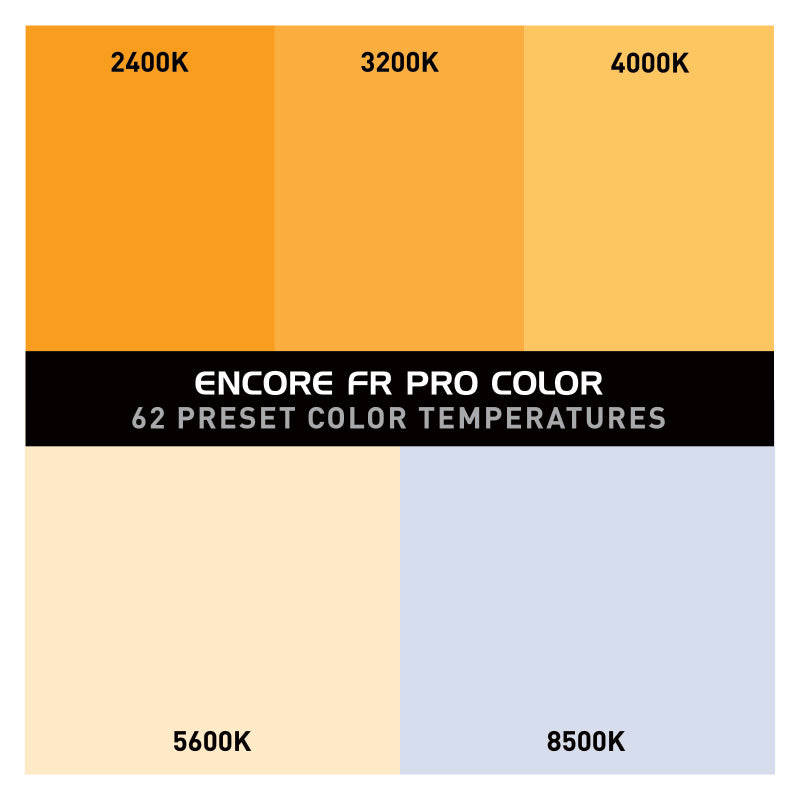

62 Preset White Color Temp Macros (2400K to 8500K)

60 Preset Colors on Virtual Color Wheel

64 Preset RGBA Color Macros

CONTROL / CONNECTIONS

Manual and DMX Controlled Dimmer and Shutter

Dimmer and Zoom Rotary Dials

(5) DMX Channel Modes (14 / 17 / 19 / 13 CMY / 19 CMY)

Adjustable Refresh Rate (68 presets from 900 – 25,000Hz)

6 Preset Dim Modes (Standard, Stage, TV, Architectural, Theatre and Stage 2)

Dim Speed Options (0.1s to 10s)

4 Dim Curves (Square, Linear, Inv. Squa and S. Curve)

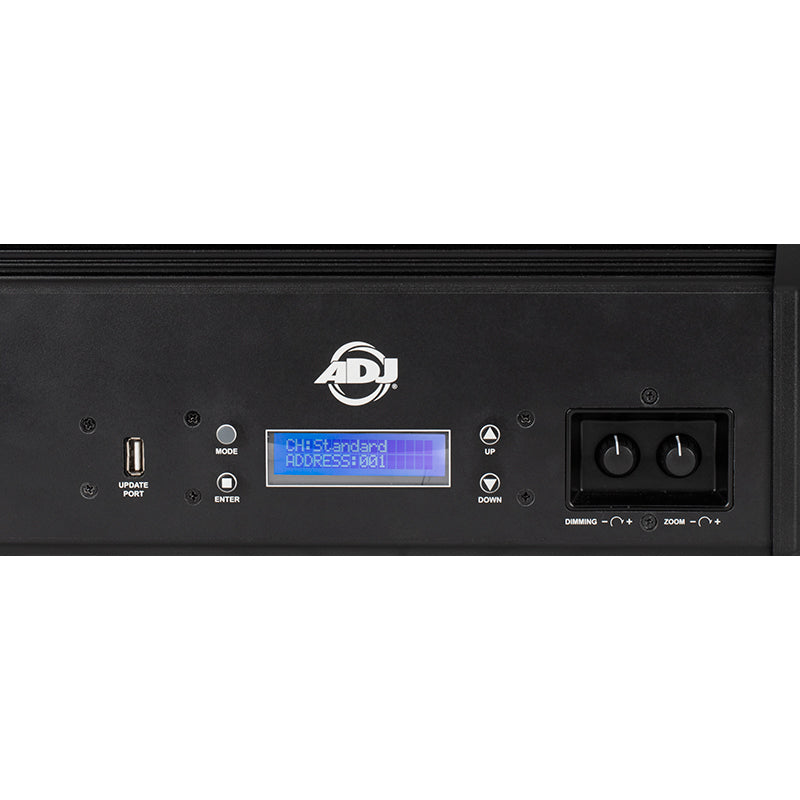

4 Button Control Panel LCD Menu Display

RDM (Remote Device Management)

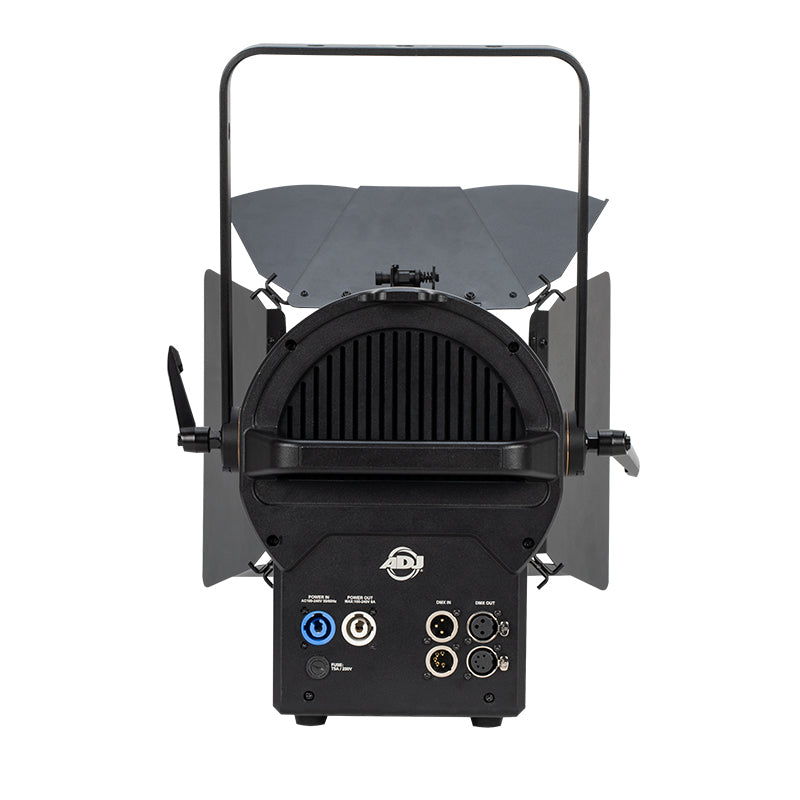

3/5pin DMX Input and Output

Locking Power Input and Output

USB Service Port

With Wired Digital Communication Network

SIZE / WEIGHT

Length: 16.6” (421.9mm)

Width: 14.18” (360.1mm)

Vertical Height: 19.29” (490mm)

Weight: 21.8 lbs. (9.9kg)

ELECTRICAL / THERMAL

AC 100-240V - 50/60Hz

420W Max Power Consumption

5°F to 113°F (-15°C to 45°C)

Power Linking: 2Pcs @ 110V / 5Pcs @ 240V

INCLUDED ITEMS

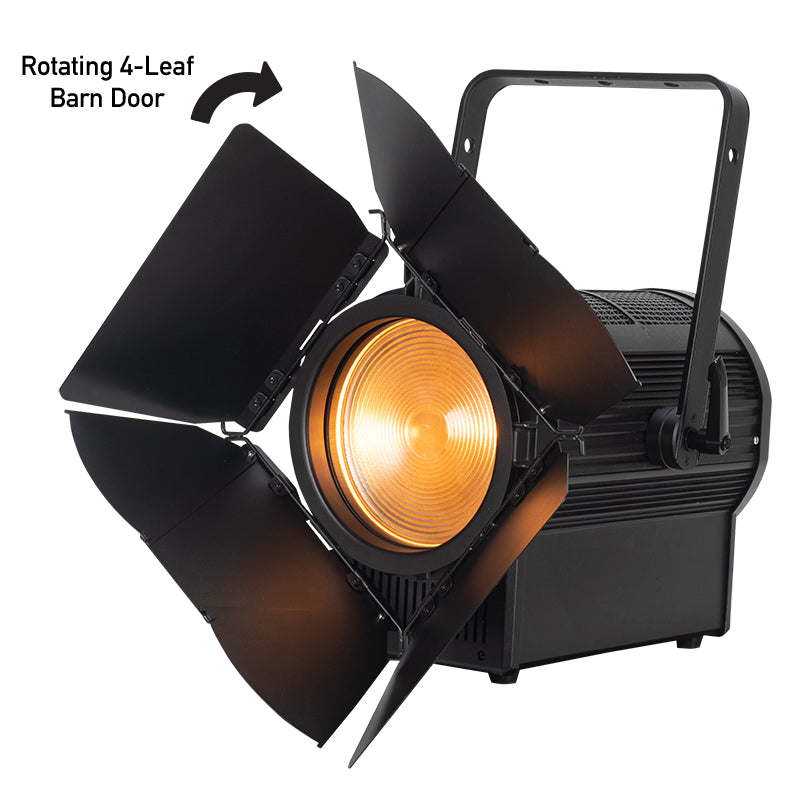

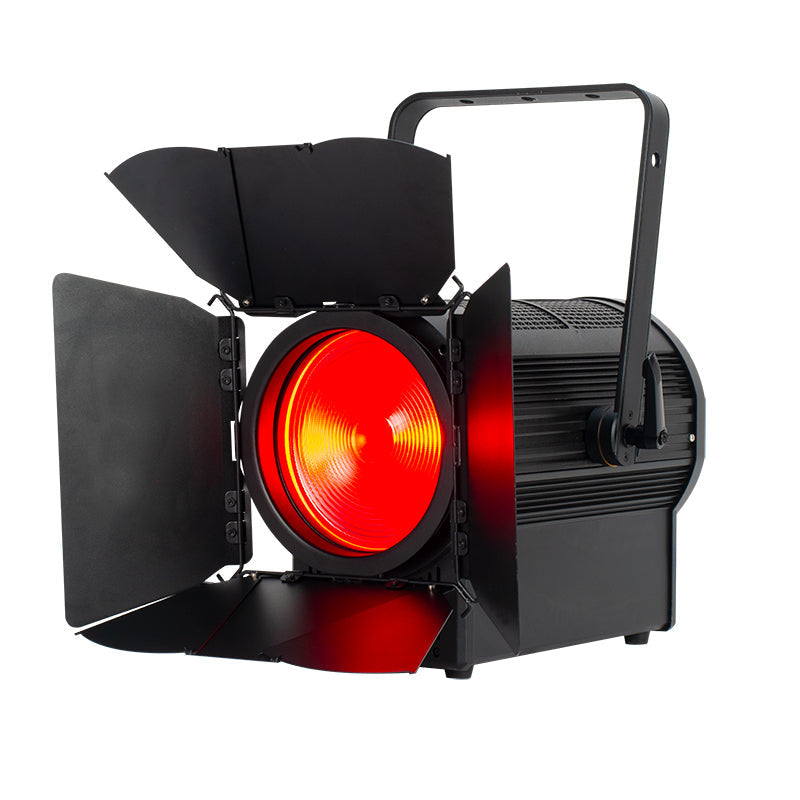

Barn Doors

Locking Power Cable

Two (2) Safety Cables

APPROVALS / RATINGS

CE | cETLus (Pending) | IP20

Specifications are subject to change without notice.
