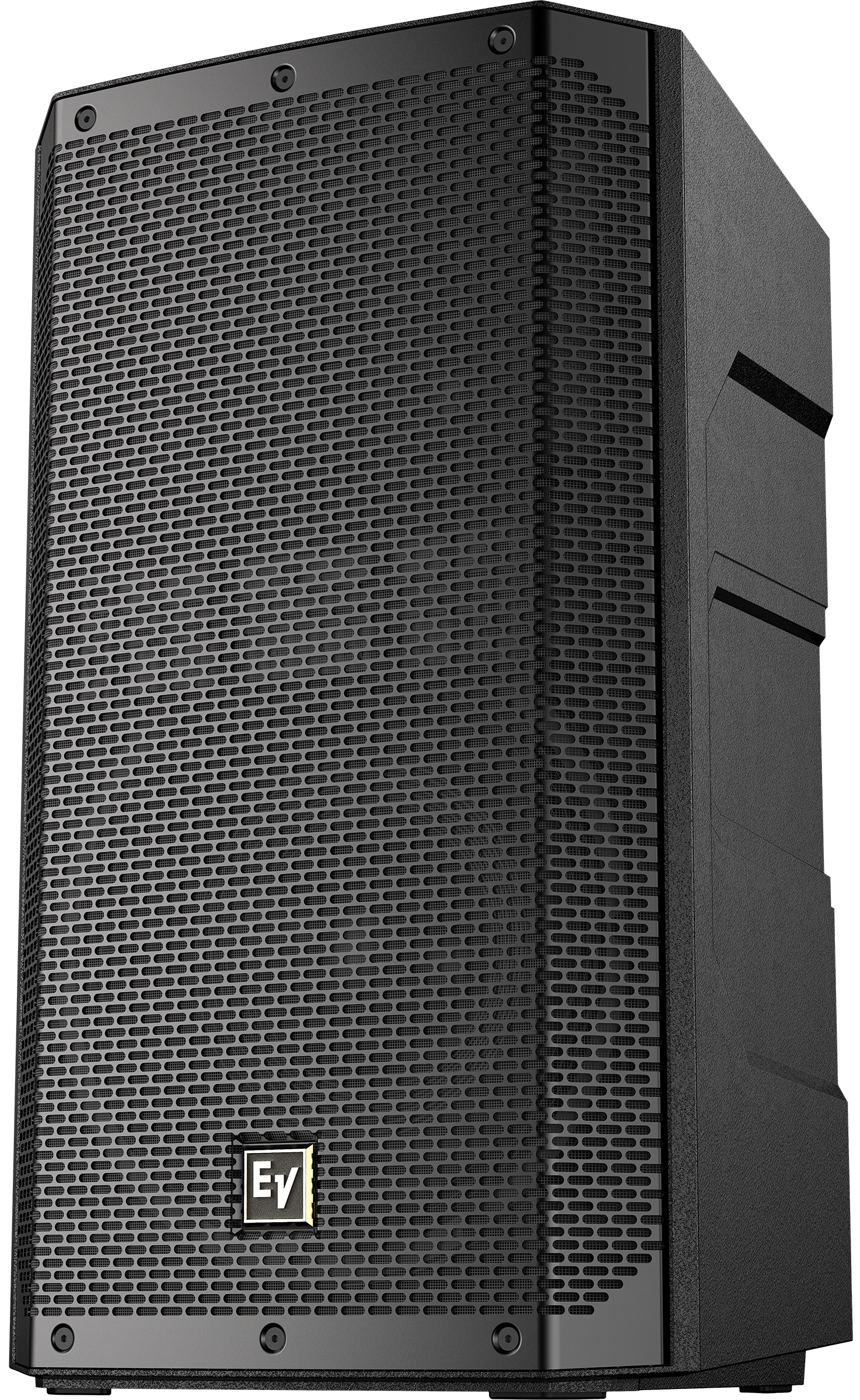

Electro-Voice ELX200-12-W

Electro-Voice ELX200-12-W – 12" passive loudspeaker

$649.00 $1,129.00
Skip to product information
Electro-Voice ELX200-12-W
  • Electro-Voice ELX200-12-W
  • Electro-Voice ELX200-12-W
Electro-Voice ELX200-12-W – 12" passive loudspeaker

Electro-Voice ELX200-12-W – 12" passive loudspeaker

$649.00 $1,129.00

Electro-Voice

ELX200-12-W – 12" passive loudspeaker

Overview

12" passive loudspeaker

Highlights

  • ✓1200 W (peak), 128 dB peak SPL system that is reliability verified with over 500 hours of abuse testing and endurance testing to 4x typical industry practices.
  • ✓1.4 inch DH-1L (1 inch exit) titanium compression driver for extended transparent high-frequency response.
  • ✓High-output EVS-12M woofer designed to exacting specifications for superior durability and exceptional low-frequency reproduction.
  • ✓EV-patented Signal Synchronized Transducers (SST) waveguide design provides precise and consistent coverage, minimal distortion, and maximized acoustical loading.
  • ✓Professional-grade hardware: three M10 threaded mounting points for forged eyebolts, integrated pole-mounts and the proven ZLX three-handle design for easy lifting.

Specifications

Suspension (3) M10 suspension points
Minimum Impedance 7.5
HF Transducer DH-1L 1-inch titanium compression driver
Speaker Type Full-Range
Woofer Size 12
Powered or Passive Passive
Specifications Frequency Response (-3 dB)¹ 77 Hz - 17 k
Frequency Range (-10 dB)¹ 51 Hz - 20 kHz
Max. SPL/1m (calc)² 128
Coverage (Nominal -6 dB) H 90
Coverage (Nominal -6 dB) V 60
LF Transducer EVS-12M 300 (12 in)
Power Rating 1200
Crossover Frequency 1.7 k
Connector Type Dual NL4
Enclosure Material Polypropylene composite
Grille 18 AWG steel with powdercoat
Available Color Black or White

Product identifiers

SKU ELX200-12-W
