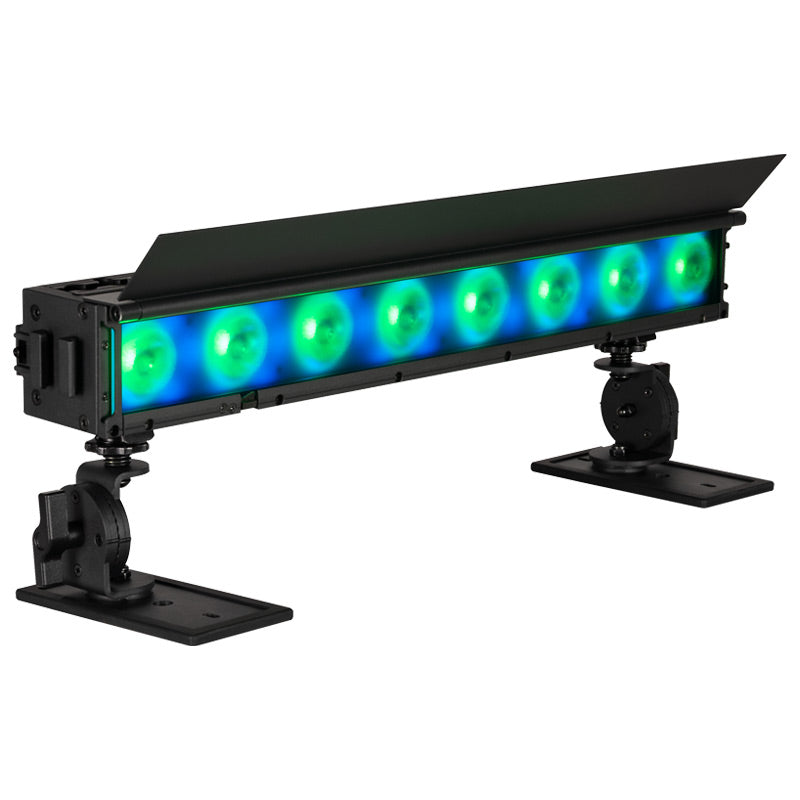

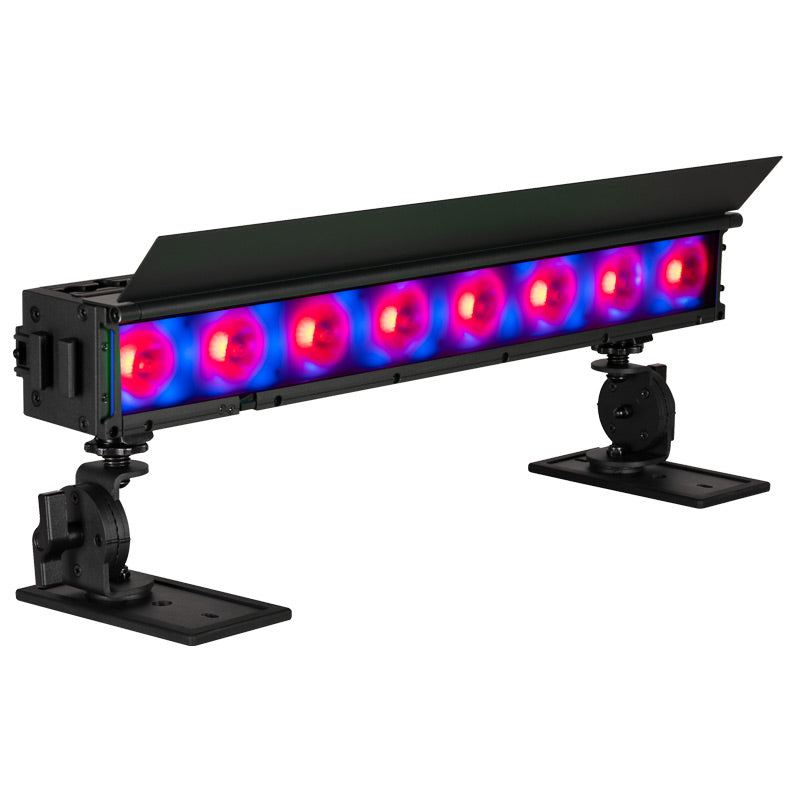

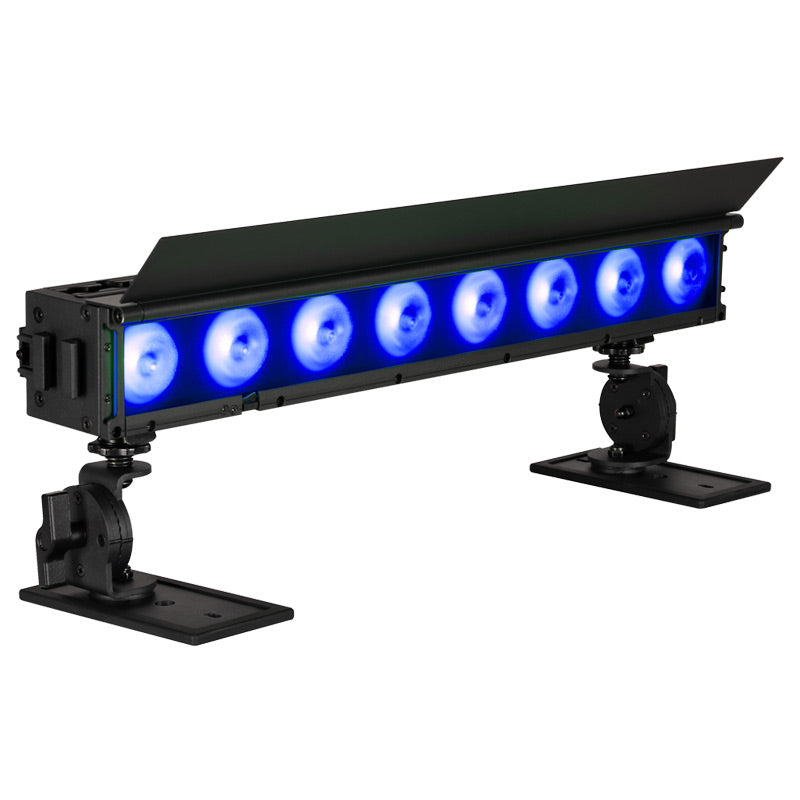

The ADJ Lighting ElectraPix Bar 8 is a cutting-edge IP65-rated, battery powered, wireless DMX .5-meter linear fixture. It features eight 20-Watt Hex Color LED (RGBAL+UV), Aria X2 wireless DMX and has a battery life up to 20 hours.

Specifications

Features:

8 Pixel, Hex Color LED (RGBAL+UV) LED Bar

Battery or Wall Powered

Up to 20 Hour Battery Operation

Battery Operation (Menu Option)

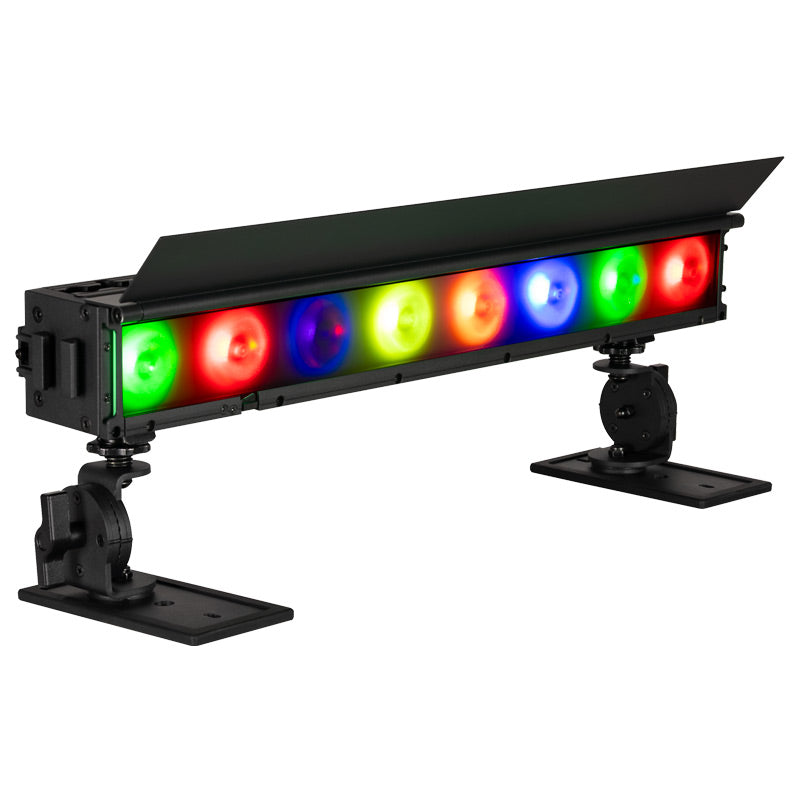

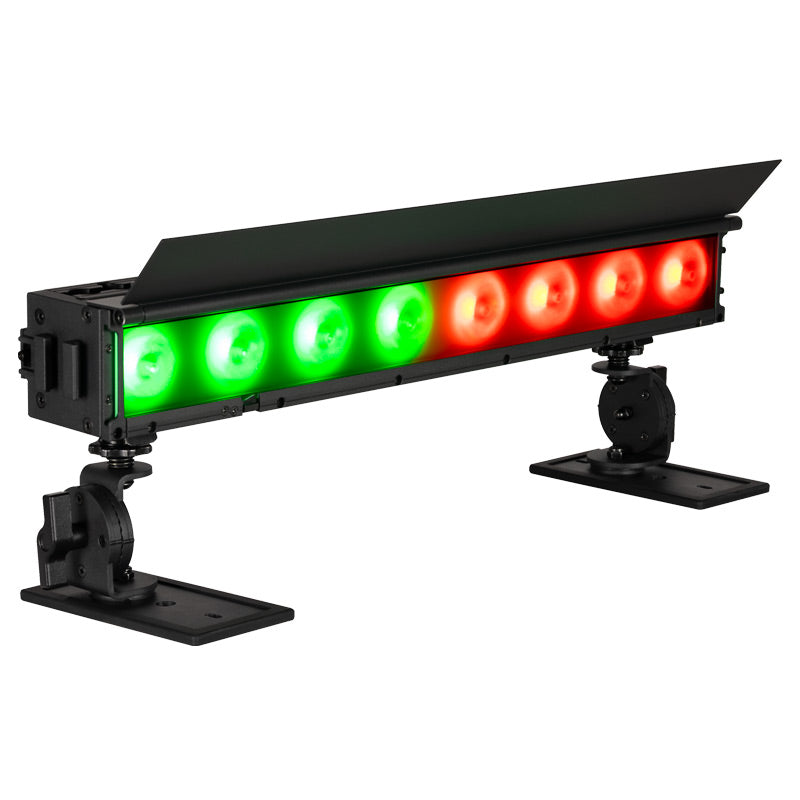

Individual Pixel Control

Built-In Foreground LED Programs

Built-In Background LED Programs

Variable White Color Temperature Control (2,300K ~ 9,900K)

English Spanish User Menu

Built-In Alarm

Color Calibrated LED's

User Selectable LED Refresh Rates (900Hz ~ 25K)

6 User Selectable Dim Modes

4 User Selectable Dim Curves

Electronic Strobe (0.3Hz ~ 11Hz)

Electronic Dimming

Attach up to four (4) ElectraPix Bar 8 to the Accu Stand VFB1 vertical floor base

Source:

(8) 20W Hex Color RGBAL+UV Foreground LED's

(32) 0.2W RGB Background LED's

50,000 Hour Average Life*

*May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

Optical:

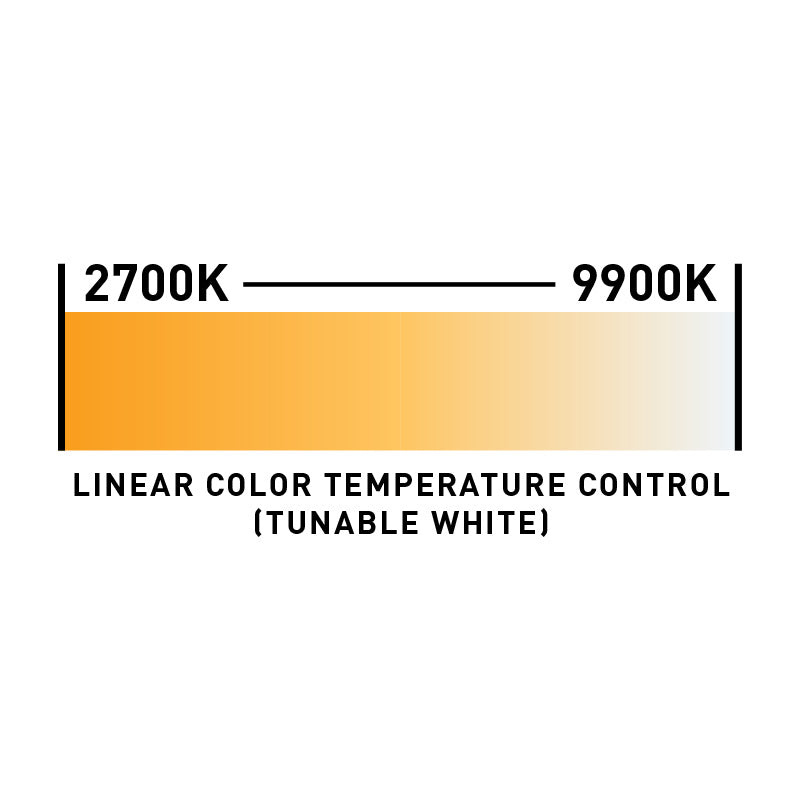

2,300K ~ 9,900K White Color Temperature Range

17° Beam Angle

45mm Lens Diameter x8

Physical:

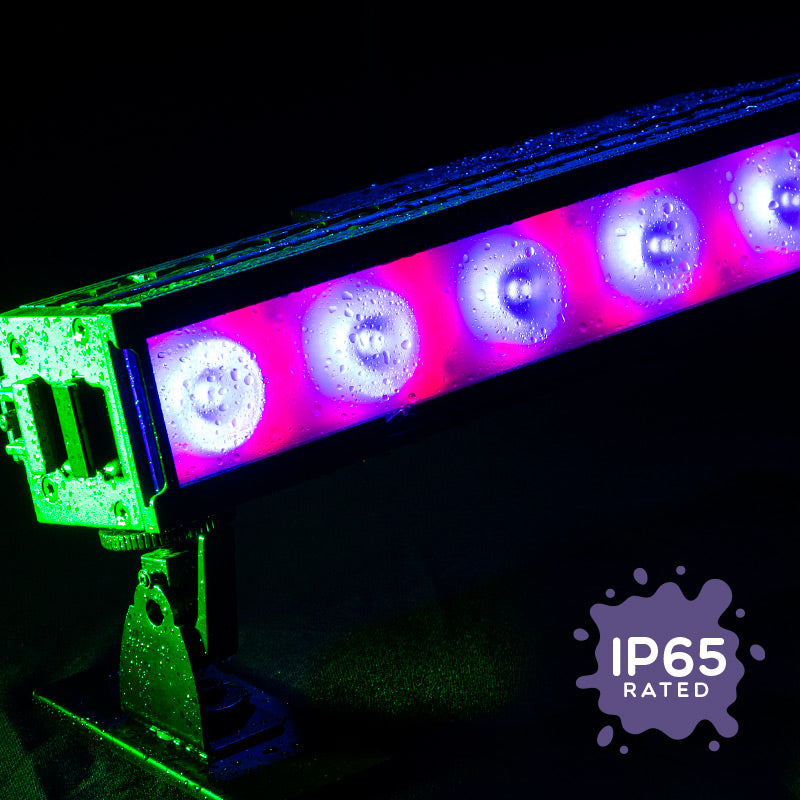

IP65 Housing

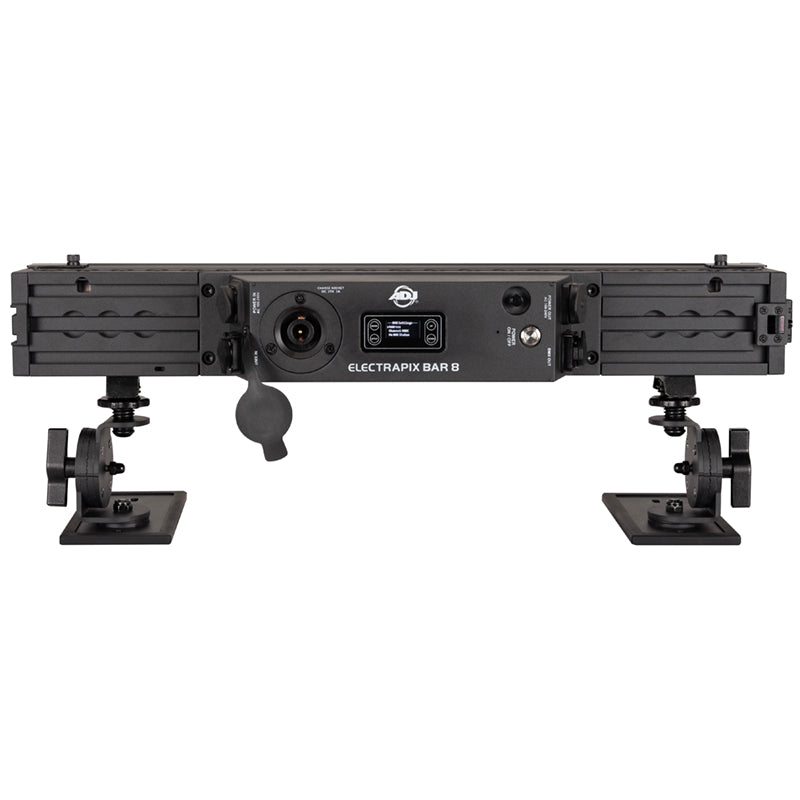

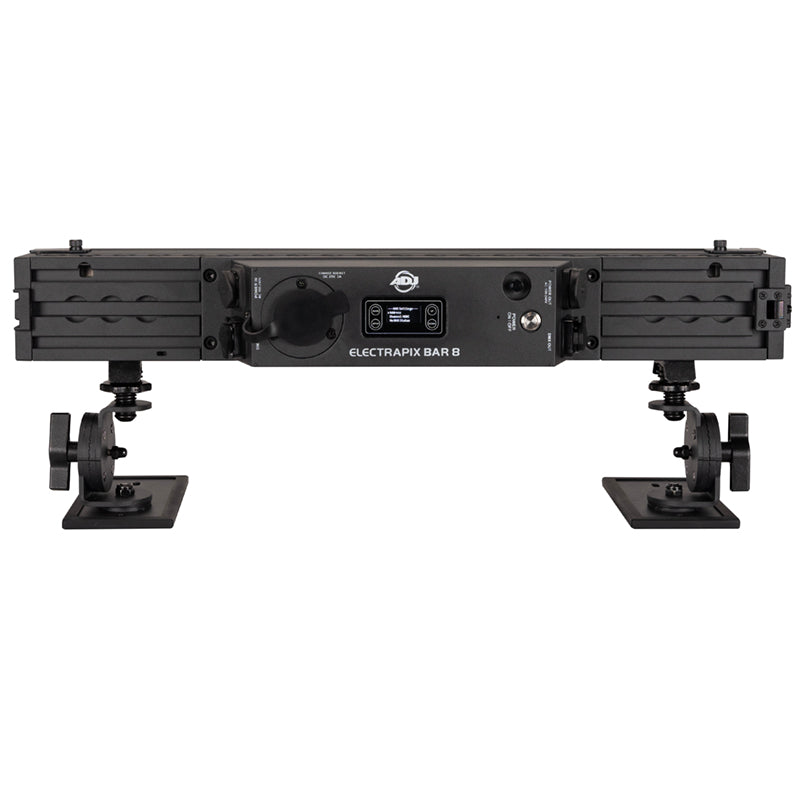

OLED Digital display

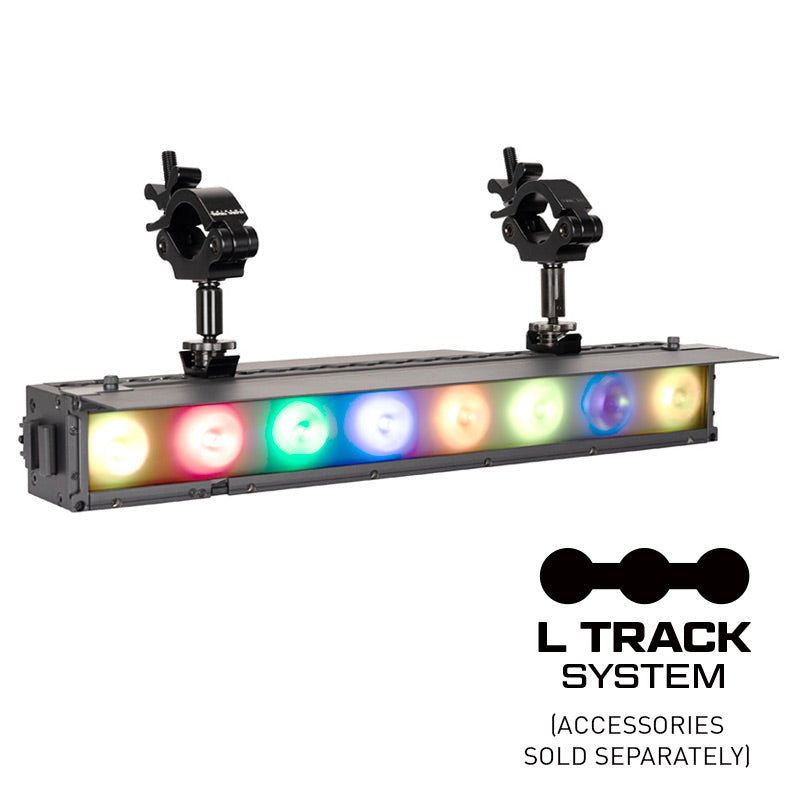

L Track system for locking accessories / rigging

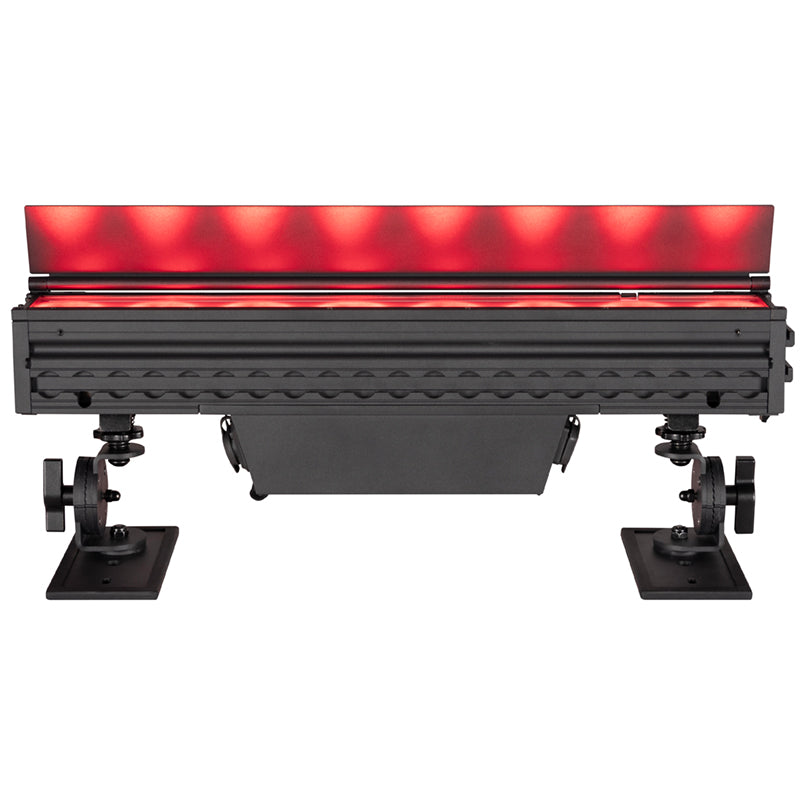

Glare Shield

Diffusion Filter slot

Angle adjustable feet

Horizontal slide lock to attach additional ElectraPix Bar 8 or ElectraPix Bar 16

Control:

DMX512

Aria X2 Wireless Management / DMX System

Bluetooth

RDM and RDM Net Compatible

IR (Includes UCIR24 wireless remote)

(11) DMX Channel Modes (5, 6, 7, 9, 12, 13, 22, 24, 48, 52 & 66 Channel modes)

On-board Manual Control Mode

Primary / Secondary Mode

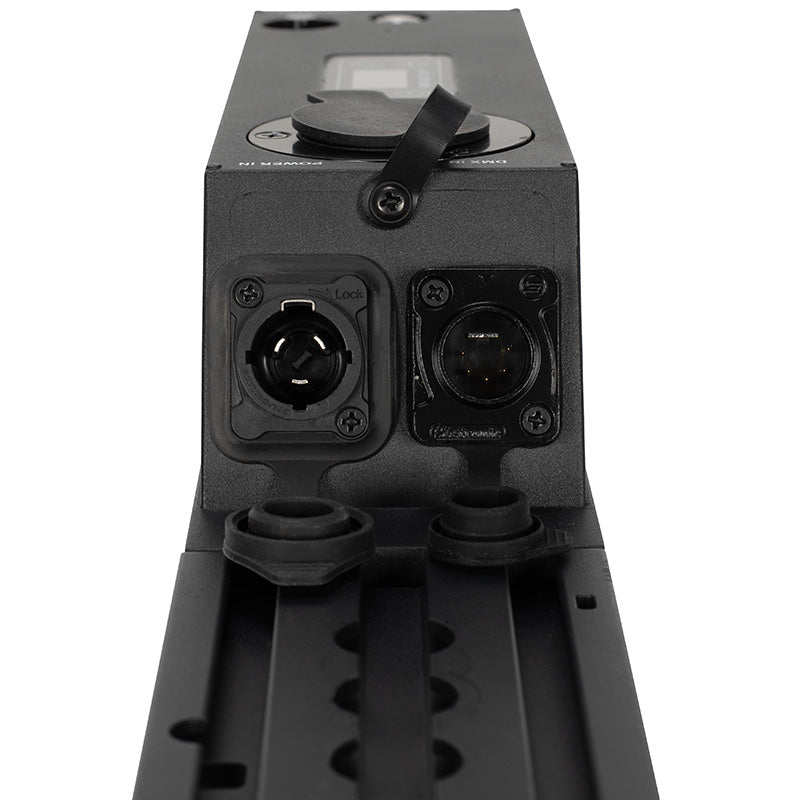

Connections:

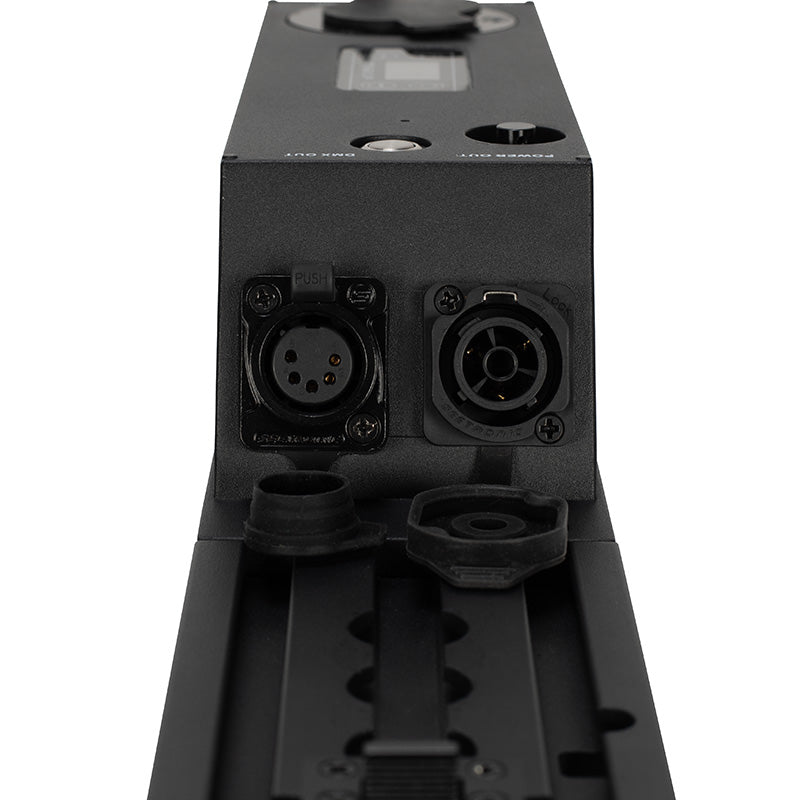

5pin XLR Outdoor DMX In/Out Sockets (Must be used with STRxxx, 5pin DMX cables to create IP65 seal)

Outdoor Locking Power Sockets

Battery Charging Socket

Dimensions Weight:

Length: 23.1” (587mm) Width: 6.5” (166mm) Height: 10.6” (269mm)

Weight: 17.2 lbs. (7.8 kg)

Power:

AC100-240V/50Hz-60Hz Input

60W Power Consumption

Link 15 pieces @120VAC or 28 pieces @ 230VAC

Battery:

Rechargeable Lithium ion

Battery Capacity: 7,000mAh

Battery Voltage: 22.2V

Charge Time, AC Power: 5 Hours (To Full)

Charge Time, Flight Case: 5 Hours (To Full)

Up to 20 Hour Battery Operation

Battery Cycles: 500

Thermal:

Ambient Operational Temperature: -4°F to 113°F (-20°C to 45°C)

Storage Temperature: -22°F to 113°F (-30°C to 45°C)

Certifications IP Rating:

CE

cETLus (Control # 4002034)

FCC

IP65

Included Accessories:

(1) Outdoor Locking Power Cable

(1) UCIR24 Remote

(1) 20° Diffusion Filter

Optional Accessories:

Accu Stand VFB1 (Floor Base)

LTrack A2 (LTrack Adapter Only)

LTrack CA2 (LTrack Adapter with Narrow Clamp)

EPIX B816 IPCB: replacement charging base and power supply

Specifications and documentation subject to change without notice.
