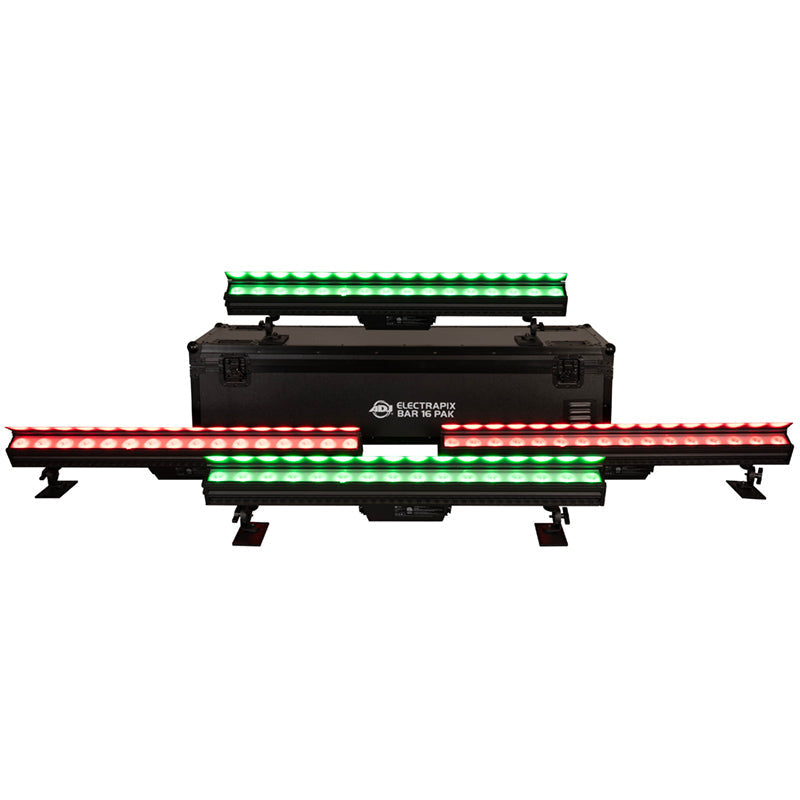

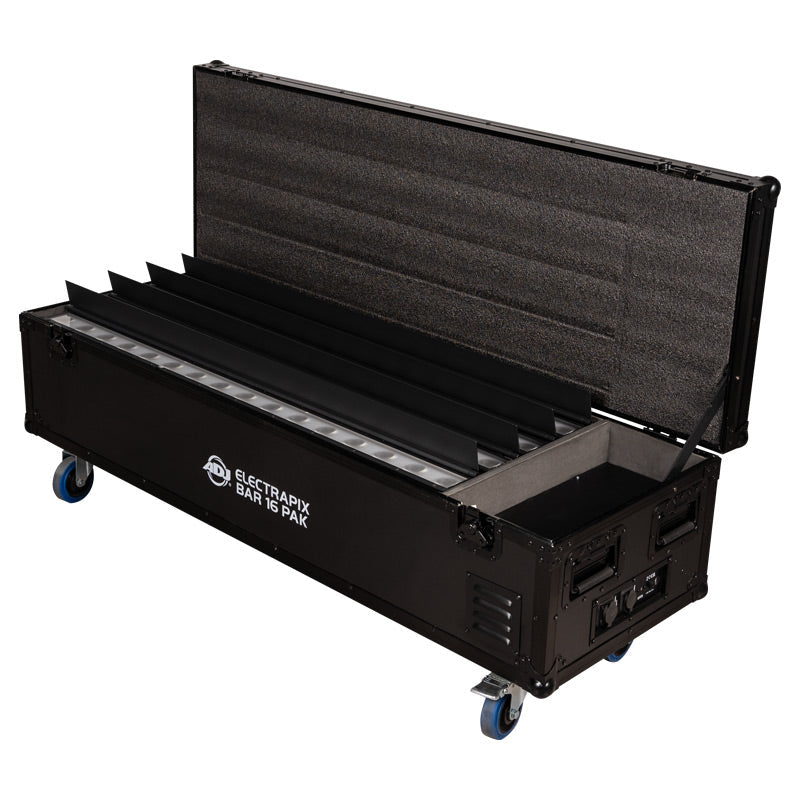

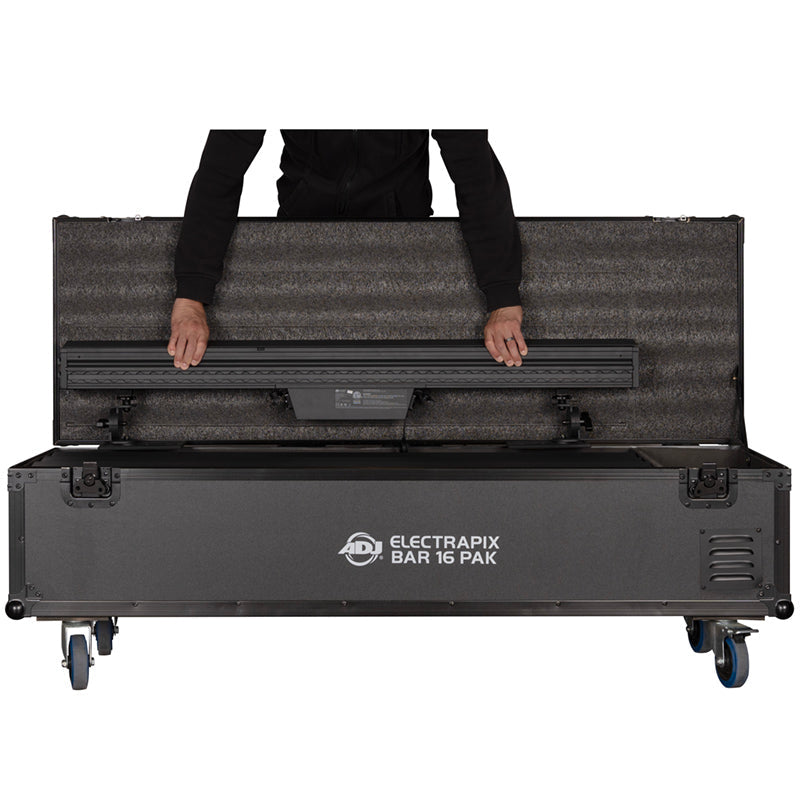

The ElectraPix Bar 16 Pak features four (4) ElectraPix Bar 16 Battery powered, wireless DMX LED linear fixtures housed in a robust road case with dedicated charging slots for each fixture. It is supplied with an ADJ UC-IR24 remote control that allows simple color selection as well as a power cable which plugs into the side of the case for in-case charging.
Specifications
ElectraPix Bar 16 Pak Includes:
- (4) ElectraPix Bar 16 Pak (Fixtures)
- (1) ElectraPix Bar 16 FC (Flight Case)

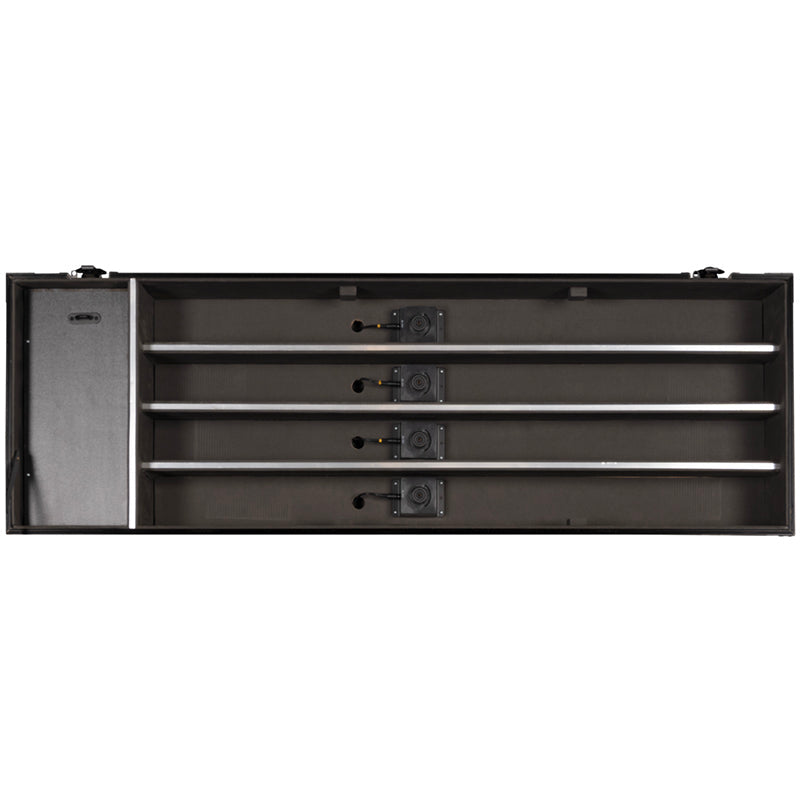

- (4) ElectraPix Bar 16 Charging Bases
- (1) UC-IR24 Wireless Infrared Controller
- (4) IP65 Locking Power Cable
ElectraPix Bar 16 Pak Features:
- Houses / Transports and Charges (4) ElectraPix Bar 16 fixtures
ElectraPix Bar 16 Pak Dimensions / Weight (loaded case with 4 fixtures):
- Length: 56.8\" (1443mm)
- Width: 19.6\" (498.4mm)
- Vertical Height: 18.1\" (459.9mm)
- Loaded Weight: 192 lbs. (87 kg)

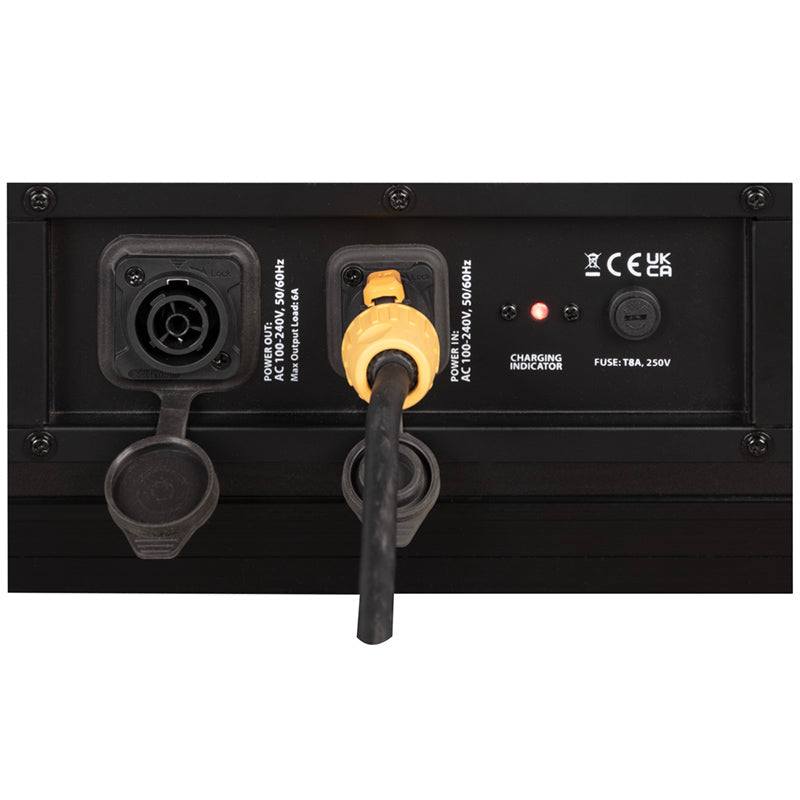

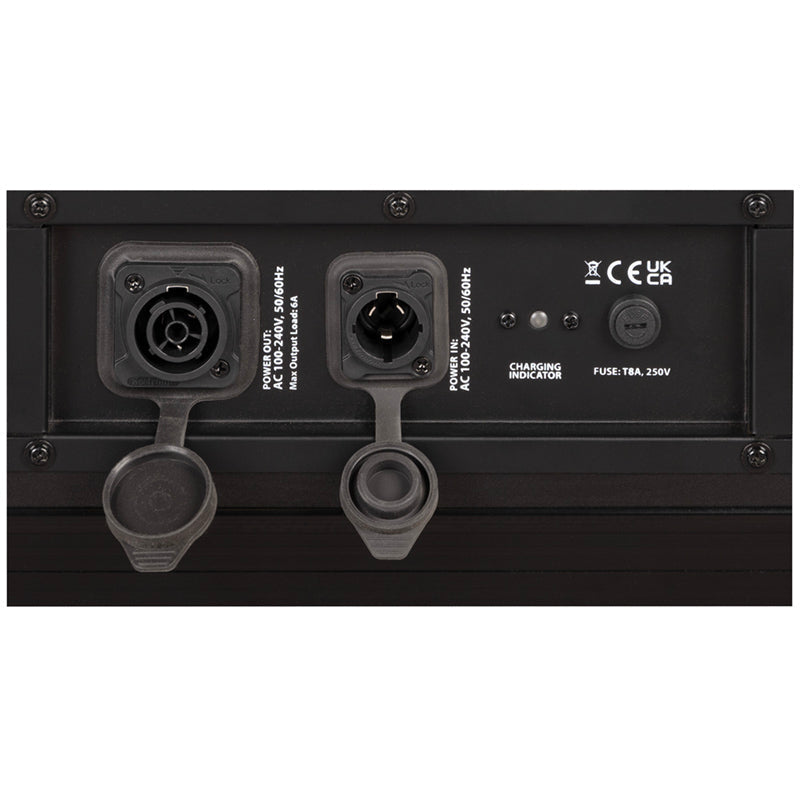

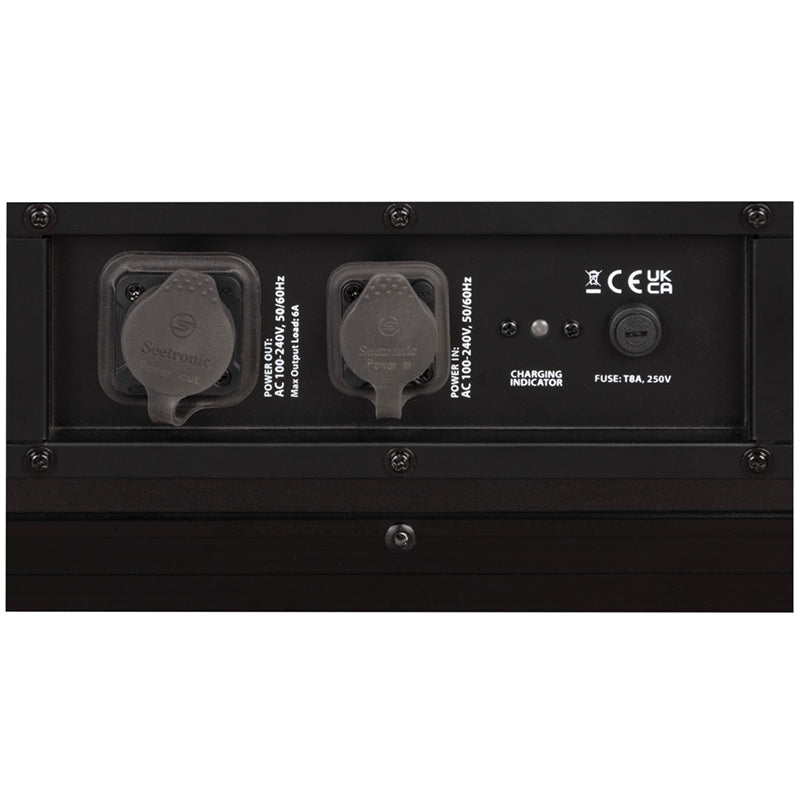

Flight Case Electrical / Thermal:
- Power Input: AC100VAC~240VAC, 50/60Hz
- IP65 Power Locking Input and Output
- Max Power Consumption: 400Watts
- Power Draw: 4A @ 120VAC or 2A @ 230VAC
- Charge status indicator
- 14°F to 113°F (-10°C to 45°C)
ELECTRAPIX BAR 16 FIXTURE SPECIFICATIONS:
Features:
16 Pixel, Hex Color LED (RGBAL+UV) LED Bar
Battery or Wall Powered
Up to 20 Hour Battery Operation
Individual Pixel Control
Built-In Foreground LED Programs
Built-In Background LED Programs
Variable White Color Temperature Control (2,300K ~ 9,900K)
English Spanish User Menu
Built-In Alarm
Color Calibrated LED's
User Selectable LED Refresh Rates (900Hz ~ 25K)
6 User Selectable Dim Modes
4 User Selectable Dim Curves
Electronic Strobe (0.3Hz ~ 11Hz)
Electronic Dimming
Attach up to two (2) ElectraPix Bar 16 to the Accu Stand VFB1 vertical floor base
Source:
(16) 20W Hex Color RGBAL+UV Foreground LEDs
(66) 0.2W RGB Background LED's
50,000 Hour Average Life*
*May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
Optical:
2,300K ~ 9,900K White Color Temperature Range
17° Beam Angle
45mm Lens Diameter x16
Physical:
IP65 Housing
OLED Digital display
L Track system for locking accessories / rigging
Glare Shield
Diffusion Filter slot
Angle adjustable feet
Horizontal slide lock to attach additional ElectraPix Bar 16 or ElectraPix Bar 8
Control:
DMX512
Aria X2 Wireless Management / DMX System
Bluetooth
RDM and RDM Net Compatible
IR (Includes UCIR24 wireless remote)
(9) DMX Channel Modes (5, 6, 9,13, 21, 24, 96, 99 114 Channel modes)
On-board Manual Control Mode
Primary / Secondary Mode
Connections:
5pin XLR Outdoor DMX In/Out Sockets (Must be used with STRxxx, 5pin DMX cables to create IP65 seal)
Outdoor Locking Power Sockets
Battery Charging Socket
Dimensions Weight:
Length: 3.72\" (94.5mm) Width: 45.6\" (1158. 7mm) Height: 10.6\" (268. 7mm)
Weight: 26.9 lbs. (12.2 kg)
Power:
AC100-240V/50Hz-60Hz Input
90W Power Consumption
Link 10 pieces @120VAC or 18 pieces @ 230VAC
Battery:
Rechargeable Lithium ion
Battery Capacity: 14,000mAh
Battery Voltage: 22.2V
Charge Time, AC Power: 5.5 Hours (To Full)
Charge Time, Flight Case: 5.5 Hours (To Full)
Up to 20 Hour Battery Operation
Battery Cycles: 500
Thermal:
Ambient Operational Temperature: -4°F to 113°F (-20°C to 45°C)
Storage Temperature: -22°F to 113°F (-30°C to 45°C)
Certifications IP Rating:
CE
cETLus (Control # 4002034)
FCC
IP65
Included Accessories:
(1) Outdoor Locking Power Cable
(1) UCIR24 Remote
(1) 20° Diffusion Filter
Optional Accessories:
Accu Stand VFB1 (Floor Base)
LTrack A2 (LTrack Adapter Only)
LTrack CA2 (LTrack Adapter with Narrow Clamp)
EPIX B816 IPCB: replacement charging base and power supply
Specifications and documentation subject to change without notice.
