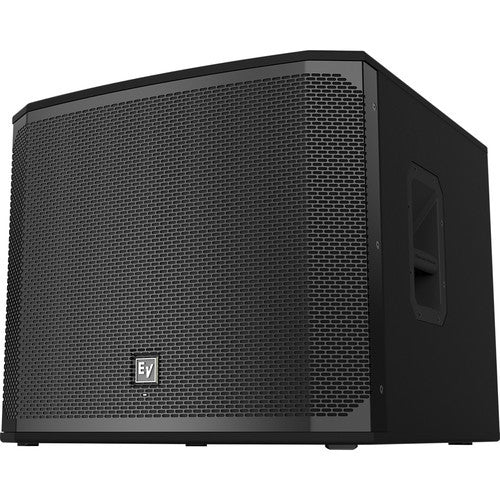

Electro Voice EKX18S EKX-18S Passive 18" Subwoofer

$1,259.00 $699.00

Features: The EKX-18S Passive 18" Subwoofer from Electro-Voice has a 1600W peak and delivers up to 134 dB peak SPL utilizing high-sensitivity transducers. The EKX amplifier incorporates intelligent thermal management (with a variable-speed fan controlled by onboard sensors).The EKX-18S is ideal for portable and installed applications. It has a lightweight...

Qty:
Features:

The EKX-18S Passive 18" Subwoofer from Electro-Voice has a 1600W peak and delivers up to 134 dB peak SPL utilizing high-sensitivity transducers. The EKX amplifier incorporates intelligent thermal management (with a variable-speed fan controlled by onboard sensors).The EKX-18S is ideal for portable and installed applications. It has a lightweight and compact 15mm wood enclosure with internal bracing, durable EVCoat finish, eight M10 threaded mounting points, aluminum pole-mounts, and metal handles.

  • 1600 W (peak), 134 dB peak SPL utilizing high sensitivity transducers
  • Lightweight, compact 15mm wood enclosure with internal bracing, and durable EVCoat finish
  • Large slot ports for low distortion and excellent bass extension
  • Two metal grille reinforcement bars
  • M20 threaded pole mount plate.
  • Specifications:

  • Axial Sensitivity: 96 dB (SPL 1 W/3.3' (1 m)
  • Connector Type: Dual NL4
  • Coverage: Nominal: -6 dB
  • Horizontal: 90°¸
  • Vertical: 60°¸
  • Enclosure Material: 15 mm plywood with EVCoat
  • Frequency Response: -10 dB: 35 to 300 Hz
  • -3 dB: 50 to 100 Hz
  • Grille: 18 AWG steel with powder-coat
  • Low Frequency Transducer: EVS-18C 18" (457 mm)
  • Maximum SPL: 134 dB
  • Impedance: Minimum: 7 ohms
  • Nominal: 8 ohms
  • Power Handling: Continuous: 400 W
  • Peak: 1600 W
  • High Pass Crossover: 30 Hz (recommended frequency)
  • Dimensions: 20.47 x 23.86 x 24.09" (52.0 x 60.6 x 61.2 cm)
  • Weight: 70.11 Lbs. (31.8 kg)


  • Model: EKX18S
    Manufacturer: Electro Voice
