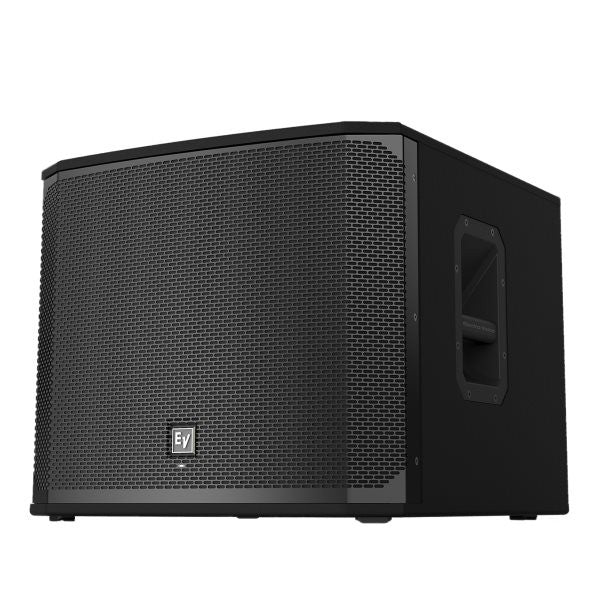

Electro Voice EKX15S EKX-15S Passive 15" Subwoofer

$1,127.00 $629.00

Features: 15-Inch Passive Subwoofer Features: 1600 W (peak), 133 dB peak SPL on the EKX-15S utilizing highsensitivity transducers designed and engineered by EV. Lightweight, compact 15-mm wood enclosure with internal bracing, and durable EVCoat finish. Large slot ports for low distortion and excellent bass extension. Metal grille reinforcement bar (two...

Qty:
Features:

15-Inch Passive Subwoofer

Features:

  • 1600 W (peak), 133 dB peak SPL on the EKX-15S utilizing highsensitivity transducers designed and engineered by EV.
  • Lightweight, compact 15-mm wood enclosure with internal bracing, and durable EVCoat finish.
  • Large slot ports for low distortion and excellent bass extension.
  • Metal grille reinforcement bar (two bars on the EKX-18S).
  • M20 threaded pole mount plate.
  • Specifications:
  • Axial Sensitivity (SPL, 1 W @ 1 m): 95 dB
  • Maximum SPL: 133 dB Maximum SPL is measured at 1 m using broadband pink noise at rated peak power rating
  • Nominal Impedance: 8 O
  • Power Handling (Continuous / Peak): 400 W/1600 W
  • Frequency Response (-3 dB): 60 Hz - 100 Hz Half Space Measurement
  • Frequency Response (-10 dB): 40 Hz - 300 Hz Half Space Measurement
  • Recommended High-Pass Frequency: 35 Hz
  • LF Transducer: EVS-15C 381 mm (15 in)
  • Minimum Impedance: 7.5 O
  • Connector Type: Dual NL4
  • Enclosure Material: 15 mm, plywood with EVCoat
  • Grill: 18 AWG steel with powdercoat
  • Height: 455 mm (17.91")
  • Width: 530 mm (20.87")
  • Depth: 551 mm (21.69")
  • Weight Net: 24.9 kg (54.9 Lbs.)
  • Shipping Weight: 31.3 kg (69 Lbs.)


  • Model: EKX15S
    Manufacturer: Electro Voice
