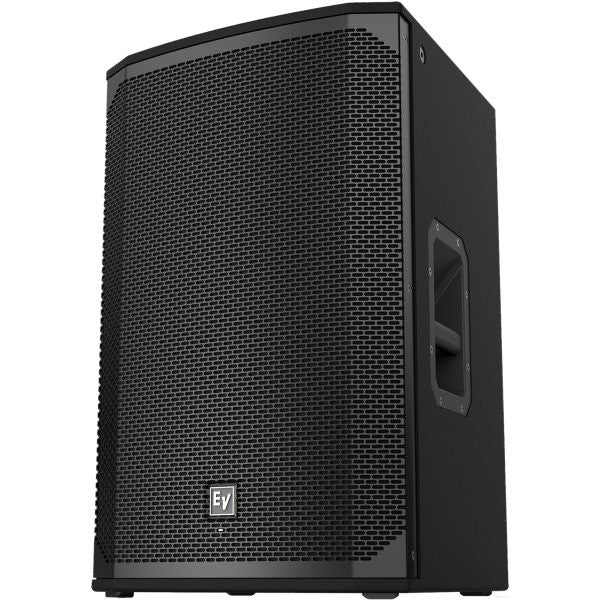

Electro Voice EKX15 EKX-15 Passive 15" 2-Way Speaker
$1,127.00
$629.00
Features: 15-Inch Two-Way Passive Loudspeaker Features: 1600 W (peak), 132 dB peak SPL utilizing high-sensitivity transducers designed and engineered by EV. EV-patented Signal Synchronized TransducersTM (SST) waveguide design provides precise and consistent coverage. Lightweight, compact 15-mm wood enclosure with internal bracing, and durable EVCoat finish. Eight M10 threaded mounting points,...
Features:
15-Inch Two-Way Passive Loudspeaker1600 W (peak), 132 dB peak SPL utilizing high-sensitivity transducers designed and engineered by EV.
EV-patented Signal Synchronized TransducersTM (SST) waveguide design provides precise and consistent coverage.
Lightweight, compact 15-mm wood enclosure with internal bracing, and durable EVCoat finish.
Eight M10 threaded mounting points, aluminum pole mounts, and all-metal handles.
90°¸ x 60°¸ pattern for best coverage on mid-size stages. 40°¸ monitor angle with rubber feet.
Specifications:
Axial Sensitivity (SPL, 1 W @ 1 m): 96 dB Full Space Measurement
Maximum SPL: 132 dB Maximum SPL is measured at 1 m using broadband pink noise at rated peak power rating
Nominal Impedance: 8 O
Power Handling (Continuous / Peak): 400 W/1600 W
Frequency Response (-3 dB): 75 Hz - 18 k Hz Full Space Measurement
Frequency Response (-10 dB): 50 Hz - 20 k Hz Full Space Measurement
Recommended High-Pass Frequency: 50 Hz
Coverage (Nominal -6 dB) H: 90 °¸
Coverage (Nominal -6 dB) V: 60 °¸
LF Transducer: EVS-15M 381 mm (15 in)
HF Transducer: DH-1M 1-inch titanium compression driver
Crossover Frequency: 1.6 k Hz
Minimum Impedance: 7.2 O
Connector Type: Dual NL4
Enclosure Material: 15 mm, plywood with EVCoat
Grill: 18 AWG steel with powdercoat
Suspension: (8) M10 threaded mounting points
Height: 685 mm (26.97")
Width: 432 mm (17.01")
Depth: 429 mm (16.89")
Weight Net: 23.2 kg (51.15 Lbs.)
Shipping Weight: 28.2 kg (62.17 Lbs.)
15-Inch Two-Way Passive Loudspeaker
Features:
| Model: | EKX15 |
| Manufacturer: | Electro Voice |
